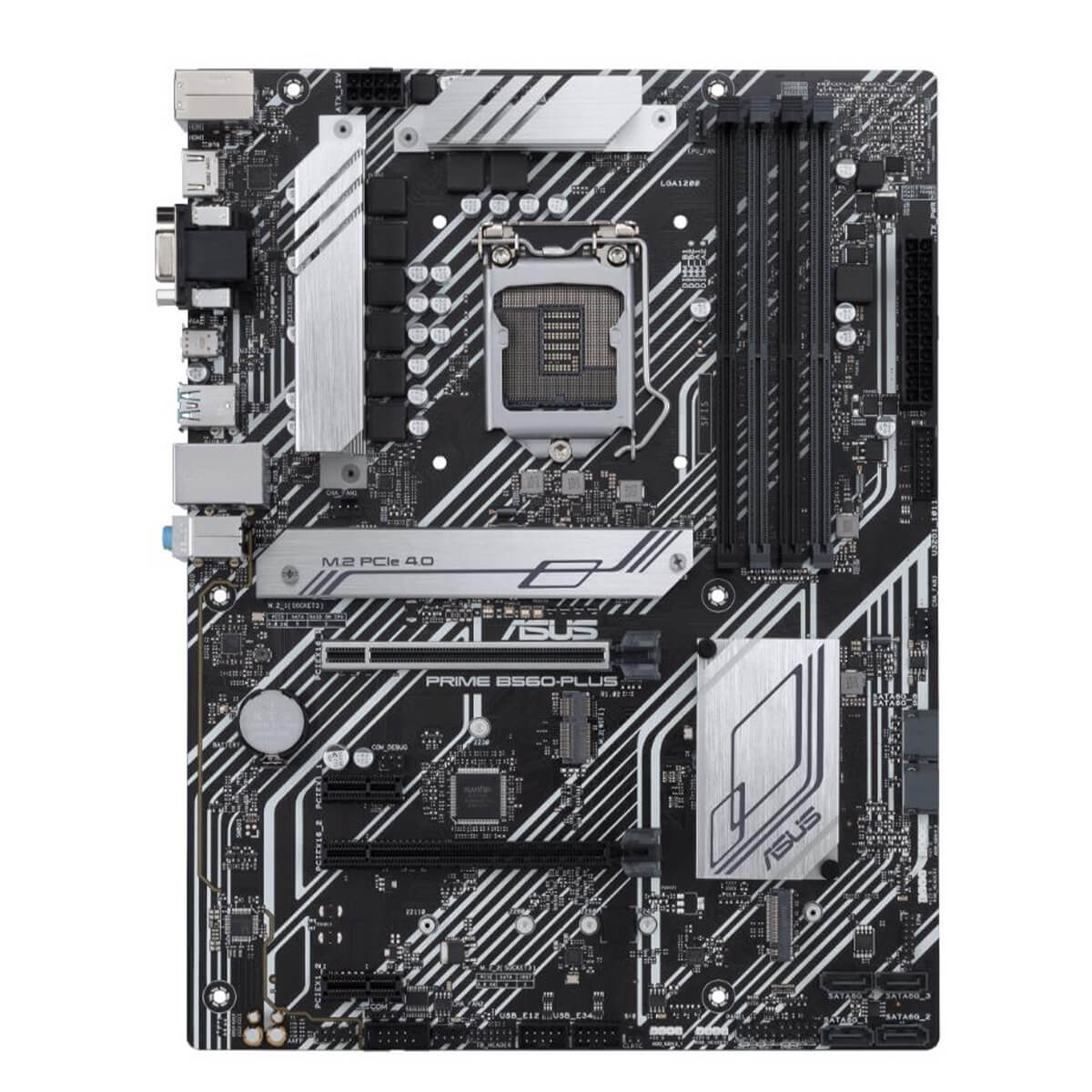

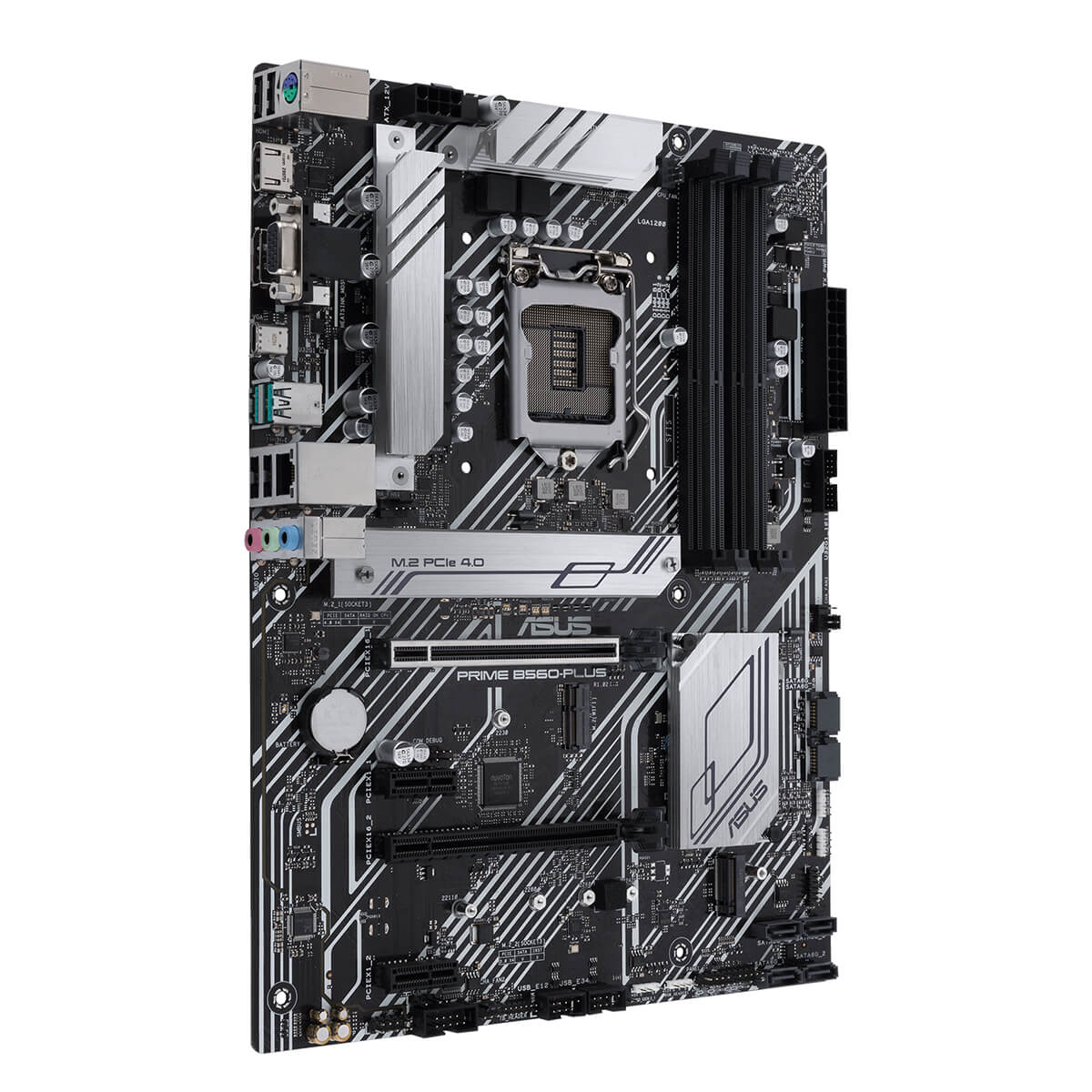

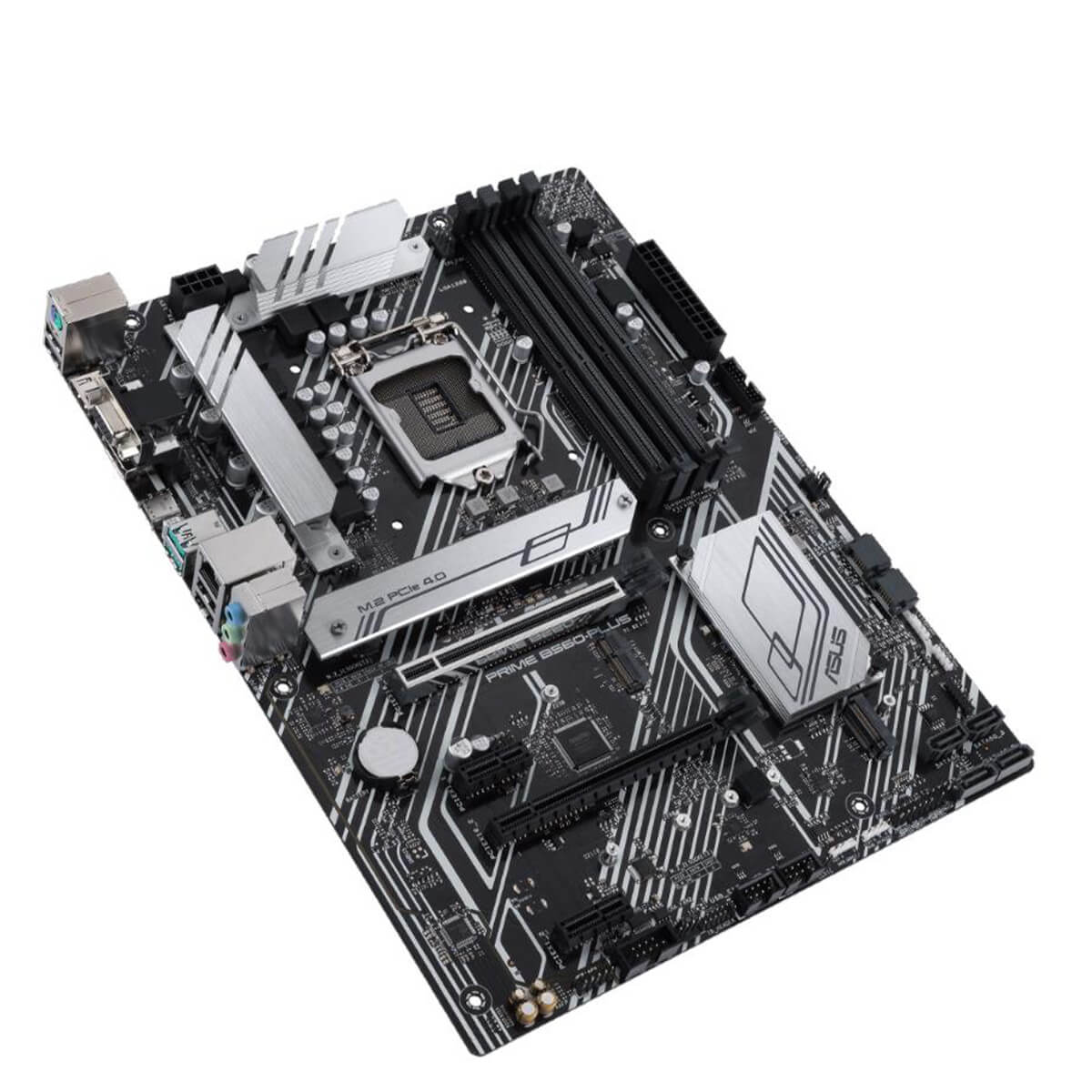

ASUS PRIME B560 PLUS Motherboard

Prime

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B560-PLUS provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime B560 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity.

M.2 Heatsink

An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slot.

VRM Heatsinks and Thermal Pads

Two massive VRM heatsinks and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

Dual M.2 slots (up to 64 Gbps)

PRIME B560-PLUS offers a total of two M.2 slots, with one slot supporting data-transfer speeds of up to 64 Gbps via PCI Express® 4.0, enabling quicker boot-up and app load times with OS or application drives.

Built on a Solid Foundation

Prime B560 series is built to handle the additional cores and increased bandwidth of 11th Generation Intel® Core™ processors. ASUS B560 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.

PCIe® 4.0 Slot

ASUS B560 motherboards are designed specifically for 11th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.

USB 3.2 Gen 2 Type-A

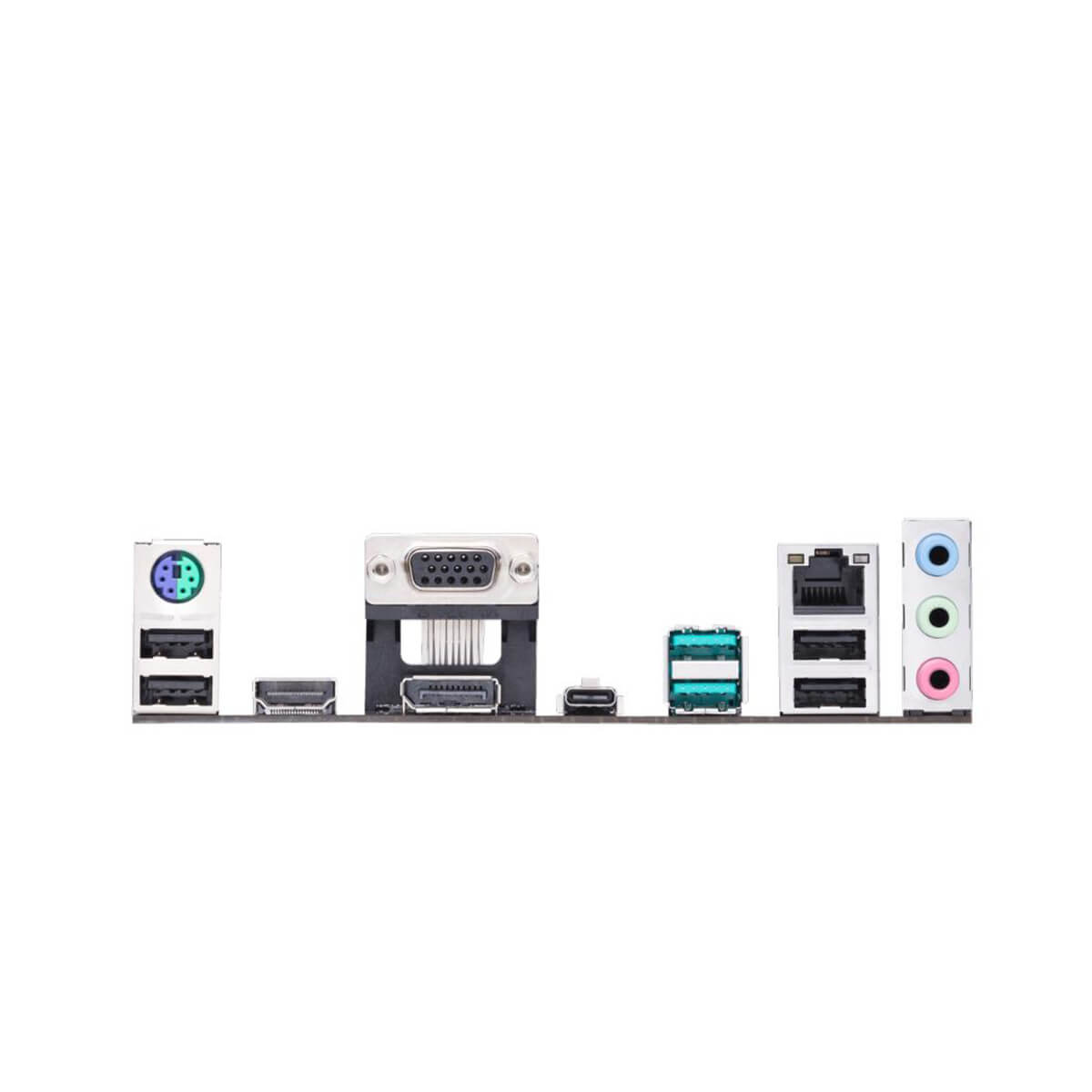

Numerous USB ports support high-end rigs loaded with peripherals, including a rear-panel USB Type-A connectors with fast USB 3.2 Gen 2 connectivity for compatible cases.

Thunderbolt™ 4 header Support

Prime B560-PLUS features Thunderbolt™ 4 support via an on-board header. With the latest Intel-certified ASUS TunderboltEX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices.

Outstanding Audio

Combined onboard features deliver elevated audio

Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.

Audio Shielding

Separates analog/digital signal domains, significantly reducing multi-lateral interference.

Separate Layer for Left and Right Tracks

Ensures minimal crosstalk between audio paths.

Premium Japanese Capacitors

Premium parts provide an immersive sound signature, with exceptional fidelity.

Aura Sync - Outshine the Competition

A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

SafeSlot Core+

SafeSlot Core+ is the ASUS-exclusive PCIe slot fortified with a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.

Armoury Crate

Armoury Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard and mouse preferences. Armoury Crate even features dedicated product registration and news to help you stay in touch with the ASUS community.
