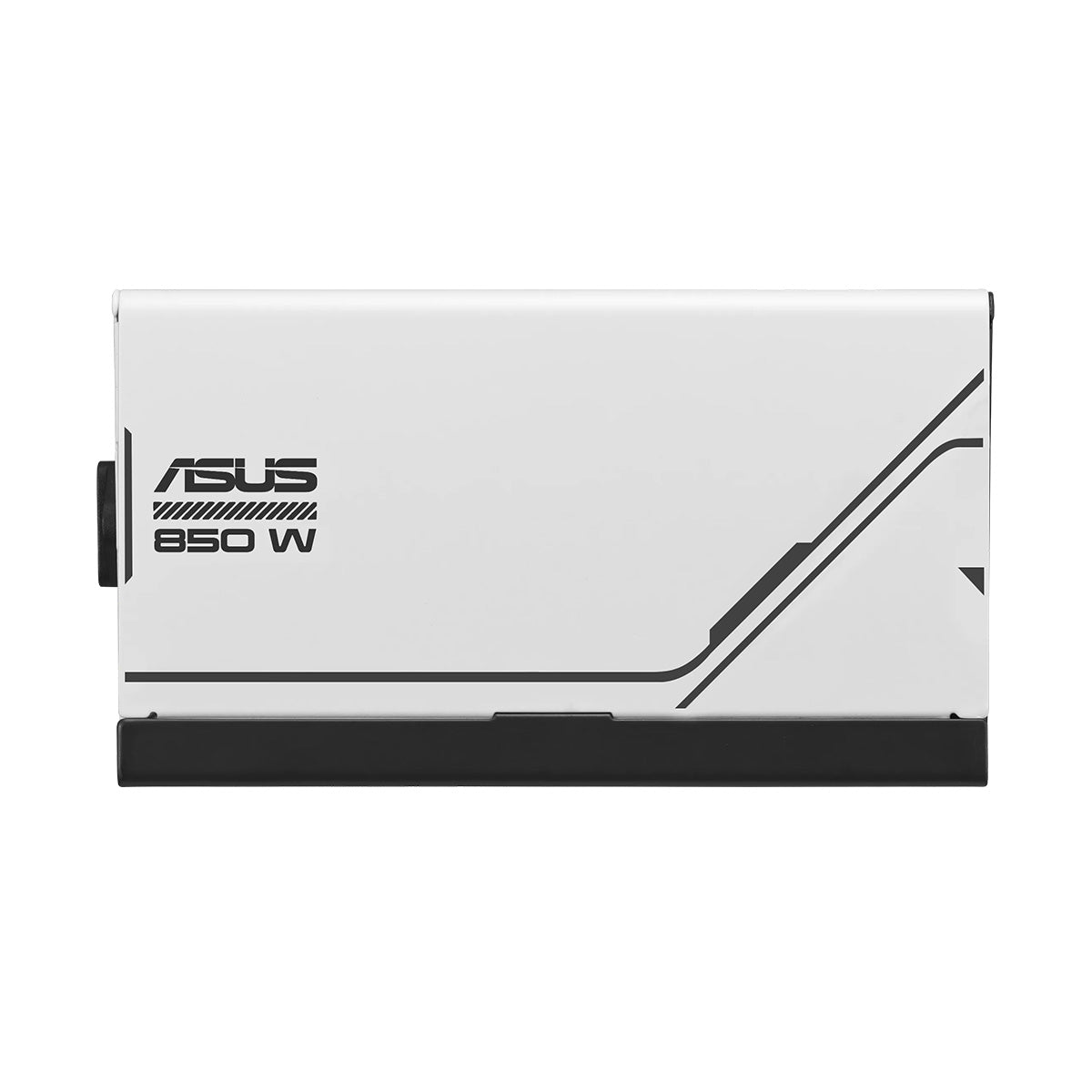

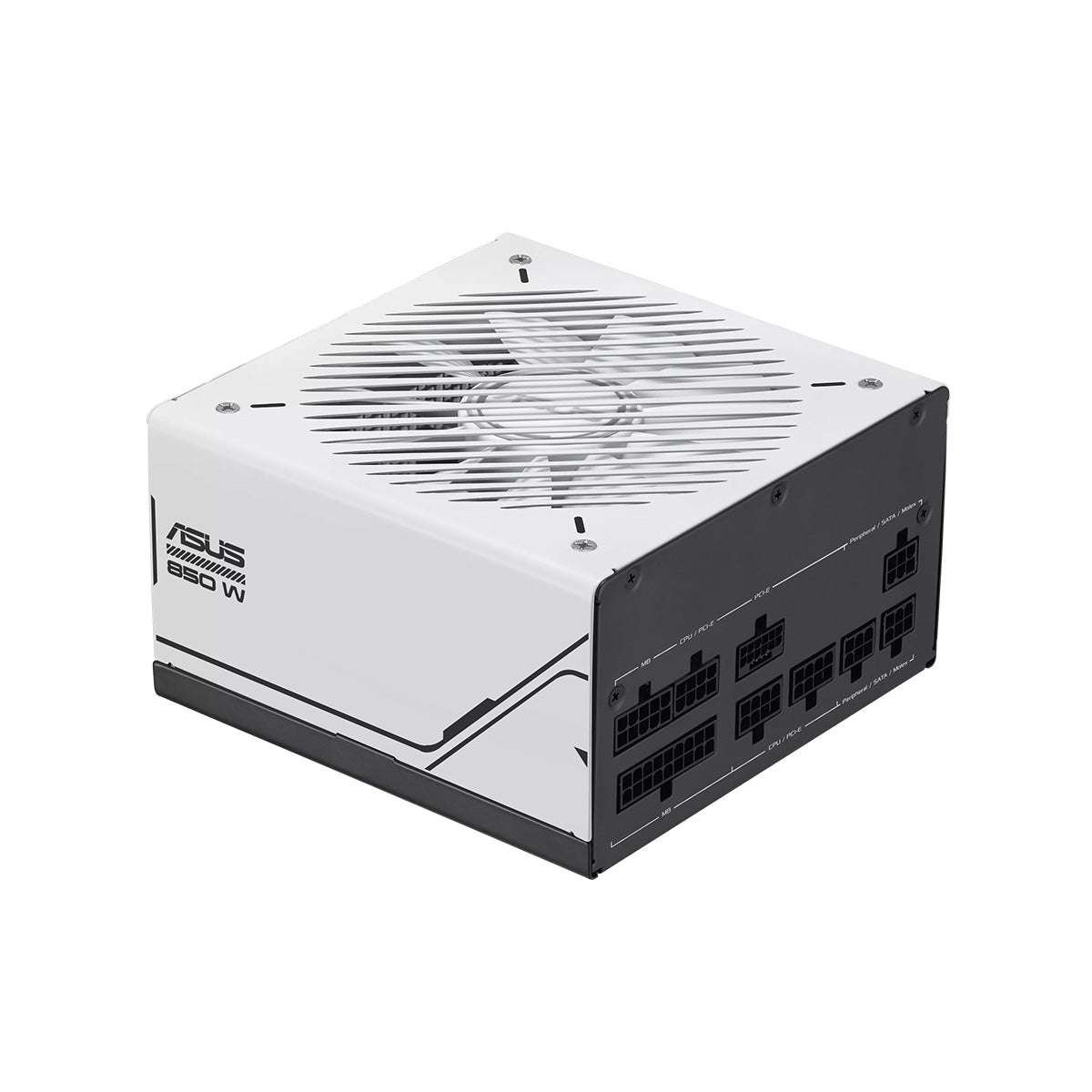

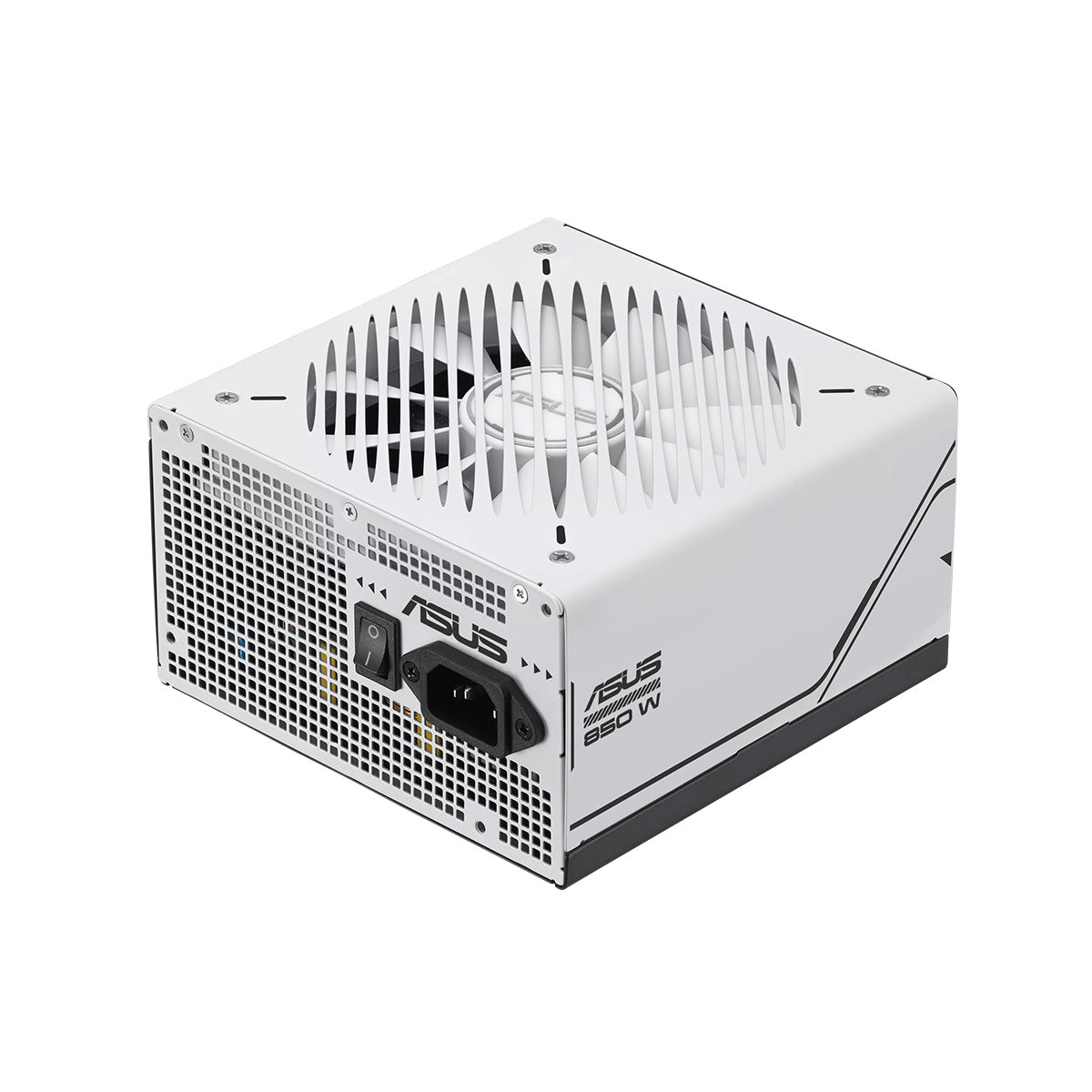

ASUS Prime 850W 80 Plus Gold Fully Modular Power Supply
Warranty and Support
Warranty and Support
Warranty: 8 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
PRIME PERFORMANCE
- Dual ball fan bearings that can last up to twice as long as sleeve bearing designs.
- An 80 Plus gold certification is the result of low-ESR capacitors and other premium components.
- ATX 3.0 compatible: ASUS Prime Gold is compliant with ATX 3.0 guidelines and bundled with a 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards.
- 8-year warranty included.
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.

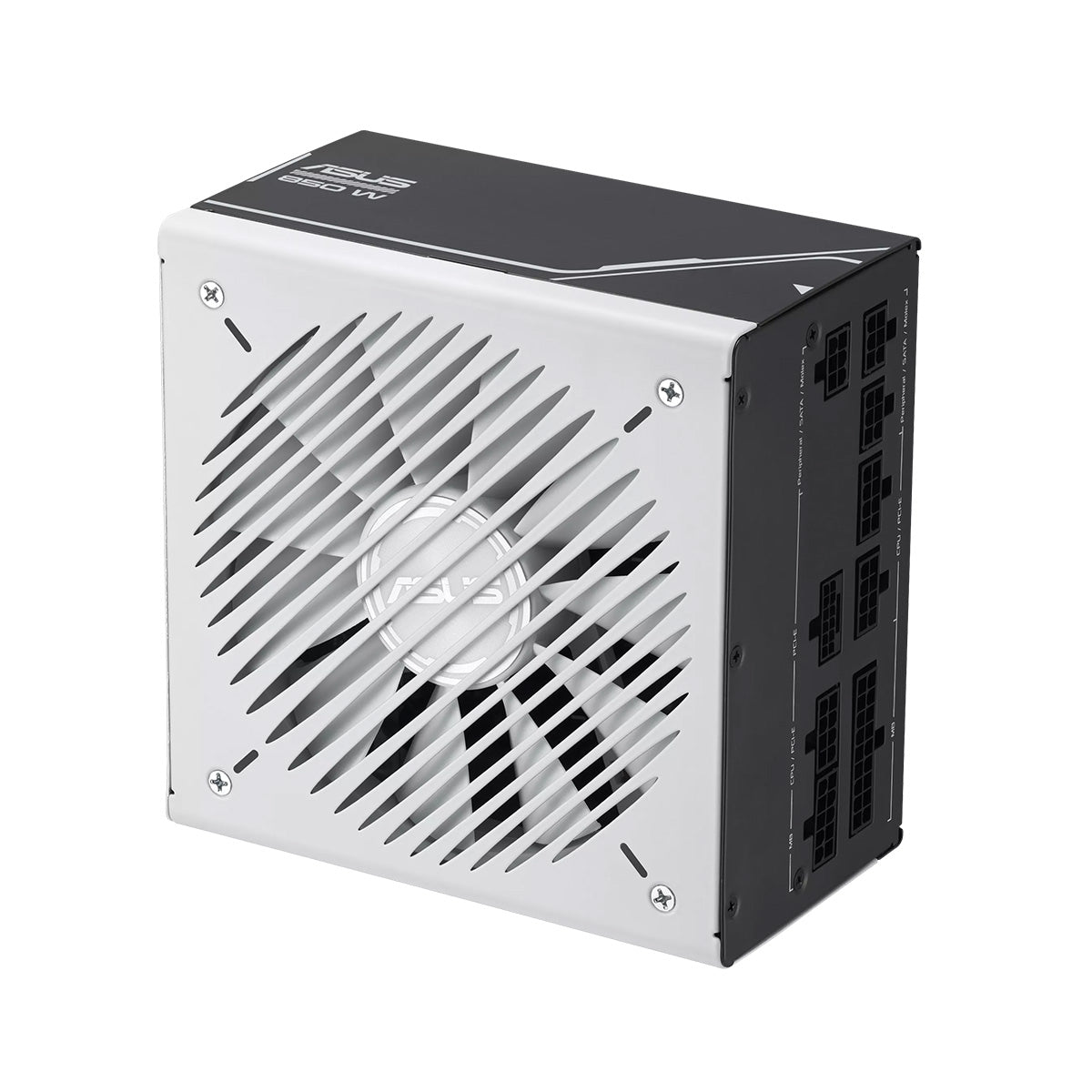

DUAL BALL FAN BEARINGS
Exemplary cooling is provided by a 135mm fan spinning on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.
80 PLUS GOLD CERTIFICATION
The ASUS Prime 750W Gold PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
ATX 3.0 COMPATIBLE
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ASUS Prime 850W Gold steps ahead of the curve by being fully compliant. A 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities.
CHOOSE YOUR STYLE
Two sides of the housing are painted white, and two sides are painted black, allowing you to orient the PSU to match your preferred build theme.
8-YEAR WARRANTY
We're so sure about the reliability of the ASUS Prime 850W Gold that we back it with an 8-year warranty.
Specifications
Specifications
| Model | AP-850G |
| Intel Form Factor | ATX12V |
| PFC Type | Active PFC |
| ATX Standard | ATX 3.0 |
| Dimensions | 150 x 150 x 86 mm |
| Efficiency | 80Plus Gold |
| MTBF | >120,000 hrs @ 25°C |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | 100-240Vac |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 20A20A70.5A 0.3A 2.5A |
| Combined Load | 110W 110W 846W 3.6W 12.5W |
| Total Output | 850W |

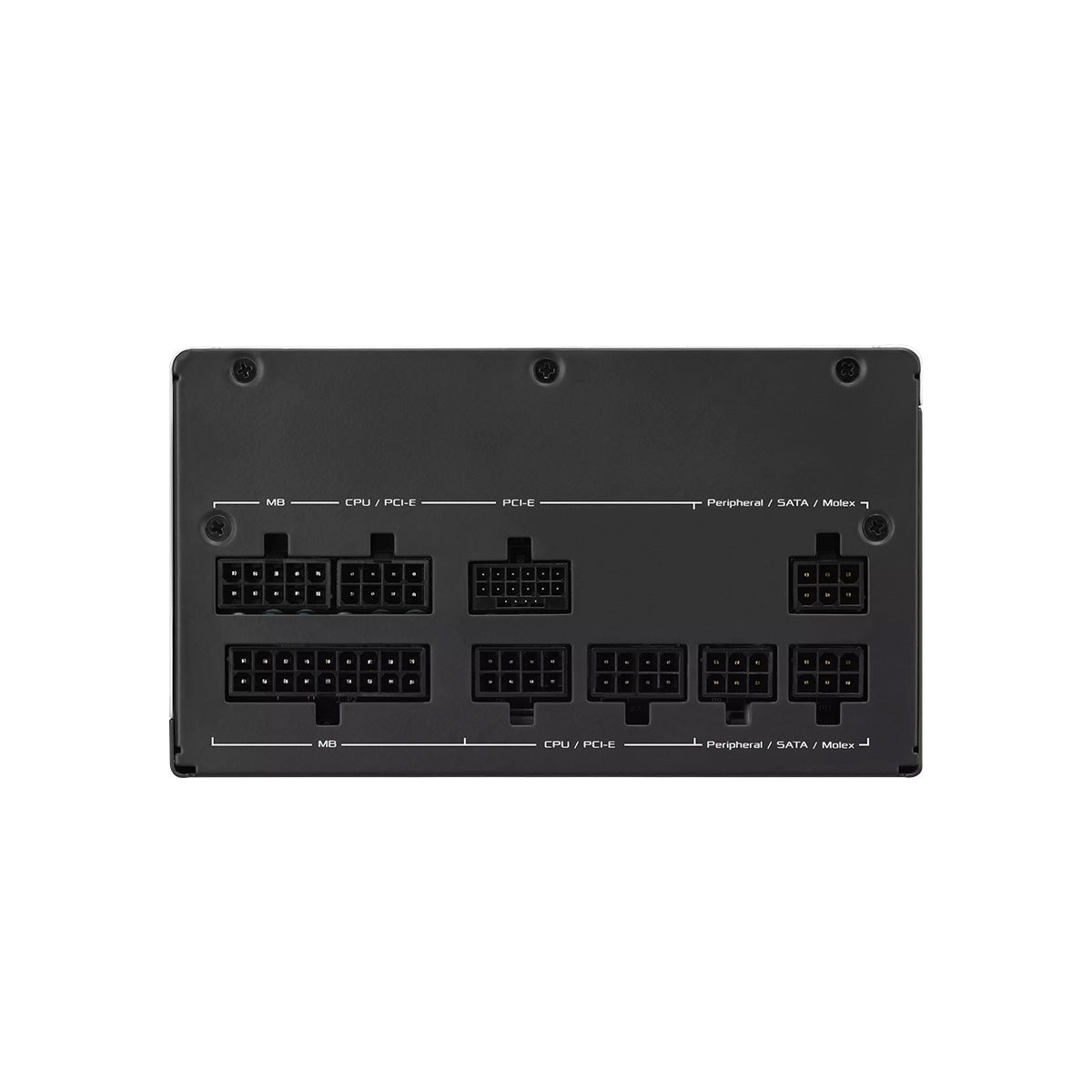

| Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & connector side) PCI-E 8-pin x 3 SATA x 5 PERIPHERAL x 3 |
| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5 16-pin Cable x 1 (675mm) PCI-E (16-pin to 8-pin-8-pin) Cable x1 (675mm) PCI-E 1-to-1 Cable x 1 (675mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-3 Cable x 1 (400+150+150mm) User Manual x 1 |
| Weight | 1.502 kg (single PSU) |
| 0dB Technology | No |
| 0dB Fan Button | No, this product is without 0dB technology. |
