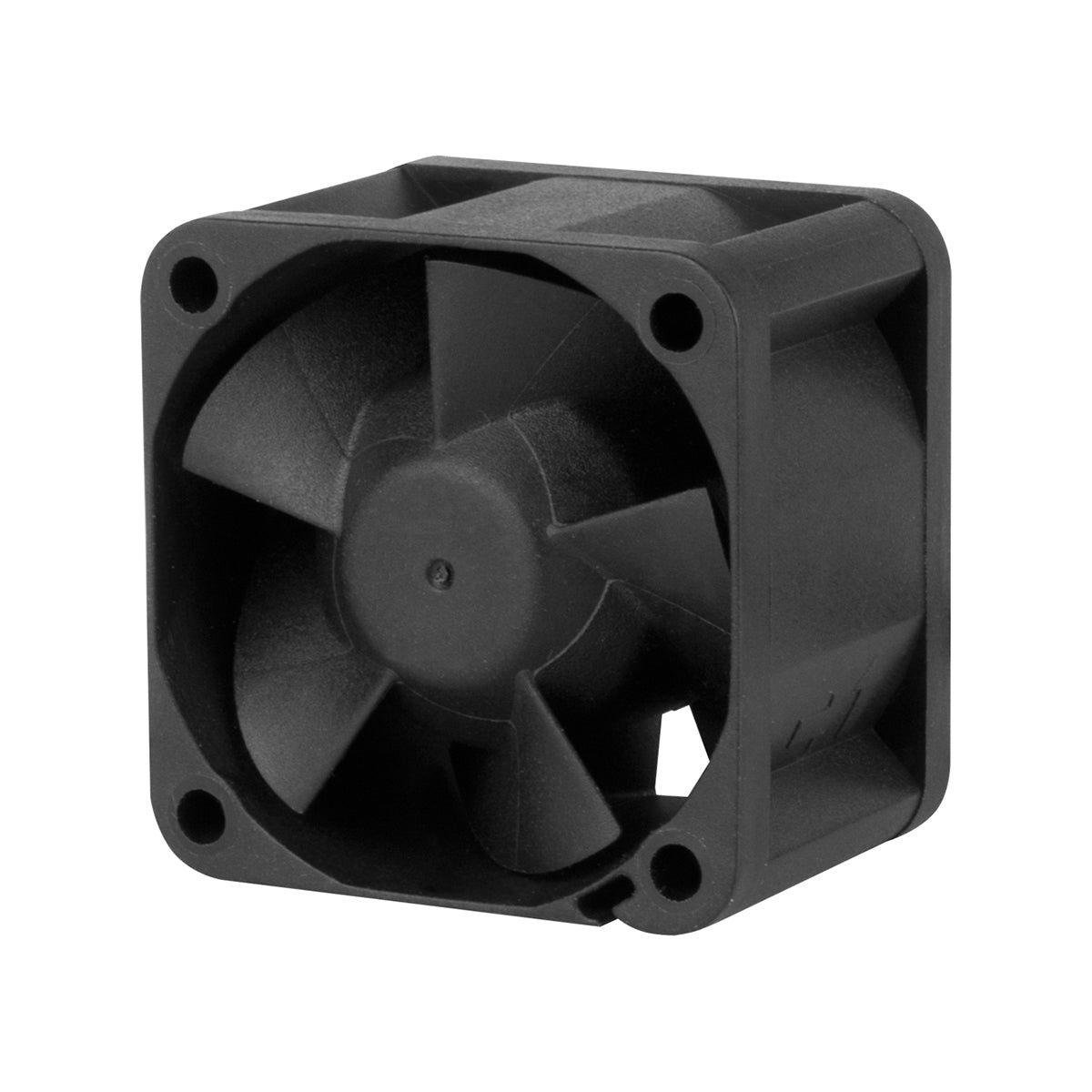

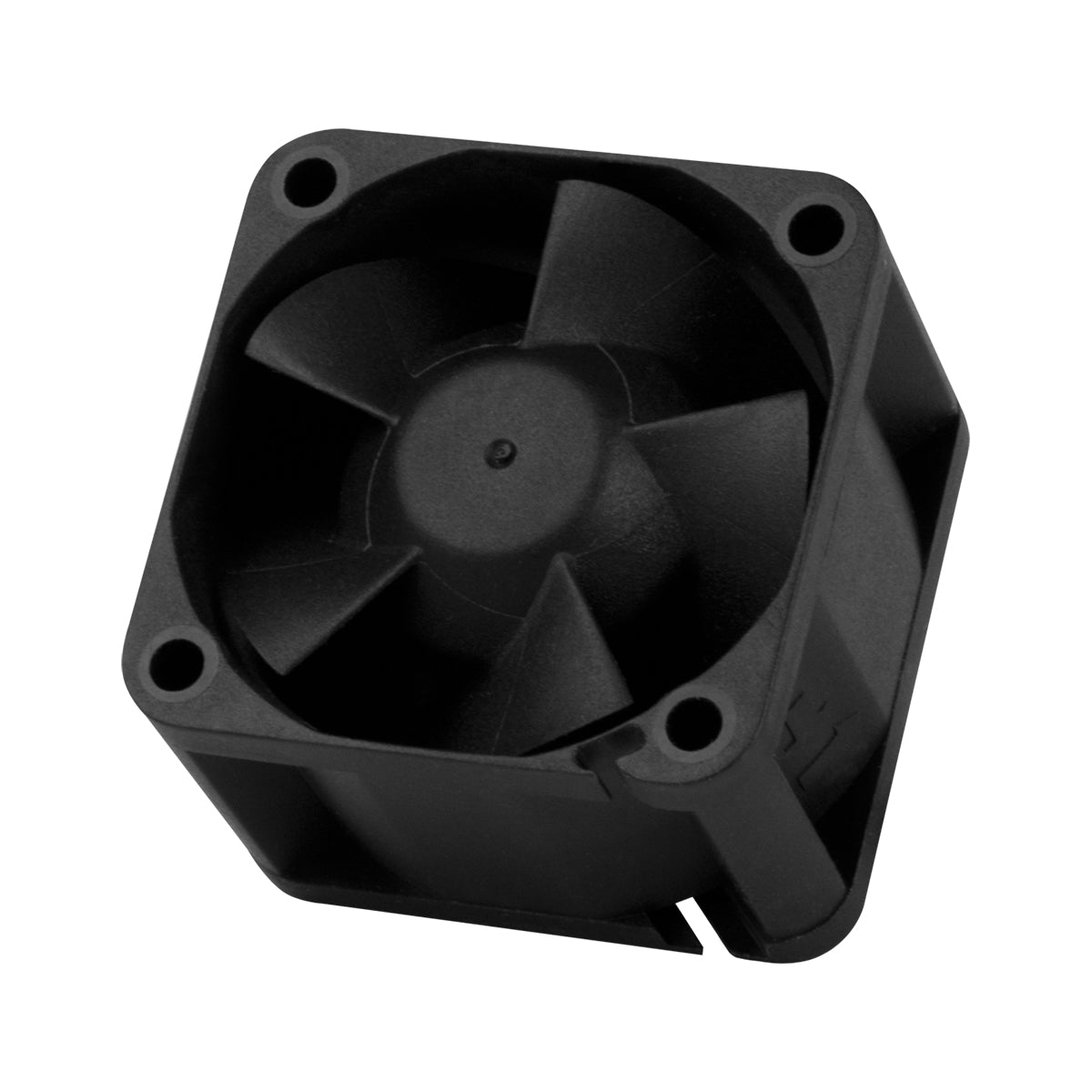

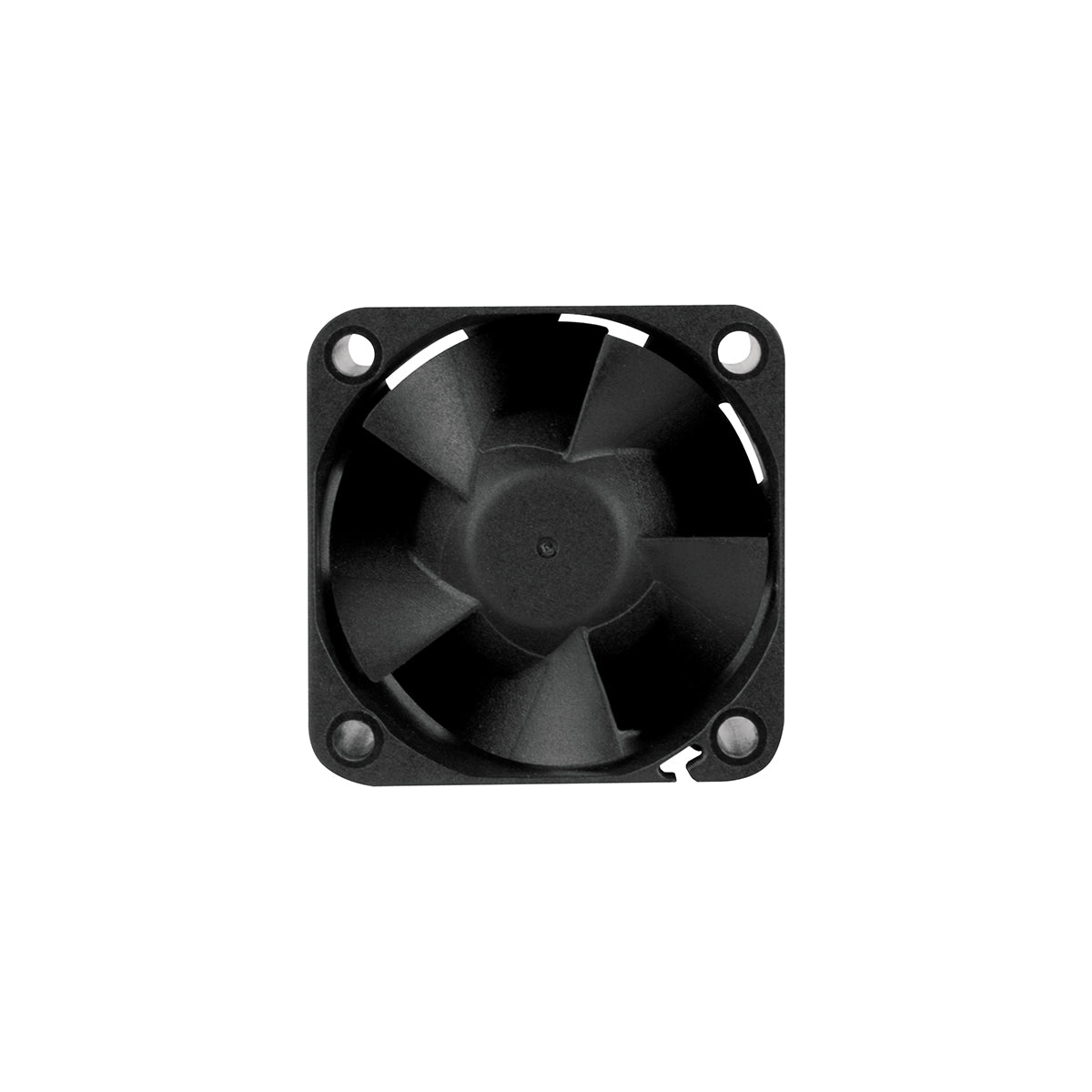

Arctic S4028-6K PWM 40mm 6000 RPM Server Fan
Designed for Server and Industrial Applications| High-Quality Bearing Designed for Continuous Operation | High Airflow and Static Pressure
Warranty and Support
Warranty and Support
Warranty: 6 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Designed for Continuous Operation
The impeller of the S4028-6K is held by two high-quality Japanese ball bearings in a sturdy brass housing. This design increases the stability, strength, and perpendicularity of the fan and minimizes sensitivity to influences such as heat and dust. In addition, the brass housing helps to reduce wear on high-speed fans.
Full Control with a Wide Speed Range
The S4028-6K has a very wide speed range that can be regulated via PWM and voltage. With its 6000 rpm max, it offers a good balance between cooling power and noise.
High Airflow and Static Pressure
With a static pressure of 4.2 mmH2O and a maximum airflow of 12.06 m³/h, the S4028-6K is a true all-rounder and is suitable as both a radiator and case fan.
Wide Range of Applications
The S4028-6K fits into 1U server cases and can serve as a replacement fan for routers, switches, and NAS. It can also be used for other products such as DVRs, mini PCs, HTPCs, hard drive enclosures, and 3D printers.
Flexible Connection Options
The fan has a standard 4-Pin fan connector and can also be connected to and controlled on 2-Pin or 3-Pin headers, while the 40cm cable allows a lot of flexibility in positioning.
Specifications
Specifications
Fan Speed | 250—6000 rpm |
Airflow | 7.1 cfm | 12.06 m³/h |
Speed Control | Pulse Width Modulation — PWM |
Static Pressure | 4.2 mmH2O |
Fan Frame | Standard |
Connector | 2510 4-Pin Fan-Connector |
Fan Bearing | Dual Ball Bearing |
Operating Ambient Temperature | 0—40 °C |
Warranty | 6 Years |
Starting Voltage | 4.5 V |
Current | Voltage | 0.1 A | 12.0 V DC |
Cable Length | 400 mm |

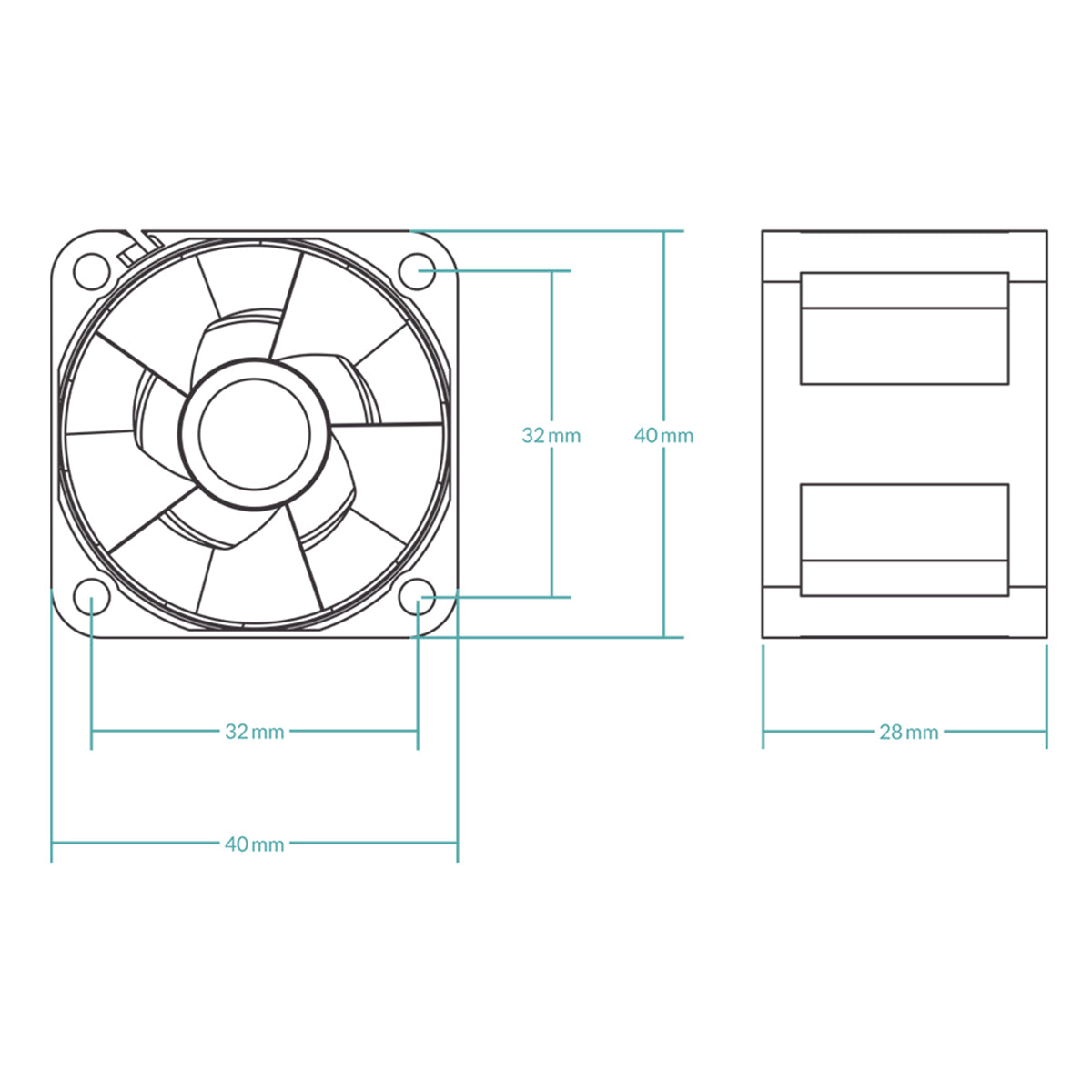

Length | 40 mm |
Width | 40 mm |
Height | 28 mm |
Weight | 40 g |
