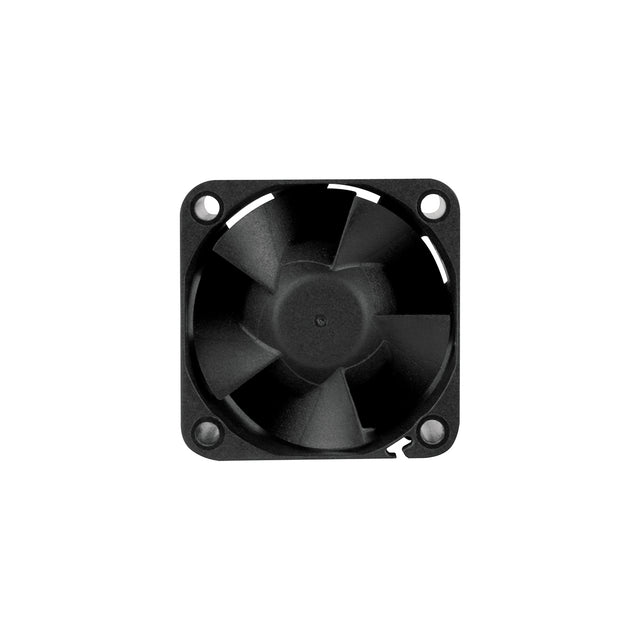

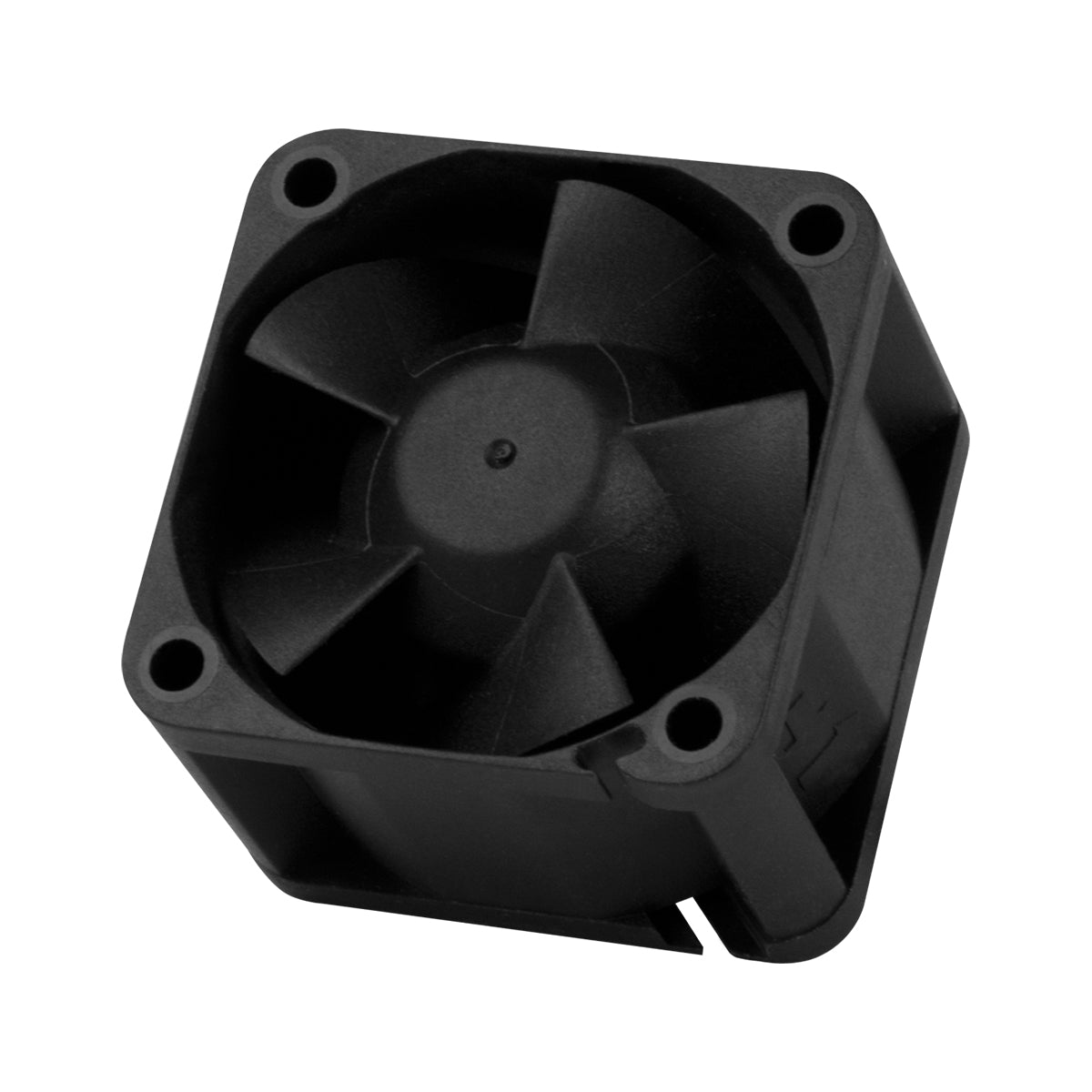

Arctic S4028-15K PWM 40mm 15000 RPM Server Fan

Designed for Server and Industrial Applications| High-Quality Bearing Designed for Continuous Operation | High Airflow and Static Pressure

Arctic  |  SKU 74226  |  MPN ACFAN00264A
$34.99

Warranty and Support

Warranty: 6 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

Designed for Continuous Operation

The impeller of the S4028-15K is held by two high-quality Japanese ball bearings in a sturdy brass housing. This design increases the stability, strength, and perpendicularity of the fan and minimizes sensitivity to influences such as heat and dust. In addition, the brass housing helps to reduce wear on high-speed fans.

Full Control with a Wide Speed Range

The S4028-15K has a very wide speed range that can be regulated via PWM and voltage. With its 15000 rpm max, it offers a high cooling capacity at a relatively low noise.

High Airflow and Static Pressure

With a static pressure of 26.5 mmH2O and a maximum airflow of 32.67 m³/h, the S4028-15K is a true all-rounder and is suitable as both a radiator and case fan.

Wide Range of Applications

The S4028-15K fits into 1U server cases and can serve as a replacement fan for routers, switches, and NAS. It can also be used for other products such as DVRs, mini PCs, HTPCs, hard drive enclosures, and 3D printers.

Flexible Connection Options

The fan has a standard 4-Pin fan connector and can also be connected to and controlled on 2-Pin or 3-Pin headers, while the 40cm cable allows a lot of flexibility in positioning.

Specifications

Fan Speed 1400—15000 rpm
Airflow 19.23 cfm | 32.67 m³/h
Speed Control Pulse Width Modulation — PWM
Static Pressure 26.5 mmH2O
Fan Frame Standard
Connector 2510 4-Pin Fan-Connector
Fan Bearing Dual Ball Bearing
Operating Ambient Temperature 0—40 °C
Warranty 6 Years
Starting Voltage 4.5 V
Current | Voltage 0.47 A | 12.0 V DC
Cable Length 400 mm

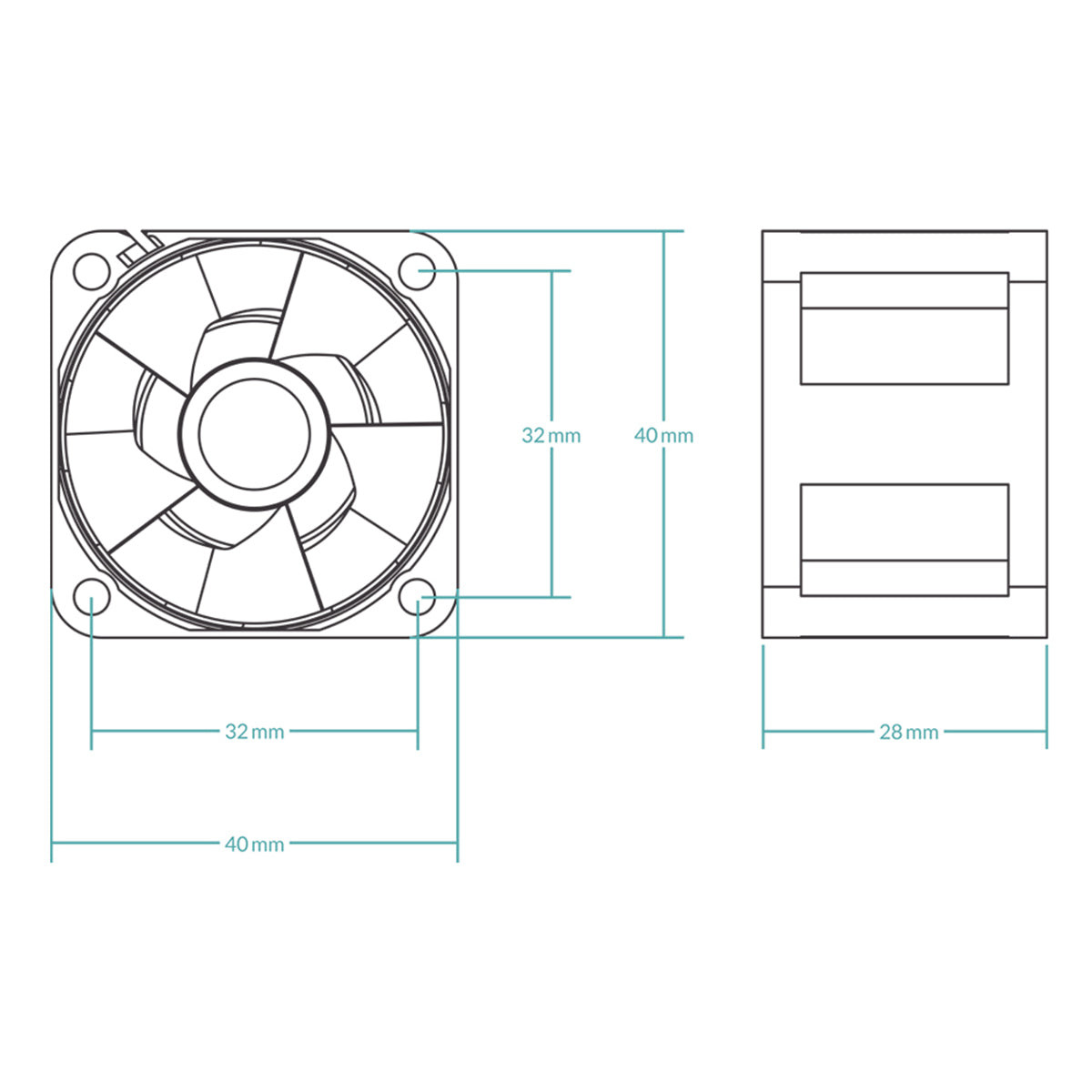

Length 40 mm
Width 40 mm
Height 28 mm
Weight 42 g
