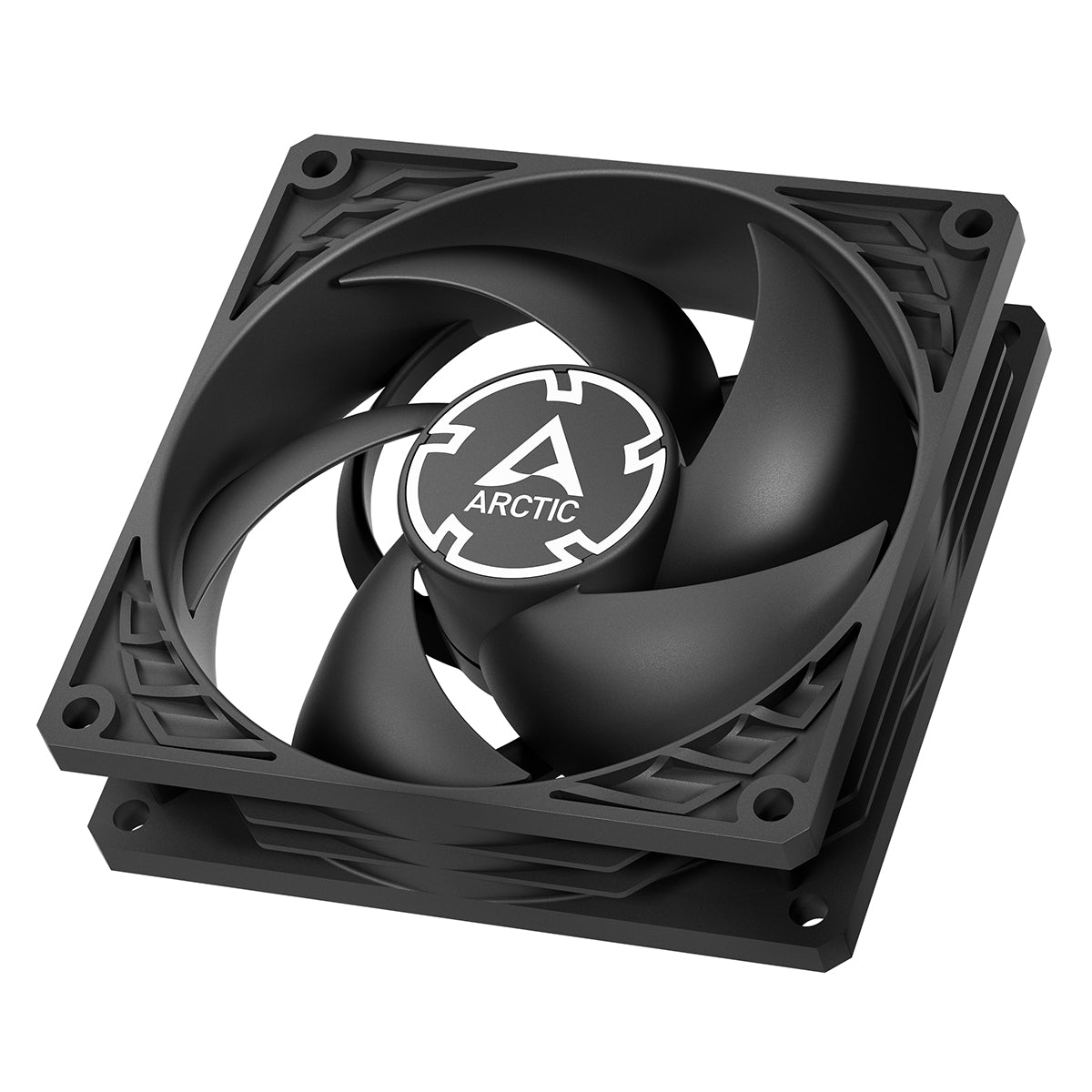

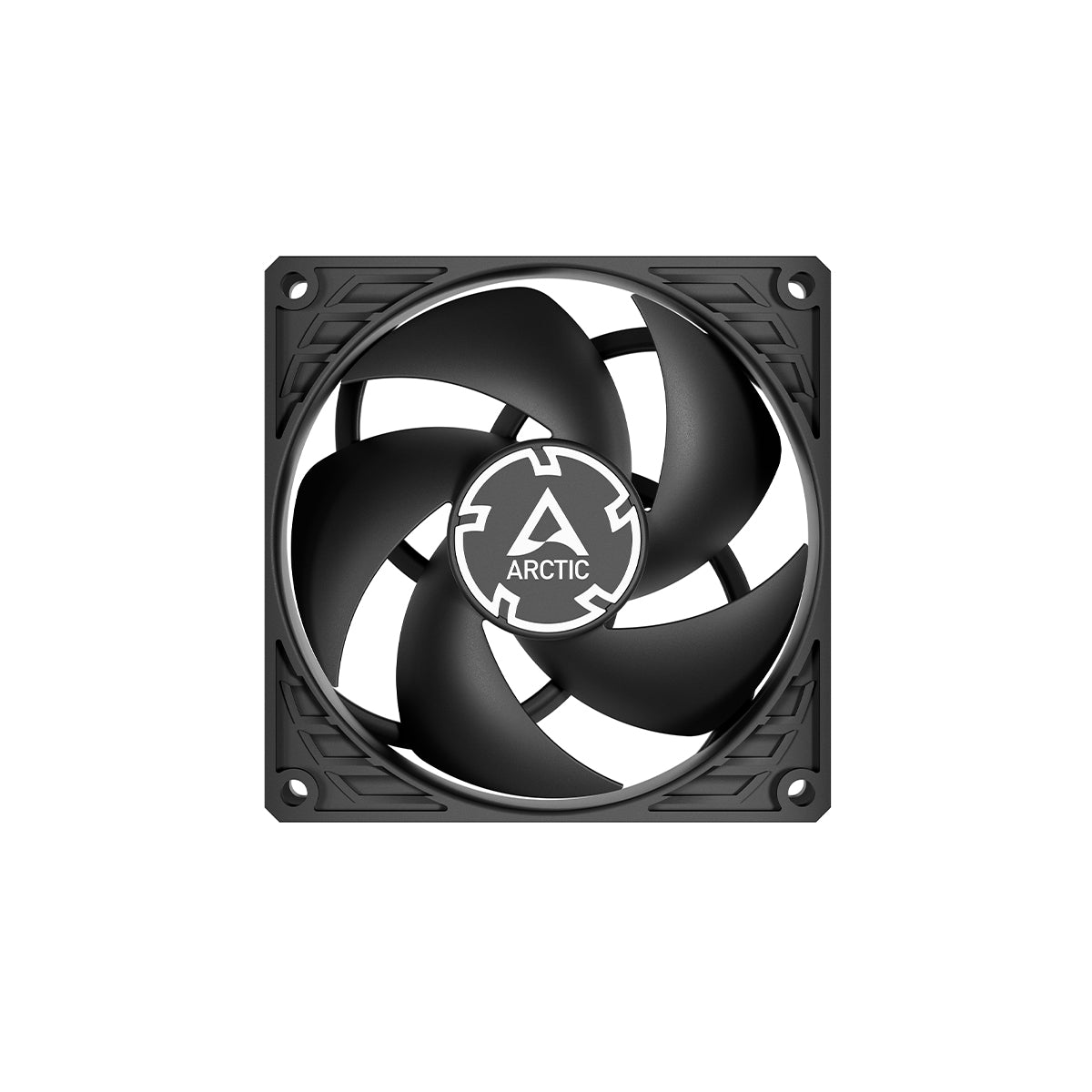

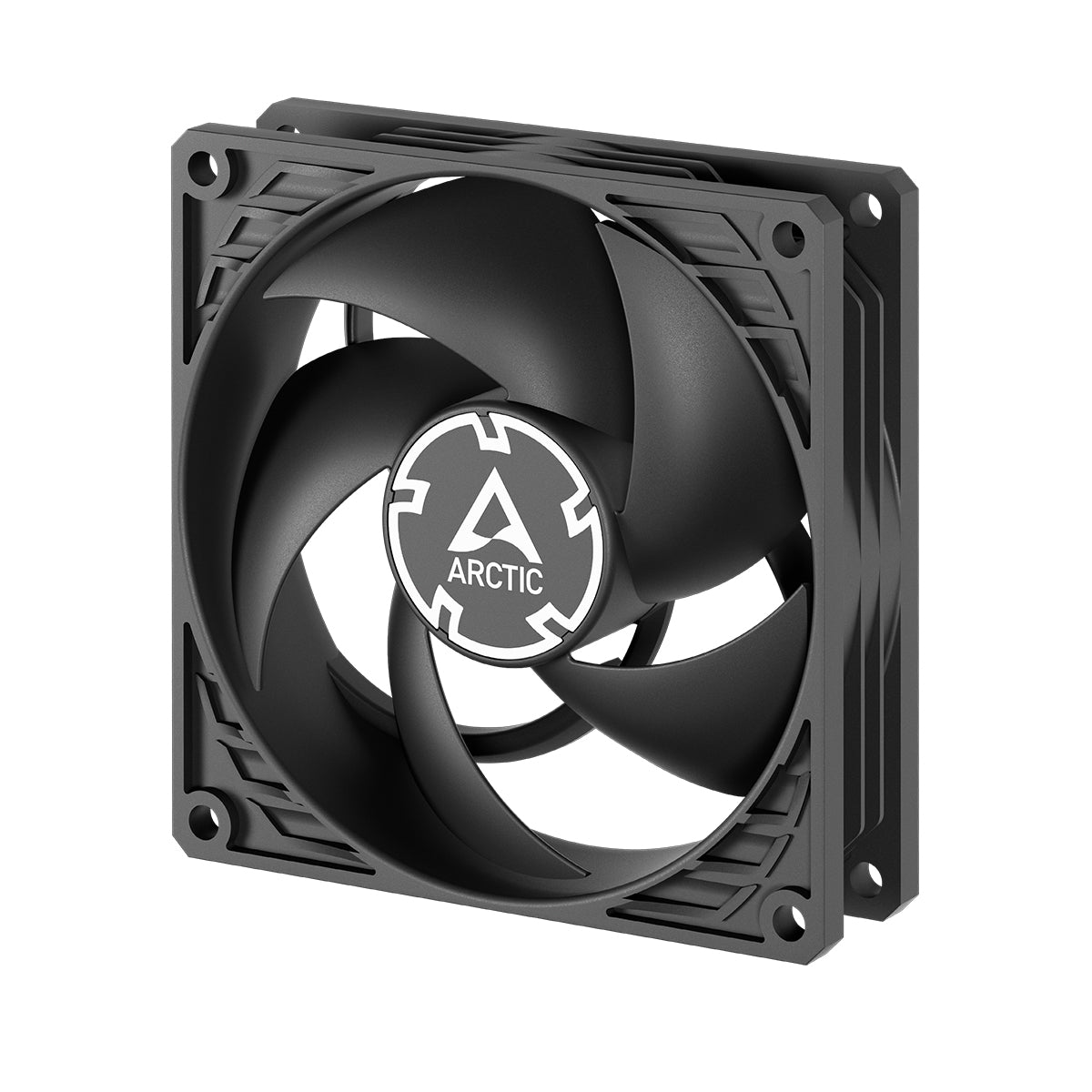

Arctic P9 PWM PST CO 92mm High Performance Fan - Black

Strong Cooling Performance | High-Quality Bearing Designed for Continuous Operation | Optimised for Airflow and Static Pressure | Daisy Chain PWM Connector

Arctic  |  SKU 74224  |  MPN ACFAN00299A
$22.00

Warranty and Support

Warranty: 6 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

Powerful Cooling

The P9 PWM PST CO is a powerful 92 mm fan with 200 to 3000 rpm. The fan delivers a static pressure of 3.12 mmH2O and generates an airflow of up to 38.83 cfm. It offers precise control of the fan speed via pulse width modulation (PWM) and is extremely efficient at 0.12 A. In addition, it has a 0 dB mode for silent operation in IDLE.

Optimised for High Static Pressure

The P9 PWM PST CO delivers a focused airflow and guarantees a good airflow even with particularly high static pressure. Therefore, the P9 PWM PST CO is also specially suitable for use on heat sinks, radiators, pinholes and filters.

0 dB Mode - Zero rpm

The speed of the fan can be throttled down to a standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required. This enables the P9 PWM PST CO to be extremely flexible in adjusting the speed to optimally regulate the airflow for every case.

Designed for Continuous Operation

The P9 PWM PST CO is equipped with two Japanese ball bearings. This makes these fans particularly durable and resistant to external forces such as heat, dust and vibrations. This variant is therefore the ideal choice for 24/7 operation.

200 to 3000 rpm Regulated via PWM

With a wide speed range and innovative PWM Sharing Technology (PST), the P9 PWM PST CO's fan speed can be controlled in sync with other fans. ARCTIC's PST fans come equipped with their own built-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to four other PST fans can be connected in series.

Quality You Can Rely On

To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.

Specifications

Operating Ambient Temperature 0–40 °C
Dimensions 92 (L) x 92 (W) x 25 (H) mm
Net Weight 105 g
Fan Speed 200–3000 rpm (PWM controlled), 0 rpm below 5% PWM
Airflow 38.83 cfm | 65.97 m³/h
Static Pressure 3.12 mmH2O
Fan Bearing Dual Ball Bearing
Typical Voltage 12 V DC
Start Up Voltage 5 V DC
Current 0.12 A
Cable Length 400 mm + 80 mm Daisy-Chain Cable
Connector 4-Pin Fan Plug + 4-Pin Socket
