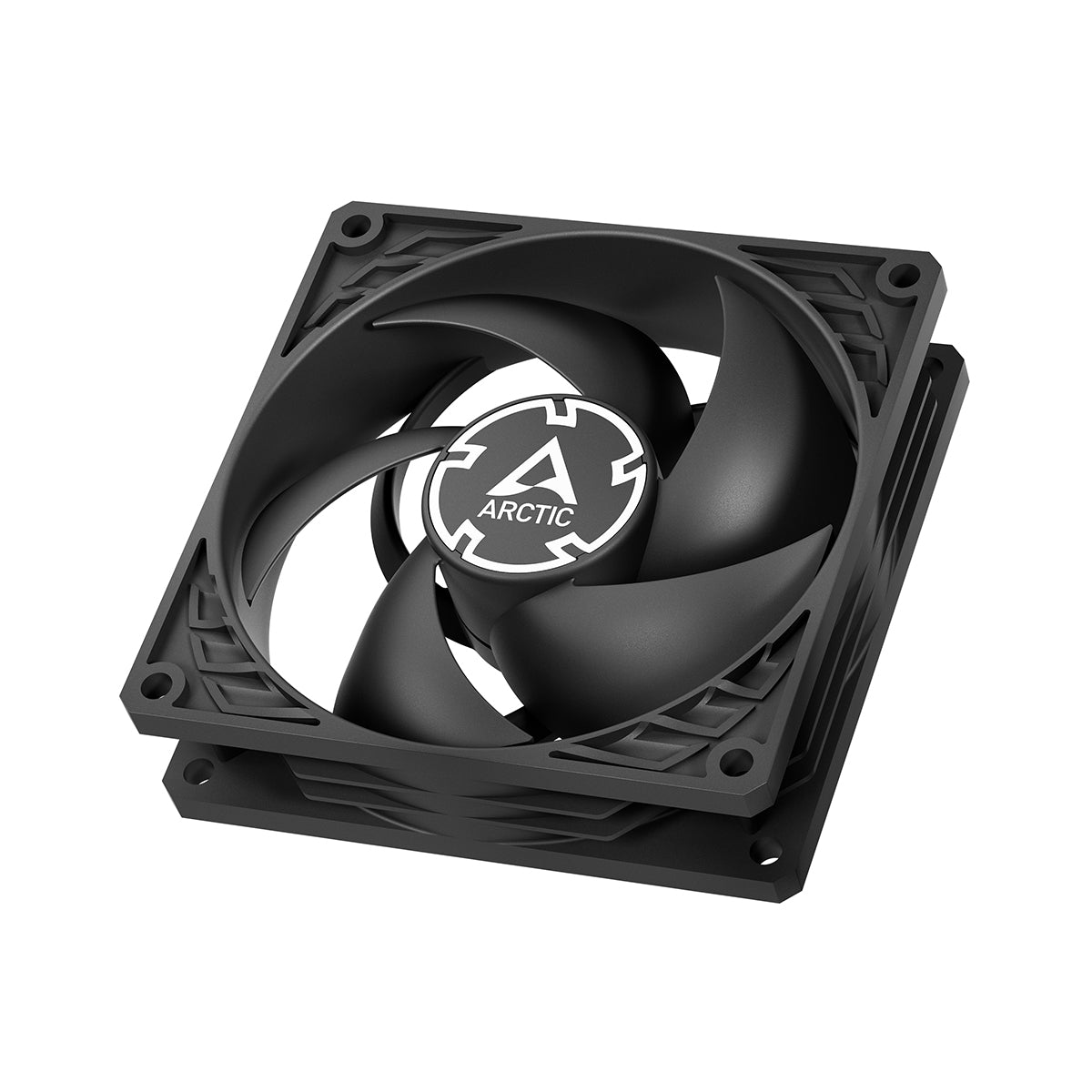

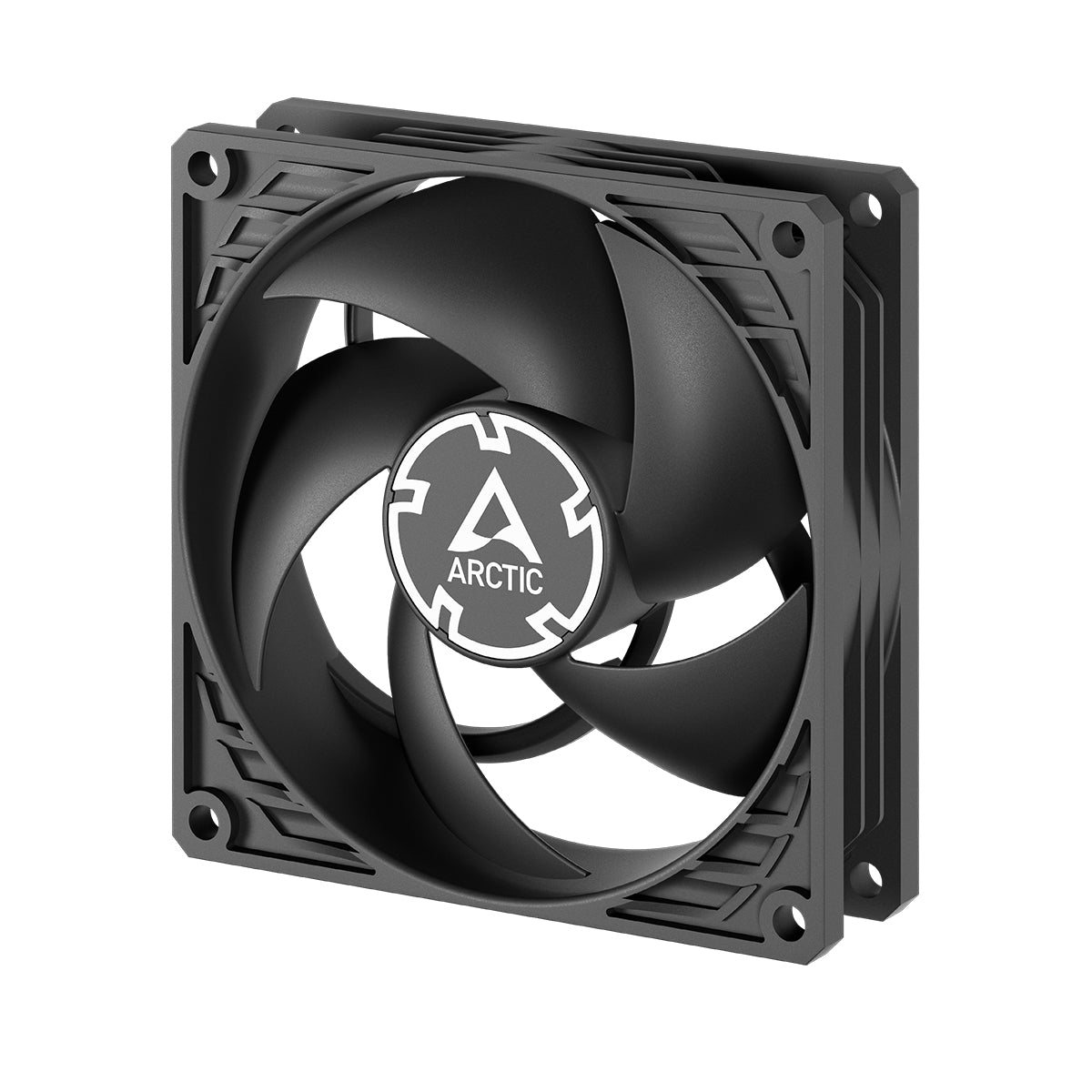

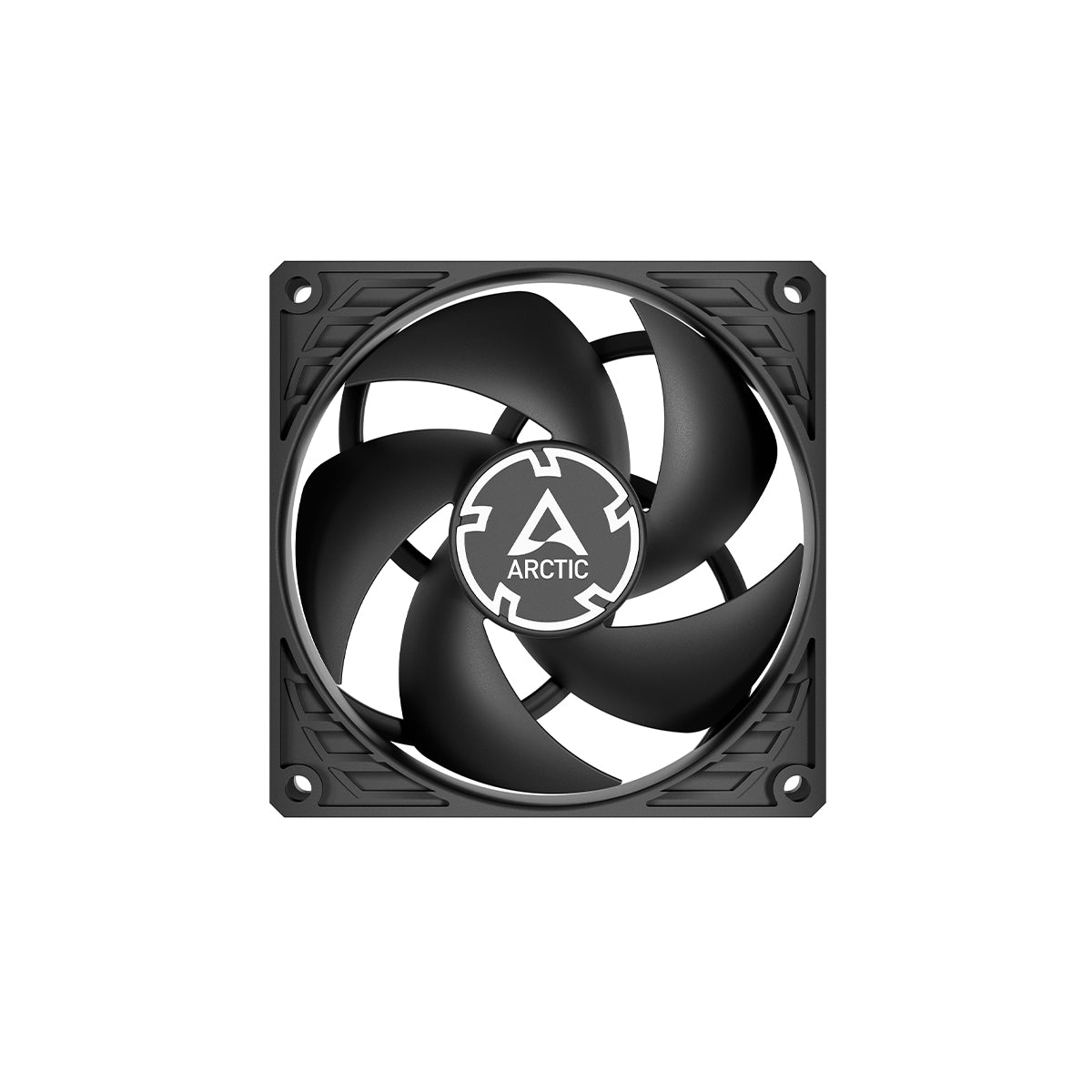

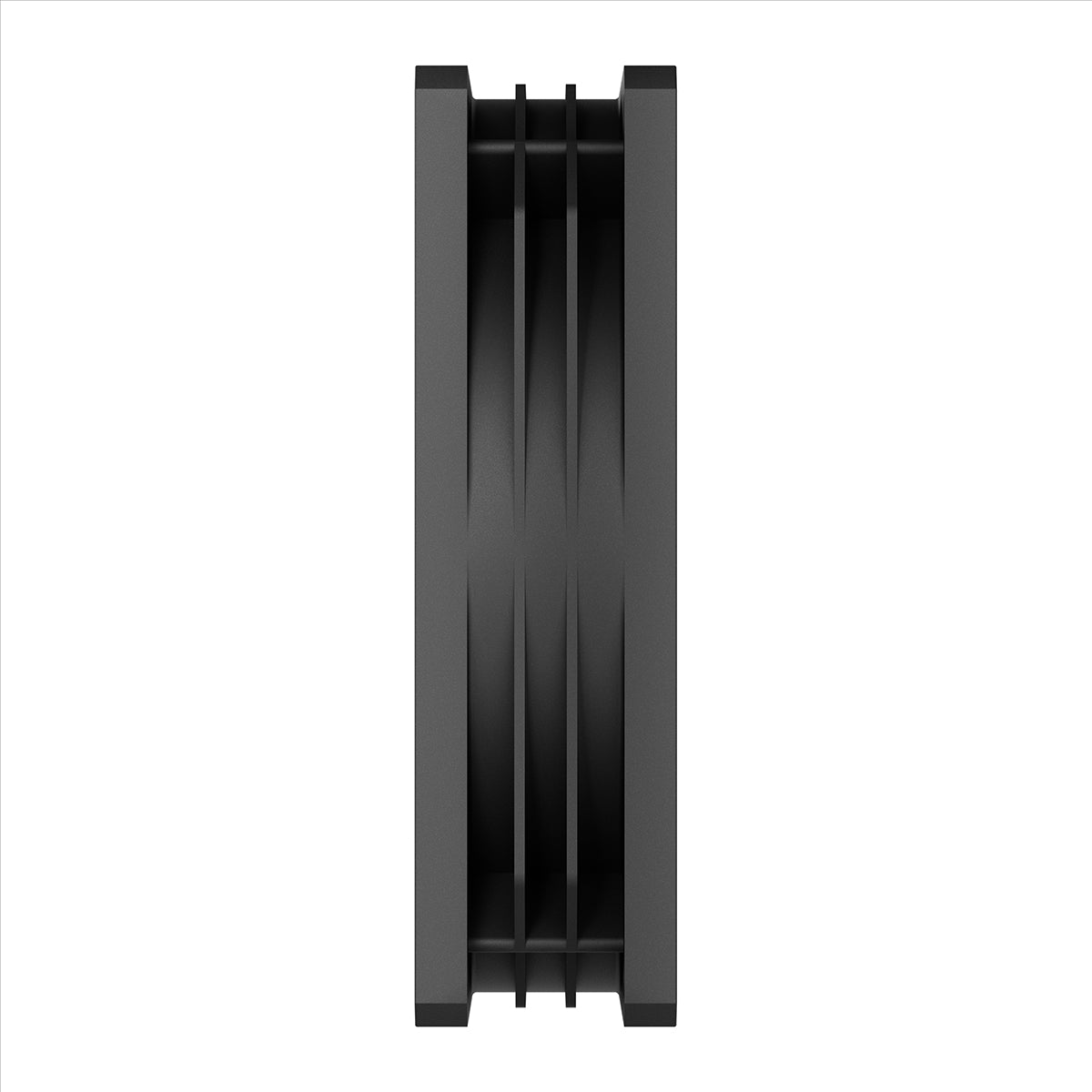

Arctic P9 Max PWM 92mm High Speed Fan - Black

Strong Cooling Performance | High-Quality Bearing | Optimised for Airflow and Static Pressure | Zero RPM Mode | Up to 4300 RPM

Arctic  |  SKU 74215  |  MPN ACFAN00300A
$21.00

Warranty and Support

Warranty: 6 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

Powerful Cooling

The P9 Max is a powerful 92 mm fan with 450 to 4300 rpm. The fan delivers a static pressure of 6.17 mmH2O and generates an airflow of up to 58.25 cfm. It offers precise control of the fan speed via pulse width modulation (PWM) and is highly efficient at 0.34 A. In addition, it has a 0 dB mode for silent operation in IDLE.

Extremely Wide Speed Range

The P9 Max enables precise fan speed via pulse width modulation control, which can be adapted to the individual cooling requirements. The P9 Max enables silent operation when only a low airflow is required and provides a high performance level if needed.

Optimised for High Static Pressure

The P9 Max delivers a focused airflow and guarantees good airflow even with particularly high static pressure. Therefore, the P9 Max is also specially suitable for use on heat sinks, radiators, pinholes, and filters.

0 dB Mode - Zero rpm

The speed of the fan can be throttled down to a standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required. This enables the P9 Max to be extremely flexible in adjusting the speed to optimally regulate the airflow for every case.

Virtually Silent due Fluid Dynamic Bearing

As a special feature, the P9 Max is equipped with ARCTIC's proven Hydrodynamic Bearing. This enables virtually silent operation at low speeds. At maximum speed, brute performance is still guaranteed. Although these bearings tend to wear out, ARCTIC does not compromise on durability and still offers a 6-year warranty.

Quality You Can Rely On

To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.

Specifications

Operating Ambient Temperature 0–40 °C
Dimensions 92 (L) x 92 (W) x 25 (H) mm
Net Weight 105 g
Fan Speed 450–4300 rpm (PWM controlled), 0 rpm below 5 % PWM
Airflow 58.25 cfm | 98.97 m³/h
Static Pressure 6.17 mmH2O
Fan Bearing Fluid Dynamic Bearing
Typical Voltage 12 V DC
Start Up Voltage 5 V DC
Current 0.34 A
Cable Length 400 mm
Connector 4-Pin Fan Plug
