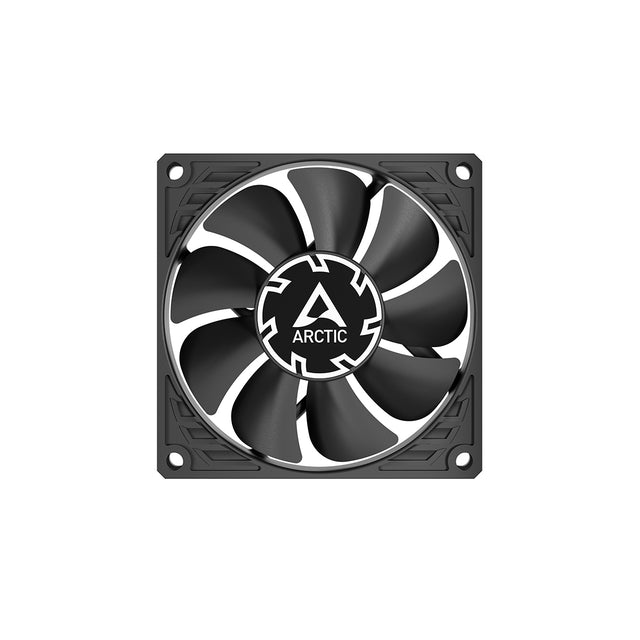

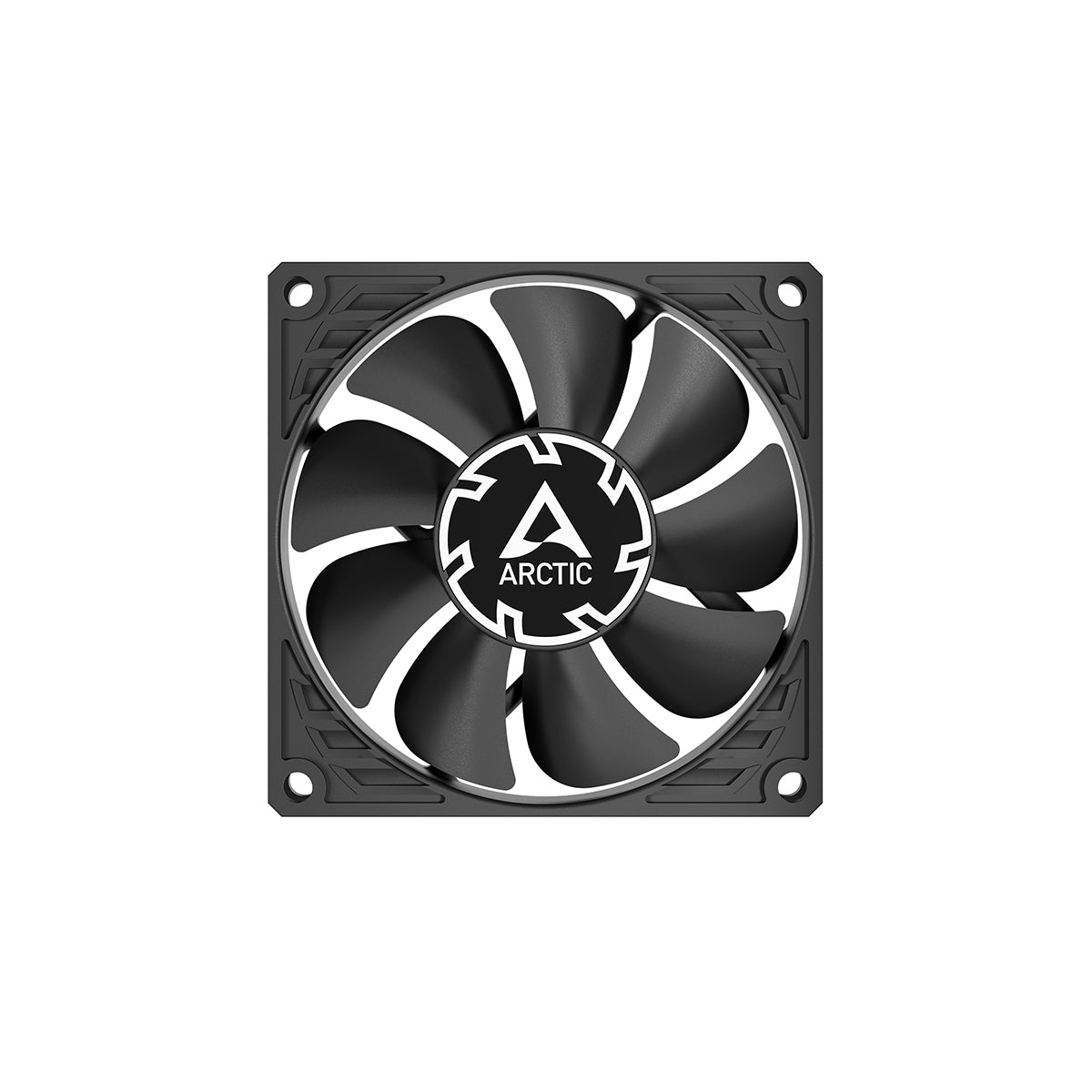

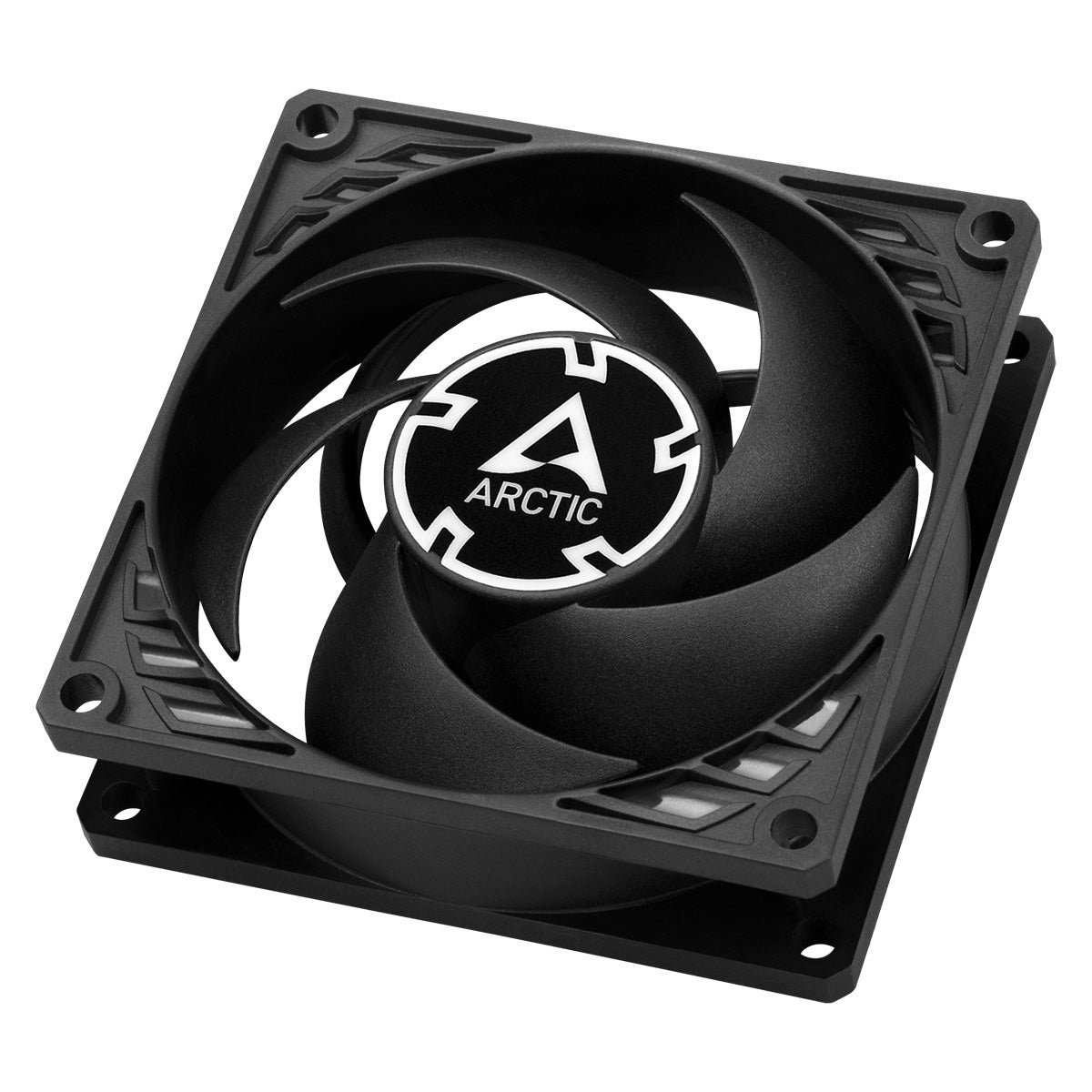

Arctic P8 PWM PST CO 80mm High Performance Fan - Black

Strong Cooling Performance | High-Quality Bearing Designed for Continuous Operation | Optimised for Airflow and Static Pressure | Daisy Chain PWM Connector

Arctic  |  SKU 74223  |  MPN ACFAN00151A
$22.00

Warranty and Support

Warranty: 6 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

Optimised for Static Pressure

During the development of the new P8 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P8 PWM PST CO is particularly suitable for use on heatsinks and radiators.

For Continuous Operation

The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearings and thus make it the perfect choice when reliability is essential.

Maximum Quietness, Minimum Vibration

Even at low speeds, the operating sound of the new ARCTIC motor is barely noticeable. Due to sinus-magnetizing the new motor only creates about 5 % of the vibration from the commutation of a regular DC motor without a filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Extended Life Span

A 10 °C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we give a manufacturer warranty of 6 years.

200 to 3000 rpm Regulated via PWM

With a wide range of regulation and the PWM Sharing Technology (PST), the P8 PWM PST CO fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.

Two Way Installation

  • Push warm air out of the case
  • Pull cool air into your case

Specifications

Fan Speed 200—3000 rpm
Airflow 23.4 cfm | 39.76 m³/h
Static Pressure 1.9 mmH2O
Noise Level 0.3 Sone
Fan Frame Standard
Control Type PWM PST

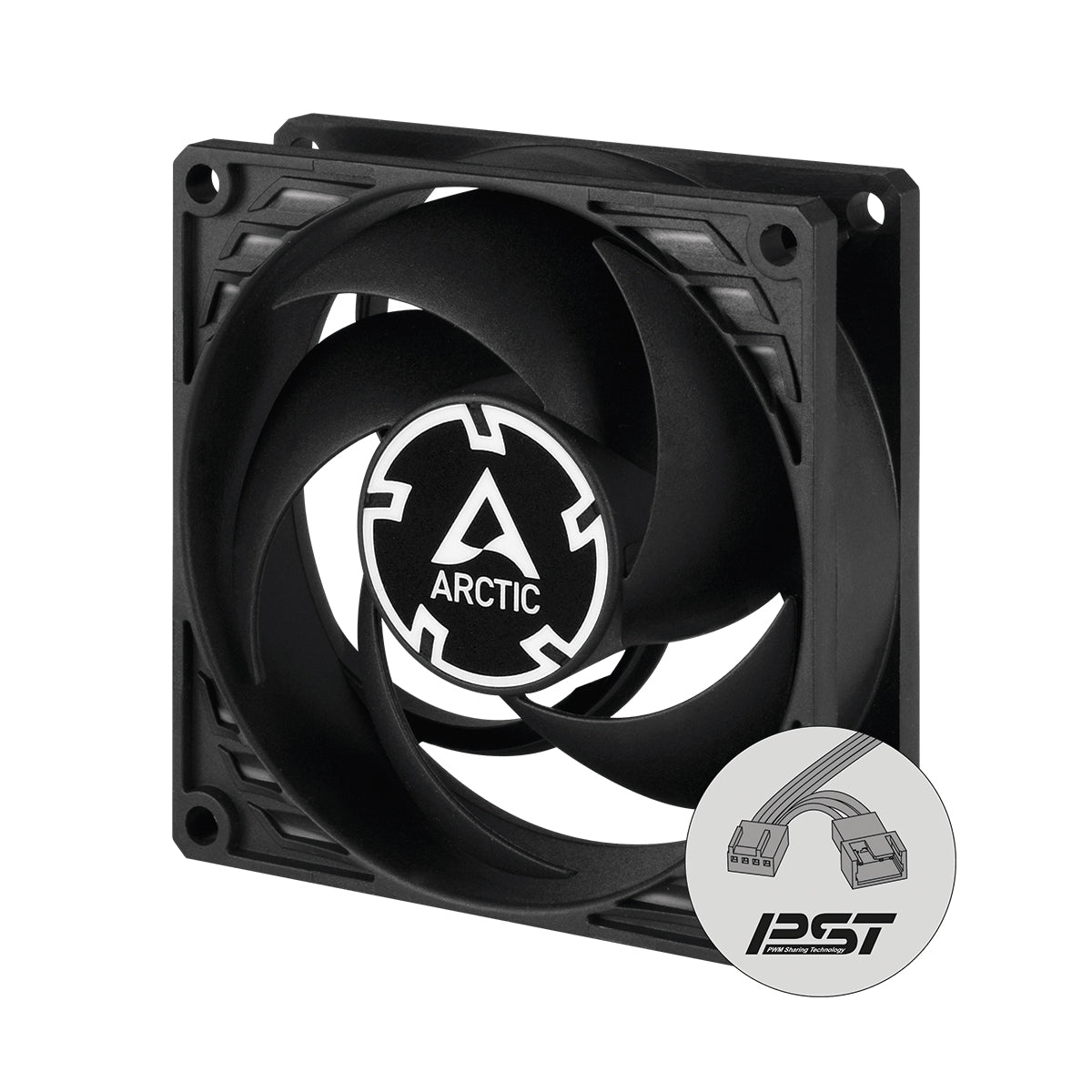

Connector 4-Pin Connector + 4-Pin Socket
Fan Bearing Dual Ball Bearing
Operating Ambient Temperature 0—40 °C
Warranty 6 Years
Typical Voltage 12 V DC
Starting Voltage 3.4 V
Current | Voltage 0.09 A | 12 V DC
Cable Length 400 mm
Length 80 mm
Width 80 mm
Height 25 mm
Weight 78.5 g
