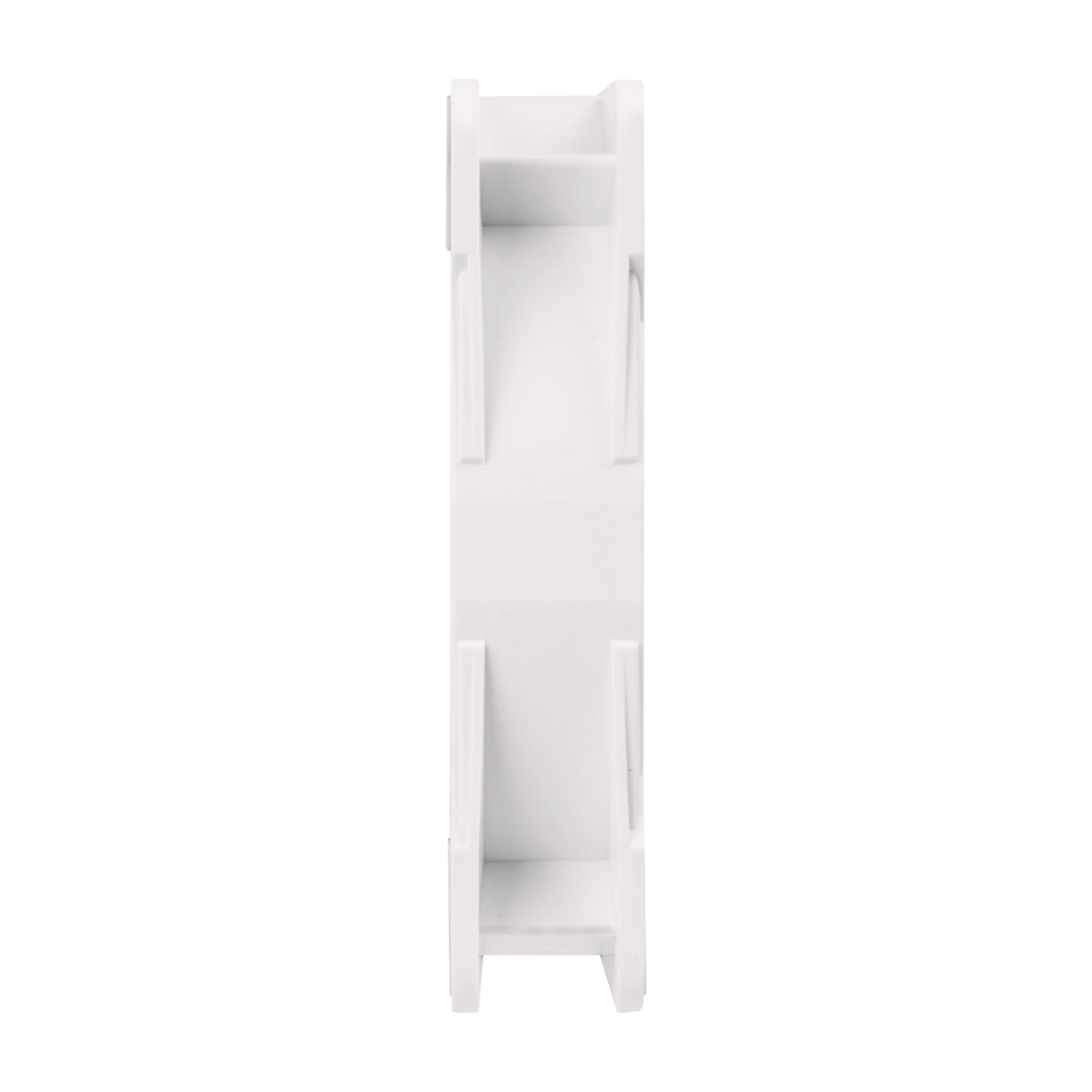

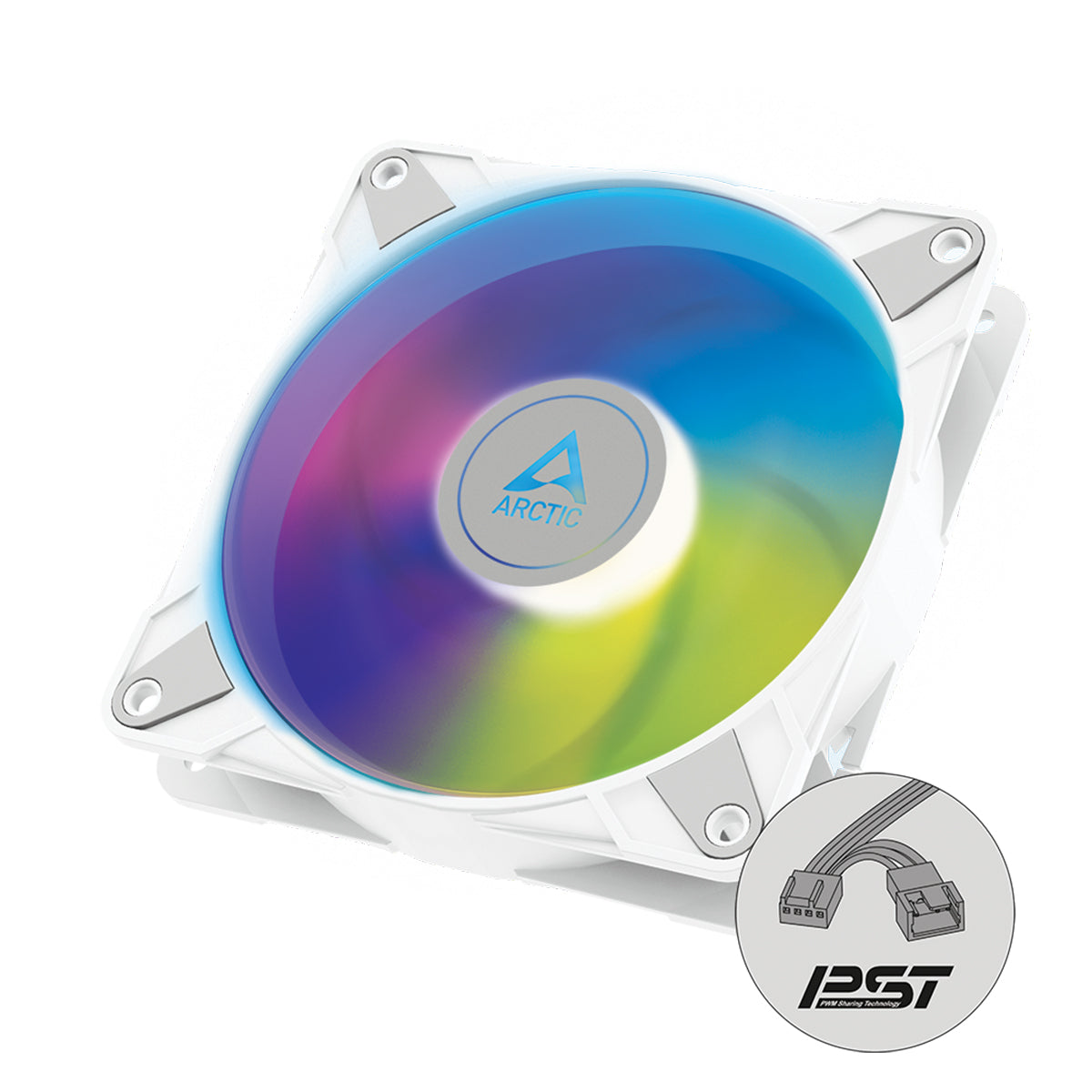

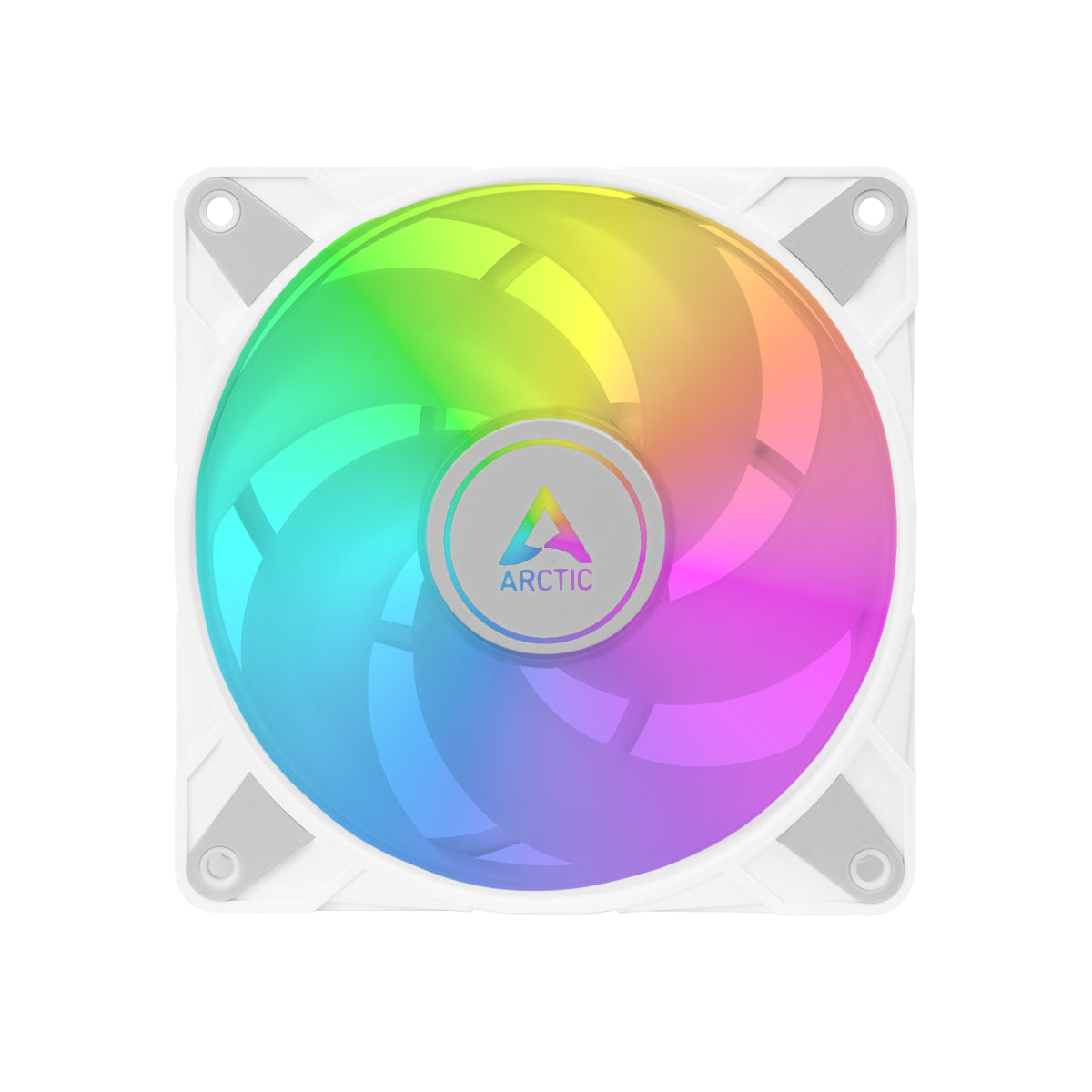

Arctic P14 PWM PST A-RGB 140mm High Performance Fan - White
Strong Cooling Performance | High-Quality Bearing | Optimised for Airflow and Static Pressure | Daisy Chain PWM Connector
Warranty and Support
Warranty and Support
Warranty: 6 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Addressable RGB for Full Colour Control
The P14 PWM PST A-RGB has 12 digital A-RGB LEDs in the center fan wheel. These can be controlled independently of each other and are compatible with the common A-RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the A-RGB mainboard connector or an external controller and synchronized with the illumination of other hardware.
ARCTIC's partner SignalRGB offers a comprehensive solution for synchronization and individual configuration of the illumination.
0 dB Mode — Zero RPM
The speed of the fan can be throttled down to a standstill via PWM. This allows silent operation in IDLE while guaranteeing maximum performance when required.
Maximum Smoothness, Minimum Vibration
The operating noise of the newly developed ARCTIC motor is barely perceptible even at the lowest speed. Additionally, the P14 PWM PST A-RGB has rubberized contact surfaces, reducing audible vibrations to a minimum.
Optimized for High Static Pressure
The P14 PWM PST A-RGB operates with a focused airflow and high static pressure. This ensures extremely efficient cooling, even with increased air resistance, making it suitable for use on heat sinks, radiators, and filters.
200 to 1900 RPM Controlled via PWM PST
With a wide speed range and innovative PWM Sharing Technology (PST), the fan speed of the P14 PWM PST A-RGB can be controlled synchronously with all other fans. This reduces noise to a minimum while guaranteeing maximum cooling performance.
High-Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced, leading to greater efficiency. As a result, less heat develops, bearing noise is minimized, and the service life of the fan is extended.
Specifications
Specifications
Fan Speed | 200—1900 rpm PWM Controlled (0 rpm below 5% PWM) |
Airflow | 68.90 cfm | 117.06 m³/h |
Static Pressure | 2 mmH2O |
Noise Level | 0.3 Sone |
Fan Frame | Standard |
Control Type | PWM PST |
Connector | 4-Pin Connector + 4-Pin Socket |
Fan Bearing | Fluid Dynamic Bearing |
Operating Ambient Temperature | 0—40 °C |
Typical Voltage | 12 V DC |
Starting Voltage | 5 V |
Current | Voltage | 0.17 A | 12 V DC |
Cable Length | 400 mm |
LEDs | 12 A-RGB LEDs |
RGB Connector | 3-Pin 5 V-DI-GND Connector |
RGB Current / Voltage | 0.4 A / 5 V |
RGB Cable | 400 mm Cable with 80 mm Sharing Cable, Black |
Length | 140 mm |
Width | 140 mm |
Height | 27 mm |
Weight | 225 g |
