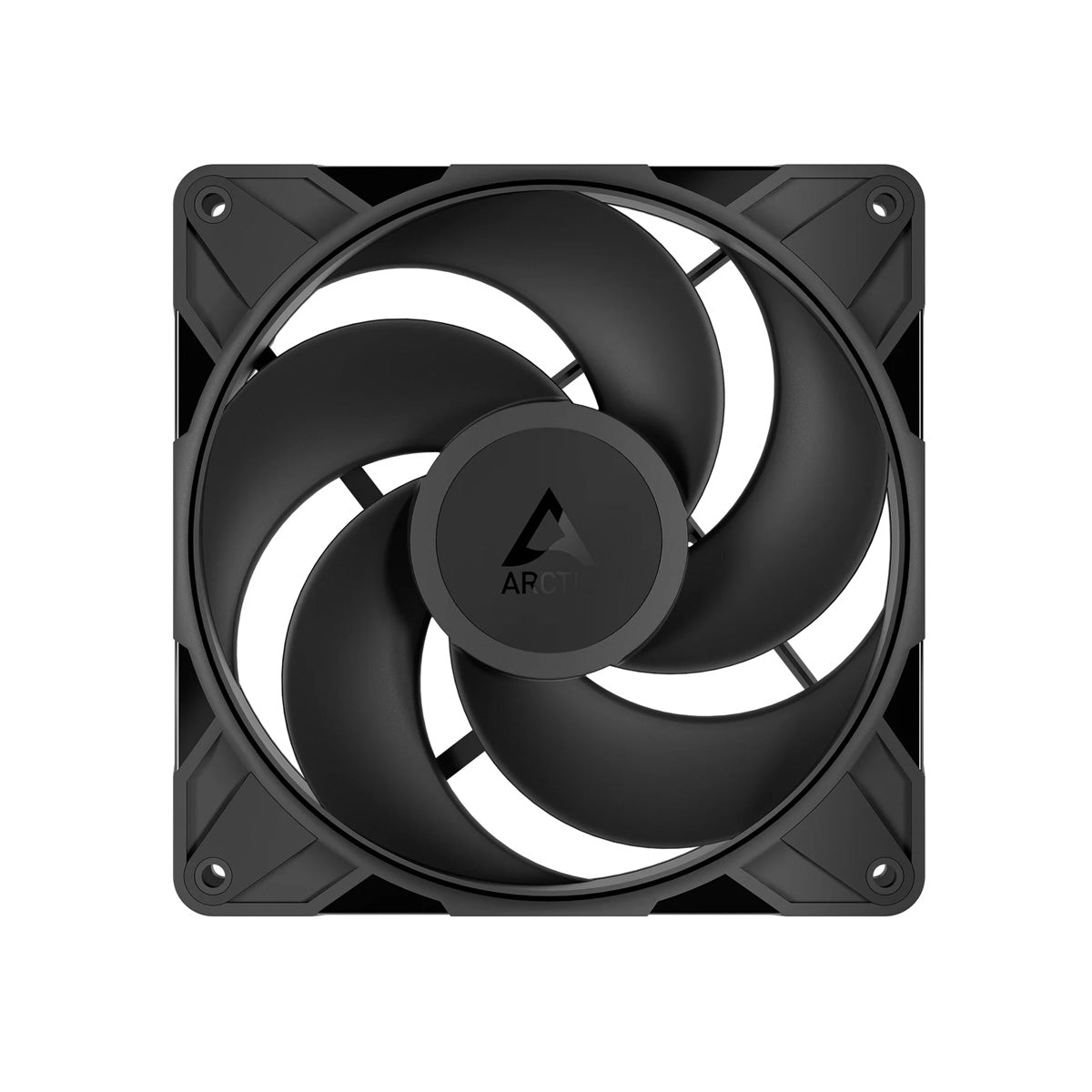

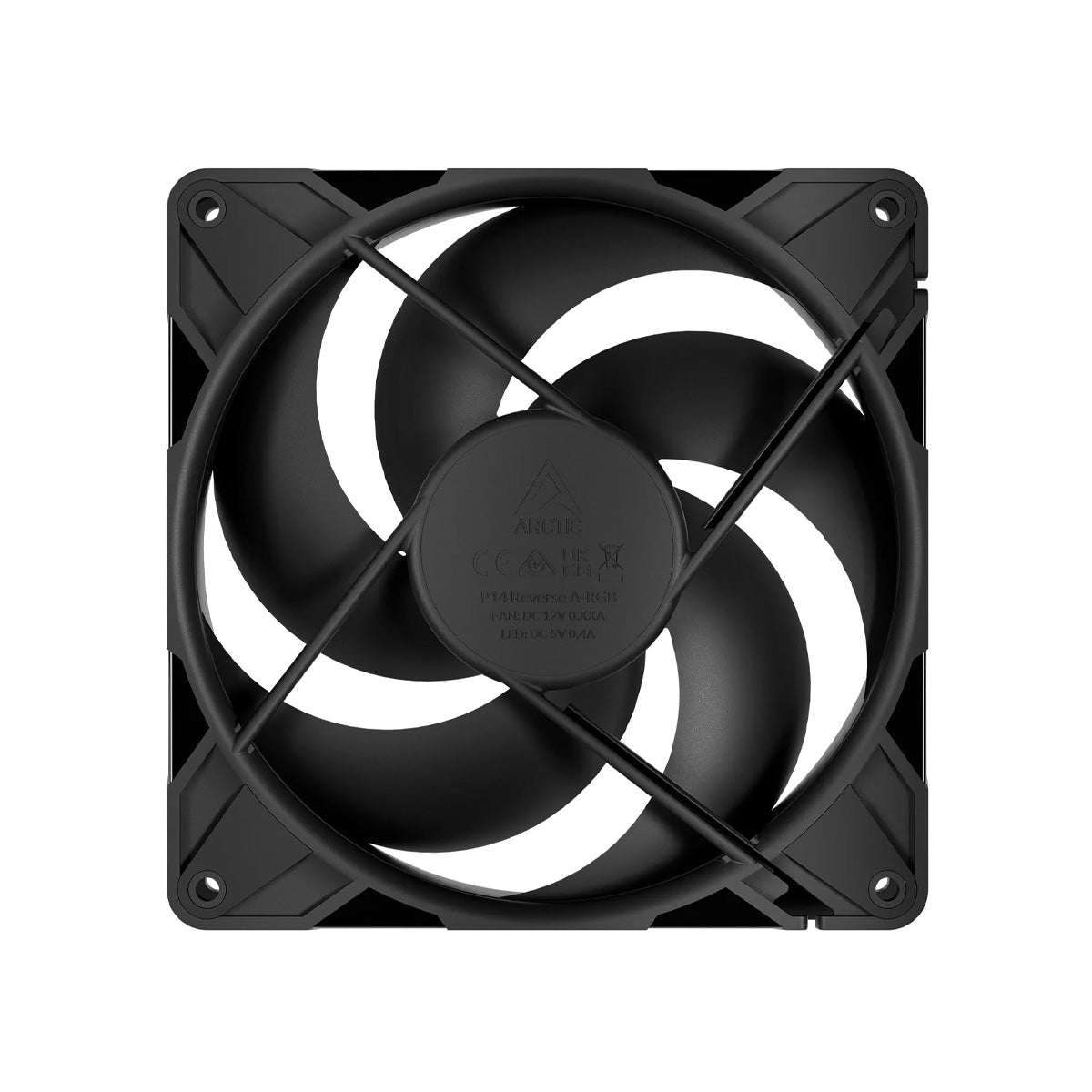

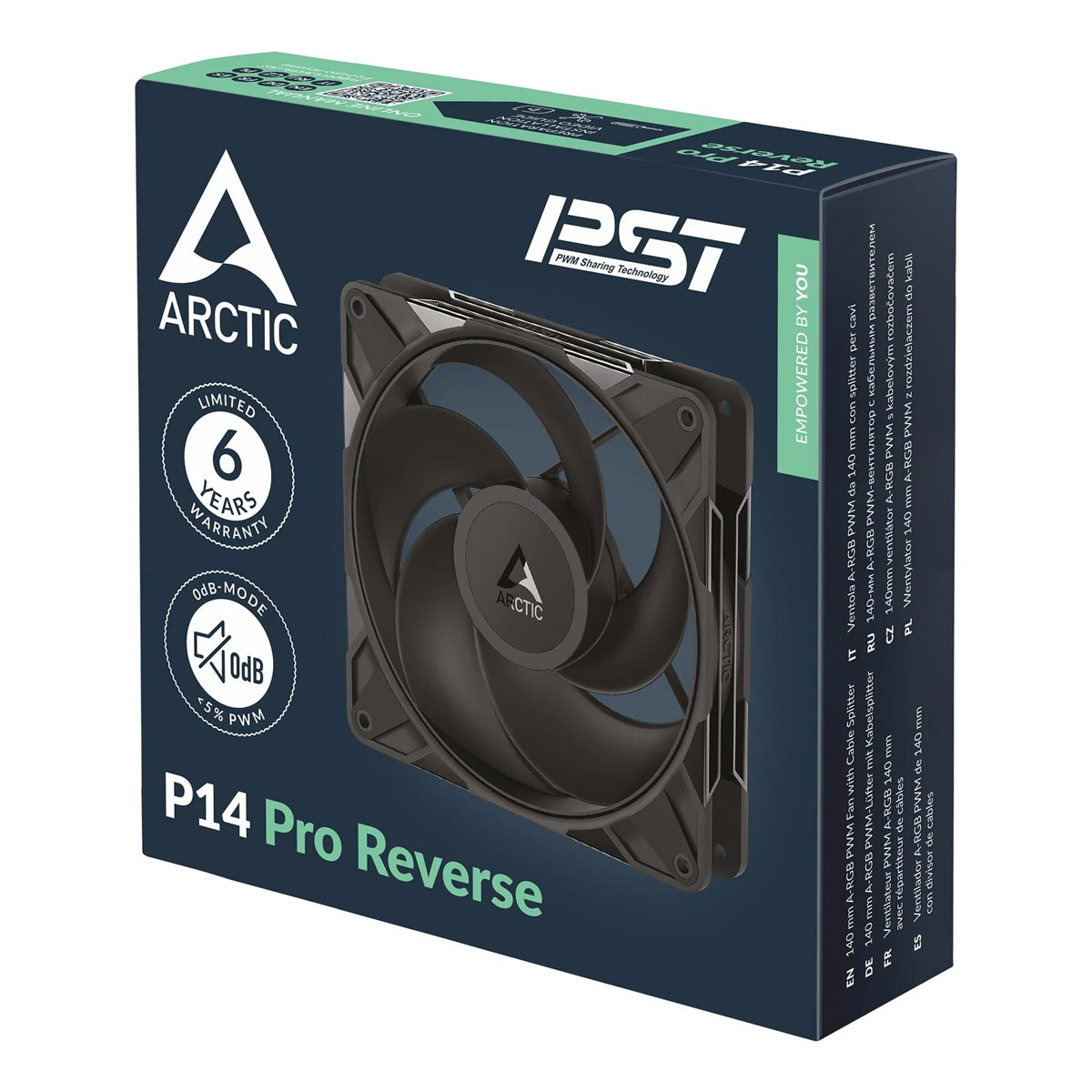

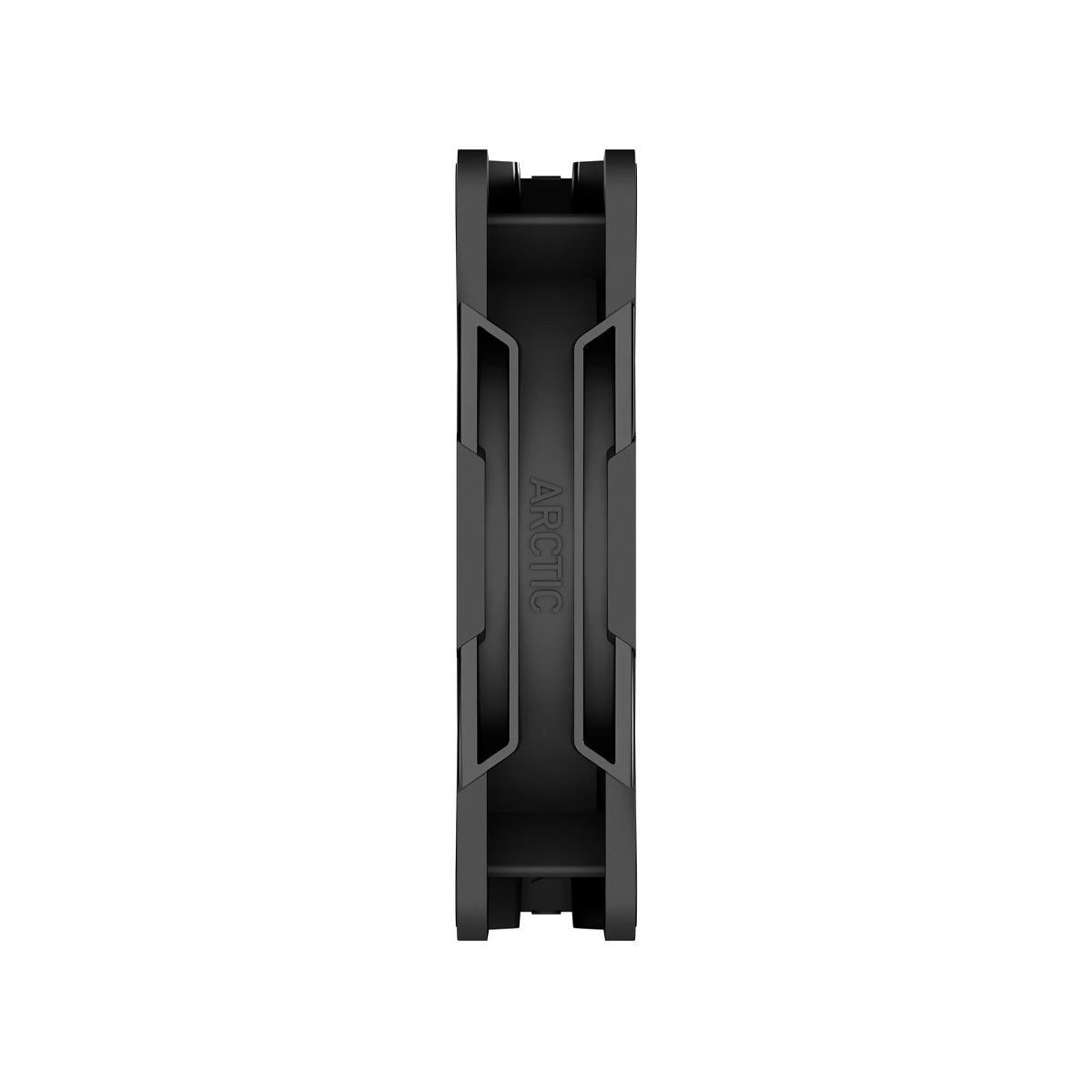

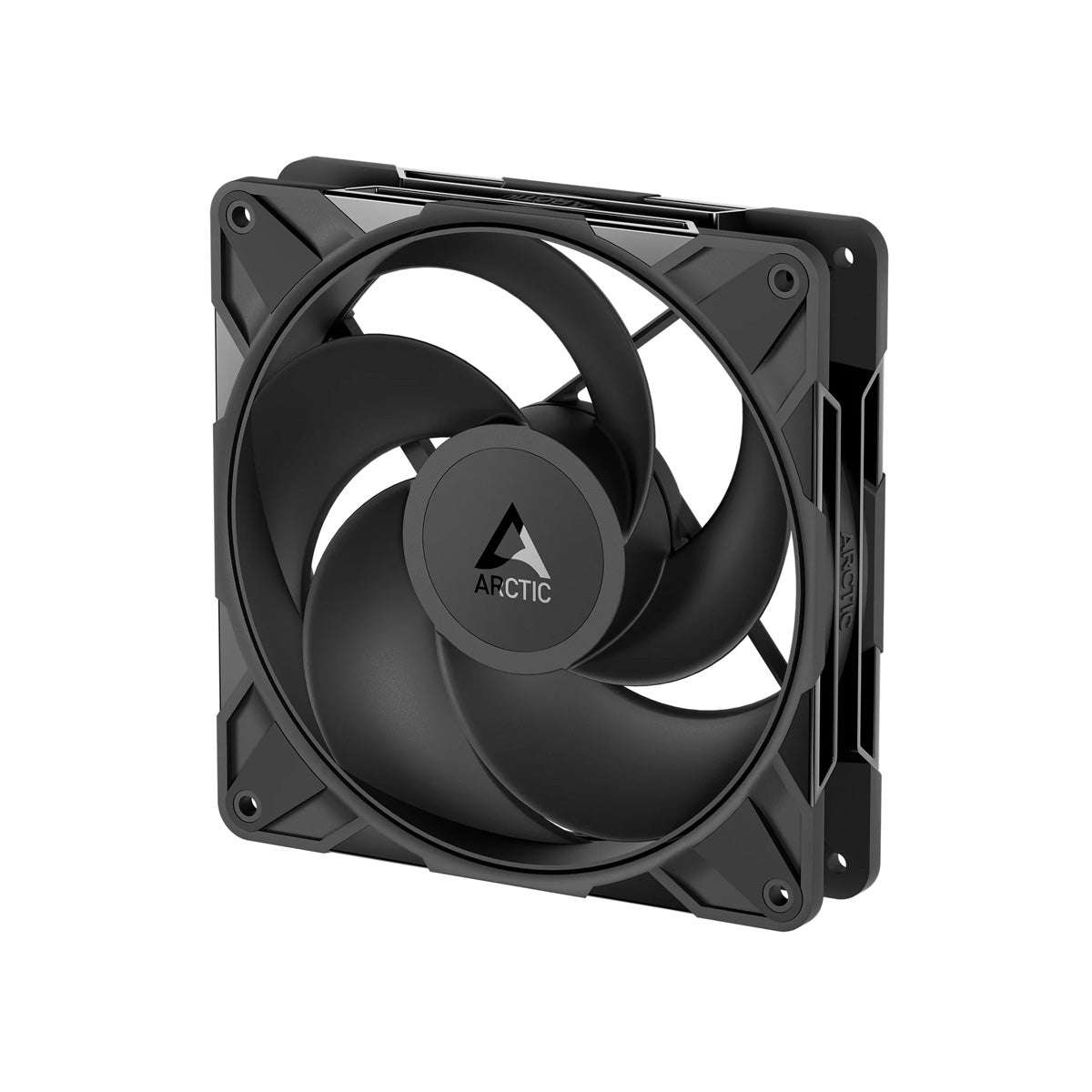

Arctic P14 PRO Reverse 140mm Premium Cooling Fan - Black
Warranty and Support
Warranty and Support
Warranty: 6 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Reversed Airflow Design
The P14 Pro Reverse is specifically engineered for rear-side air intake, making it ideal for PC builds where standard fan orientation would negatively affect system aesthetics.
High-Speed PWM Performance
The fan operates within a speed range of 400–2650 RPM, delivering powerful airflow performance while maintaining efficient cooling control.
High Airflow and Static Pressure
Designed for demanding cooling applications, the fan delivers up to 98 CFM airflow and 5.1 mmH₂O static pressure for excellent cooling efficiency.
Fluid Dynamic Bearing Design
Equipped with a Fluid Dynamic Bearing system that improves durability, reduces vibration, and ensures quieter long-term operation.
Optimized Airflow Design
The trumpet-shaped intake and teardrop-shaped support spokes help direct airflow efficiently while reducing flow losses, air resistance, turbulence, and aerodynamic noise.
SOTA Microcontroller
The advanced microcontroller reduces motor noise, compensates for load fluctuations, and provides protection against inrush currents and reverse polarity.
More Power with Less Noise
An automated measuring and balancing process precisely applies balancing compounds to ensure smoother operation, reduced vibration, and quieter performance.
Minimum Gap Dimensions for Maximum Efficiency
The optimized fan blade and frame design minimizes internal gaps to achieve improved airflow efficiency and increased static pressure performance.
PST Daisy-Chain PWM Control
Features PWM Sharing Technology (PST), allowing multiple fans to be daisy-chained together and controlled simultaneously using a single motherboard fan header.
Optimized FDB Bearing-Shaft Structure
The hydrodynamic bearing combined with an extended shaft design improves pressure distribution, minimizes vibrations, and enhances overall acoustic performance.
Specifications
Specifications
| Operating Temperature | 0–40 °C |
| Dimensions | 140 (L) × 140 (W) × 30 (H) mm |
| Net Weight | 248 g |
| Fan Speed | 400–2650 rpm, PWM controlled 0 rpm below 5% PWM |
| Airflow | 98 cfm | 166.5 m³/h |
| Static Pressure | 5.1 mmH2O |
| Fan Bearing | Fluid Dynamic Bearing |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 4 V DC |
| Current | 0.4 A |
| Cable Length | 400 mm + 80 mm Daisy-Chain Cable |
| Connector | 4-Pin Fan Plug + 4-Pin Socket |
| Packaging | Width: 145 mm Height: 35 mm Length: 145 mm Weight: 0.285 kg |
