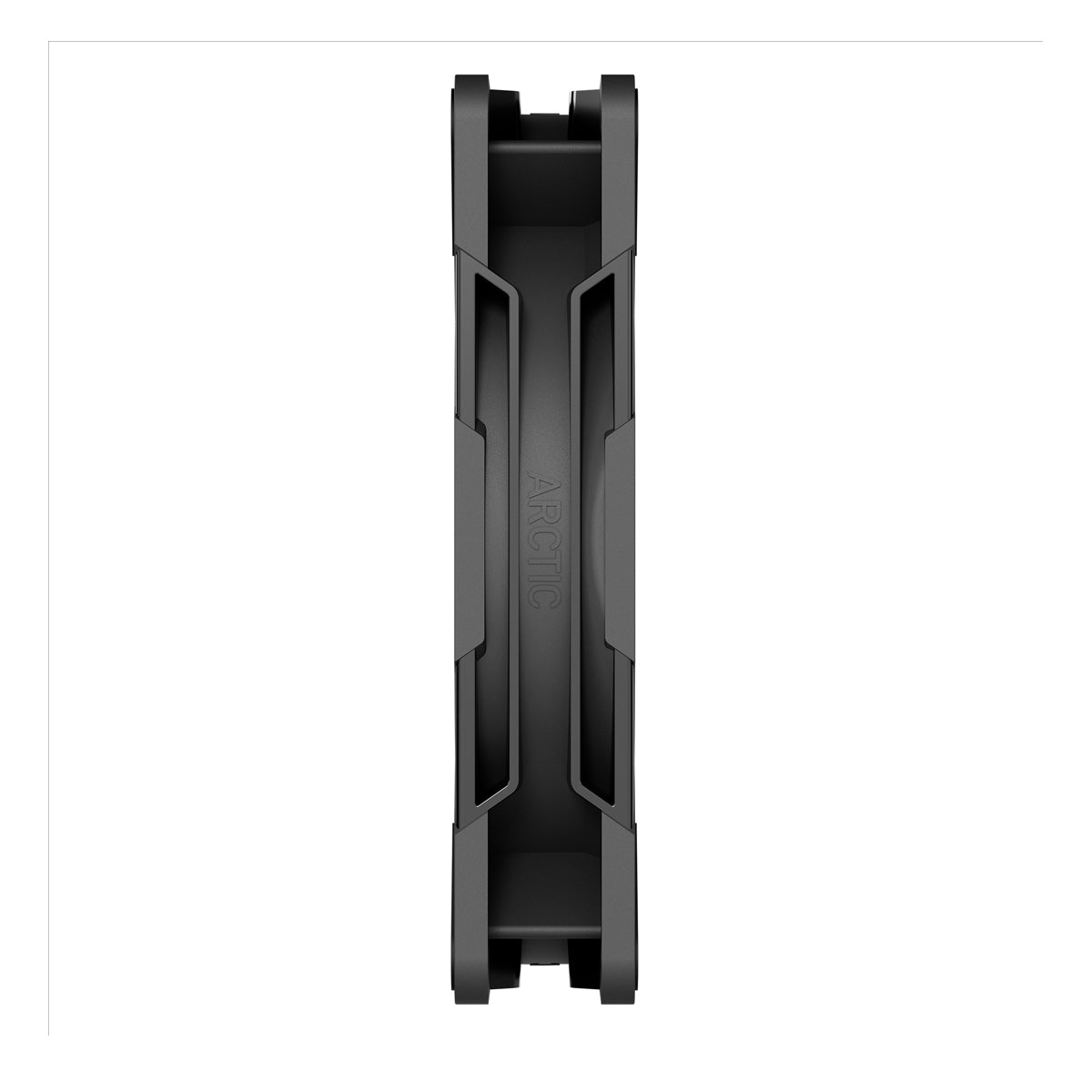

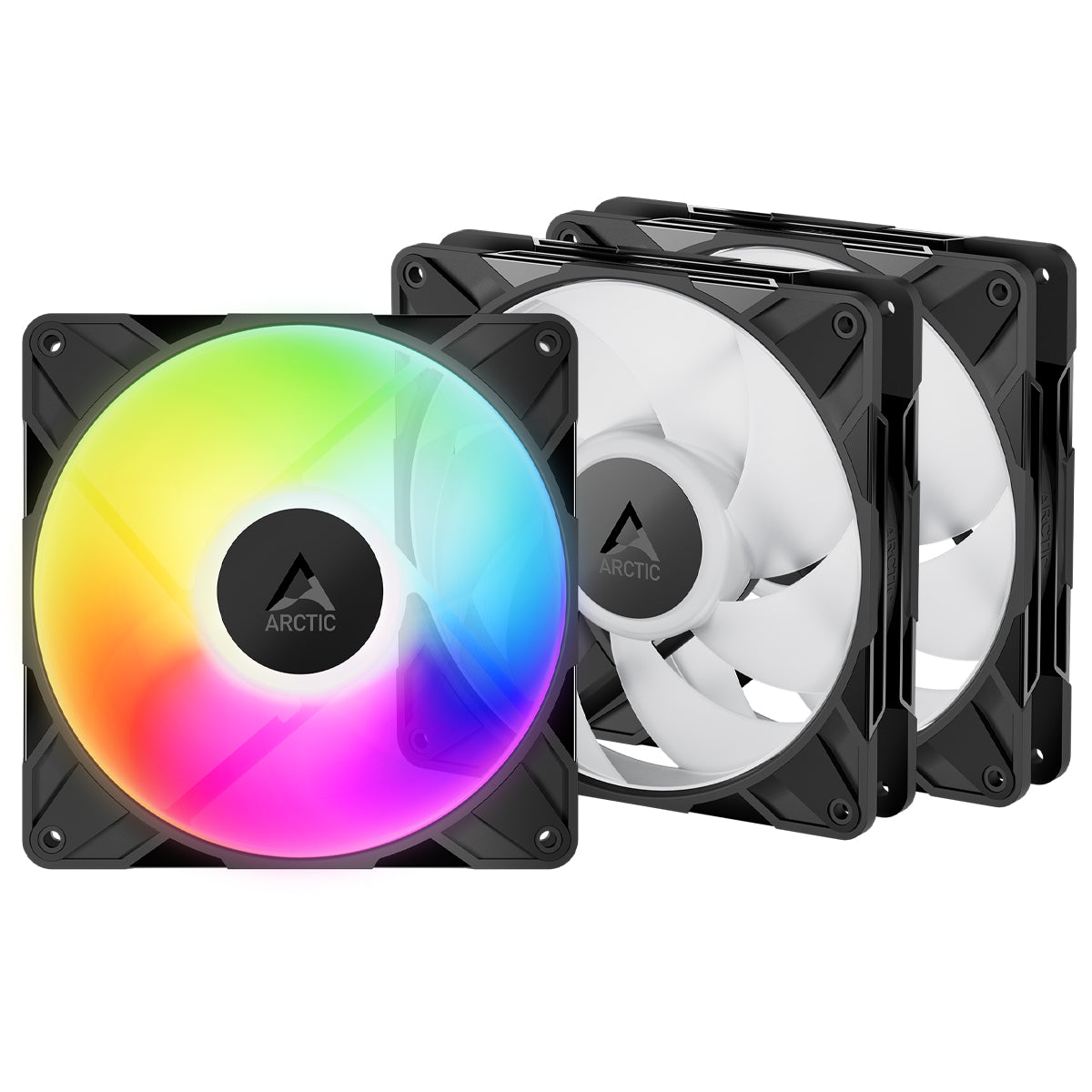

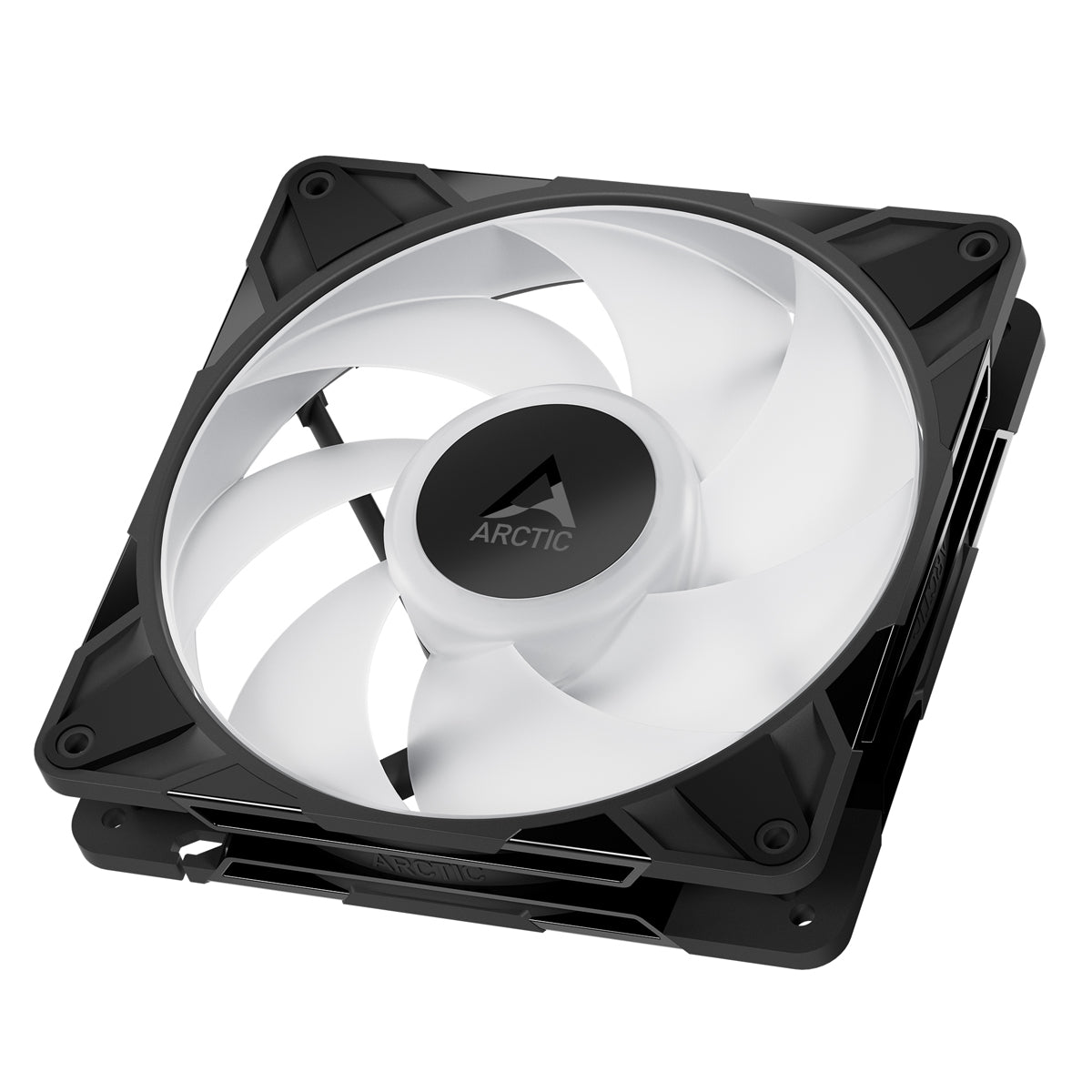

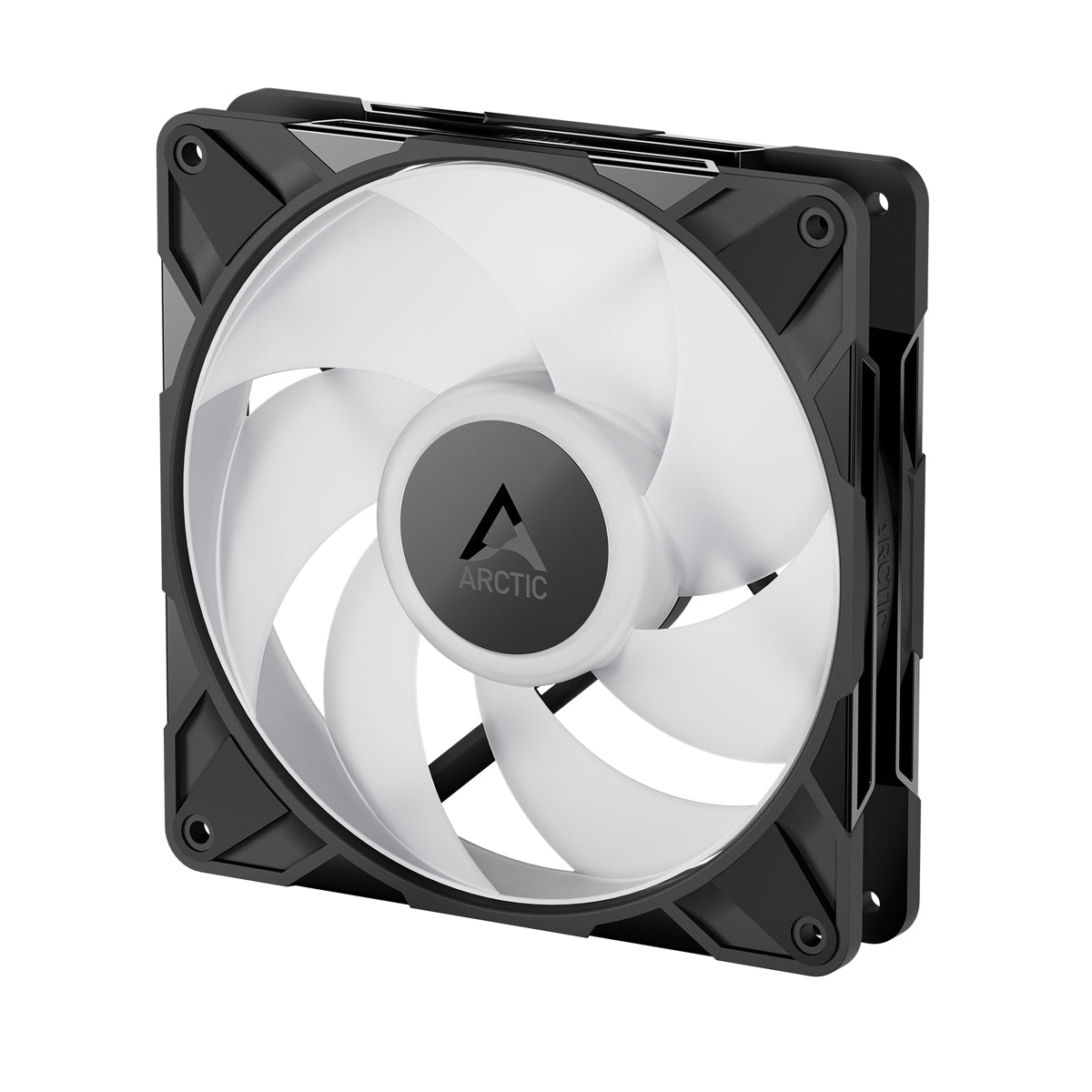

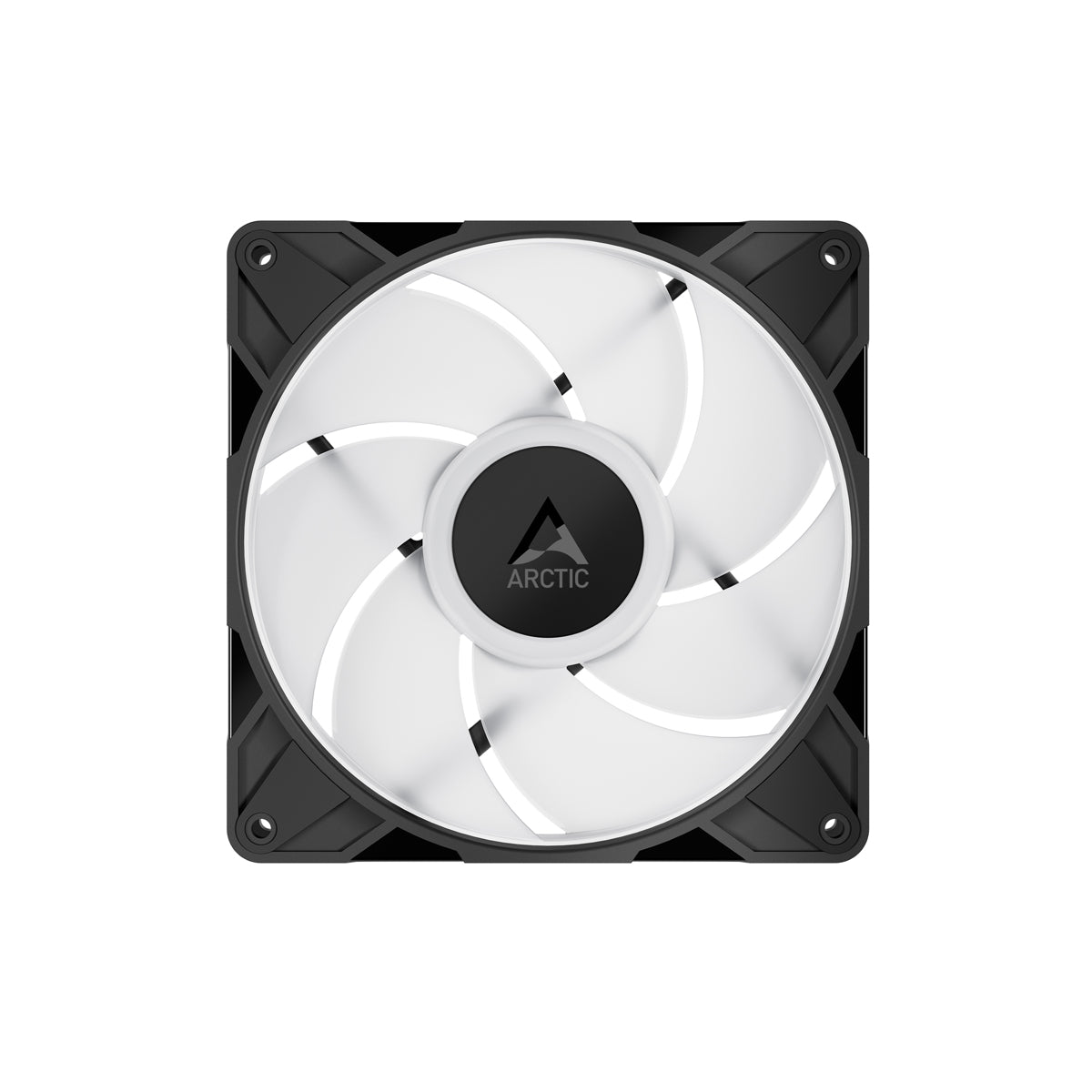

Arctic P14 PRO A-RGB 140mm Premium Cooling Fan - Black - 3 Pack
Warranty and Support
Warranty and Support
Warranty: 6 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Efficient Performance at High Air Resistance
Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.
Maximum Performance, Redefined
Revised fan blade design for an optimal balance of performance and smooth operation.
Optimized Bearing-Shaft Design (FDB)
A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.
Automated Two-Plane Balancing
An automated two-level measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing mass with pinpoint accuracy at two different depth levels.
SOTA Microcontroller
Reduces motor noise, compensates for load fluctuations, and protects against inrush currents and reverse polarity.
More Power – Less Noise
The fan delivers more performance at low speeds with higher airflow and static pressure at just 25 dB(A) – ideal for quiet, powerful cooling.
Minimum Gap Dimensions for Maximum Efficiency
Enables higher static pressure and maximum airflow efficiency.
PST – PWM-Based Synchronized Fan Control
An additional PWM connector allows multiple fans to be synchronized in series using a single header.
Specifications
Specifications
| Operating Ambient Temperature | 0–40 °C |
| Dimensions | 140 (L) x 140 (W) x 27 (H) mm |
| Net Weight | 237 g |
| Fan Speed | 400–2500 rpm, PWM controlled 0 rpm below 5 % PWM |
| Airflow | 110 cfm | 186 m³/h |
| Static Pressure | 5.2 mmH2O |
| Fan Bearing | Fluid Dynamic Bearing |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 5 V DC |
| Current | 0.35 A |
| Cable Length | 400 mm + 80 mm Daisy-Chain Cable |
| Connector | 4-Pin Fan Plug + 4-Pin Socket |
| RGB LEDs | 12x A-RGB Gen2 LEDs |
| RGB Current | Voltage | 0.40 A | 5 V DC |
| RGB Connector | 3-Pin A-RGB Plug + 3-Pin Socket |
