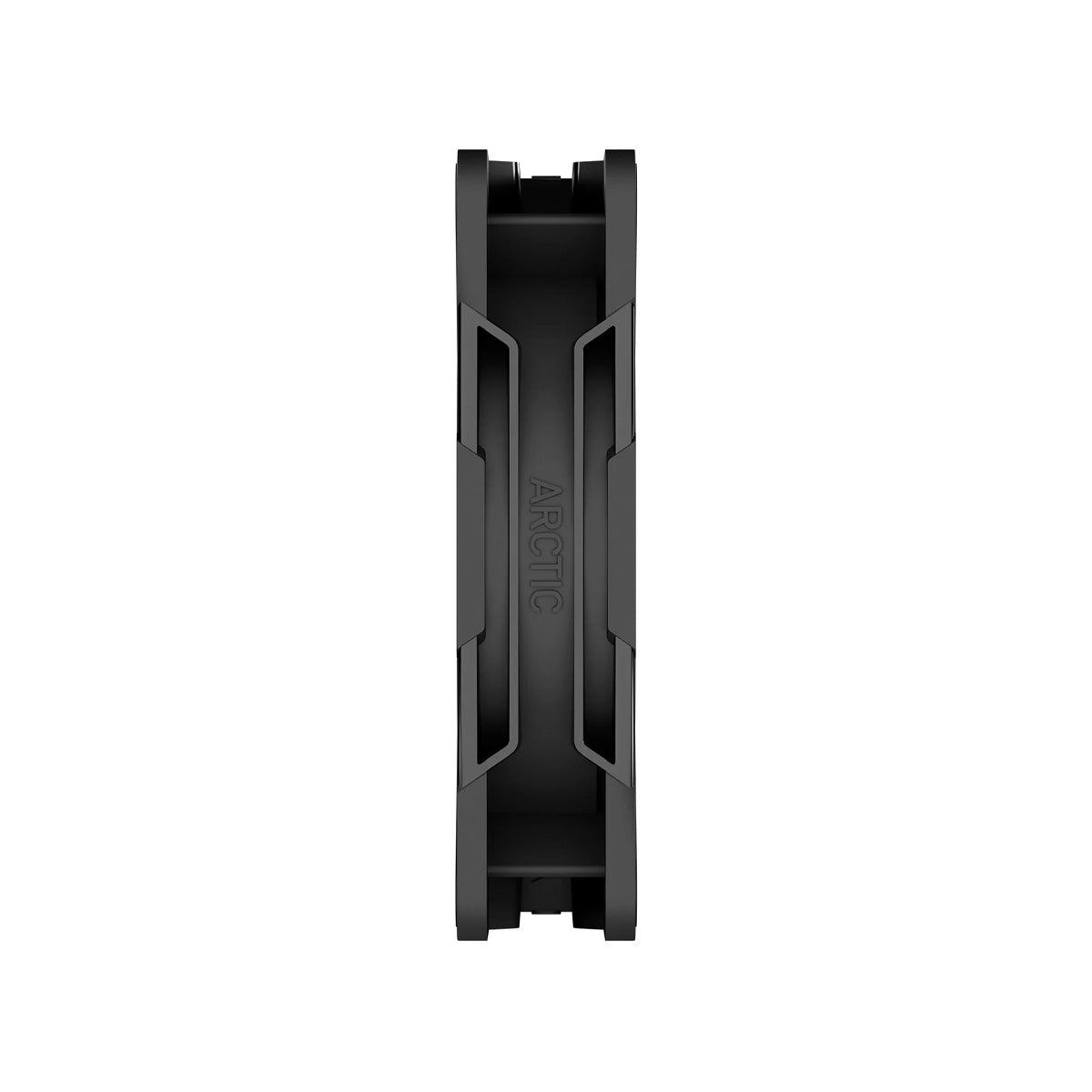

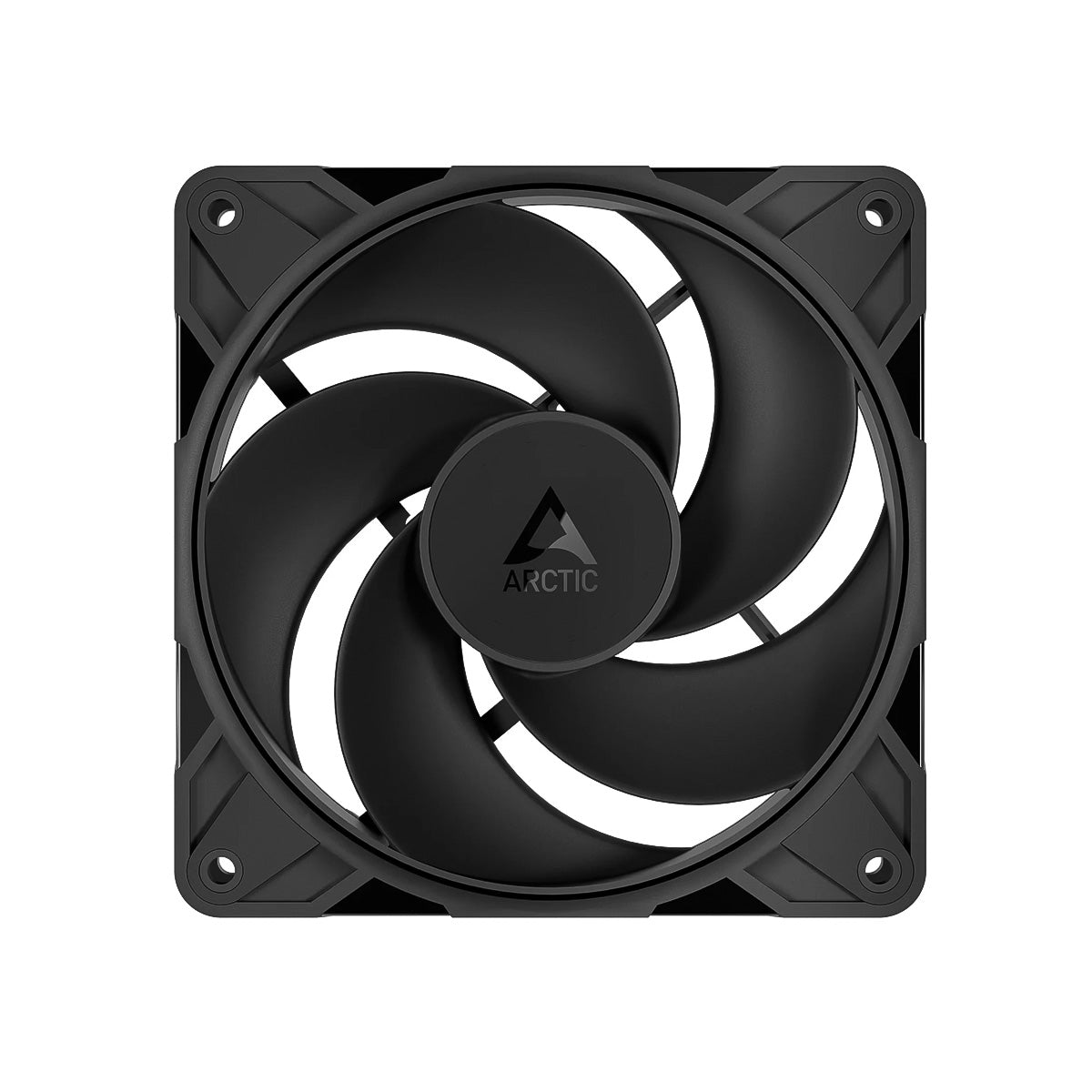

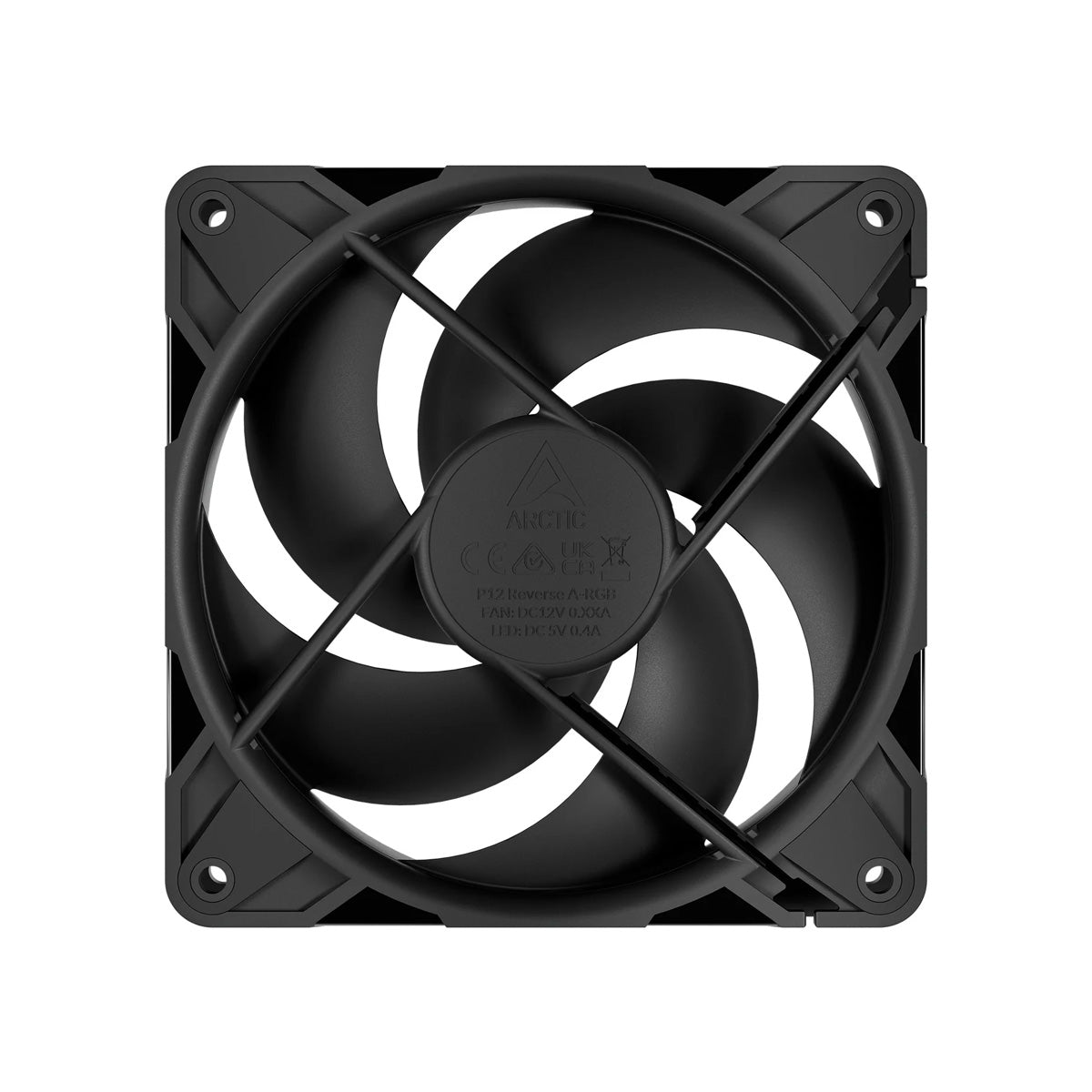

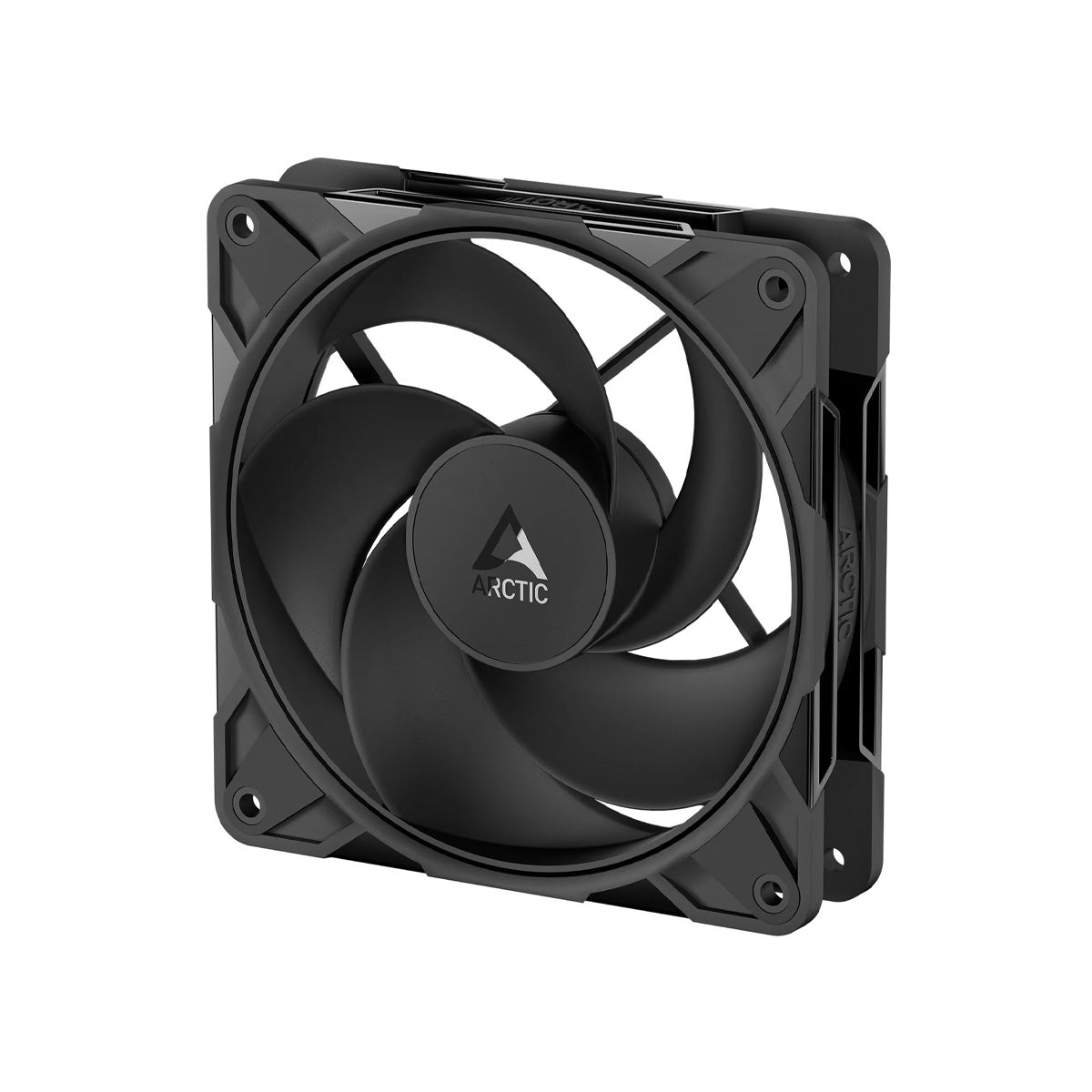

Arctic P12 PRO Reverse 120mm Premium Cooling Fan - Black
Warranty and Support
Warranty and Support
Warranty: 6 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Optimized Airflow Design
The trumpet-shaped intake and teardrop-shaped fan spokes are engineered to guide airflow more efficiently while reducing flow losses, air resistance, turbulence, and aerodynamic noise.
SOTA Microcontroller
The advanced state-of-the-art microcontroller helps reduce motor noise, compensates for load fluctuations, and provides protection against inrush currents and reverse polarity.
More Power with Less Noise
An automated measuring and balancing process applies balancing compounds with high precision to ensure smoother fan operation, improved stability, and quieter performance.
Minimum Gap Dimensions for Maximum Efficiency
The optimized fan blade and frame design minimizes internal gaps to achieve higher static pressure and improved airflow efficiency.
PST Daisy-Chain PWM Control
With the integrated PWM Sharing Technology (PST) connector, multiple fans can be daisy-chained together and controlled simultaneously through a single motherboard fan header for cleaner cable management.
Optimized FDB Bearing-Shaft Design
The hydrodynamic fluid dynamic bearing combined with an extended shaft design improves pressure distribution, reduces vibration, and delivers quieter and more reliable long-term operation.
Specifications
Specifications
| Operating Temperature | 0–40 °C |
| Dimensions | 120 (L) × 120 (W) × 27 (H) mm |
| Net Weight | 172 g |
| Fan Speed | 500–3000 rpm, PWM controlled 0 rpm below 5% PWM |
| Airflow | 73 cfm | 124 m³/h |
| Static Pressure | 4.5 mmH2O |
| Fan Bearing | Fluid Dynamic Bearing |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 3.5 V DC |
| Current | 0.4 A |
| Cable Length | 400 mm + 80 mm Daisy-Chain Cable |
| Connector | 4-Pin Fan Plug + 4-Pin Socket |
| Packaging | Width: 125 mm Height: 32 mm Length: 127 mm Weight: 0.215 kg |
