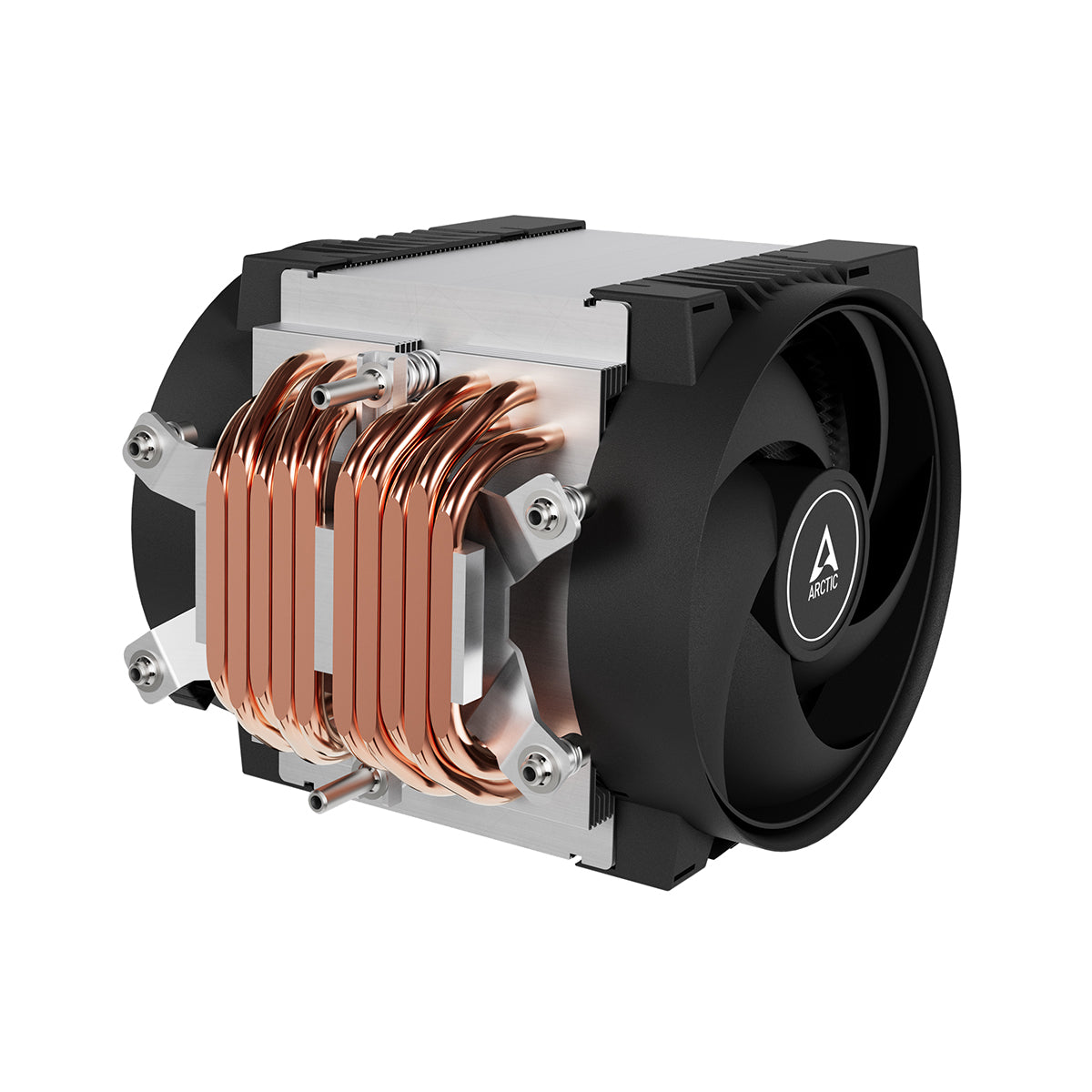

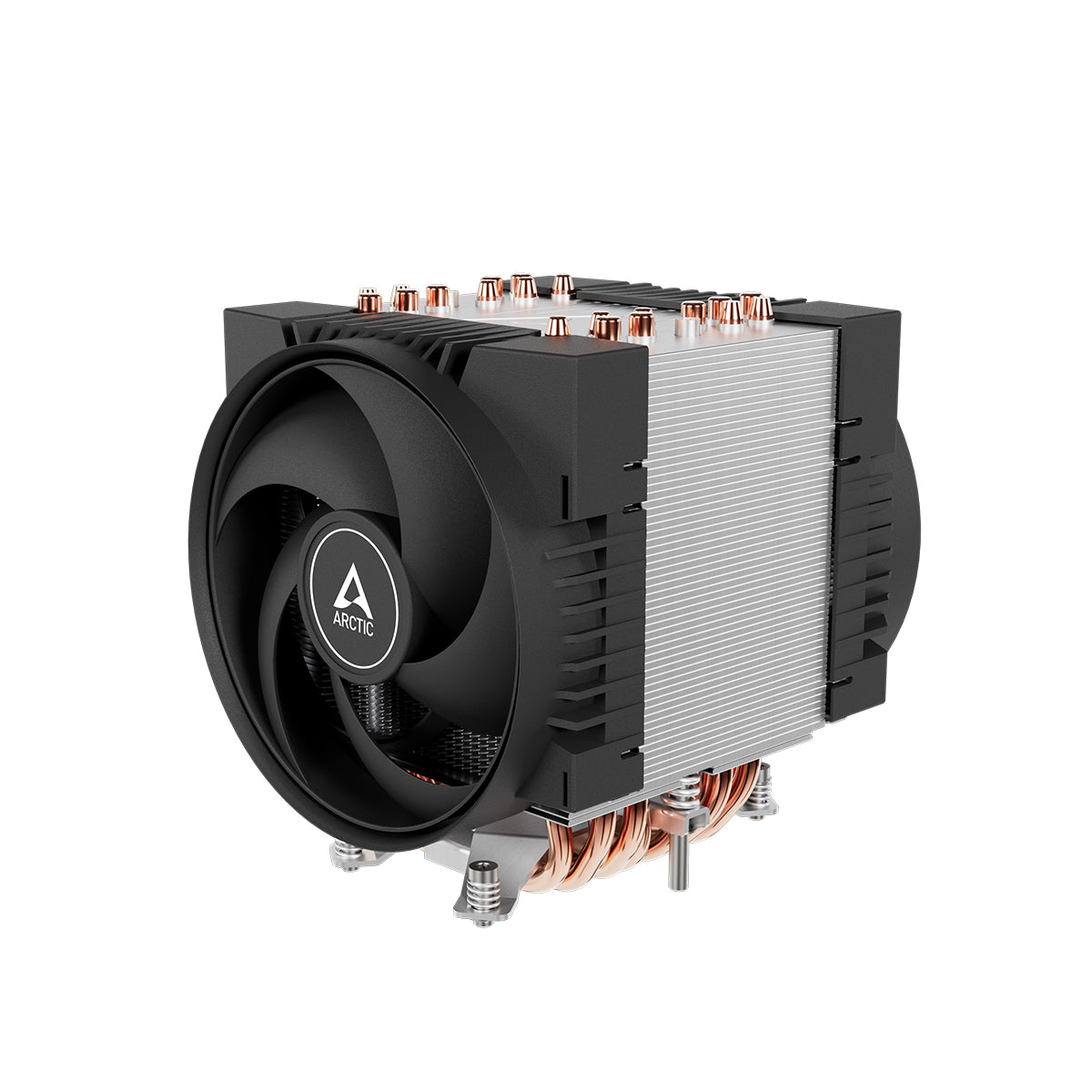

Arctic Freezer 4U–SP5 Single Tower CPU Cooler for AMD SP5 Socket CPUs

Designed for 4U Rackmount Servers and AMD SP5 Socket EPYC Processors

Arctic  |  SKU 74214  |  MPN ACFRE00158A
$169.00

Warranty and Support

Warranty: 6 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

Server Cooler Specifically Designed for AMD SP5

The Freezer 4U-SP5 is specially designed for Socket SP5 and supported EPYC processors. With a maximum power consumption of only 6.96 W, the Freezer 4U-SP5 cools even the most powerful AMD processors with 128 cores and 360 W TDP extremely efficiently.

RAM Compatibility and Clearance

The Freezer 4U-SP5 offers a spacious 53 mm of RAM clearance, allowing for the use of memory sticks with moderate heatsinks. This clearance allows efficient airflow and enables compatibility with different RAM variants.

Powerful Fans in Push-Pull Configuration

The installed PWM fans benefit from all the advantages of the award-winning P series. Designed for static pressure, the fans are ideal for the Freezer 4U-SP5's high fin density and provide efficient heat dissipation in push-pull mode, even in power-hungry applications. Especially office workstations benefit from the quiet fans. The dual configuration also allows for inherent redundancy and protects the system from total shutdown caused by heat.

Premium Thermal Paste Included

The Freezer 4U-SP5 comes with MX-6 thermal paste. ARCTIC's Ultimate Performance thermal paste reduces the heat build-up between the heat spreader of the CPU and the cooler. The thermal paste is neither conductive nor capacitive and therefore absolutely safe to use.

Designed for Continuous Operation

Both fans of the Freezer 4U-SP5 are equipped with dual ball bearings, which allows for 24/7 continuous operation without the slightest compromise in performance. This type of bearing is much more resistant to contamination and wear caused by high temperatures than conventional sleeve bearings or Fluid-Dynamic bearings and is therefore the perfect choice if you want to ensure fault-free continuous operation.

Specifications

Compatibility AMD: SP5
Thermal Compound ARCTIC MX-6 0.8 g Syringe incl.
Weight 1512 g

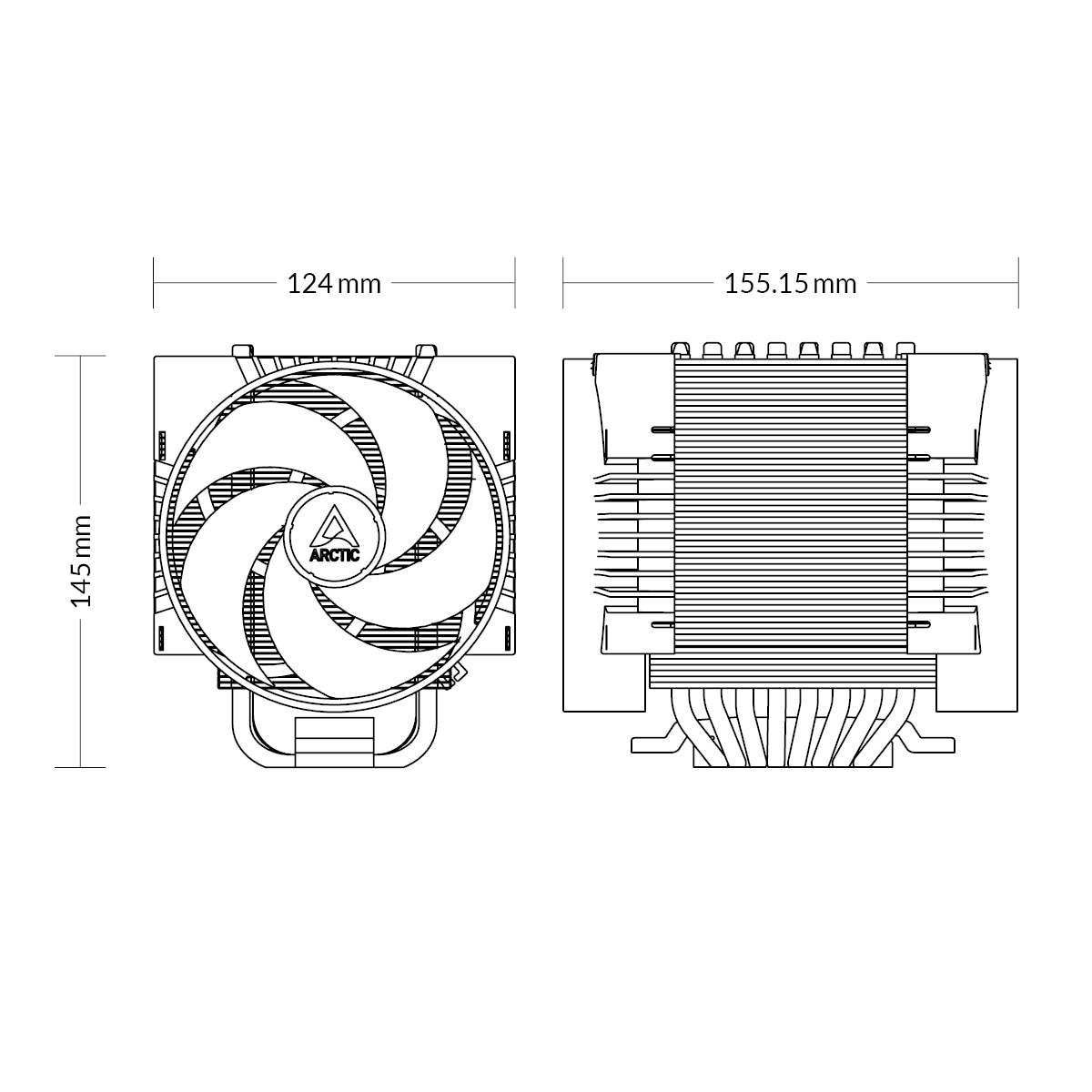

Dimensions 124 (L) x 147 (W) x 145 (H) mm
Server Rack Unit 4HE & up
Operating Ambient Temperature 0—40 °C
Heatsink Specifications Heat Pipe: Direct Touch, Ø 6 mm x 10
Number of Fins: 62
Fin Material: Aluminium
Fan Specifications Fan: 2x 120 mm PWM Fans
Fan Speed: 300–3300 rpm, PWM Controlled
Connector: 4-Pin Plug
Cable Length: 200 mm
Bearing: Dual Ball Bearing
Noise Level: 45.3 dBA
Air Flow: 81.04 cfm | 137.69 m³/h
Static Pressure: 4.35 mmH2O
Current | Voltage: 0.29 A | 12 V DC
Startup Voltage: 3.1 V DC
