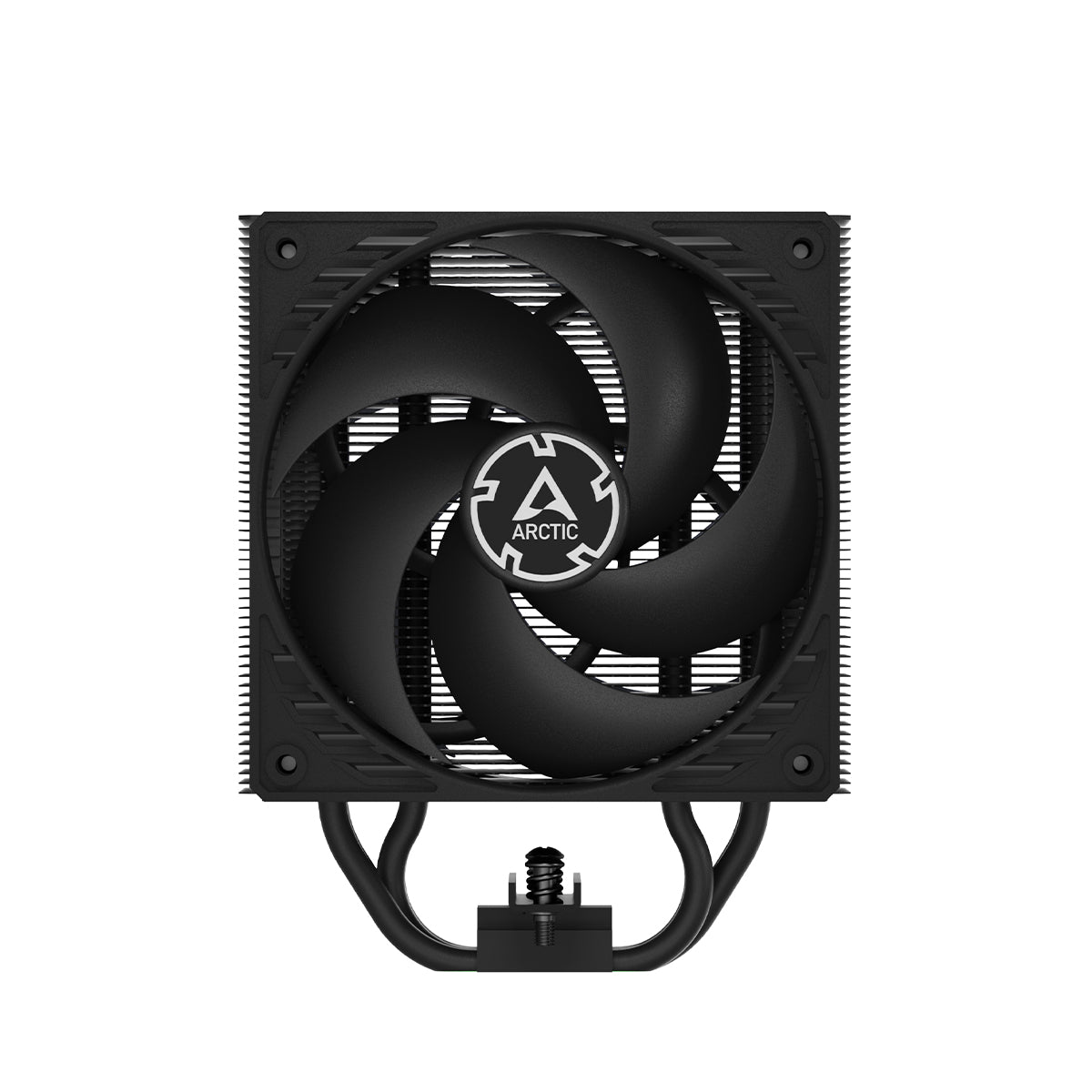

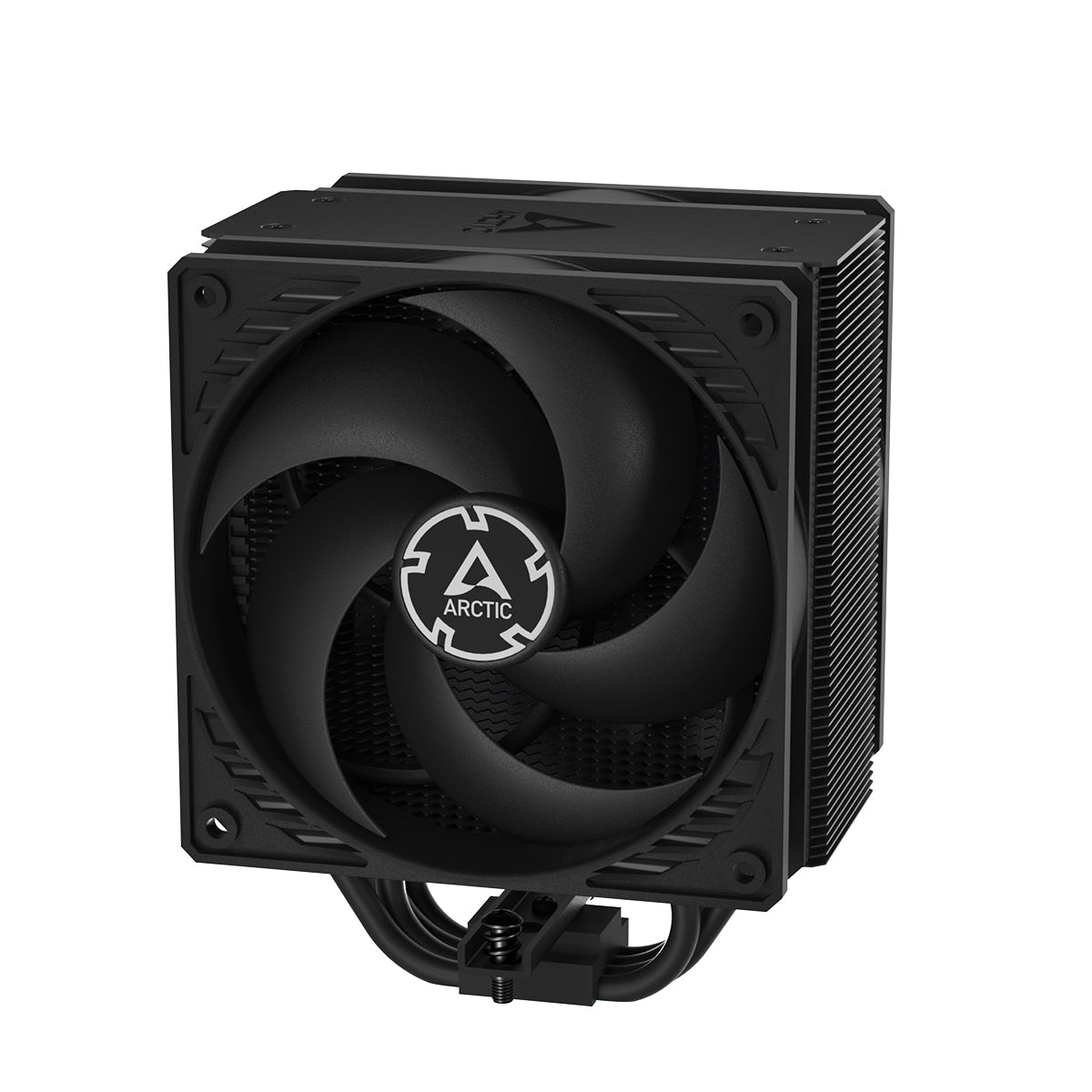

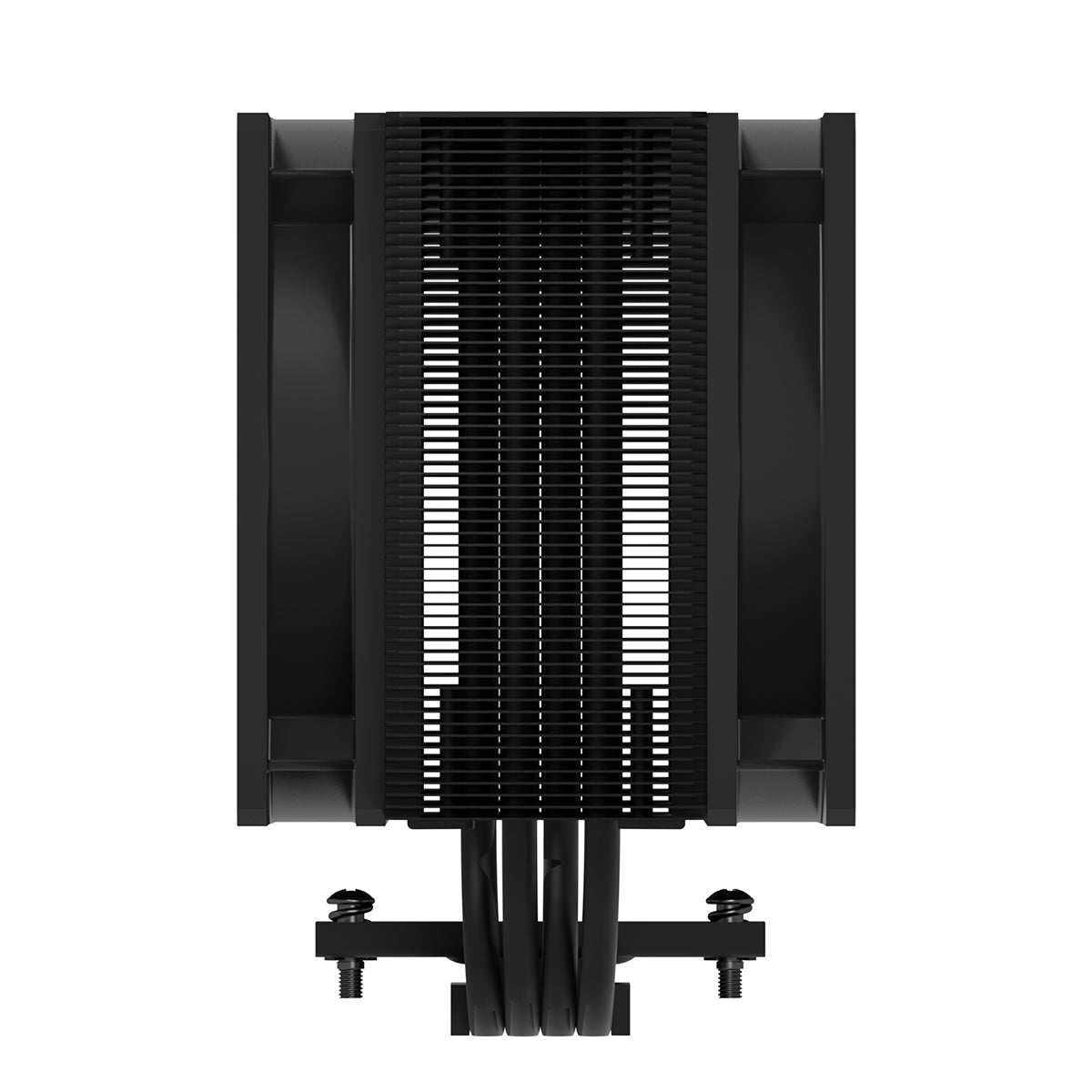

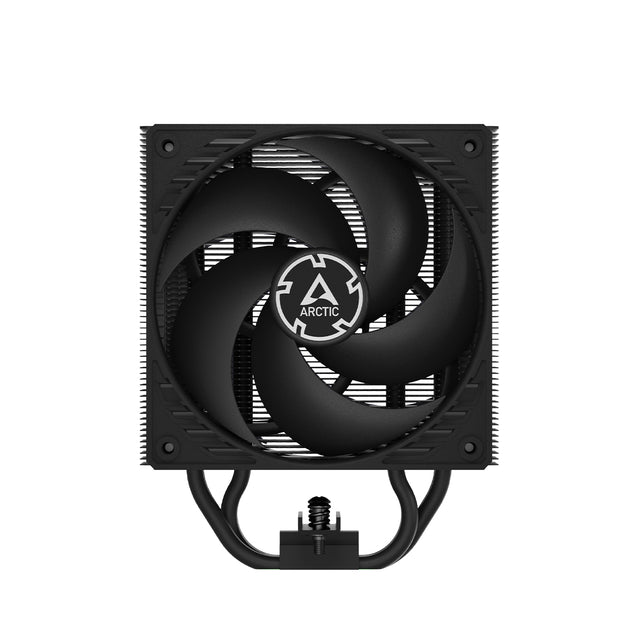

Arctic Freezer 36 Single Tower Dual Fan CPU Cooler - Black

Designed for AMD AM4/AM5 and Intel 1700/1851| High Static Pressure Fans | Included Intel Contact Frame

Arctic  |  SKU 61277  |  MPN ACFRE00123A
$58.99

Warranty and Support

Warranty: 6 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

High-Class Finish with Aluminium Top Plate

With its push-pull configuration, the Freezer 36 not only impresses with its efficient cooling performance but also with its design. The soldered ends of the heatpipes are concealed by the screwed aluminium cover, allowing it to blend seamlessly into any PC setup and highlight both performance and appearance.

Freezer 36 – Tested and Confirmed by Intel

Intel has tested and confirmed the Freezer 36 on the i9-13900K/KF, i9-14900K/KF, and i9-13900KS in the Enthusiast and Desktop category. In these tests, Intel considered both the mounting with the contact frame and the cooler's performance.

Future-Proof Compatibility

The Freezer 36 is multi-compatible with Intel and AMD sockets. Intel will release the new Arrow Lake processors on the LGA1851 socket in the future. We guarantee full compatibility. All Freezer 36 coolers can be used with the new LGA1851 socket from Intel without limitation.

Improved Fan Mounting

Thanks to the innovative mounting system, both fans are effortlessly mounted in the heatsink using a click system. This mounting method eliminates the need for fan clips, making it easier to install the cooler or replace the fans, even if the cooler is already installed. The Freezer 36 is therefore compatible with most 120 mm fans.

LGA1851 | LGA1700 Contact Frame

Intel's Independent Loading Mechanism (ILM) deforms the CPU by pressing it into the socket at two points with over 40 kg. This causes pressure in the PCB, the DIE, and the solder layer between the DIE and IHS (Integrated Heat Spreader). With high thermal load, this can lead to long-term problems. The mounting frame from ARCTIC does not deform the CPU, reduces the mechanical load on the CPU massively, is quick and easy to install, and allows the cooler to be screwed onto the CPU's backplate. As a result, mechanical stress on the mainboard and CPU is minimized, cooling performance remains consistent, and installation is quick and uncomplicated.

High-Quality Bearing

Thanks to a combination of alloy and lubricant developed in Germany, friction within the bearing is minimized and greater efficiency is achieved. In addition to preventing lubricant loss, wear on the pin and sleeve is also minimized. In this way, less heat is generated, less bearing noise is produced, and the service life of the fan is significantly extended.

Optimized Heatsink

The fins of the heatsink are open at the side and allow the pull fan to draw additional cool air out of the PC case through the heatsink. This side-flow design achieves even more efficient ventilation.

P-Fans with High Static Pressure

ARCTIC relies on the proven P fans, which are known for their powerful performance. The P series is particularly suitable for use on heat sinks and radiators. Due to the dense fin structure of heat sinks, the fans used achieve significantly better performance than fans designed for airflow thanks to their high static pressure.

Large Selection of Variants

The Freezer 36 is available in five different versions, all equipped with two fans in a push-pull configuration. In addition to the standard model with an aluminium heatsink design, a version with a black heatsink is also available. For continuous operation, there is also the CO version, which is equipped with fans with double ball bearings. Alternatively, users can choose between a black and a white version with A-RGB fans.

Specifications

Compatibility Intel: LGA1851 | LGA1700
AMD: AM5 | AM4
PI | NNPI 250 | 234
TIM MX-6 (0.8 g)
Operating Ambient Temperature 0—40 °C

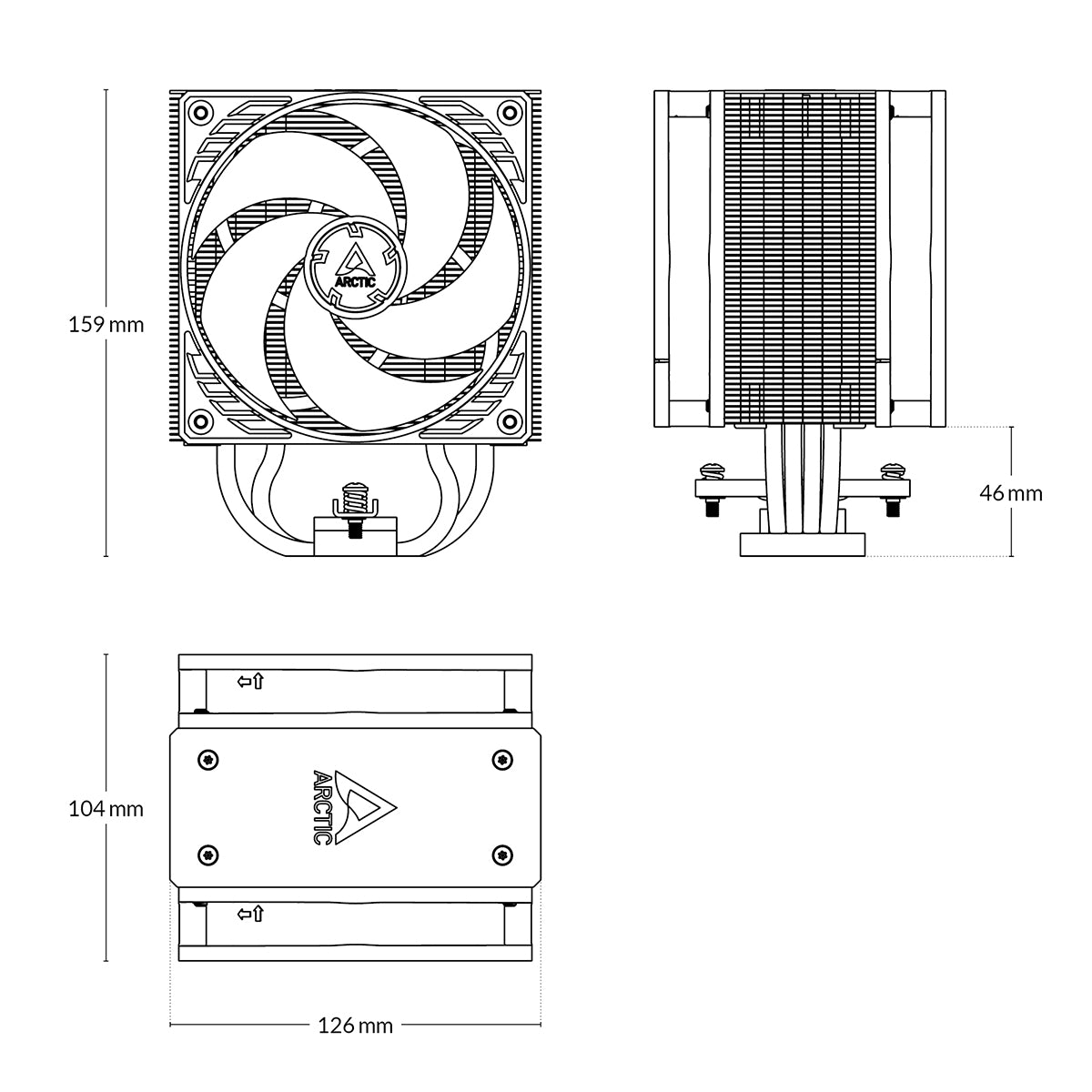

Dimensions 104 (L) x 126 (W) x 159 (H) mm
Weight 890 g

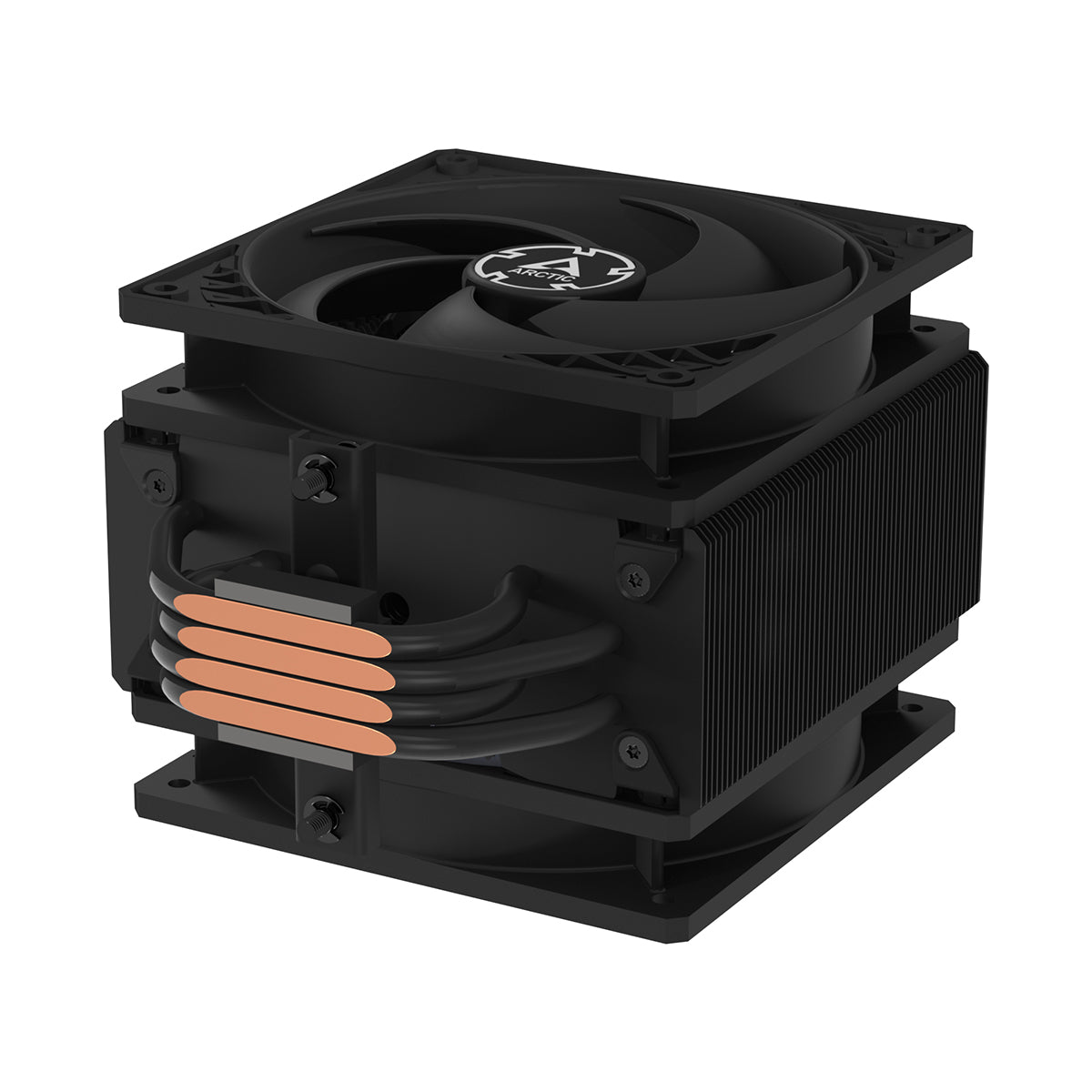

Heatsink Heatpipes: 4x 6 mm Ø, Copper
Fin Stack: 59x 0.4 mm, Aluminium
Fans Fan: 2x P12 PWM PST
Speed: 200 - 1800 rpm, PWM Controlled (0 rpm below 5 % PWM)
Bearing: Fluid Dynamic Bearing
Current | Voltage: 0.10 A | 12 V DC
Cable Length: 200 mm + 80 mm Splitter Cable
Connector: 4-Pin PWM-Connector + 4-Pin Plug
