Alphacool VPP Apex PWM Watercooling Pump
Compatible with D5 Reservoirs and Housings
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 5 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description

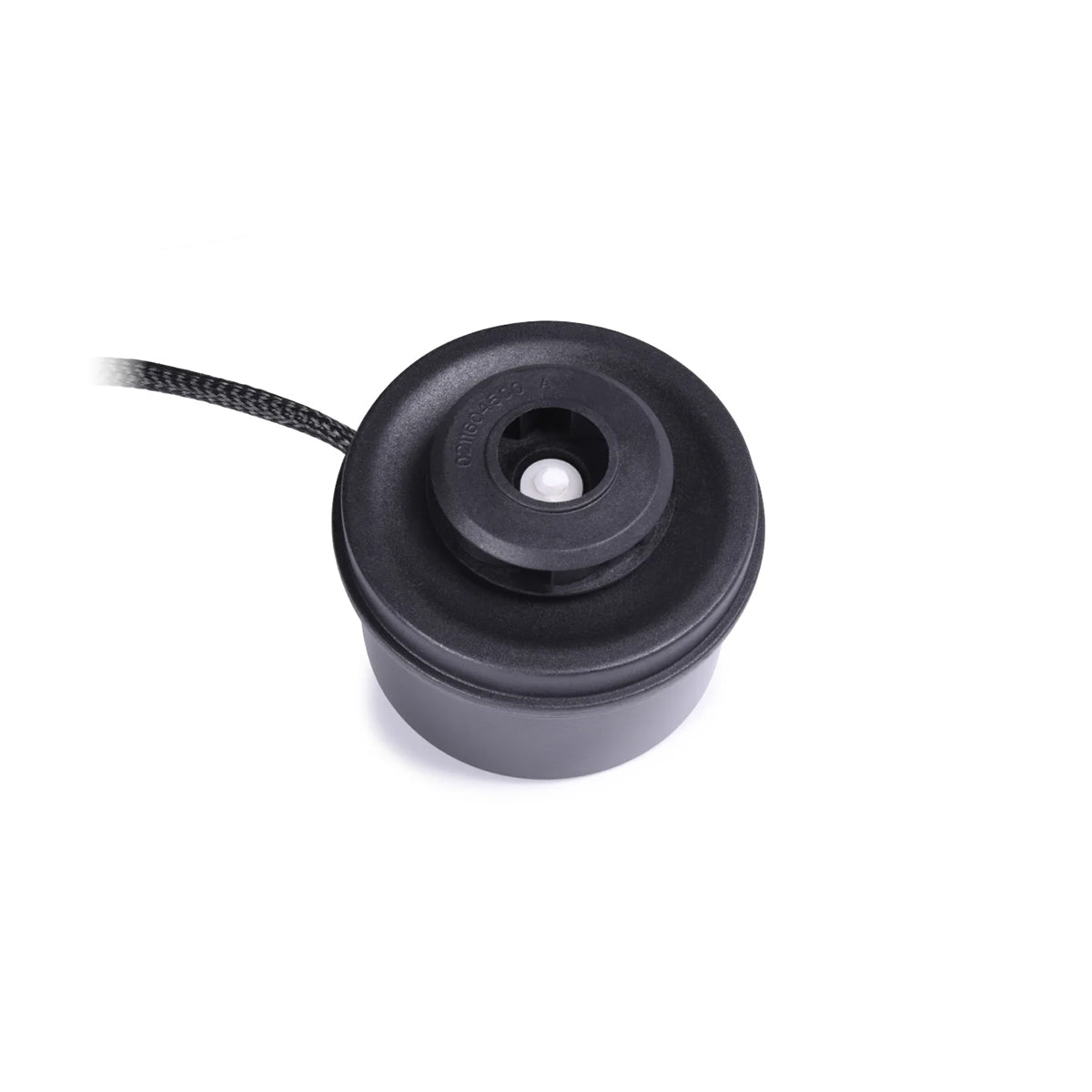

Alphacool Apex VPP Pump
The Alphacool Apex VPP is a powerful pump that is compatible with the most popular D5/VPP tops and reservoirs. Via the 4-pin fan connector, the speed of the pump can be read and controlled via PWM signal. The Apex VPP is supplied with power via the SATA connector.
Features
Alphacool's Apex VPP doesn't use a spherical bearing and relies on a ceramic axle. The motor's coils have been moved from the inside to the outside. These changes make the pump fundamentally more stable and smoother running, significantly reducing any vibrations that arise. Another positive side effect is that power consumption has been almost halved as a result.
Power Supply
Compared to Alphacool's Eispumpe, the power is not supplied via a 4-pin Molex connector. Instead, the Apex VPP pump is connected to the power supply using a SATA connector.
Control
The Apex VPP pump has a 4-pin fan connector that connects to the motherboard or an external controller. This allows you to control the speed range of the pump via PWM and read out the RPM signal.
Compatibility
The Apex VPP pump is compatible with the most popular D5/VPP pump tops and reservoirs.
Specifications
Specifications
| L x W x H | 65 x 65 x 41mm |
| Material Pump | Synthetic Material |
| Material Pump Cover | Aluminium |
| Material Axle | Ceramics |
| Connections | 4-Pin PWM | SATA |
| Rotational Speed | 2500 - 4500 RPM |
| Cable Lengths | 4-Pin PWM - 48cm | SATA - 48cm |
| Operating Voltage | 8-13V DC / 14W IP32 |
| Starting Voltage | 12V DC |
| Maximum Pumping Head | 4,25m |
| Maximum Flow Rate | 340L/h |
| Maximum Working Temperature | 60°C |
| Weight | 276g |
| Color | Black |
