Alphacool NexXxoS XT45 240mm Full Copper Radiator

Alphacool NexXxos Radiators

The new Alphacool NexXxos radiators, a name that stands for experience and quality, have come to bring a fresh breeze to the radiator market.

Performance

This Radiator can discharge up to 1400 W at an ambient temperature of 30°C and fans with 4000 rpm.

Tailored to Your Needs

Every user of a water cooling system needs a radiator, and everyone has different requirements for the heat exchanger. Of course, the customer always demands the best in its class. The Alphacool NexXxos radiators have come to compete with and beat the best in their class to be the best radiator in all sizes. No more endless choices without a clear class leader – the Alphacool NexXxos is the one tool for all your needs!

Full Copper Advantage

Alphacool has been the company to introduce new developments and improvements in the radiator and water cooling sector many times over the last few years. Following this tradition, the new NexXxos radiators are the first to truly deserve the “Full Copper” attribute. All main parts, not only the fins and channels, but the chambers are also made from copper. This brings an improvement in performance where other radiators are left without a chance. The material already gives an advantage over the competition, and the inner structure is up to par with the best. Separated chambers give the coolant a clear direction, allowing high flow rates, which improve the performance of the whole cooling loop. Flat chambers on the heat exchanger increase mounting flexibility thanks to the reduced overall length.

Versatile and Easy Mounting

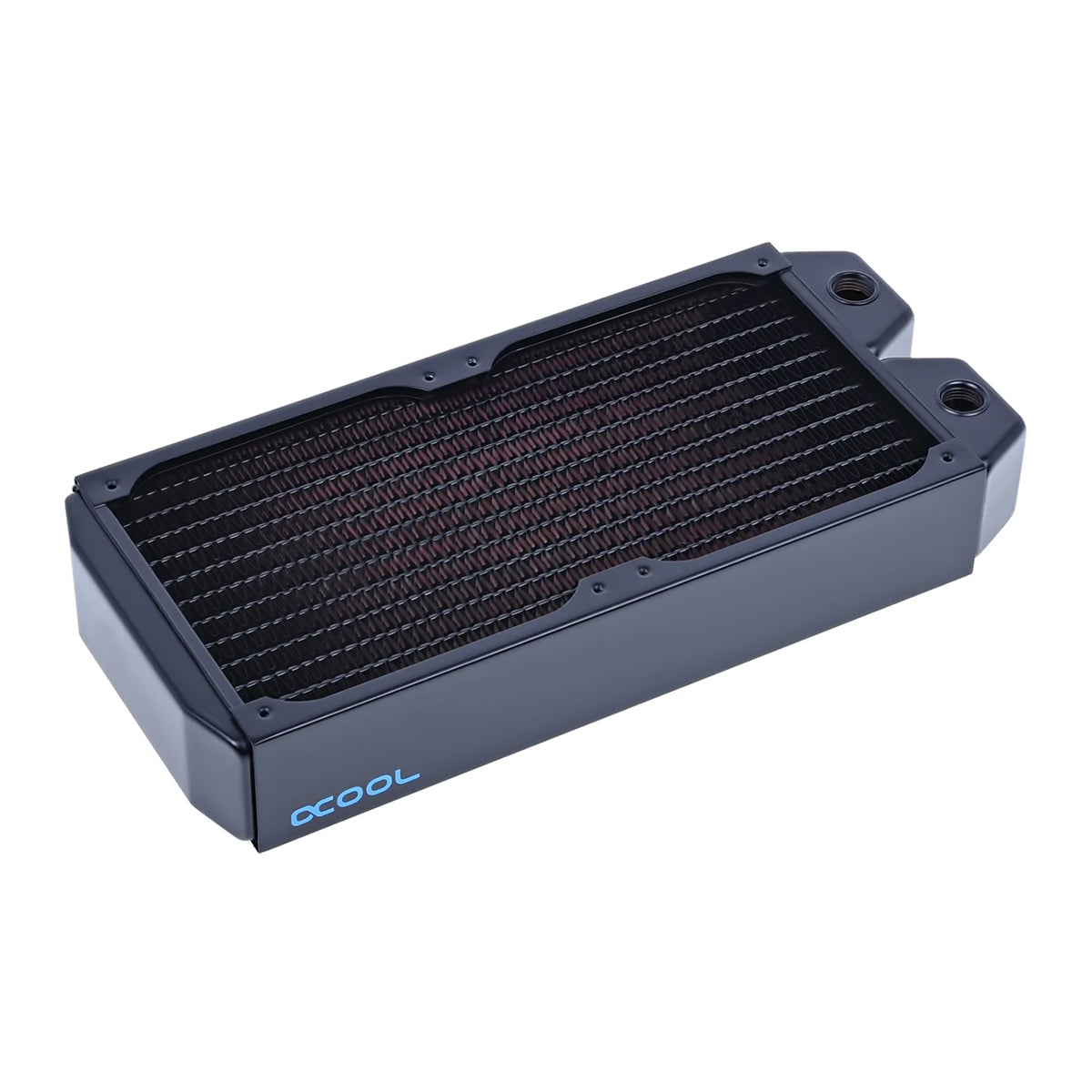

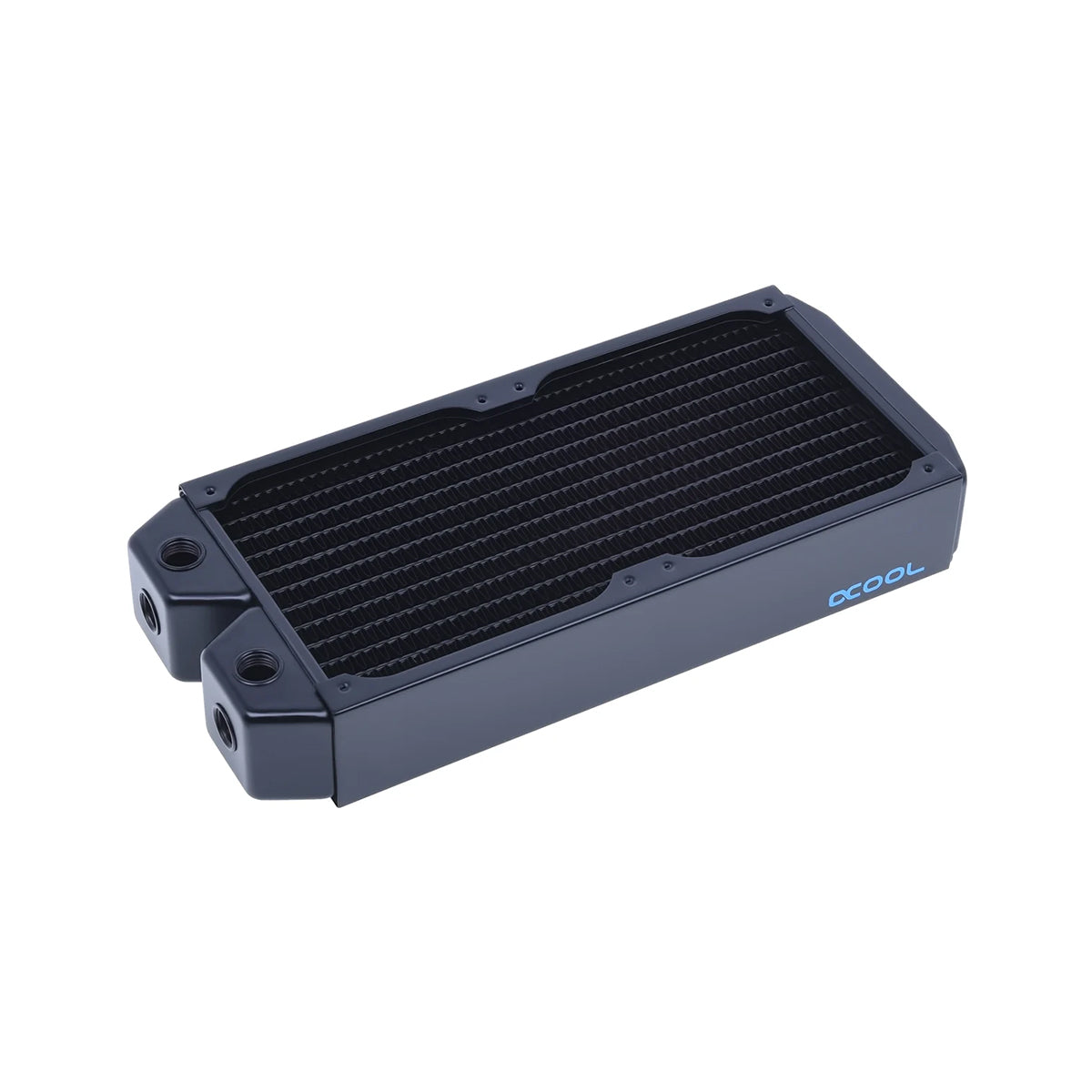

Versatile and easy mounting is one of the main focuses of Alphacool's research and development department. The chamber offers three possibilities for fitting installation on both inlet and outlet (not on the NexXxos ST30). Fewer angled fittings are needed, improving flow rates and offering more mounting possibilities. The radiator can even be installed in tight enclosures, where otherwise internal installation would not be a possibility. A 1/4" screw plug allows easy de-aeration of the radiator (on all UT60 and NexXxos Monsta) and hassle-free vertical installation of the heat exchanger. The threaded opening can even be used for filling, e.g., in combination with a Fillport.

Wide Range of Options

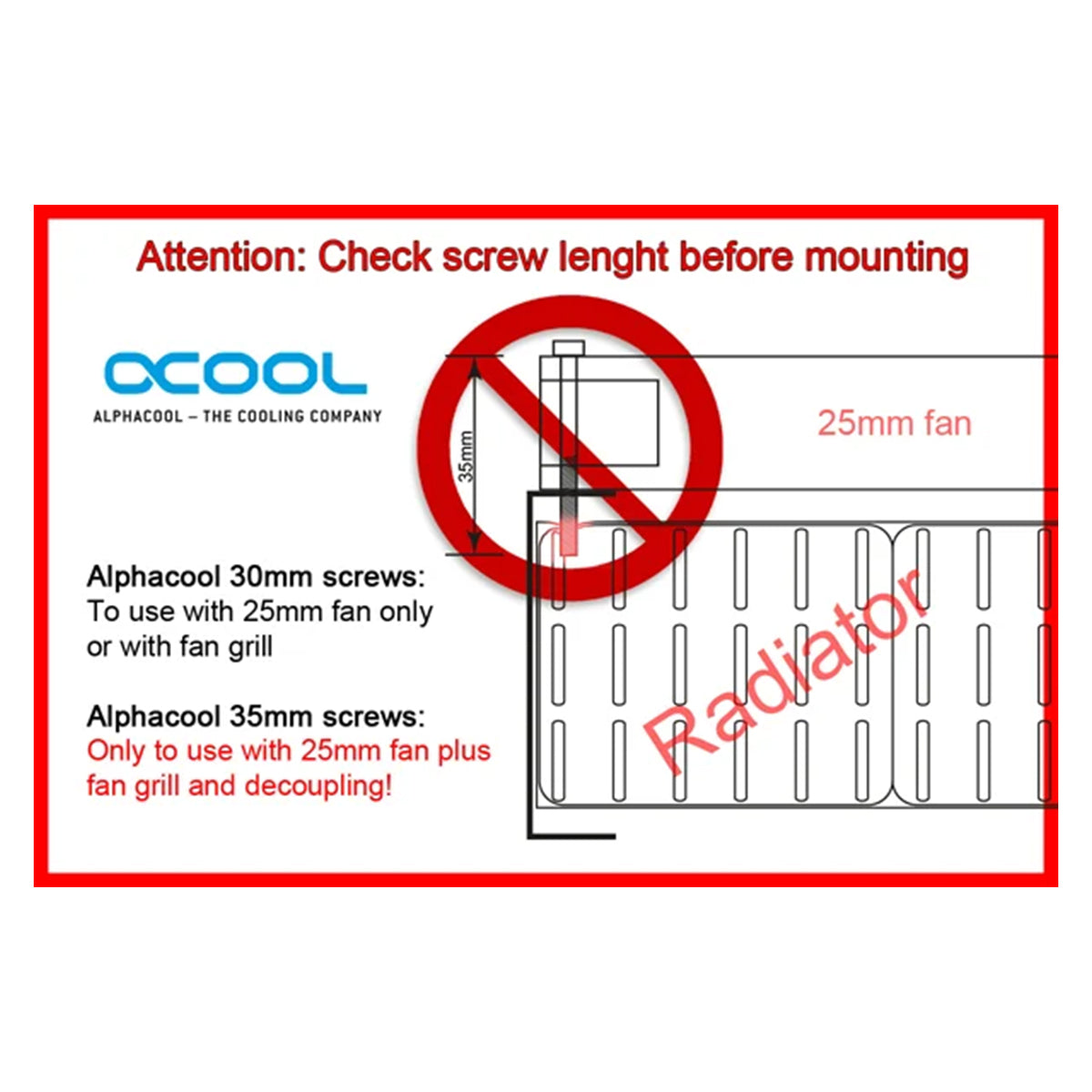

Versatility is the essence of the new NexXxos series! The radiators are available in different versions to be used with 120mm, 140mm, or 180mm fans and are available in different thicknesses. The choice of 30mm, 45mm, and 60mm offers the perfect radiator for every purpose. Even mounting and installation of fans and radiator grills is easy and versatile with these radiators: The M3 threads are standard in the radiator sector and available in all lengths at an affordable price. Even the dreaded insertion of a screw too far into the radiator does not result in expensive damage. Unlike other radiators, the NexXxos series is equipped with an internal protective ledge, which stops the screw before it damages the fins.

Fin Design for Efficiency

Fin spacing is always an important factor in radiator design. The new series from Alphacool has a fin design that allows it to perform extremely well even with slow-spinning and medium-speed fans. This is not only pleasant due to the fact that it avoids unnecessary noise, but it also means that the choice of fans that can be used with these radiators is not restricted.

Conclusion

These radiators are the result of experience and powerful performance meeting future-oriented design and well-thought-through solutions.
