Alphacool ES Quick Release BLH1A G1/4 F Push In Set
For Easy Maintenance or Parts Swaps in Custom Watercooling Loops
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 5 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description

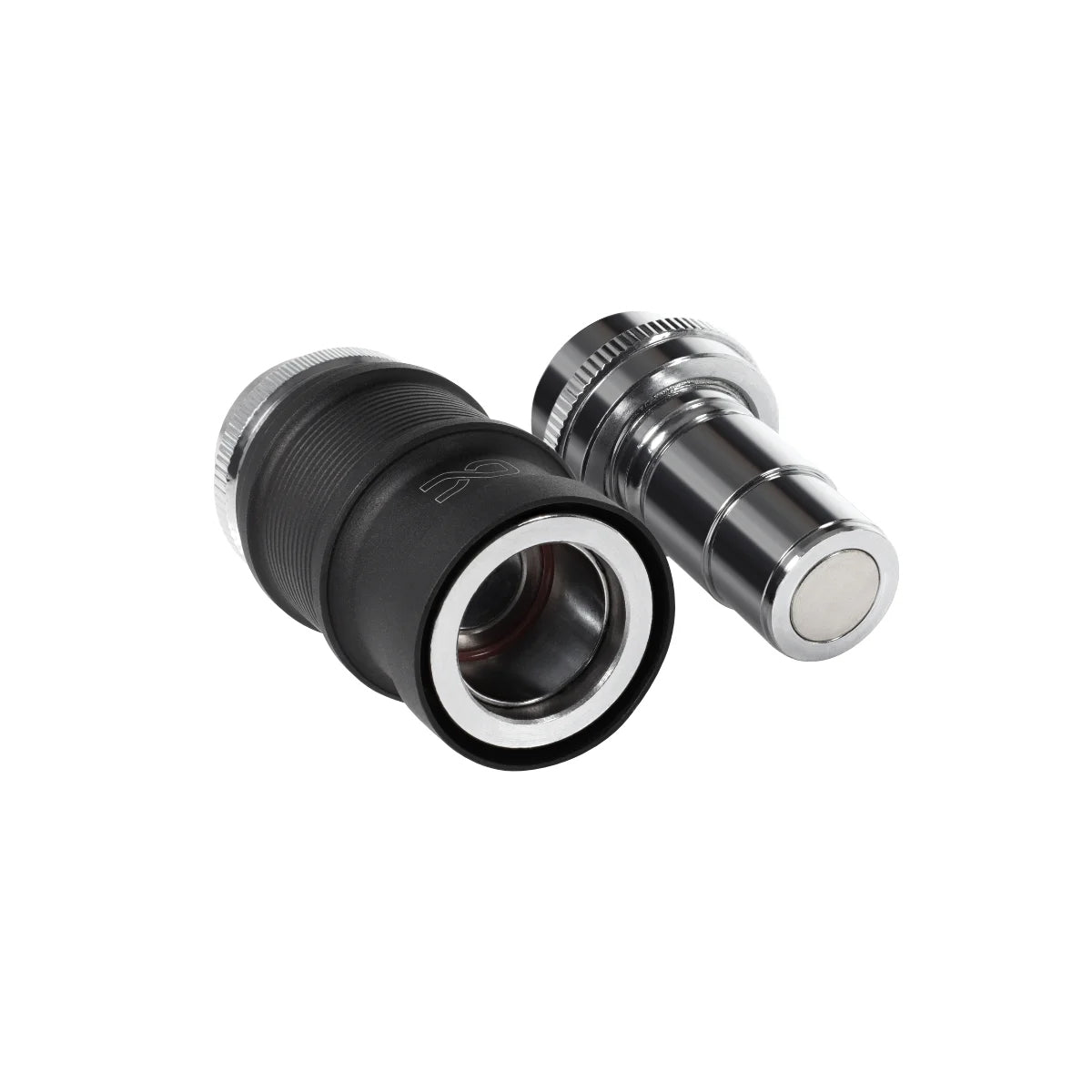

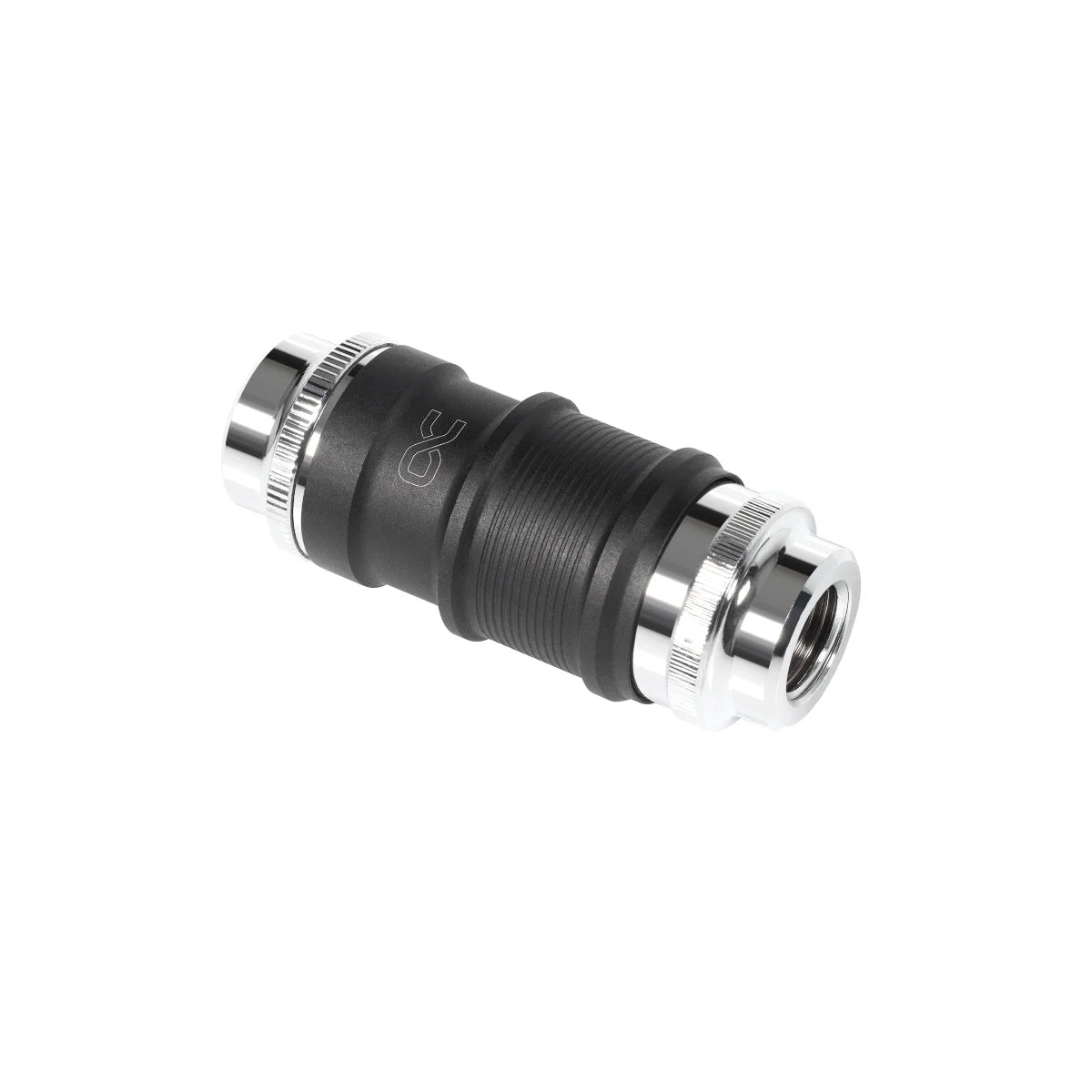

Alphacool ES Quick-Release Connector is optimized for use in server and workstation systems. It is characterized by precise manufacturing quality, excellent water flow, and a secure click mechanism for sealing.
Maximum Flow Rate
Other quick couplings can negatively affect the flow of water. The quick coupling has therefore been fundamentally redesigned so that the water flow is hardly disrupted. Particular emphasis was placed on minimal processing tolerances.
Quick and Easy

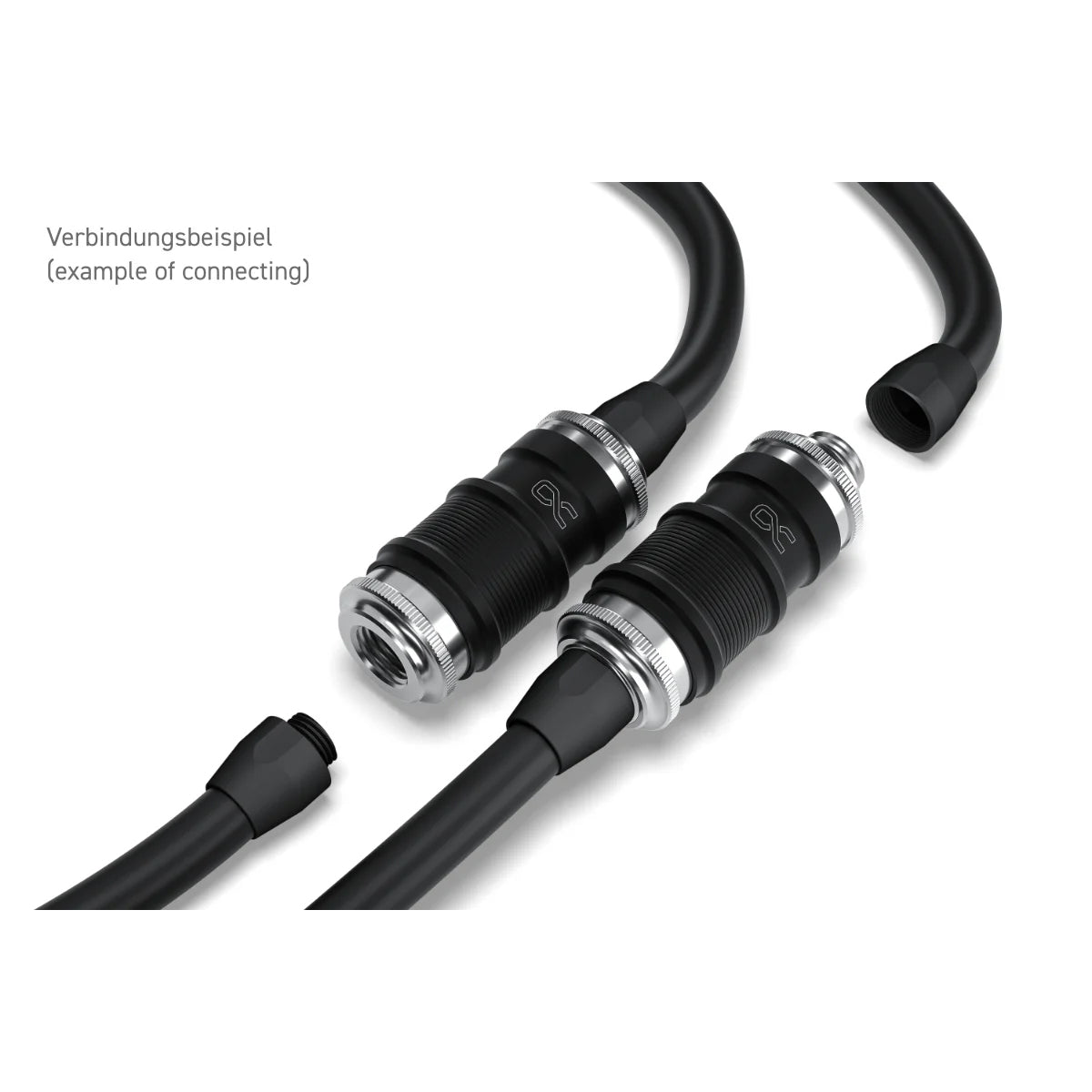

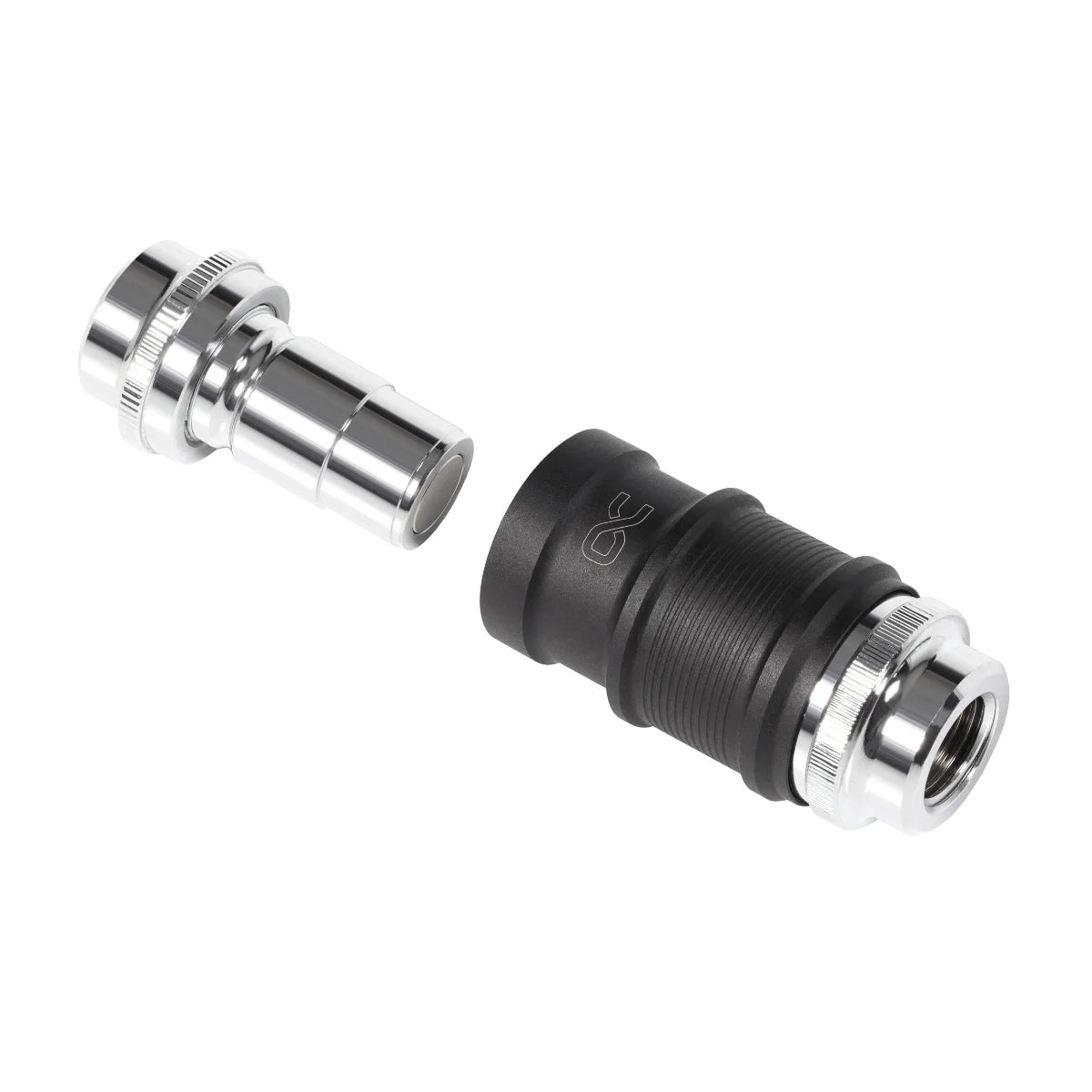

The ES quick connectors from Alphacool simplify the assembly of server and workstation systems. Thanks to the convenient handling, complex systems can be connected quickly and easily. To open the quick-release fastener, the outer ring is pulled back. The seal closes immediately and prevents coolant from escaping. To lock the quick-release fasteners, simply push them into each other. A clicking noise confirms secure locking.
Note
To avoid damaging the O-ring, do not open or close the quick-release fastener when it is dry.
Specifications
Specifications
Technical data
| Dimensions (L x D) | 67 x 28mm |
| Weight | 150g |
| Pressure test | 8 bar |
| Material | Nickel-plated brass, plastic |
| Thread | 2x 1/4" IT |
| Color | Chrome, black |
Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
