Alphacool ES Flow and Temperature Sensor G1/4 F-F - Black

Alphacool ES "HighFlow" with Tacho Signal

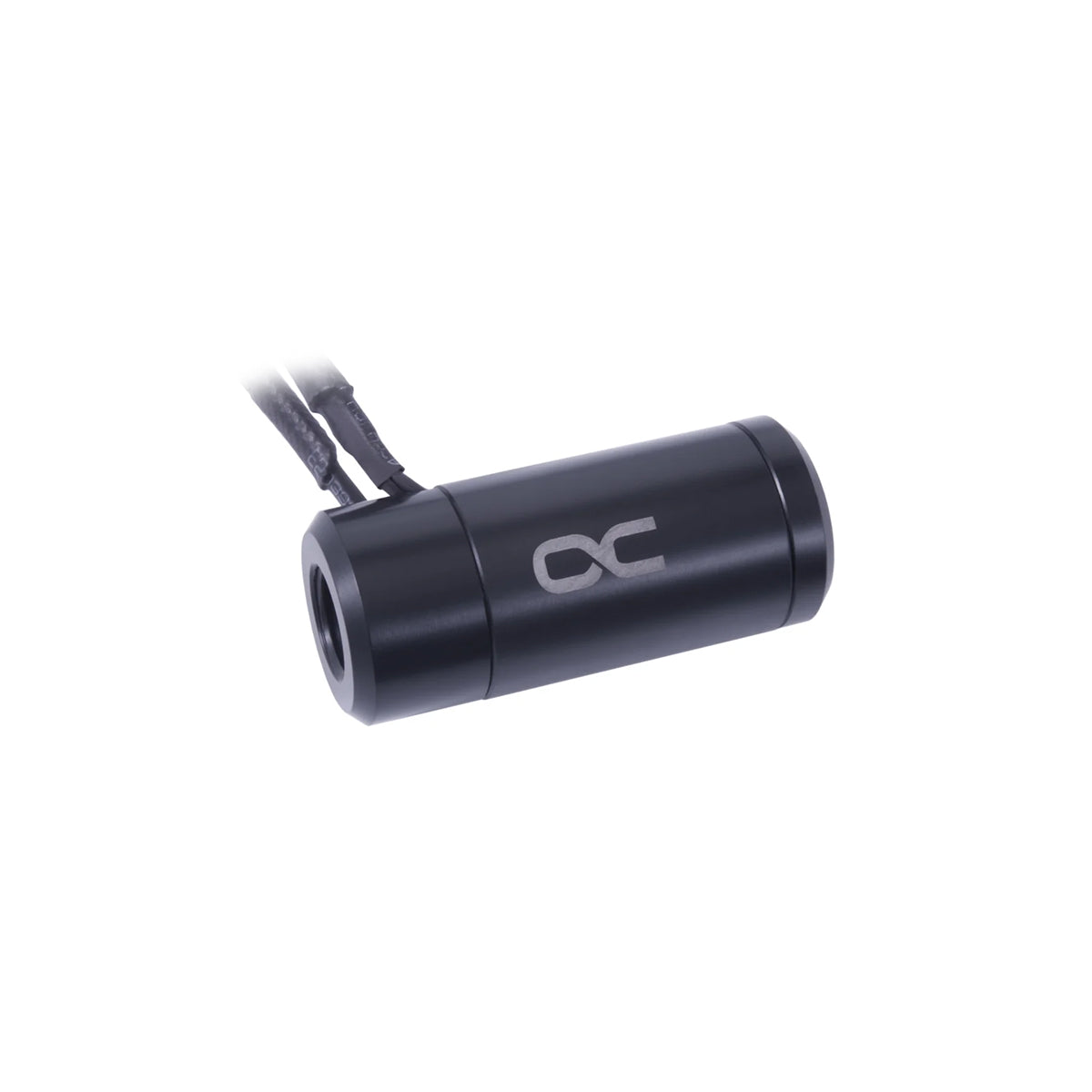

The Alphacool ES "HighFlow" is a sensor that monitors both water temperature and water flow, easily integrating into any water circuit.

Integration Made Easy

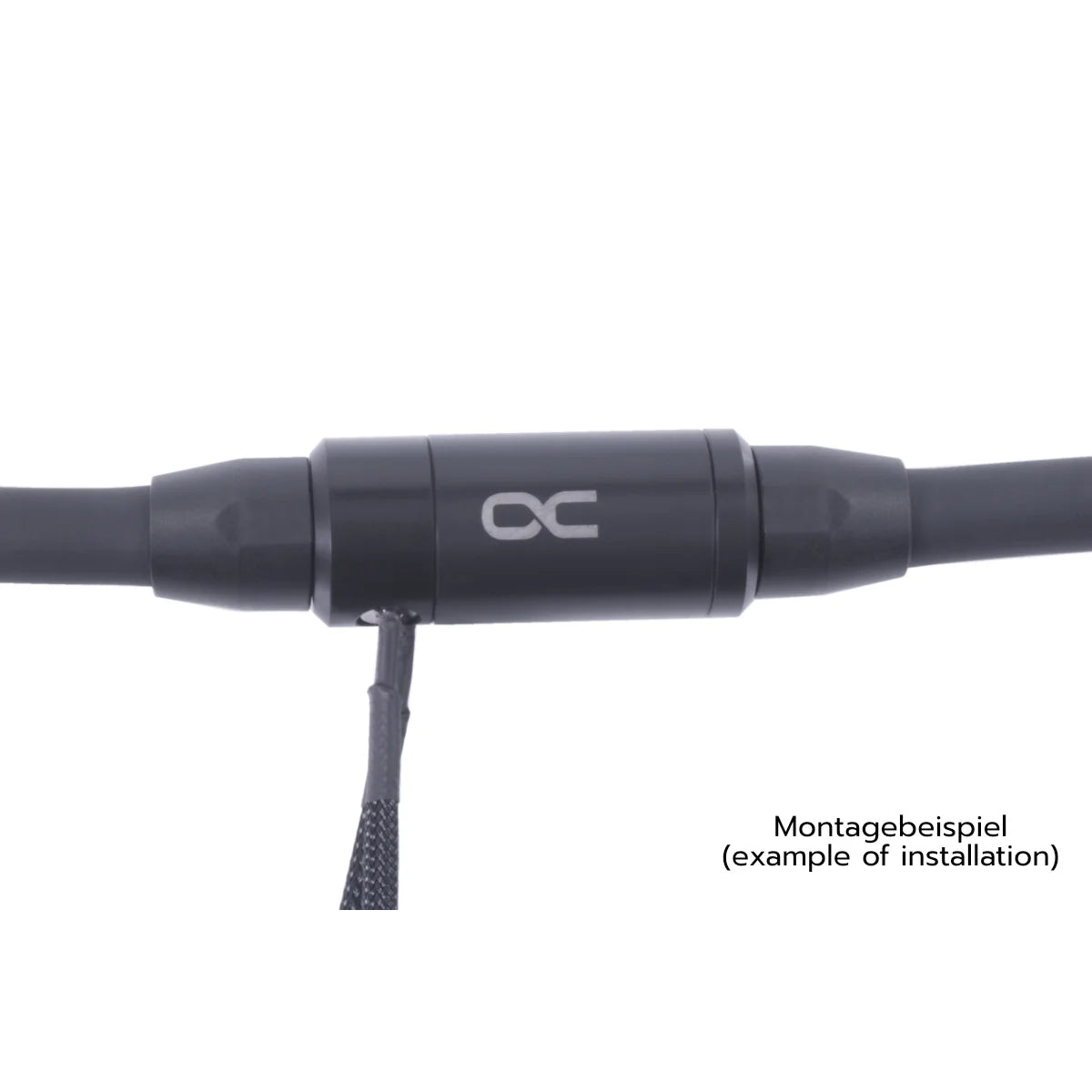

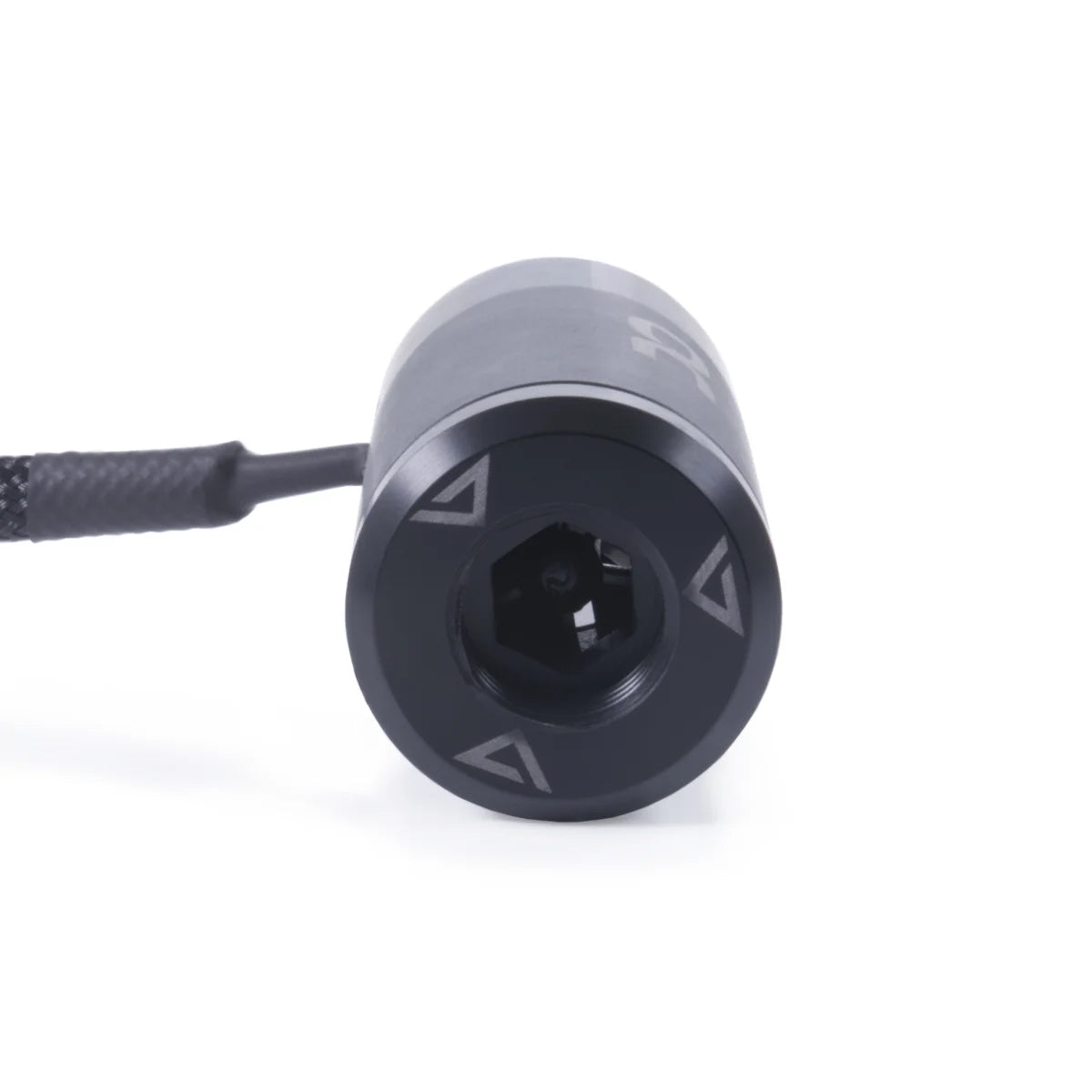

The compact design of the Alphacool ES "HighFlow" flow and temperature sensor allows for seamless integration into any water circuit. It features two G1/4" internal threads, making it compatible with both soft tube and HardTube systems. Simply screw in the appropriate connections to the sensor and mount it at any desired position in the loop.

Temperature Sensor

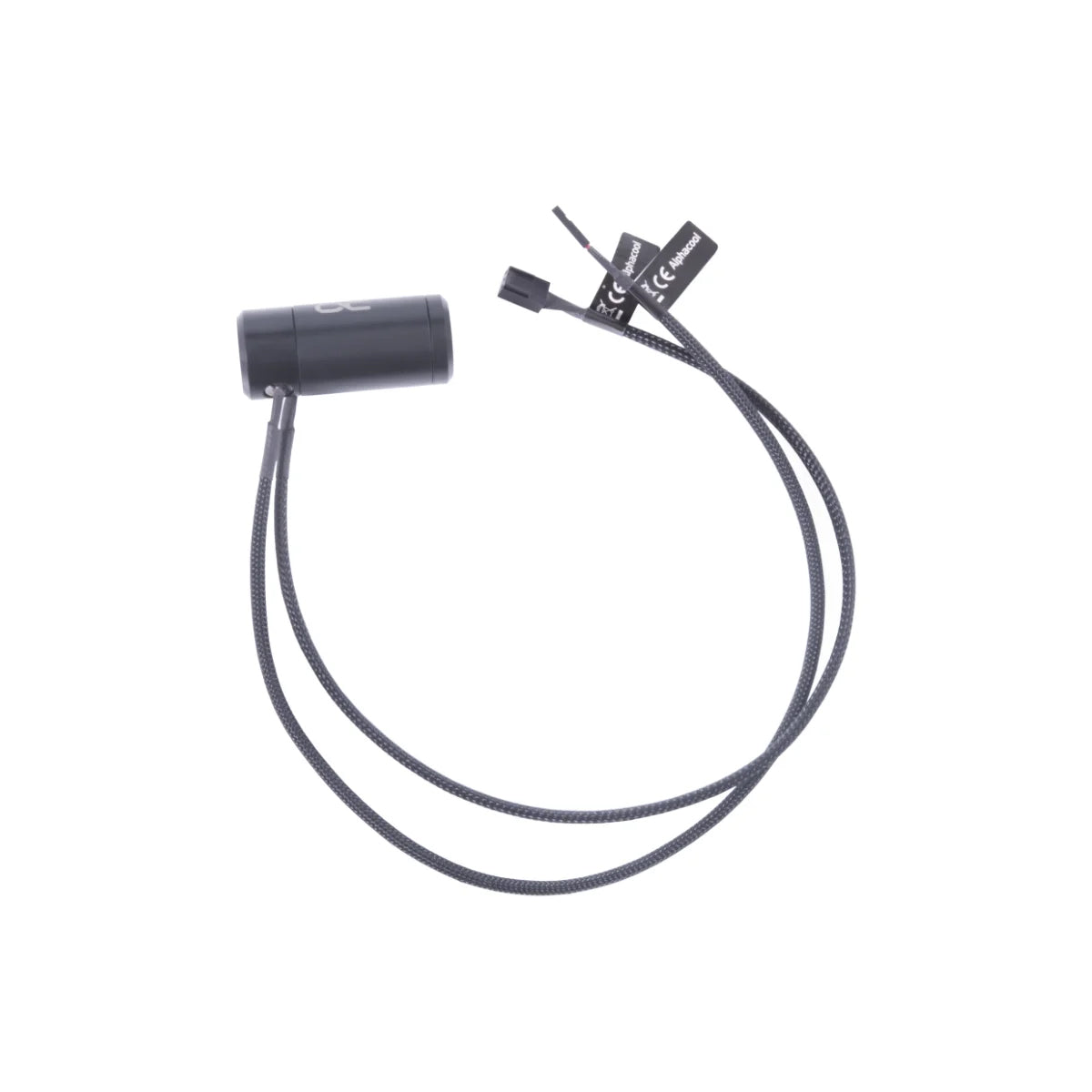

The sensor uses a classic NTC 10 kOhm thermistor, with a readable temperature range between -40°C and 125°C. The cable is 43.5 cm long and ends in a typical 2-pin connector. Many mainboards now offer direct connection options for such sensors, so it's recommended to check your mainboard manual. Additionally, there are various external controllers with NTC connections available. Please note that a corresponding readout device is not included in the scope of delivery.

Flow Sensor

The flow sensor continuously measures the water flow within the circuit. It comes with a 42 cm sensor cable and matching connectors to ensure easy integration.

Technical data
