Description
Description

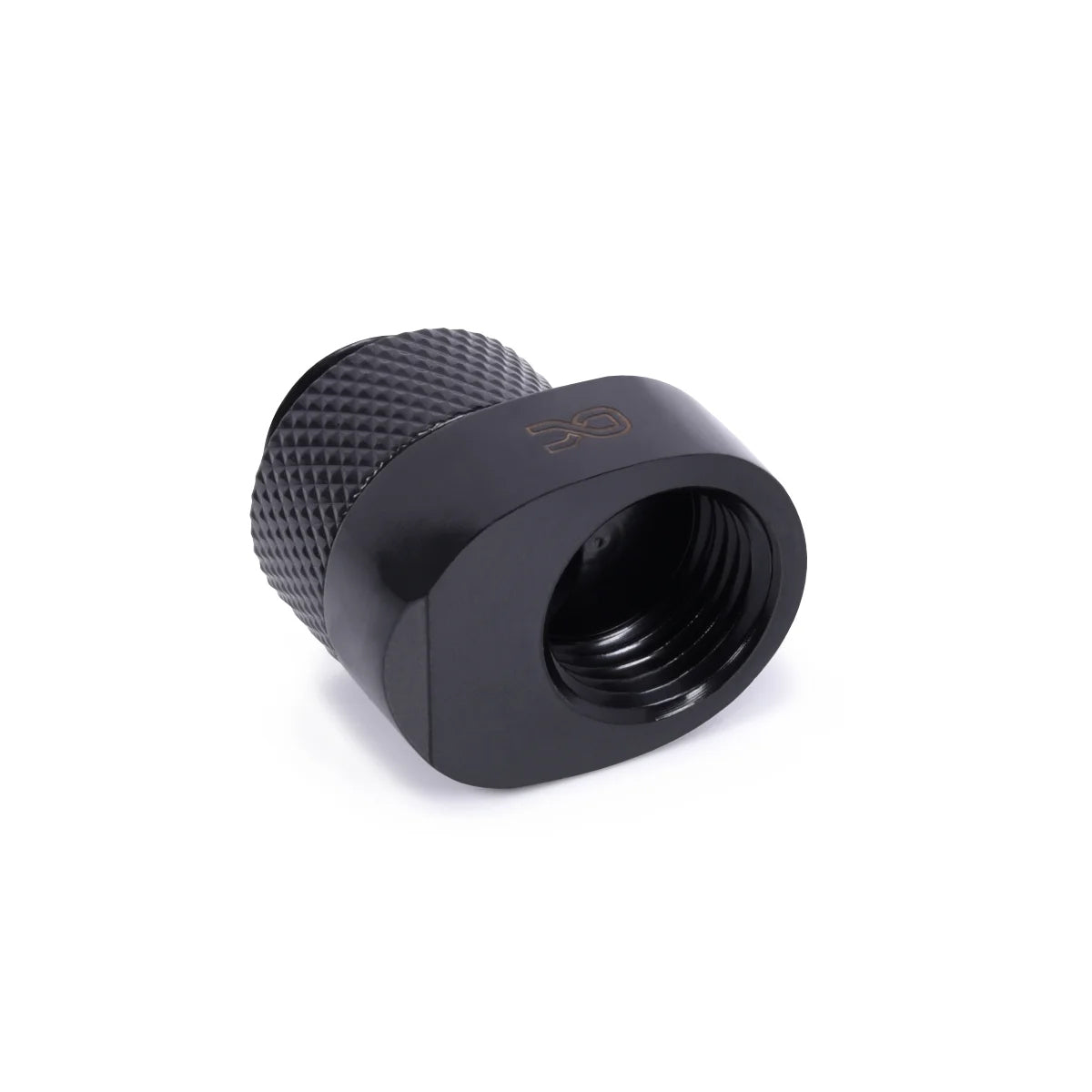

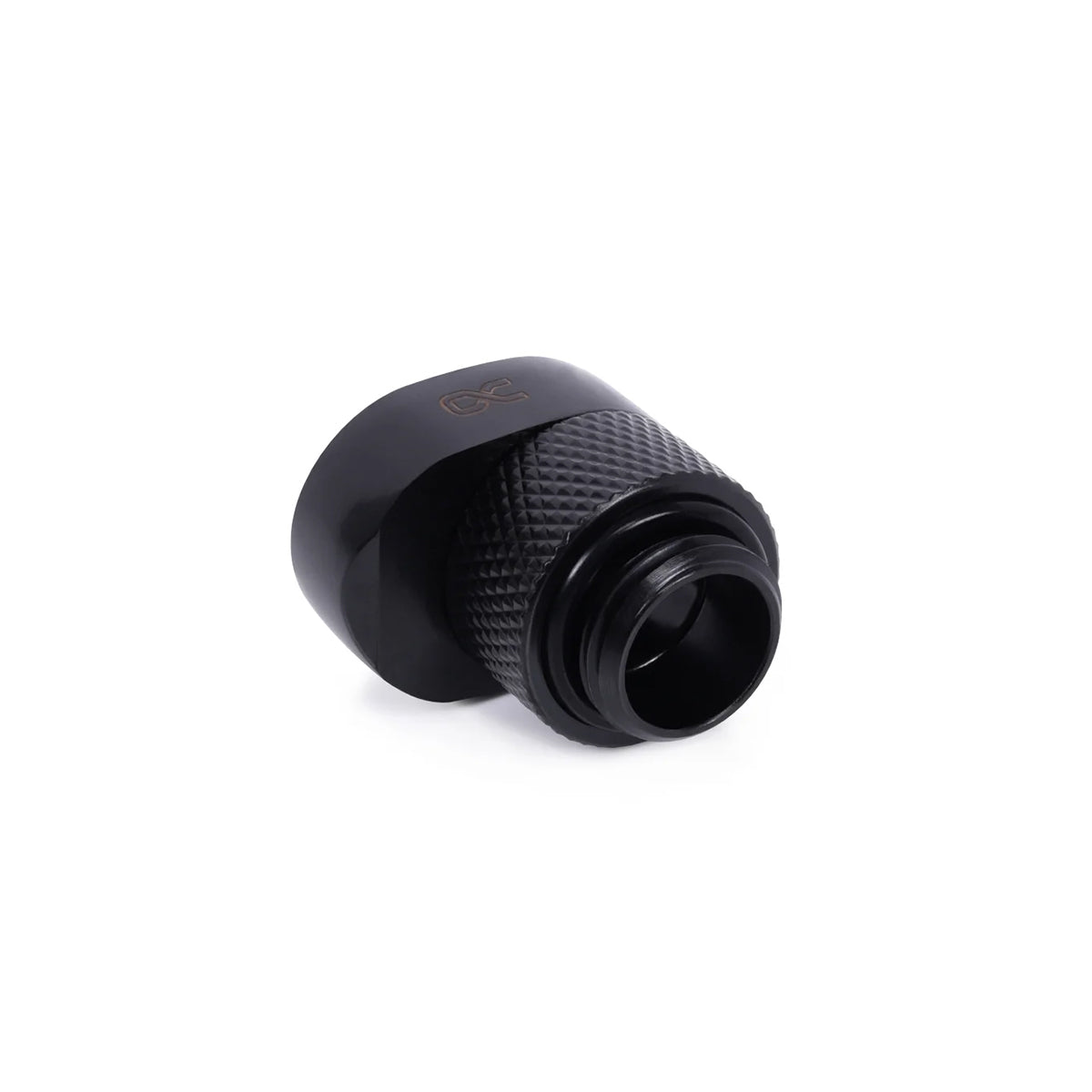

The Alphacool Eiszapfen is a rotatable 8 mm offset piece with an internal thread and an external thread that can be easily integrated into any water circuit.

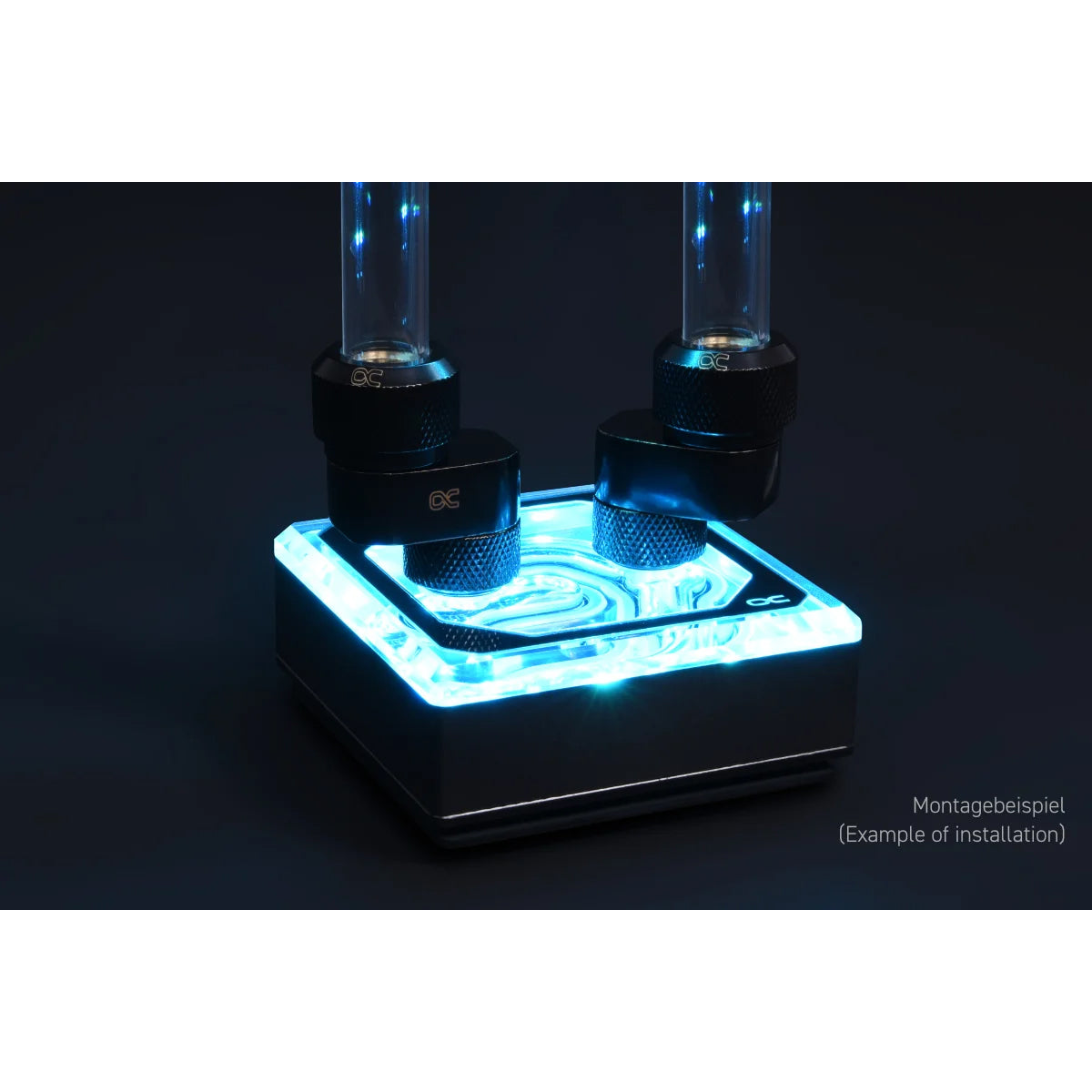

Integration made easy
The offset piece is very compact and can be integrated into any water cooling system thanks to its G1/4" internal and external threads. It is simply screwed onto the corresponding G1/4" connections at the desired position in the water circuit.
Design
The threads are 5mm deep and high, allowing for a very compact design. The offset piece can also be rotated 360°, which allows for more flexibility when integrating it into even the tightest housings.
Colored O-rings
In addition to the standard O-ring in black, 3 additional O-rings in red, yellow, and blue are included in delivery.
Compatibility
G1/4" AG/IG connections
Specifications
Specifications
Technical data
| L x W x H | 24x22.5x18.5mm |
| Material | Brass |
| Offset | 8mm |
| Thread | G1/4" female, G1/4" male |
| Thread depth | 5mm |
| Thread height | 5mm |
| Weight | 28g |
| Color | Black |
