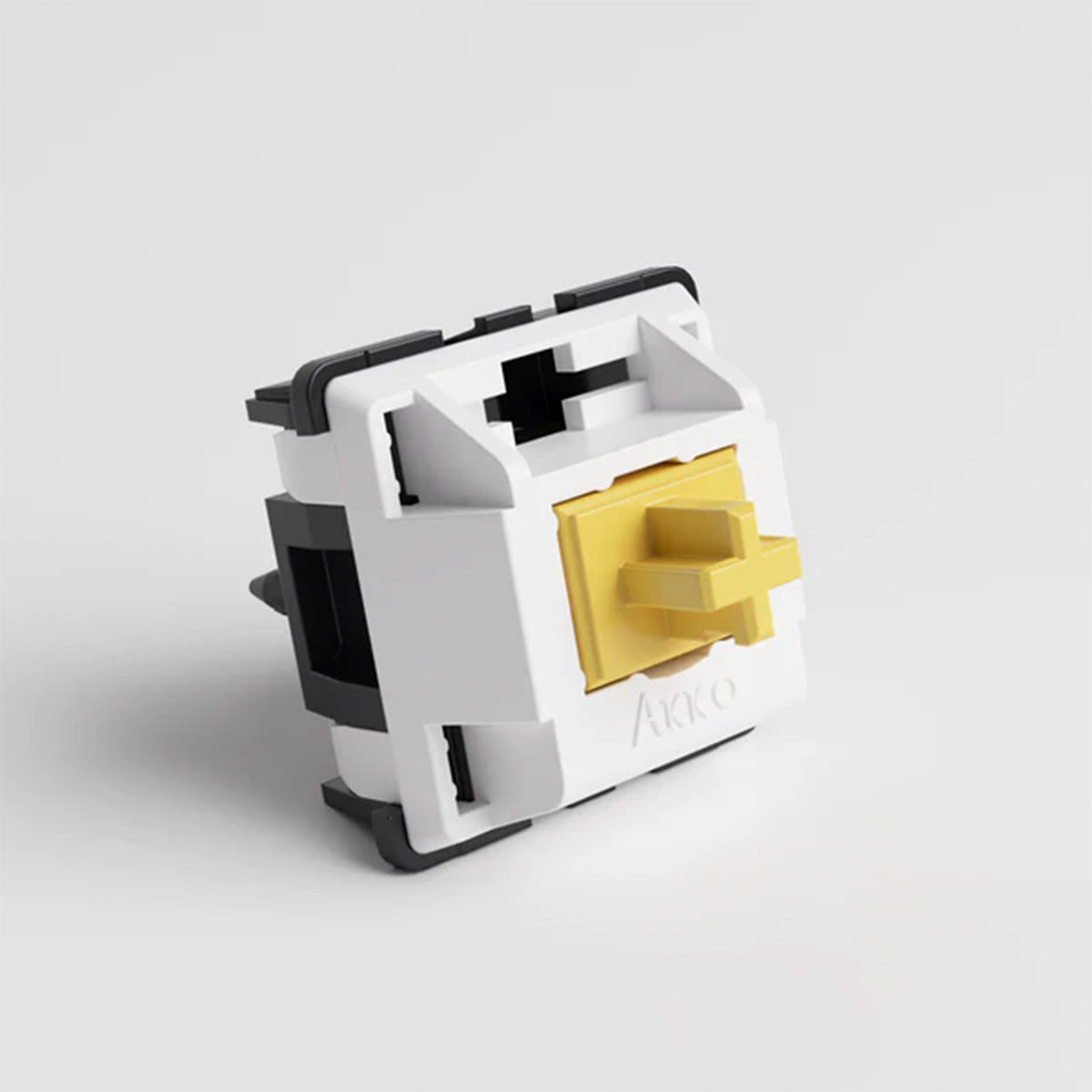

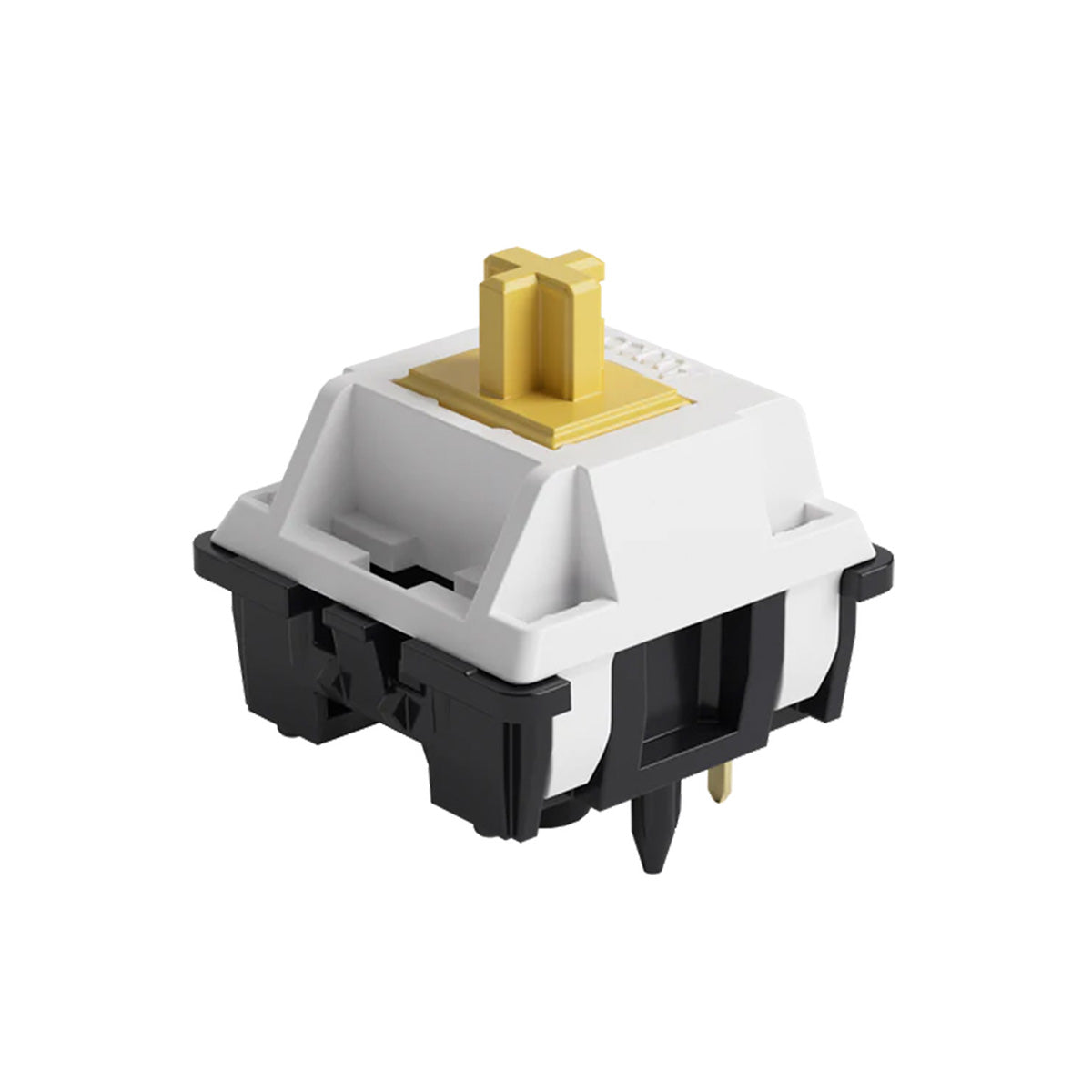

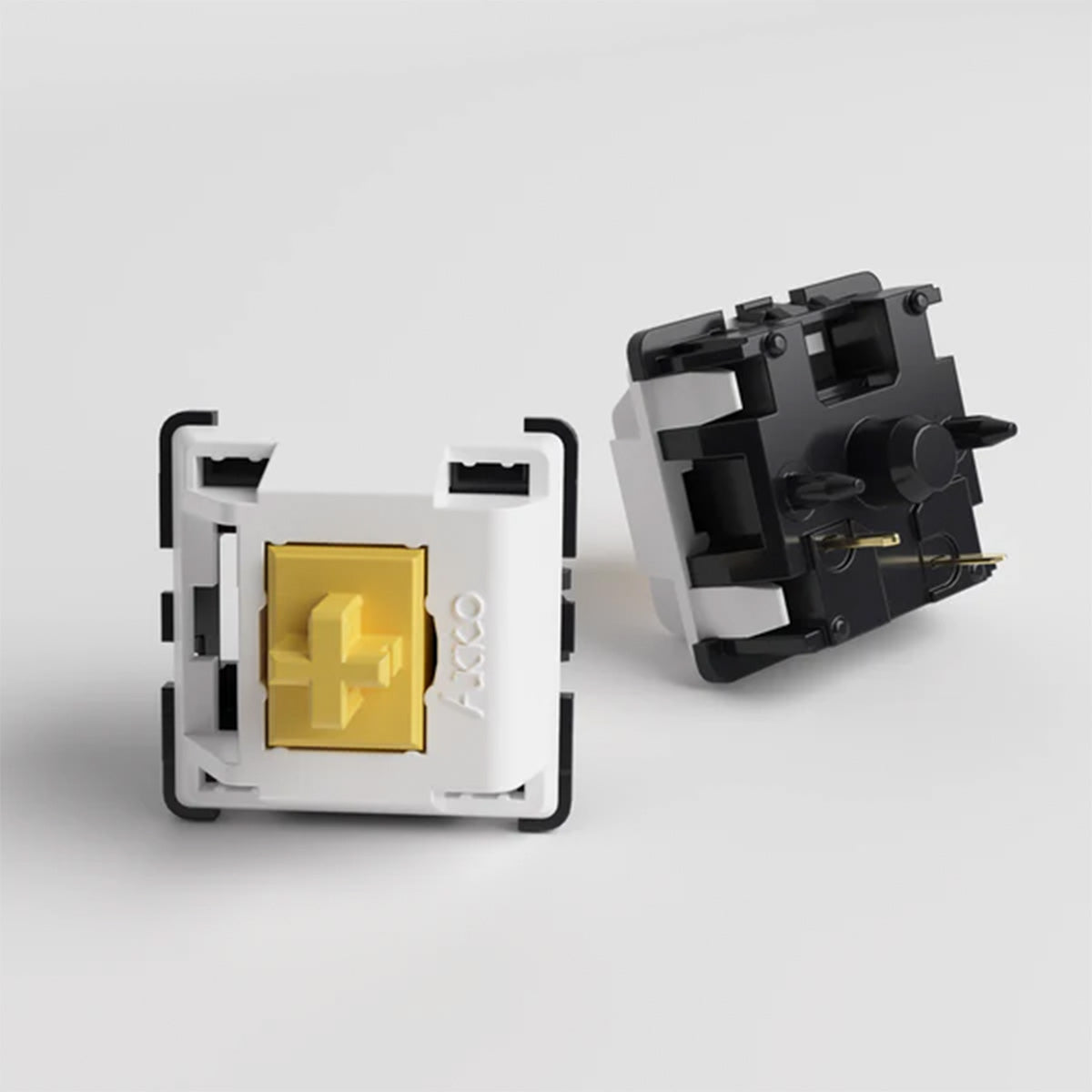

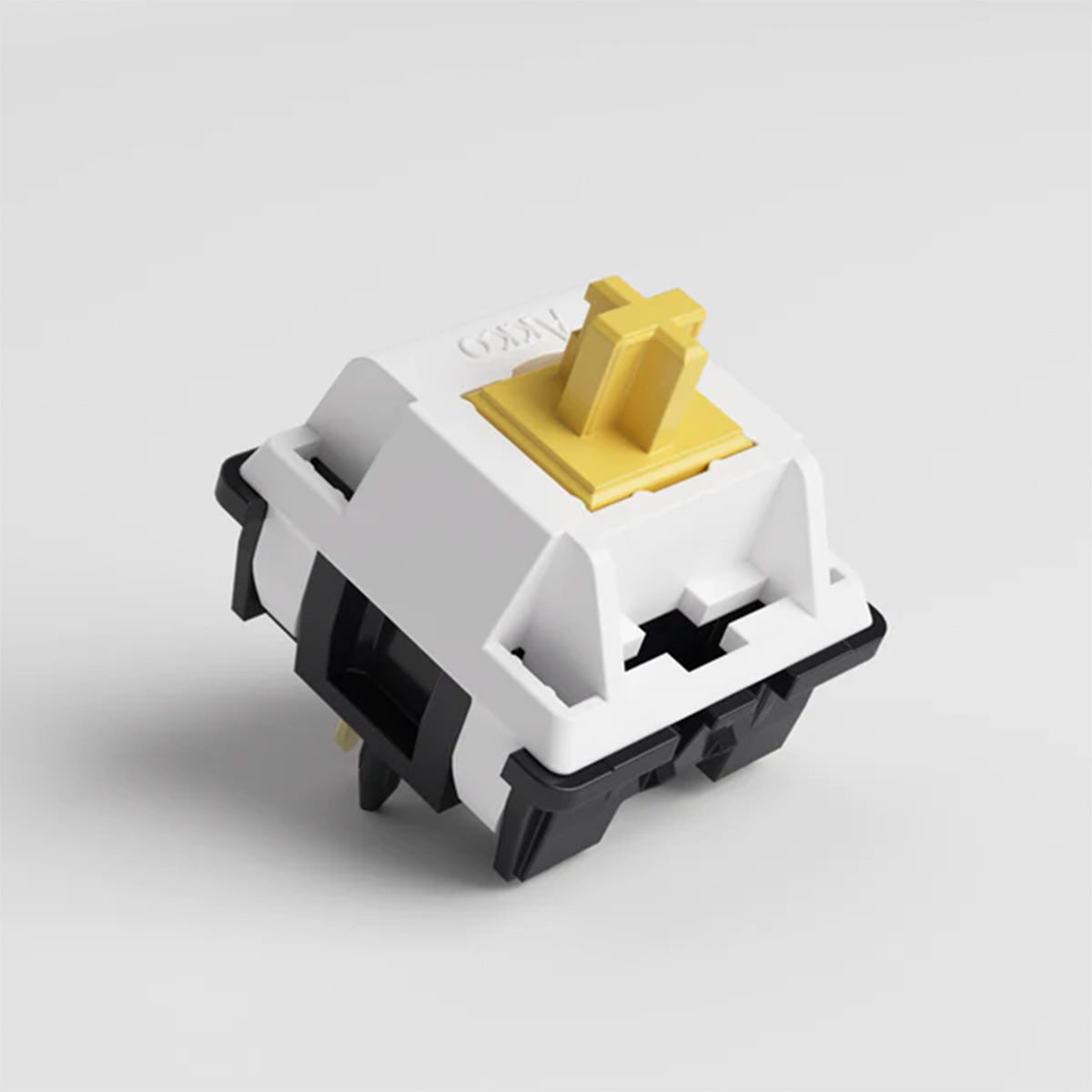

Akko V3 Penguin Tactile Silent Switch - 45pcs
Tactile Actuation 50gf - Silent - 5 Pin
Akko
| SKU
67738
$29.00
Unit price
/
Unavailable
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Akko Penguin Switch
Bring you the real silent typing experience.
- Light tactile bump with a 65gf tactile force
- Built-in silicone pads for ultimate quiet
- Factory lubricated rail to reduce friction
- 5-pin Switch - Better stability
- Type: Tactile
- Operating Force: 50 ± 5gf
- Total Travel: 3.3mm
- Pre-Travel: 2.0 ± 0.5mm
- Tactile Travel: 0.4mm
- Tactile Force: 65gf ± 5gf
Specifications
Specifications
Tactile Switch Specifications
| Type | Tactile |
| Operating Force | 50±5gf |
| Total travel | 3.3mm |
| Pre-travel | 2.0±0.5mm |
| Tactile Position | 0.40mm |
| Tactile Force | 65±5gf |
| Mounting Pins | 5-pin switch (can be modified to 3-pin) |
| Materials (Stem/Top/Bottom) | POM/PA/PA |
| Spring | 19.5±0.4mm |
| Factory Lube | Yes |
| Switch Tech | MX Style |
| Compatibility | Compatible with any Cherry style switches PCB. 5 pins can be adjusted to 3 pins by clipping off 2 extra pins if needed. |
