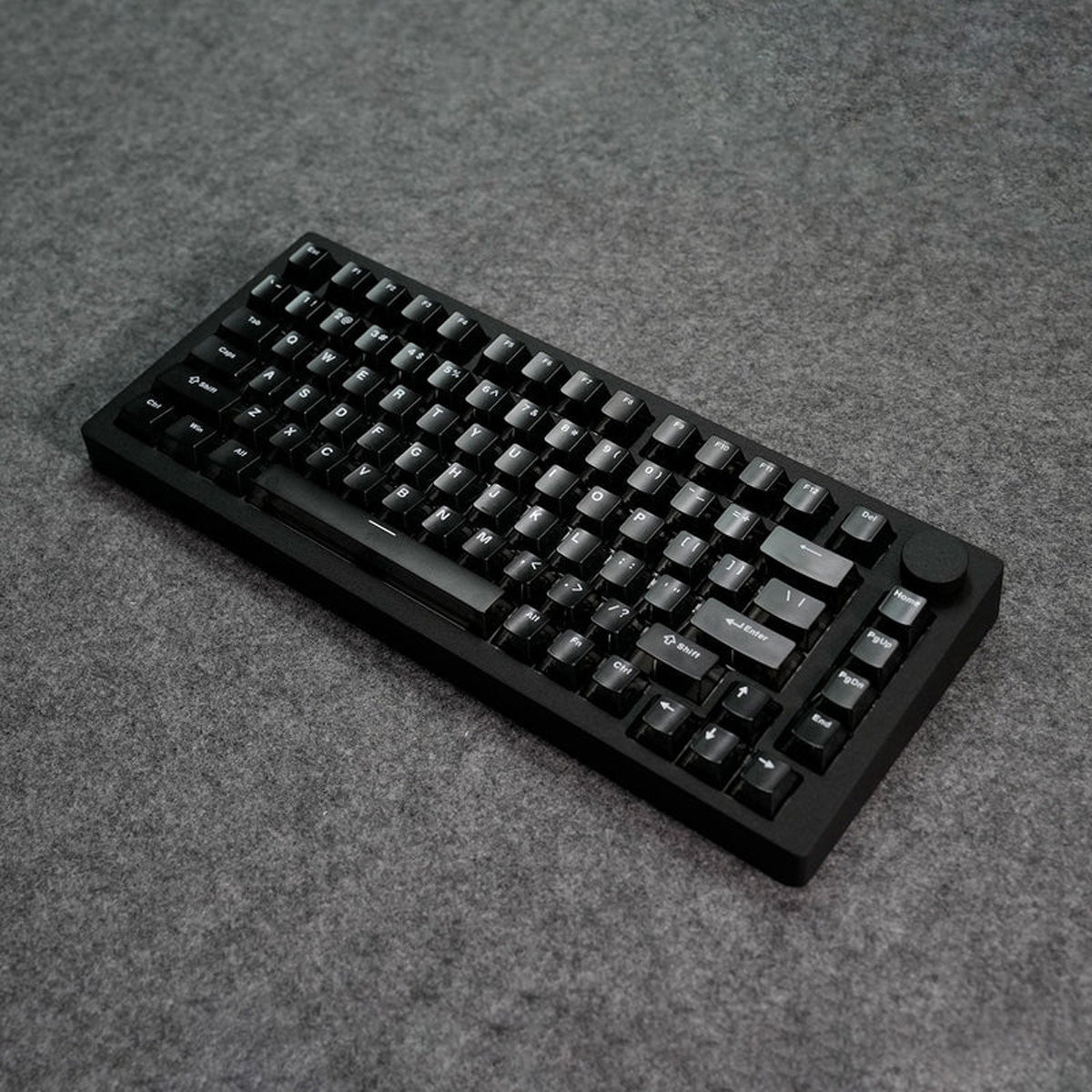

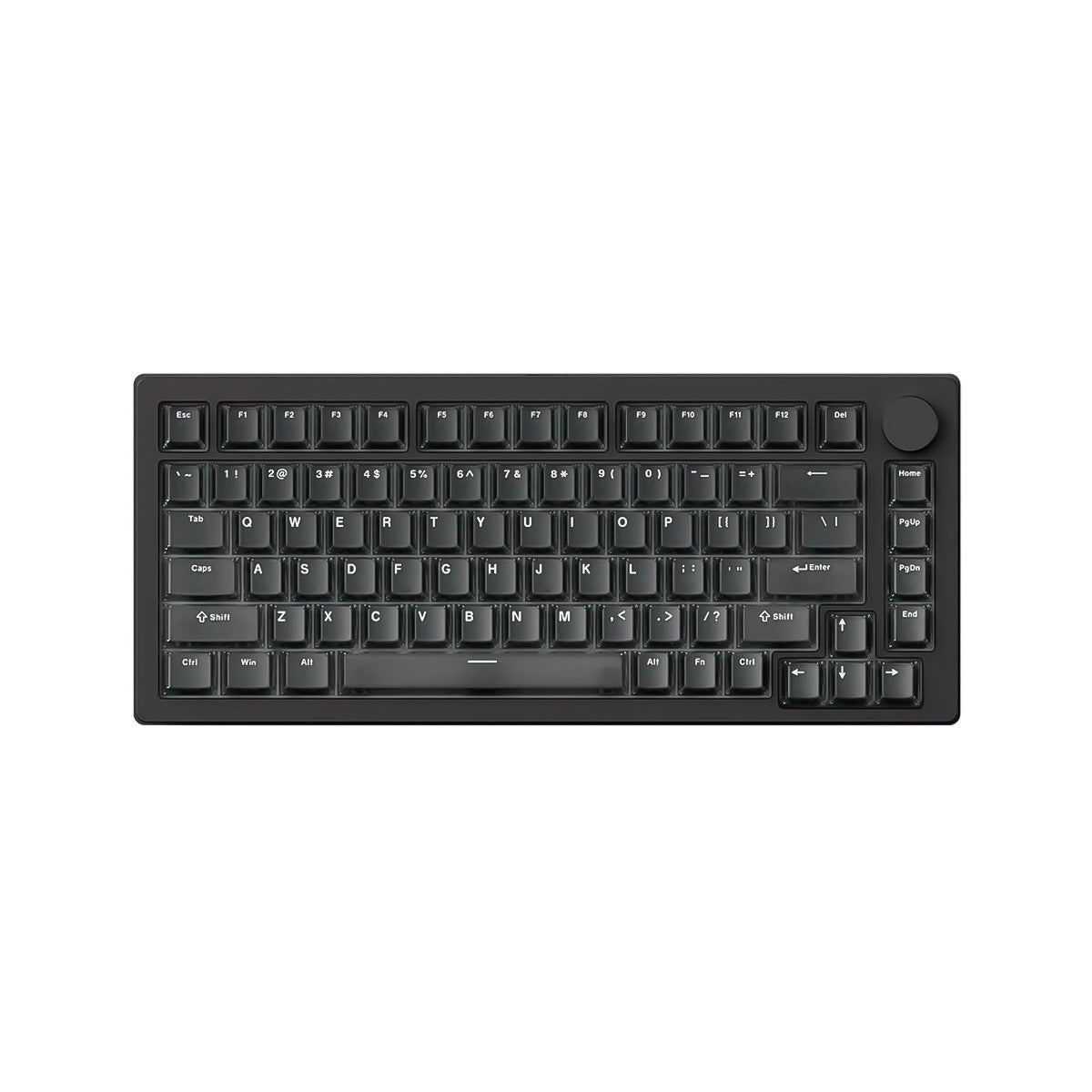

Akko Monsgeek M1 V5 HE Black 75% Wireless Aluminium Hall-Effect Gaming Keyboard - AstroLink Switch

MonsGeek M1 V5

The MonsGeek M1 V5 is designed for high-performance gaming and productivity, combining ultra-fast scanning technology, magnetic switch compatibility, and advanced customization features.

Device Latency Breakdown

Every key press goes through three ultra-fast stages. Optimizing all three stages ensures true low-latency performance and consistently responsive input.

32K Scanning Rate

A higher scanning rate allows the keyboard to detect switch movements earlier and more consistently, delivering faster input response, reduced latency, and a more responsive typing experience.

More Precise Rapid Trigger

With 32K scanning, even the smallest finger movements are detected instantly. This enables accurate resets, stable Rapid Trigger behavior, and predictable actuation during fast-paced gameplay.

Full Range RT 0.01mm

The keyboard achieves ultra-precise 0.01mm Rapid Trigger with adjustable actuation distance in 0.01mm steps, allowing users to customize their typing or gaming experience for improved speed and accuracy.

MagMech Hybrid Switch Support

The MagMech design allows users to mix magnetic switches and traditional 5-pin mechanical switches on the same keyboard. This lets users combine rapid trigger gaming keys such as WASD with mechanical switches for a classic typing experience.

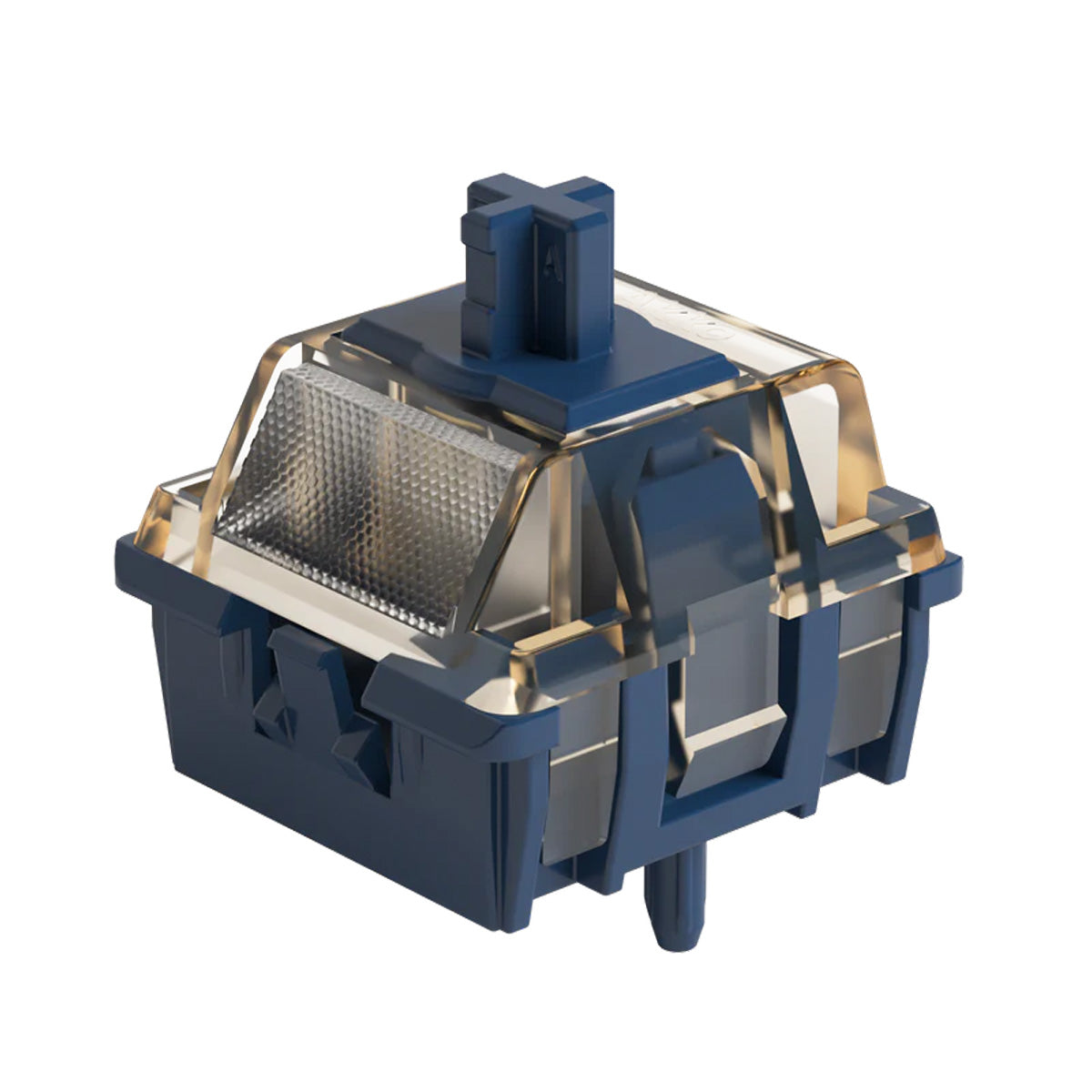

Cross-Compatible with Magnetic Switches

The M1 V5 HE Rapid Trigger Keyboard offers cross-compatibility with 7 third-party downward-facing N-pole magnetic switches. Users can select the corresponding switch from the list in the MonsGeek Driver and easily calibrate the keyboard after replacement. You can also mix and match them in different keys simultaneously.

ARM Cortex-M4 CPU

The ARM Cortex-M4 CPU provides enhanced processing power with low energy consumption and supports automatic calibration between -20°C and 80°C.

Universal 8K Polling Rate

With an 8000Hz polling rate in wired or 2.4GHz wireless modes, the keyboard delivers ultra-fast response times and smooth, precise inputs.

Ball-catch Design

The M1 V5 features a ball-catch design that allows rapid disassembly without screws or tools. Adjustable load force improves safety and structural stability.

Note: Before removing the top cover, please remove the knob using the included key puller.

Snap Key

Snap Key is MonsGeek’s SOCD implementation that prioritizes the latest directional input, allowing faster directional changes and smoother control in FPS games.

Adjustable Actuation Distance

The magnetic switches allow users to adjust each key’s actuation point from 0.1mm to 3.4mm, enabling customized typing and gaming performance.

Rapid Trigger (RT)

Rapid Trigger eliminates actuation delay by instantly activating and resetting keys with minimal travel, improving responsiveness for competitive gaming.

Dynamic Keystrokes (DKS)

A single key can perform up to four different actions depending on press depth and release stages, allowing advanced customization for gaming or productivity.

Toggle Key (TGL)

The Toggle Key feature turns a key into a switch that can either hold a function or repeatedly trigger it at high speed.

Mod-Tap

Mod-Tap enables dual-function keys where tapping triggers one action and holding activates another.

Built-in 8000mAh Battery

The high-capacity 8000mAh battery allows extended periods of uninterrupted typing, gaming, or productivity without frequent charging.

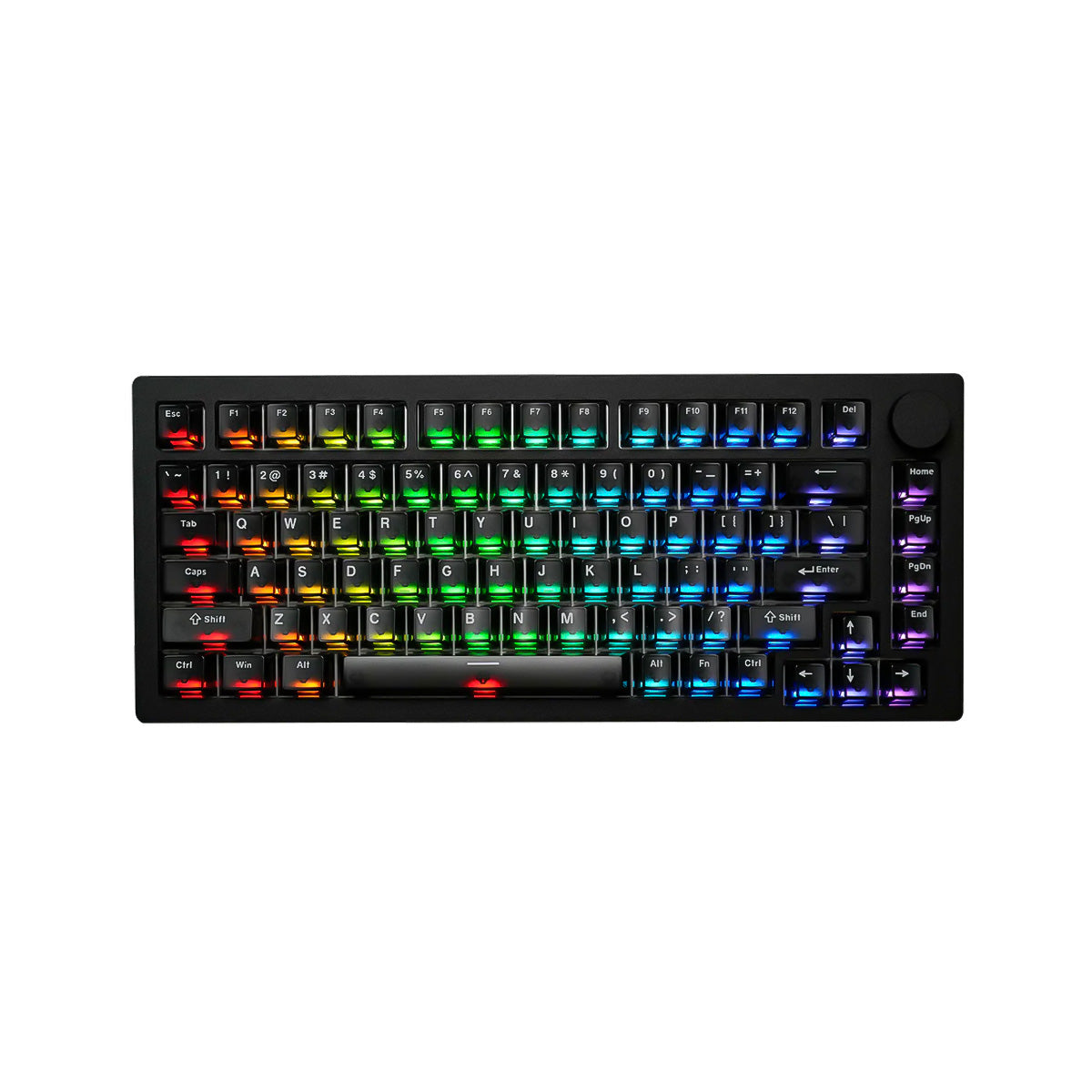

RGB Backlighting

The keyboard includes RGB backlighting with over 15 preset lighting modes, allowing comfortable typing in low-light environments.

Programmable Knob

The M1 V5 includes a programmable encoder knob with a floating design to prevent scratches on the case. It can be used to control volume, lighting, or other customizable functions.

Multi-Mode Connectivity

The keyboard supports Bluetooth 5.0, 2.4GHz wireless with receiver, and wired USB Type-C connections for easy switching between devices.

2.4GHz Wireless

The included receiver allows low-latency 2.4GHz wireless connectivity suitable for gaming and fast typing.

Bluetooth 5.0

Users can connect up to three devices via Bluetooth and switch between them easily using the Fn+E/R/T shortcut.

USB-C Wired Mode

The USB-C wired connection provides stable performance, minimal input lag, and fast response times.

System Switch

The system switch allows users to toggle between Mac wireless mode, Windows wired mode, and Windows wireless mode. The switch is located under the CAPS key.

PORON Plate Foam

The keyboard features PORON plate foam that reduces noise from key presses and improves typing acoustics.

Polycarbonate Plate

The polycarbonate plate helps create a softer typing feel while maintaining structural durability.

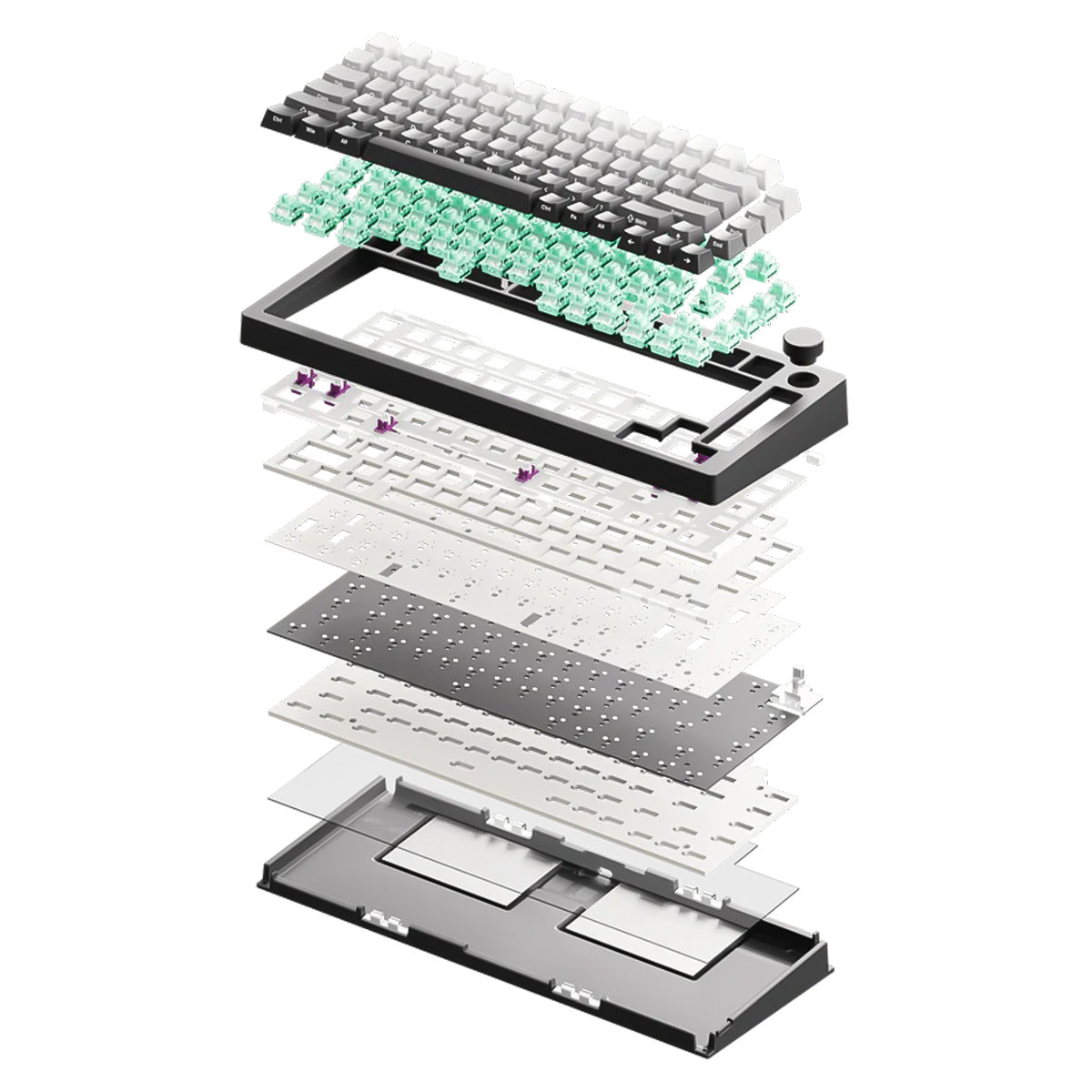

Enhanced Acoustic Structure

The upgraded noise reduction system improves flexibility and allows users to experiment with different sound profiles for a refined typing experience.
