TP-Link Archer AX5400 Dual-Band Gigabit Wi-Fi 6 Router (Archer AX72)

TP-Link  |  SKU 39262  |  MPN TL-ARCHER AX72
$319.00

In stock at Computer Lounge

Warranty and Support

Warranty: 3 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

Wi-Fi 6 Upgrades Everything

The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.


Warp Speed for Smooth 8K Streaming

Drastically improved speeds enable streaming, fast downloading, and gaming, all at the same time. Need to go faster?

Hop on 5 GHz with full speed-boosting features to stream multiple 8K videos without lagging.


Extensive Wi-Fi Coverage with Advanced Technology

Enjoy stable Wi-Fi connections, even in the kitchen and bedroom. High-Power FEM, 6× Antennas, Beamforming, and 4T4R structures combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices.

Connect 100+ Devices

Easily handle dozens of devices streaming and gaming at the same time — OFDMA and MU-MIMO combine to future-proof your home network by providing greater capacity to connect more devices.


Designed to Be Cool

The slant rectangle atop of the scaled armor design provides a contemporary aesthetic. The vent design takes up 167 cm² (25 in²) of its top surface for improved heat dissipation, unleashing the whole machine's full power.


TP-Link HomeShield: Advanced Security for Unlimited Clients

HomeShield protects all connected clients against DDoS, malicious sites, and port intrusion, delivering a safe network environment for your data and privacy.

TP-Link OneMesh™: Flexibly Create Whole Home WiFi with Archer AX72

Want to build a whole-home Wi-Fi? Archer AX72 supports OneMesh to form seamless whole-home coverage, preventing drops and lag when moving between signals.


Easy Setup and Use

Whether you prefer the intuitive Tether App or the powerful web interface, you can set up your Archer AX72 in minutes. The Tether App allows you to manage network settings from any Android or iOS device.


Press Release:

†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.


‡Use of Wi-Fi 6 (802.11ax), and features including OFDMA, 1024-QAM, or HE160 require clients to also support the corresponding features.160 MHz bandwidth may be unavailable on the 5 GHz band in some regions/countries due to regulatory restrictions.


§Archer AX72 can connect 64 devices on the 5 GHz band, and 48 devices on the 2.4 GHz band. Performance may vary depending on the applications and environmental factors.


*HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information.


**Use of MU-MIMO requires clients to also support the corresponding feature.


***This router may not support all the mandatory features as ratified in Draft 3.0 of IEEE 802.11ax specification.


****Further software upgrades for feature availability may be required.

Specifications

Wireless

StandardsWi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11ax/n/b/g 2.4 GHz
WiFi SpeedsAX5400
5 GHz: 4804 Mbps (802.11ax, HE160)2.4 GHz: 574 Mbps (802.11ax)
WiFi Range3 Bedroom Houses
6× Fixed High-Performance AntennasMultiple antennas form a signal-boosting array to cover more directions and large areas
BeamformingConcentrates wireless signal strength towards clients to expand WiFi range
High-Power FEMImproves transmission power to strengthen signal coverage
4T4RMultiple streams in the same band strengthen the fault tolerance in transmission
WiFi CapacityHigh
Dual-BandAllocate devices to different bands for optimal performance
4×4 MU-MIMOSimultaneously communicates with multiple MU-MIMO clients
OFDMASimultaneously communicates with multiple Wi-Fi 6 clients
Airtime FairnessImproves network efficiency by limiting excessive occupation
DFSAccess an extra band to reduce congestion
6 StreamsConnect your devices to more bandwidth
Working ModesRouter Mode
Access Point Mode


Security

Network SecurityHomeShield Security
SPI FirewallReal-Time IoT Protection
Access ControlMalicious Site Blocker
IP & MAC BindingIntrusion Prevention System
Application Layer GatewayDDoS Attack Prevention
Home Network Scanner
Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server
OpenVPN
PPTP
VPN Client
Open VPN Client
PPTP VPN Client
L2TP VPN Client
WiFi Encryption
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)


Hardware

Processor1.5 GHz Triple-Core CPU

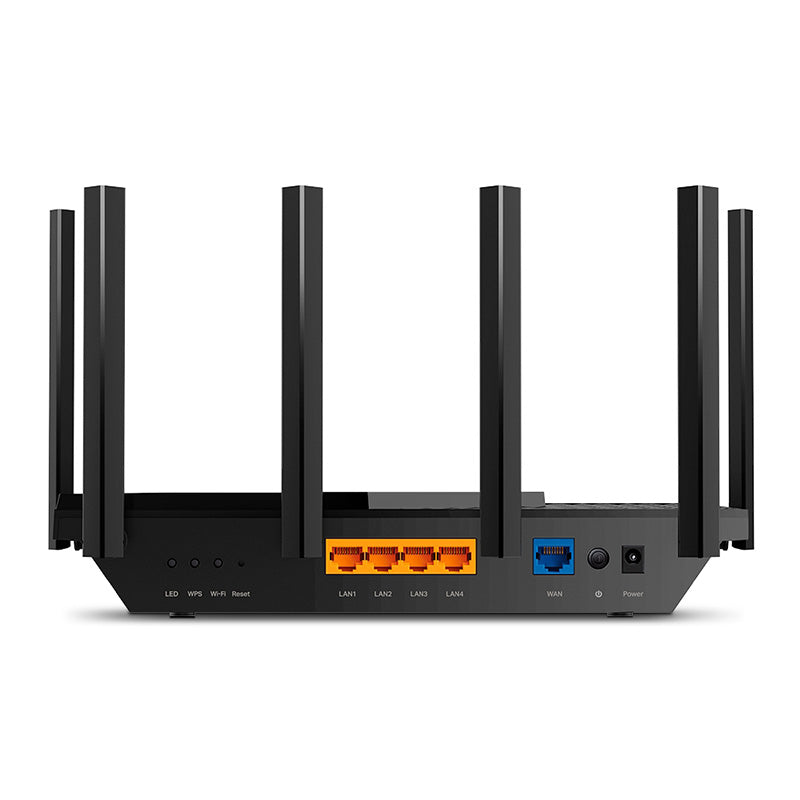

Ethernet Ports1× Gigabit WAN Port
4× Gigabit LAN Ports
Static Link Aggregation (LAG) available with 2× LAN ports
USB Support1× USB 3.0 Port
Supported Partition FormatsNTFS, exFAT, HFS+, FAT32
Supported FunctionsApple Time Machine
FTP Server
Media Server
Samba Server
ButtonsWi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button
Power12 V ⎓ 2.5 A


Software

ProtocolsIPv4
IPv6Service Kits
HomeShieldLearn More>
OneMesh™OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.Learn More>
All OneMesh Products>Parental Controls
HomeShield Parental ControlsCustom Profiles
Professional Content Filter LibraryFamily Time
BedtimeOff Time
Time RewardsFamily Online Time Ranking
Pause the InternetWeekly and Monthly Reports
WAN TypesDynamic IP
Static IPPPPoE
PPTPL2TP
Quality of ServiceQoS by Device
Cloud ServiceAuto Firmware Upgrade
TP-Link IDDDNS
NAT ForwardingPort Forwarding
Port TriggeringDMZ
UPnPVirtual Server
IPTVIGMP Proxy
IGMP SnoopingBridge
Tag VLANDHCP
Address ReservationDHCP Client List
ServerDDNS
TP-LinkNO-IP
DynDNSManagement
Tether AppWebpage


Other

System RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
CertificationsFCC, CE, RoHS
EnvironmentOperating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing


Test Data

WiFi Transmission PowerCE:
<20dBm{2.4GHz}
<23dBm{5.15GHz~5.35GHz}
<30dBm{5.47GHz~5.725GHz}
FCC:
<24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz }
<30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
WiFi Reception Sensitivity2.4GHz:
11ac VHT20 MCS0:-94.5dBm
11ac VHT20 MCS8:-72.5dBm
11ac VHT40 MCS0:-92.5dBm
11ac VHT40 MCS9:-69.5dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64.5dBm
11ax HE40 MCS0:-92.5dBm
11ax HE40 MCS11:-62dBm
5GHz:
11ac VHT20 MCS0:-97dBm
11ac VHT20 MCS8:-74dBm
11ac VHT40 MCS0:-95dBm
11ac VHT40 MCS9:-70dBm
11ac VHT80 MCS0:-91.5dBm
11ac VHT80 MCS9:-66dBm
11ac VHT160 MCS0:-86dBm
11ac VHT160 MCS9:-61dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-91.5dBm
11ax HE40 MCS11:-62dBm
11ax HE80 MCS0:-88dBm
11ax HE80 MCS11:-58dBm
11ax HE160 MCS0:-85.5dBm
11ax HE160 MCS11:-55dBm


Physical

Dimensions (W×D×H)10.7 × 5.8 × 1.9 in
(272.5 × 147.2 × 49.2 mm)
Package ContentsWi-Fi Router Archer AX73
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
