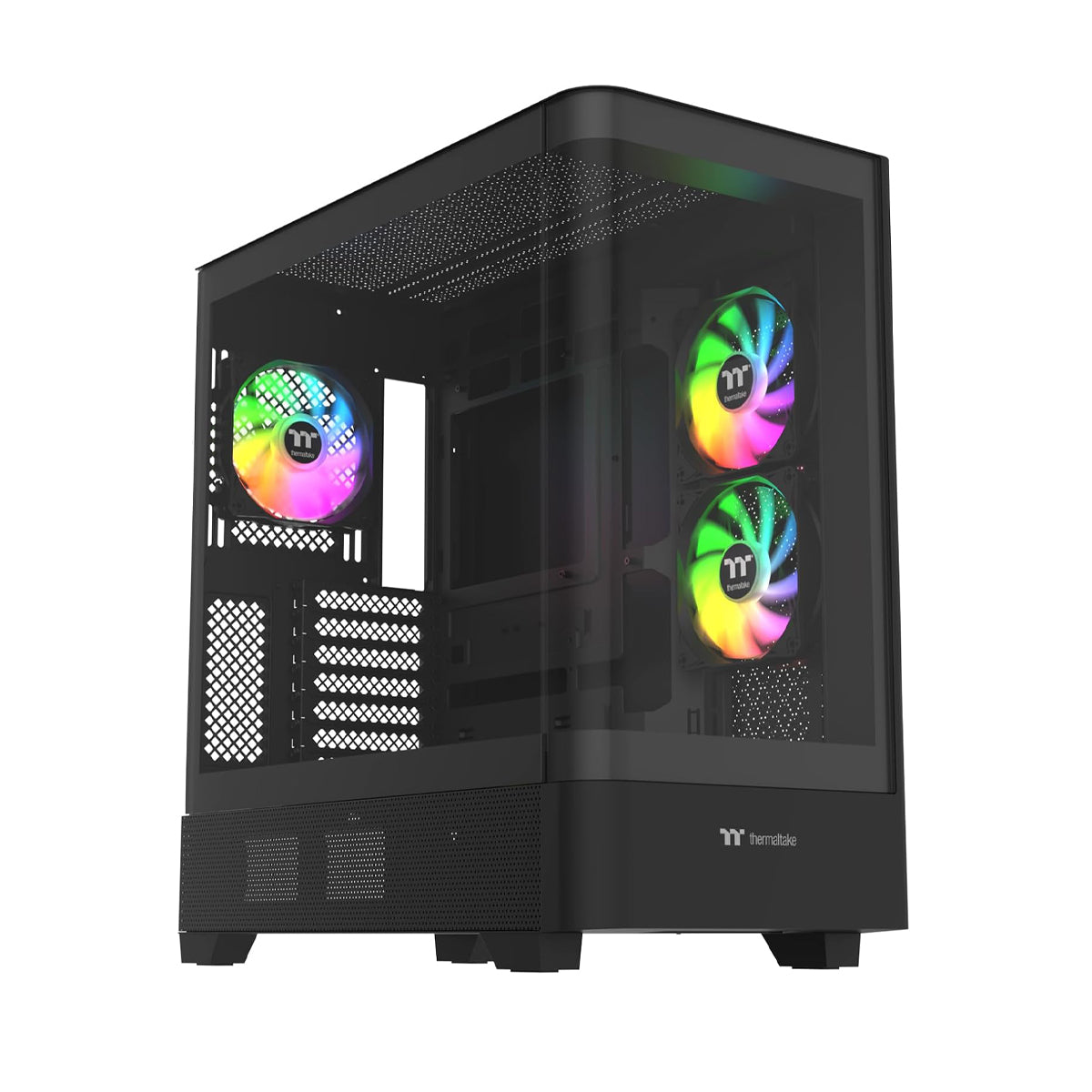

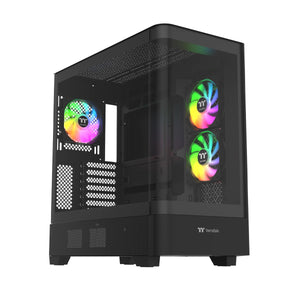

Thermaltake View 290 Curve TG ARGB Mid Tower Case Black Edition
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
The View 290 TG ARGB Mid Tower Chassis is an ATX case featuring a curved tempered glass front panel, tempered glass side panel, rotational PCI-E slots, and three 120mm ARGB Lite hydraulic bearing fans for stunning aesthetics. RGB lighting is fully controllable through motherboard software from ASUS, GIGABYTE, MSI, and ASRock. The chassis supports up to nine 120mm fans and a 360mm AIO radiator for strong cooling performance.
Compatible with Hidden-Connector Motherboards
Designed for next-gen builds, the View 290 TG ARGB supports both standard and hidden-connector motherboards from ASUS, MSI, and GIGABYTE.
- ASUS BTF Series
- MSI PROJECT ZERO Series
- GIGABYTE PROJECT STEALTH Series
Tempered Glass Front and Left Panels
Features a 4mm curved tempered glass front panel and a 3mm tempered glass side panel, giving clear visibility to showcase internal components.
Good Radiator Support
Supports up to a 360mm radiator on the top of the chassis for optimal cooling.

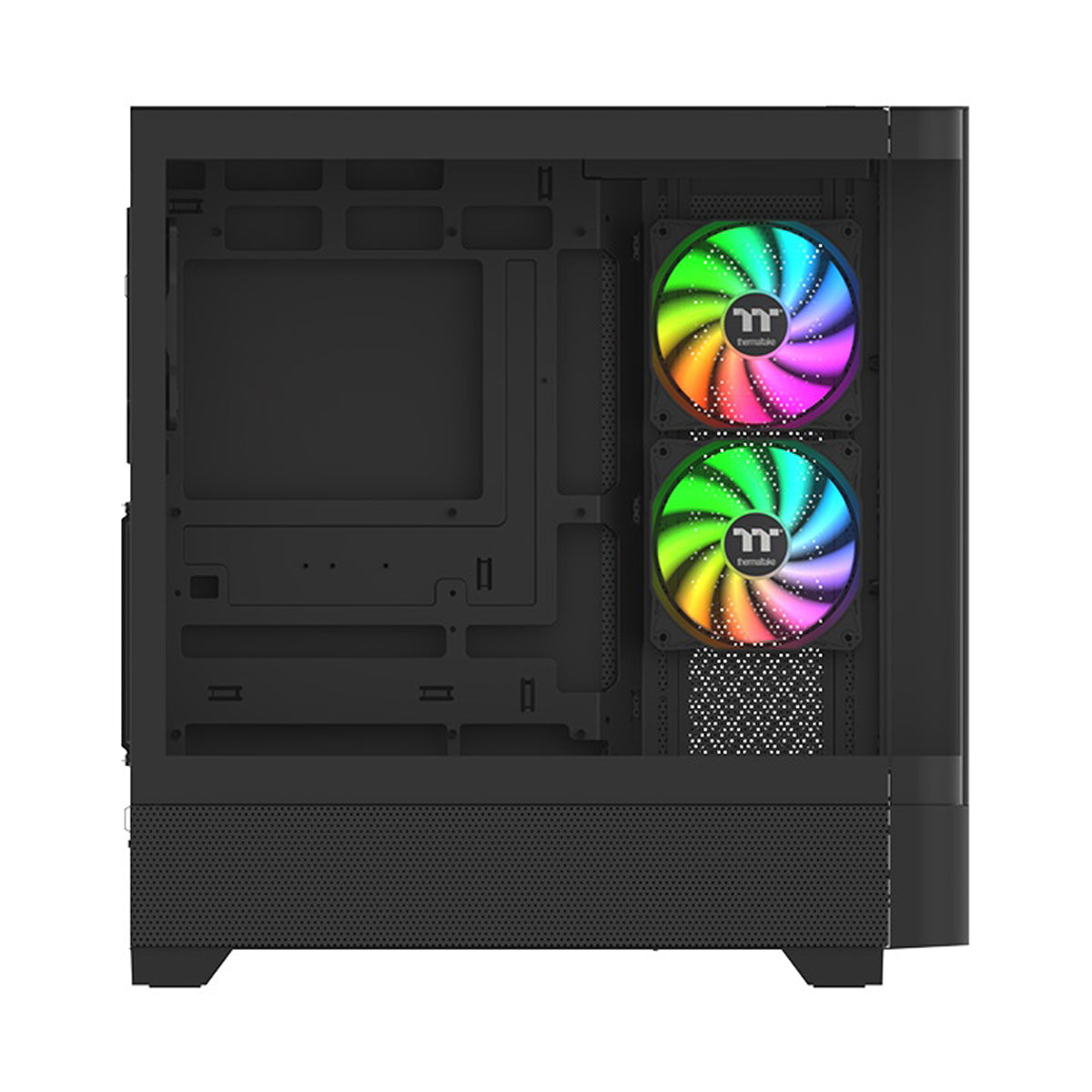

Three Hydraulic Bearing 120mm ARGB Lite Fans Pre-installed
Includes two 120mm ARGB Lite Reverse Fans and one standard 120mm ARGB Lite Fan. Lighting effects can be controlled using motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
Display It Your Way
Rotational PCI-E slots provide flexibility for horizontal or vertical GPU mounting. Supports 90-degree riser cable installation with dedicated standoff space.
Built-in PSU Cover
The full-length PSU cover helps organize cables while maintaining clear airflow for the power supply and storage devices.
Storage Support
Supports up to two 3.5’’ HDDs or two 2.5’’ SSDs in total.
Handy I/O Ports
Convenient top-panel ports include two USB 3.0, one USB 3.2 Gen 2 Type-C, and HD Audio.
Sync with Motherboard RGB Software
Fully compatible with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. Supports motherboards with a 5V addressable RGB header for direct lighting control without extra software or controllers.
Specifications
Specifications
| P/N | CA-11G-00M1WN-00 |
| Series | View |
| Case Type | Mid Tower |
| Dimension (H x W x D) | 497 x 242 x 477 mm (19.57 x 9.53 x 18.78 inch) |
| Panel | 4mm Curved TG Front Panel x 1 / 3mm Tempered Glass x 1 |
| Material | SPCC |
| Cooling System |
Right (intake): 120 x 120 x 25 mm ARGB Lite Reverse fan (1000±200rpm, 21.9 dBA) x 2 Rear (exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000±200rpm, 22.3 dBA) x 1 |
| Drive Bays | 2 x 3.5” or 2 x 2.5” |
| Expansion Slots | 7 (Rotatable Patented Design) |
| Motherboards |
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) Hidden-Connector Motherboard: 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Port | USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support |
Top: 3 x 120mm, 2 x 140mm Right: 2 x 120mm Rear: 1 x 120mm, 1 x 140mm Power Cover: 3 x 120mm |
| Radiator Support |
Top Side (AIO): 1 x 360mm, 1 x 240mm, 1 x 120mm, 1 x 280mm, 1 x 140mm Right Side (AIO): 1 x 240mm, 1 x 120mm |
| Clearance |
CPU cooler height limitation: 180mm VGA length limitation: 450mm PSU length limitation: 200mm |
