Description
Description

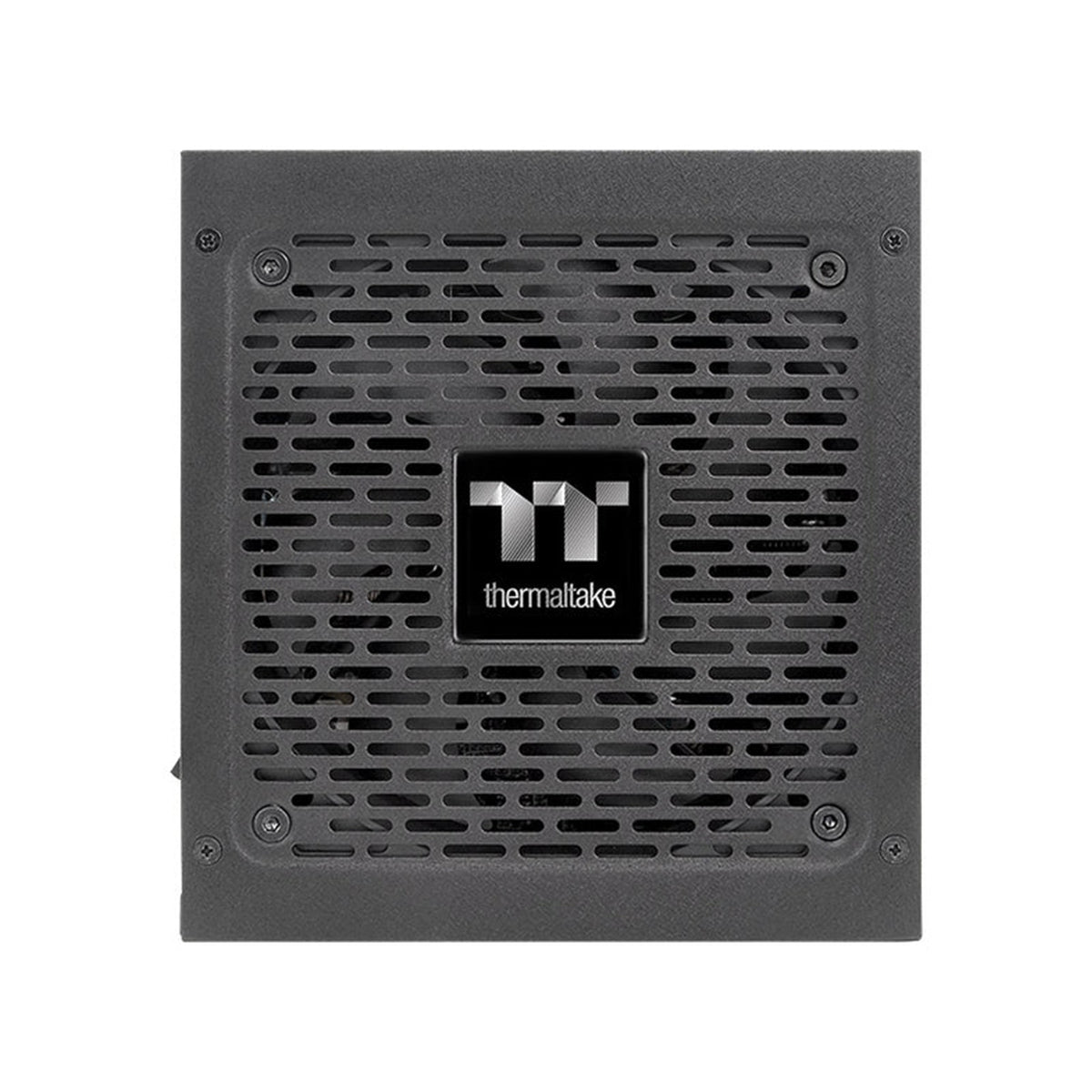

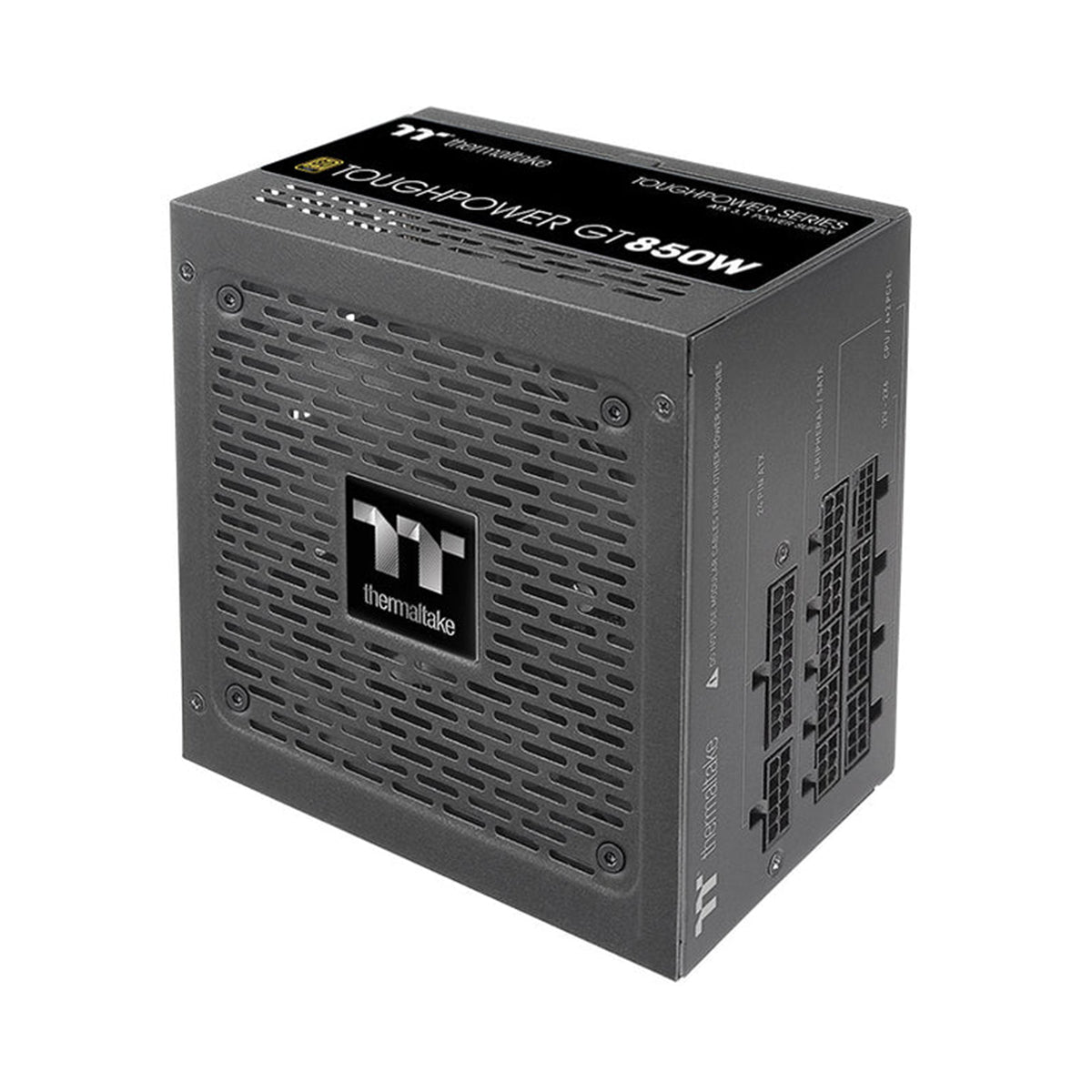

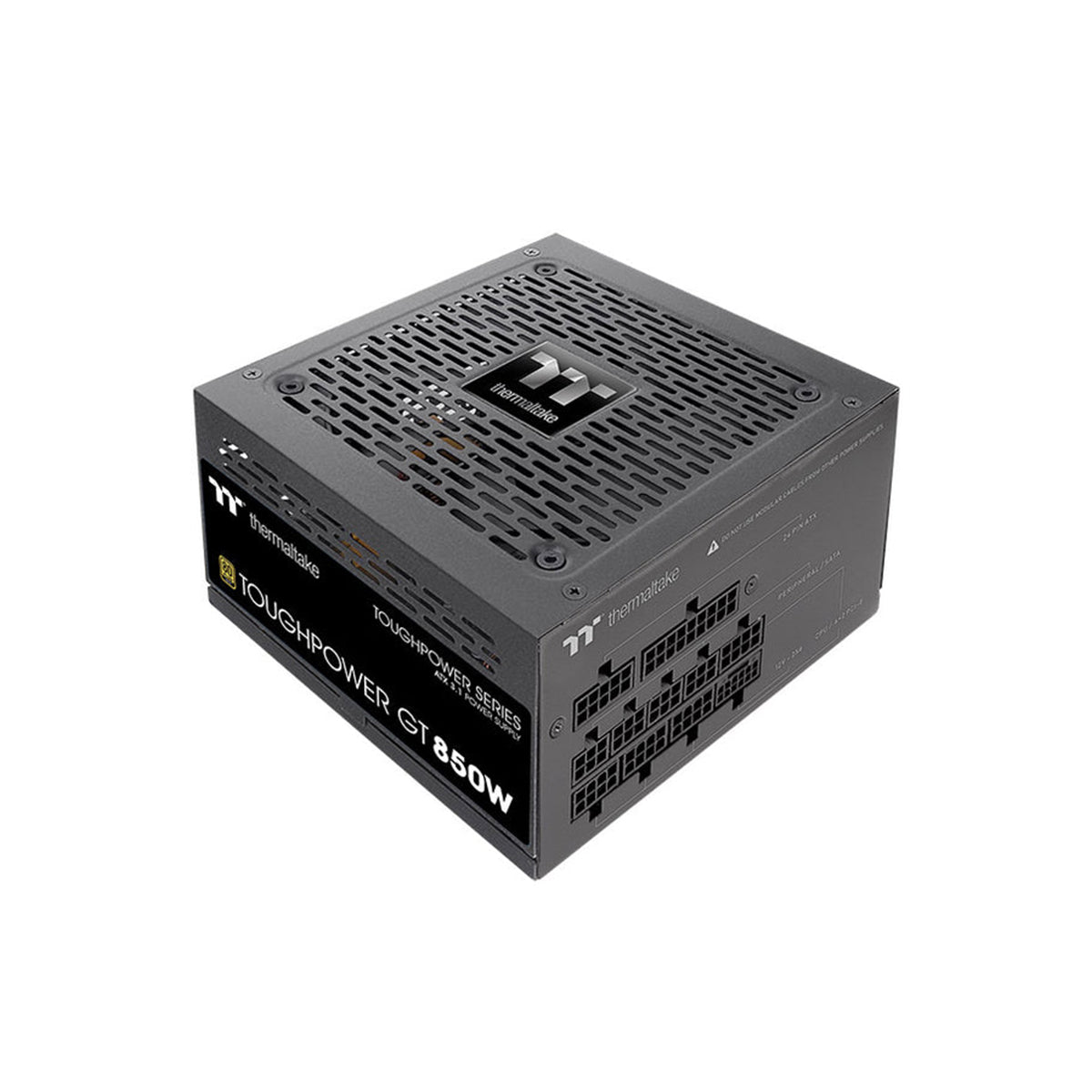

Toughpower GT Series
The fully modular Toughpower GT series delivers 80 PLUS Gold efficiency and is compatible with ATX 3.1 standards. Its native PCIe 12V-2x6 (12+4 pin) modular interface efficiently powers PCIe 12+4 pin graphics cards. With a 5-year warranty, the Toughpower GT series is designed for value-oriented users seeking a reliable power supply.
ATX 3.1 Ready
The Toughpower GT series is fully compatible with ATX 3.1 specifications, supporting up to 200% power excursion, achieving 60% efficiency at low load, and complying with the required power supply timing standards.
PCIe Gen 5.1 Ready
The Toughpower GT series comes with a PCIe 12V-2x6 connector for stable performance, enabling the PSU to run next-generation GPUs. The PCIe Gen 5.1 (12+4pin) cable delivers up to 600W for PCIe 12+4 pin graphics cards.

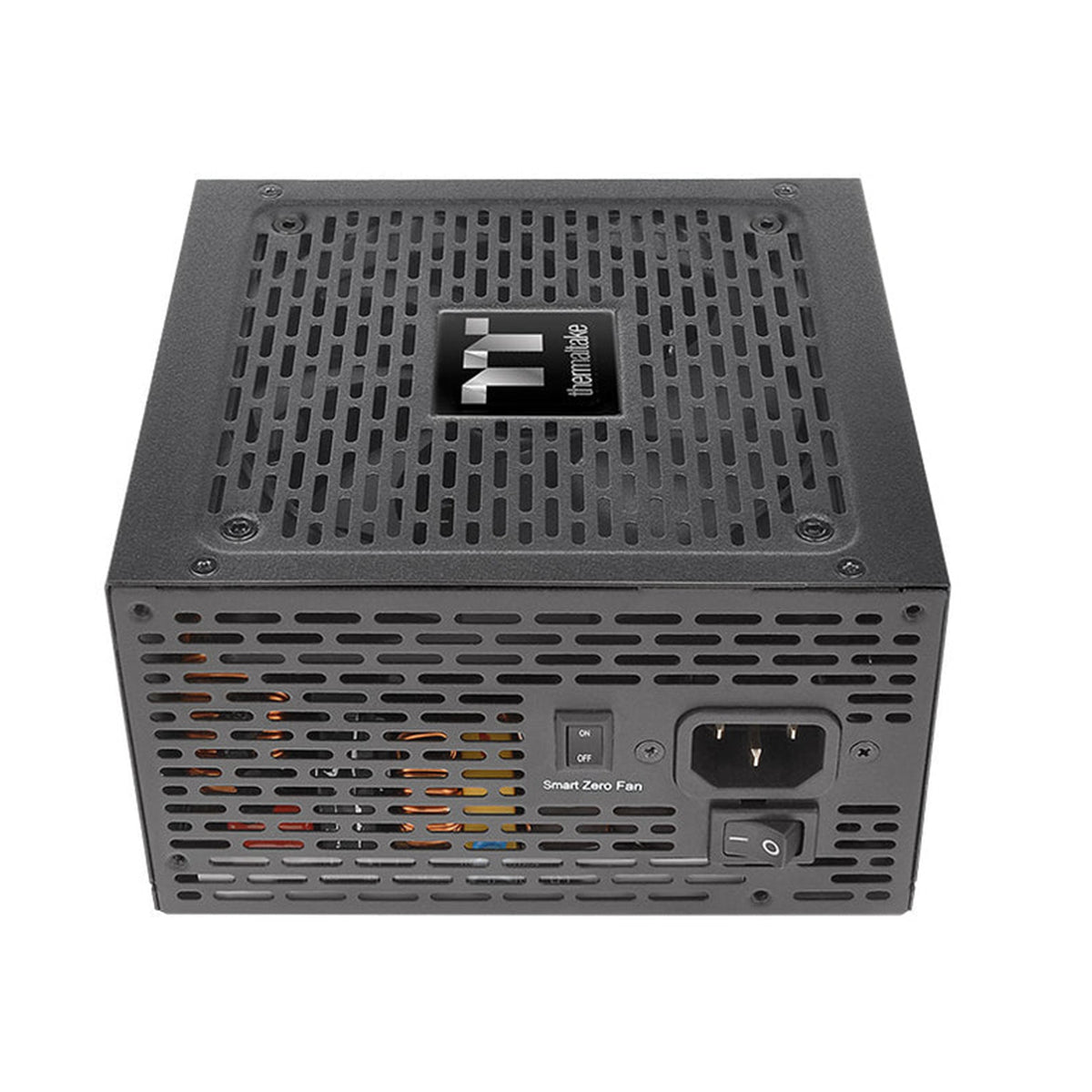

Ultra Quiet 120mm Hydraulic Bearing Fan with Smart Zero Fan
Equipped with a 120mm Hydraulic Bearing Fan, the Toughpower GT series reduces friction to a minimum. The Smart Zero Fan feature adjusts fan speed to reduce unnecessary noise.
High Amperage Single +12V Rail & High-Class Technologies
The powerful single +12V rail ensures optimal power delivery for compatibility, while LLC and DC-to-DC circuit design provide stable operation and enhanced voltage regulation.

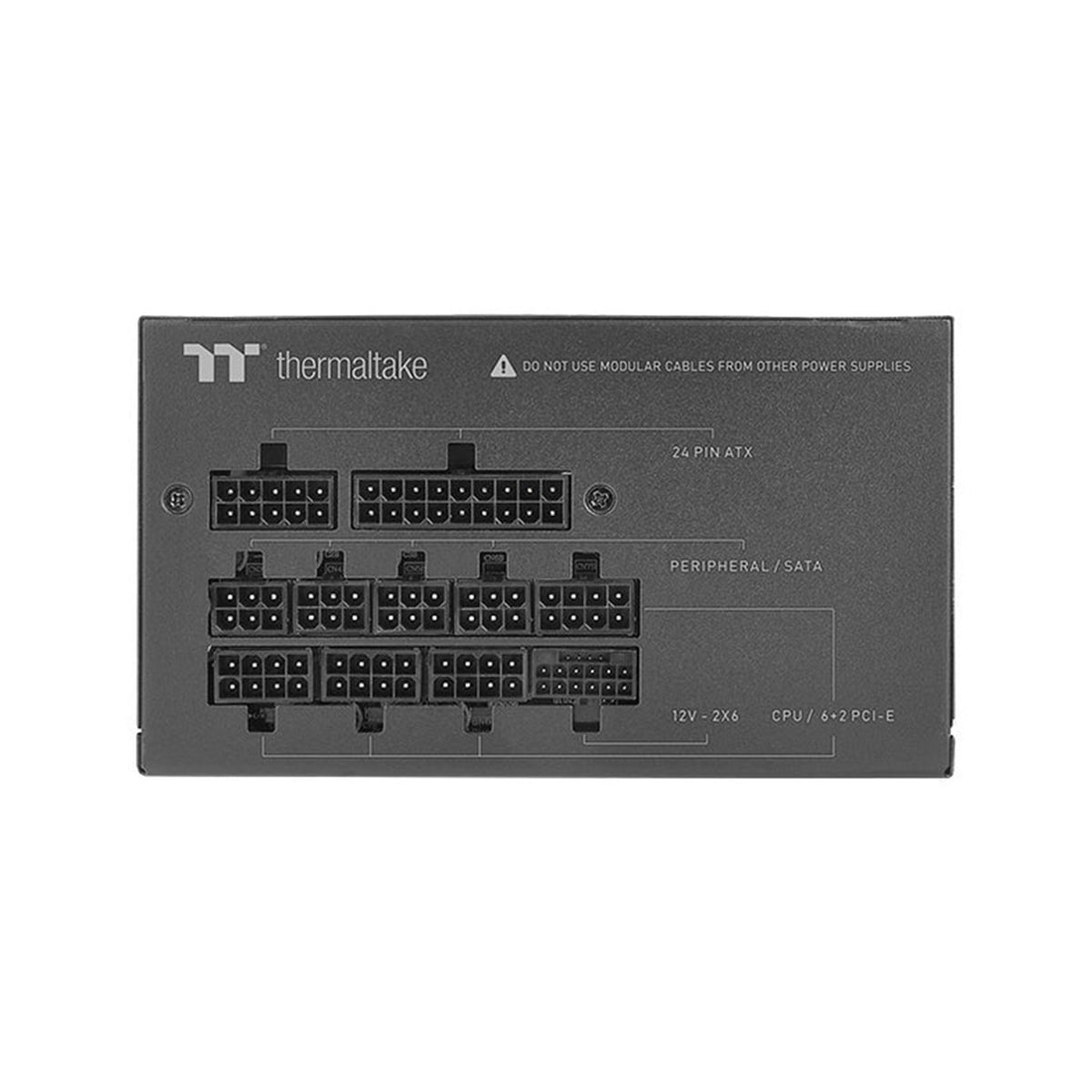

Fully Modular Low-Profile Cables
The fully modular design includes low-profile white cables that improve cable management, reduce clutter, and enhance airflow within the chassis.
Built-in Industrial Grade Protection
The Toughpower GT series features industrial-grade protections: OCP (Over Current Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection).
80 PLUS Gold Certified
The Toughpower GT series boasts an energy efficiency of up to 90% and is certified to 80 PLUS® Gold, ensuring energy savings.
Specifications
Specifications
| Watts | 850W |
| Max Output Capacity | 850W |
| Color | Black |
| Dimensions | 150mm(W)x86mm(H)x140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-250 msec |
| Hold Up Time | > 17msec at 80% load |
| Input Current | 10A Max. |
| Input Frequency Range | 50Hz-60Hz |
| Input Voltage | 100-240V～ |
| Operating Temperature | 0°C to + 40°C |
| Operating Humidity | 5% to 85% |
| Storage Temperature | -40°C to + 70°C |
| Storage Humidity | 5% to 95% |
| Cooling System | 12cm Hydraulic bearing fan |
| Efficiency | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100 |
| Safety Approval | CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK |
| PCI-E 6+2PIN | 4 |
| PCI-E 12+4PIN | 1(450W) |
| Protection | OVP/UVP/OCP/OPP/OTP/SCP |
