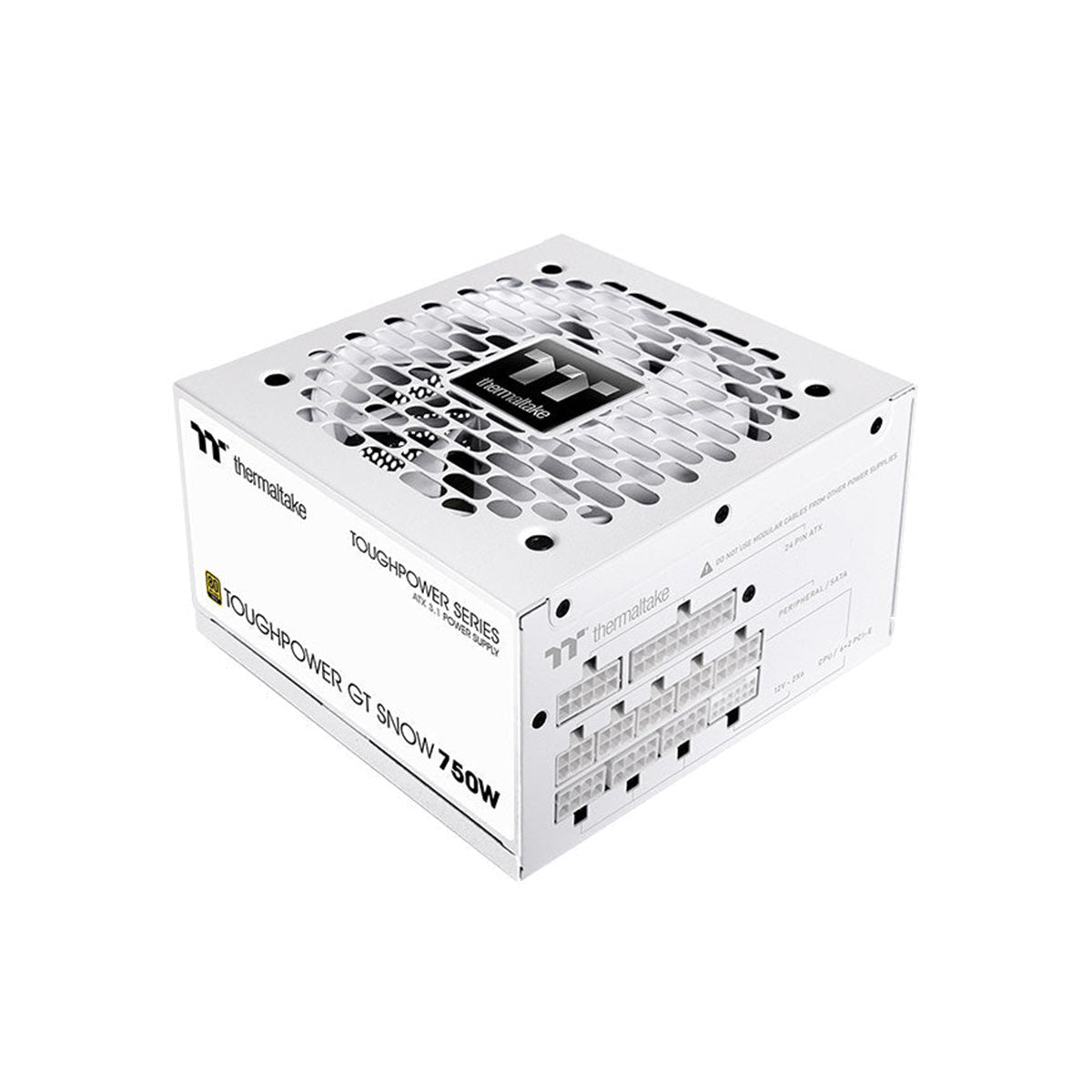

Thermaltake Toughpower GT 750W 80 Plus Gold Analog ATX 3.1 Fully Modular Power Supply Snow Edition
Warranty and Support
Warranty and Support
Warranty: 5 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Toughpower GT Snow Series
The fully modular Toughpower Snow GT series is designed to deliver 80 PLUS Gold efficiency and is compatible with ATX 3.1 standards. Its native PCIe 12V-2x6 (12+4 pin) modular interface efficiently powers PCIe 12+4 pin graphics cards. Backed by an extensive 5-year warranty, the Toughpower GT series meets the needs of value-oriented users seeking a new power supply with reliable performance.
ATX 3.1 Ready
The Toughpower GT Snow series is fully compatible with ATX 3.1 specifications, which support up to 200% power excursion, reach 60% efficiency at low load, and comply with the required power supply timing standards.
PCIe Gen 5.1 Ready
The Toughpower GT Snow series features a PCIe 12V-2x6 connector to provide powerful and stable performance, allowing the PSU to natively run next-generation GPUs. The wattage marked on the PCIe 12+4-pin cable connector represents the recommended wattage (Ref. Intel design guideline). The bundled PCIe Gen 5.1 (12+4pin) cable connector of the Toughpower GT Snow 750W can deliver up to 600W for PCIe 12+4pin graphics cards.

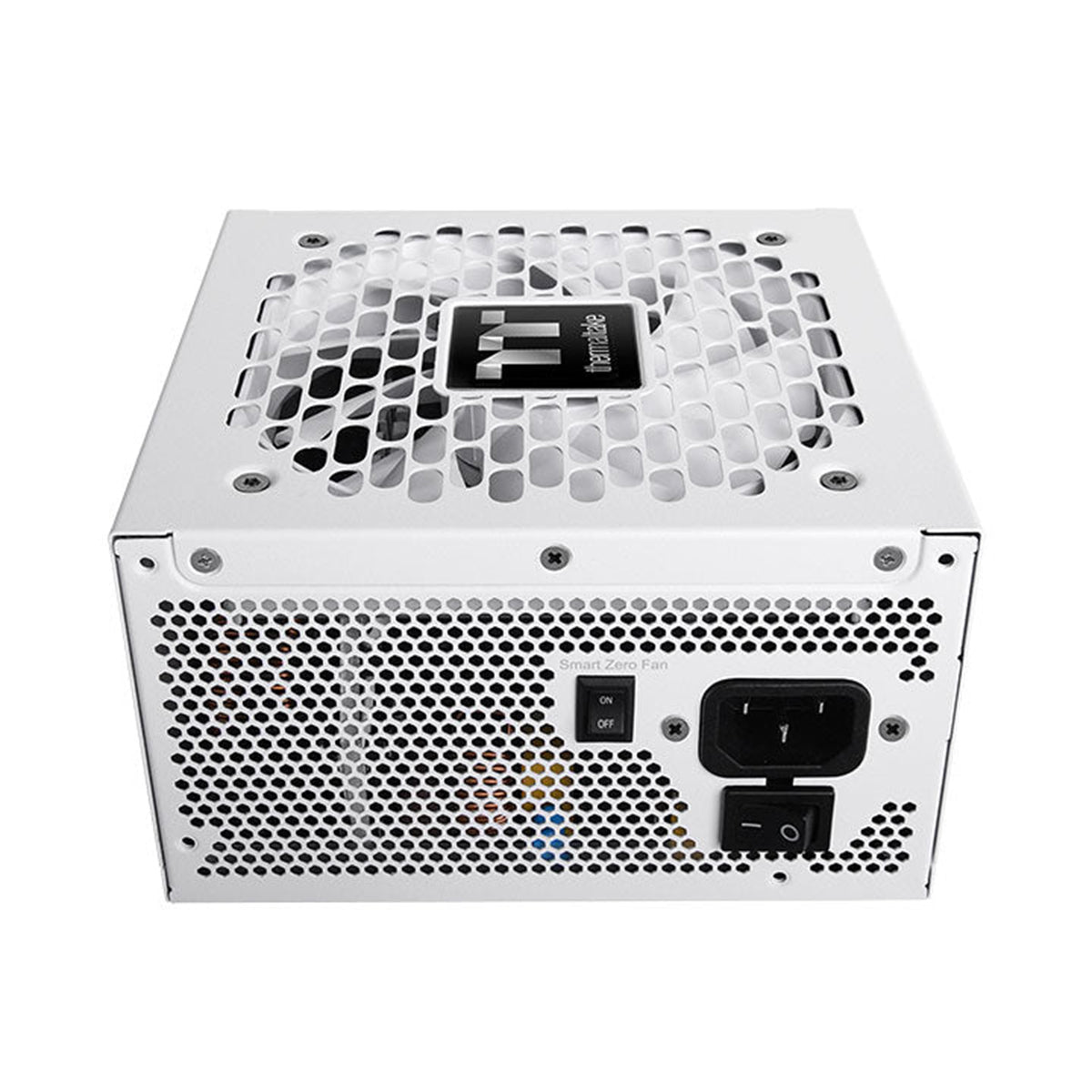

Ultra Quiet 120mm Hydraulic Bearing Fan with Smart Zero Fan
Equipped with a 120mm Hydraulic Bearing Fan to minimize friction and noise, the Toughpower GT Snow series features a Smart Zero Fan to adjust the fan speed for quiet operation.
High Amperage Single +12V Rail & High-Class Technologies
The powerful single +12V rail delivers the necessary power for best compatibility. The LLC and DC to DC circuit design provide stable operation and enhanced voltage regulation.

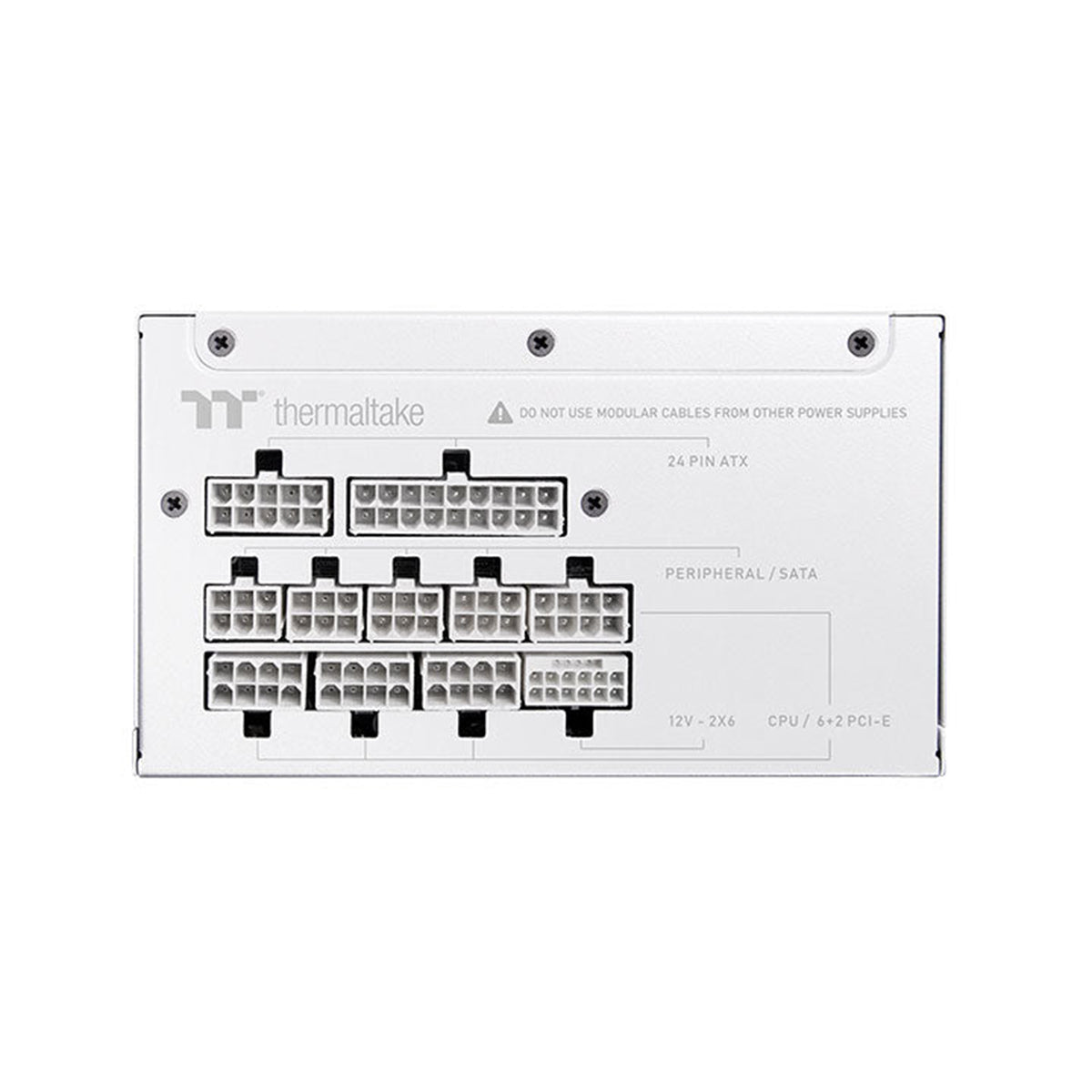

Fully Modular Low-Profile Cables
The modular low-profile white cables reduce clutter, increase airflow inside the chassis, and make cable management easier while providing optimal power.
Built-in Industrial Grade Protection
The Toughpower GT Snow series is equipped with industry-grade protections: OCP (Over Current Protection), OVP (Over Voltage Protection), UVP (Under Voltage Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection).
80 PLUS Gold Certified
The Toughpower GT Snow series is 80 PLUS Gold certified, ensuring high energy efficiency up to 90%, helping save energy and reduce power consumption.
Specifications
Specifications
| Watts | 750W |
| Max Output Capacity | 750W |
| Color | Snow |
| Dimensions | 150mm(W)x86mm(H)x140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-250 msec |
| Hold Up Time | > 17msec at 80% load |
| Input Current | 10A Max. |
| Input Frequency Range | 50Hz-60Hz |
| Input Voltage | 100-240V～ |
| Operating Temperature | 0°C to + 40°C |
| Operating Humidity | 5% to 85% |
| Storage Temperature | -40°C to + 70°C |
| Storage Humidity | 5% to 95% |
| Cooling System | 12cm Hydraulic bearing fan |
| Efficiency | Meet 80 PLUS® Gold at 115Vac input. |
| MTBF | 100 |
| Safety Approval | CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK |
| PCI-E 6+2PIN | 4 |
| PCI-E 12+4PIN | 1(600W) |
| Protection | OVP/UVP/OCP/OPP/OTP/SCP |
