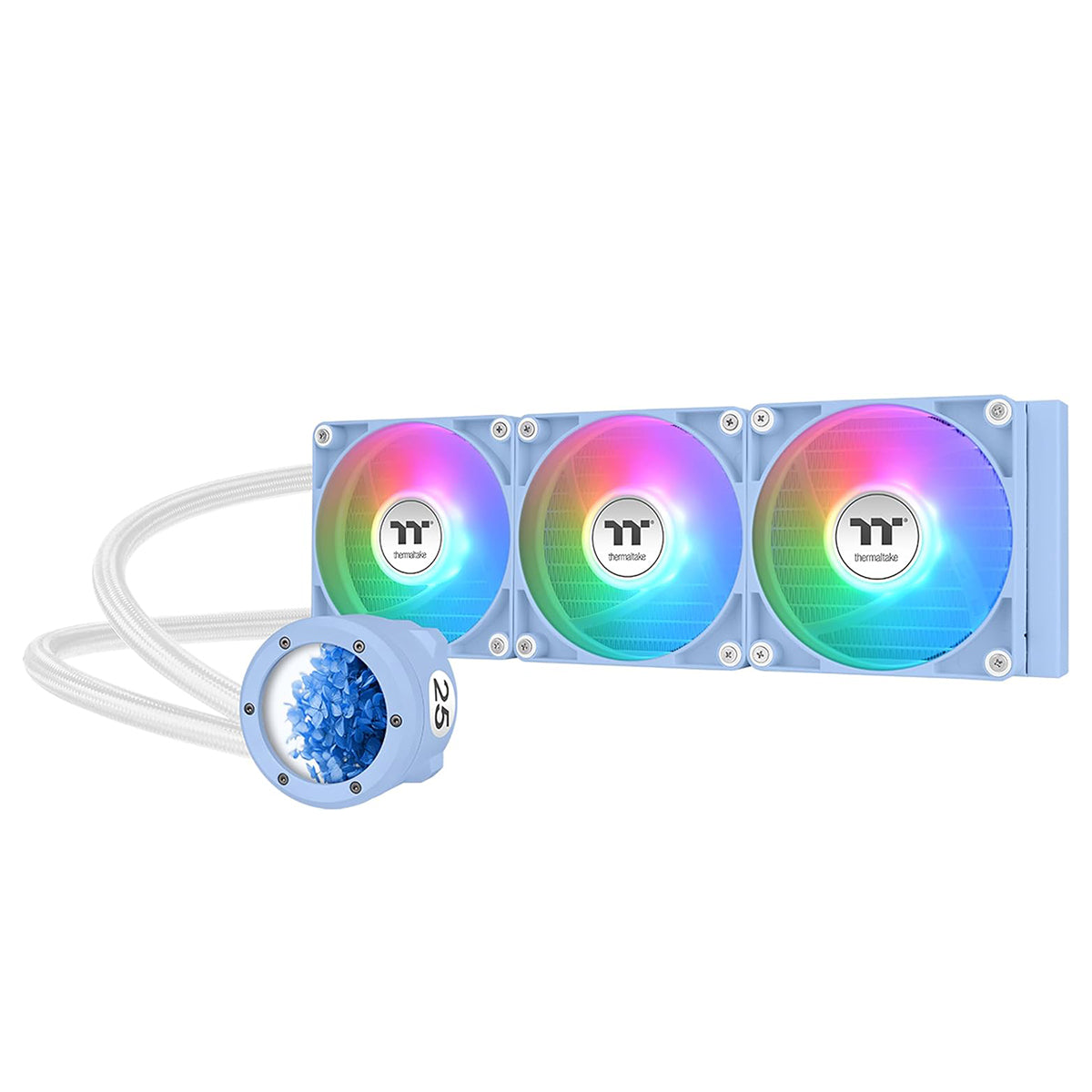

Thermaltake TH360 V2 Ultra ARGB Customizable 2.1" LCD Display AIO Liquid CPU Cooler Hydrangea Blue Edition

Thermaltake  |  SKU 69064  |  MPN CL-W420-PL12BU-A
$349.00

Warranty and Support

Warranty: 3 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

New Design, Same Quality

The TH360 V2 Ultra ARGB Hydrangea Blue features an industrial look to freshen up its 2.1” LCD Display. With a high 480x480 resolution, it allows you to showcase 16.8M color videos or photos effortlessly.

Personalize Your LCD Display

The TH360 V2 Ultra LCD Display is fully customizable, displaying real-time information or playing JPG, GIF, PNG, MP4, MOV, and AVI files. You can also show local time and weather information, adding great visual aesthetics to your build.

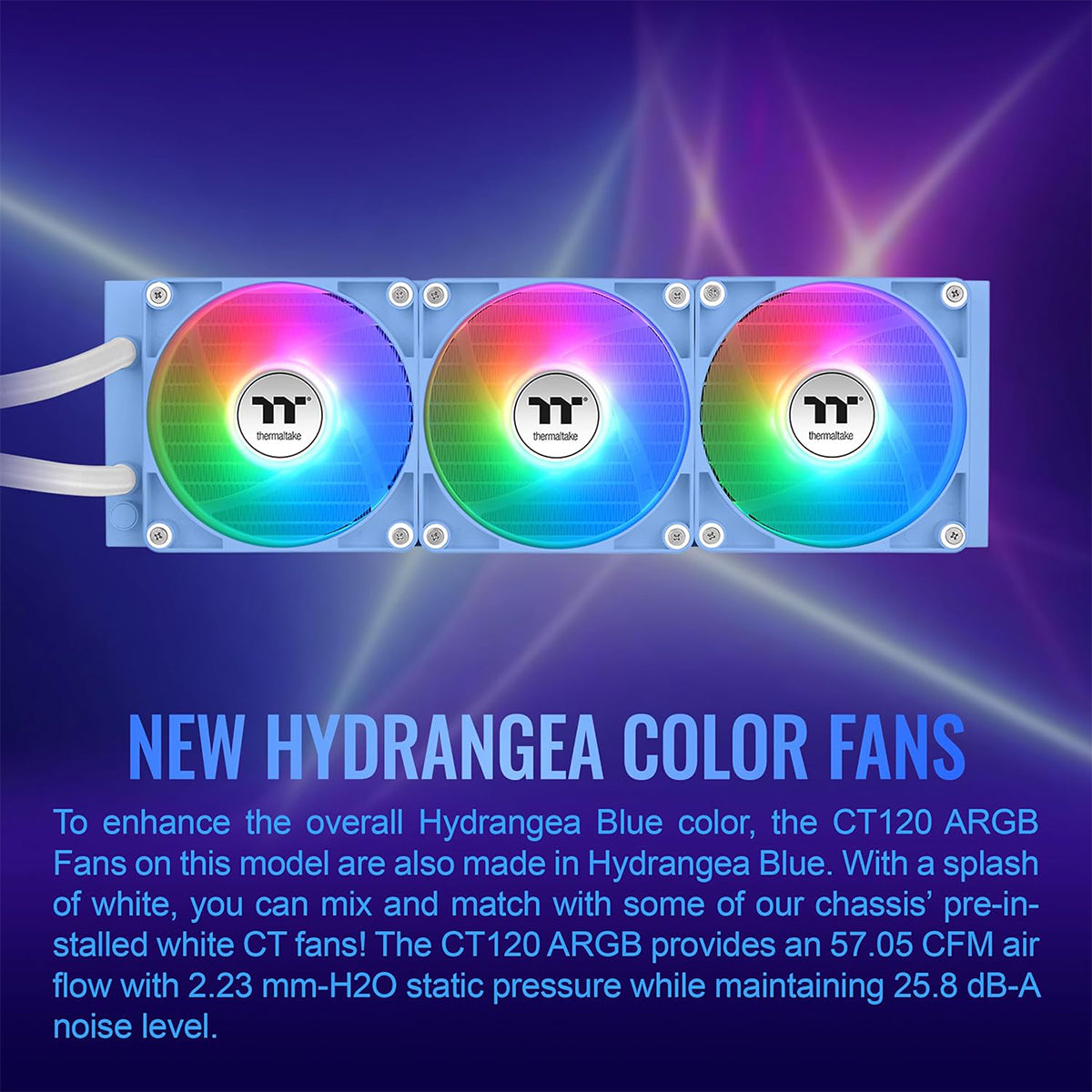

New Hydrangea Color Fans

To complement the Hydrangea Blue color theme, the CT120 ARGB Fans on this model are designed in Hydrangea Blue, with a touch of white to mix well with chassis' pre-installed white CT fans. The CT120 ARGB provides a 57.05 CFM airflow with 2.23 mm-H2O static pressure, maintaining a noise level of 25.8 dB-A.

Note: This product requires motherboard sync for ARGB lighting effects.

Enhanced Cooling Surface With A Compact Design

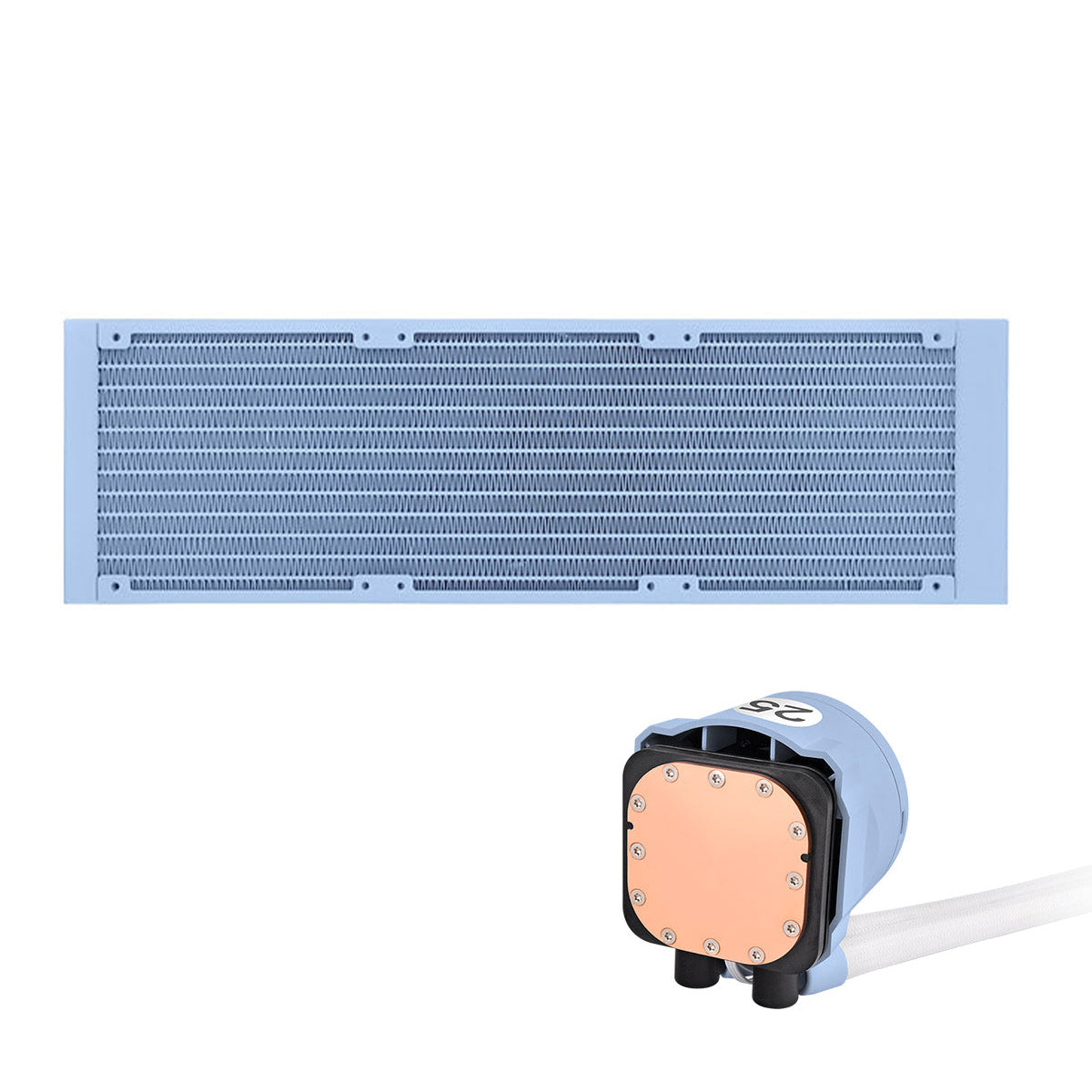

The TH V2 Ultra ARGB Series features a slim 27mm radiator with a thickened 20mm copper chamber, ensuring easier installation and enhanced cooling performance.

Less Cable, Less Mess

The new cable-integrated daisy-chain design minimizes the demand for 4-pin PWM and 3-pin ARGB ports on your motherboard while shortening the cable length between fans. Included are one PWM cable and one ARGB cable to streamline cable management during assembly.

Keeping Your Cables in Place

The 5V ARGB Connector Clip ensures that cables are correctly connected and will not detach during assembly, preventing unexpected loosening.

Keep it COOL with Copper

The high-performance copper base plate accelerates heat conductivity, while the reliable pump maximizes water circulation, keeping the copper plate cool. The low evaporation tube reduces coolant loss, meaning no refill is necessary.

Fully Customizable with TT RGB Plus 2.0

With TT RGB Plus 2.0 software, you can monitor frequency and real-time temperature directly from the 2.1” LCD display. You can also upload images or GIFs to customize start-up and standby screens for added flair.

Any CPU Can Be the Right CPU

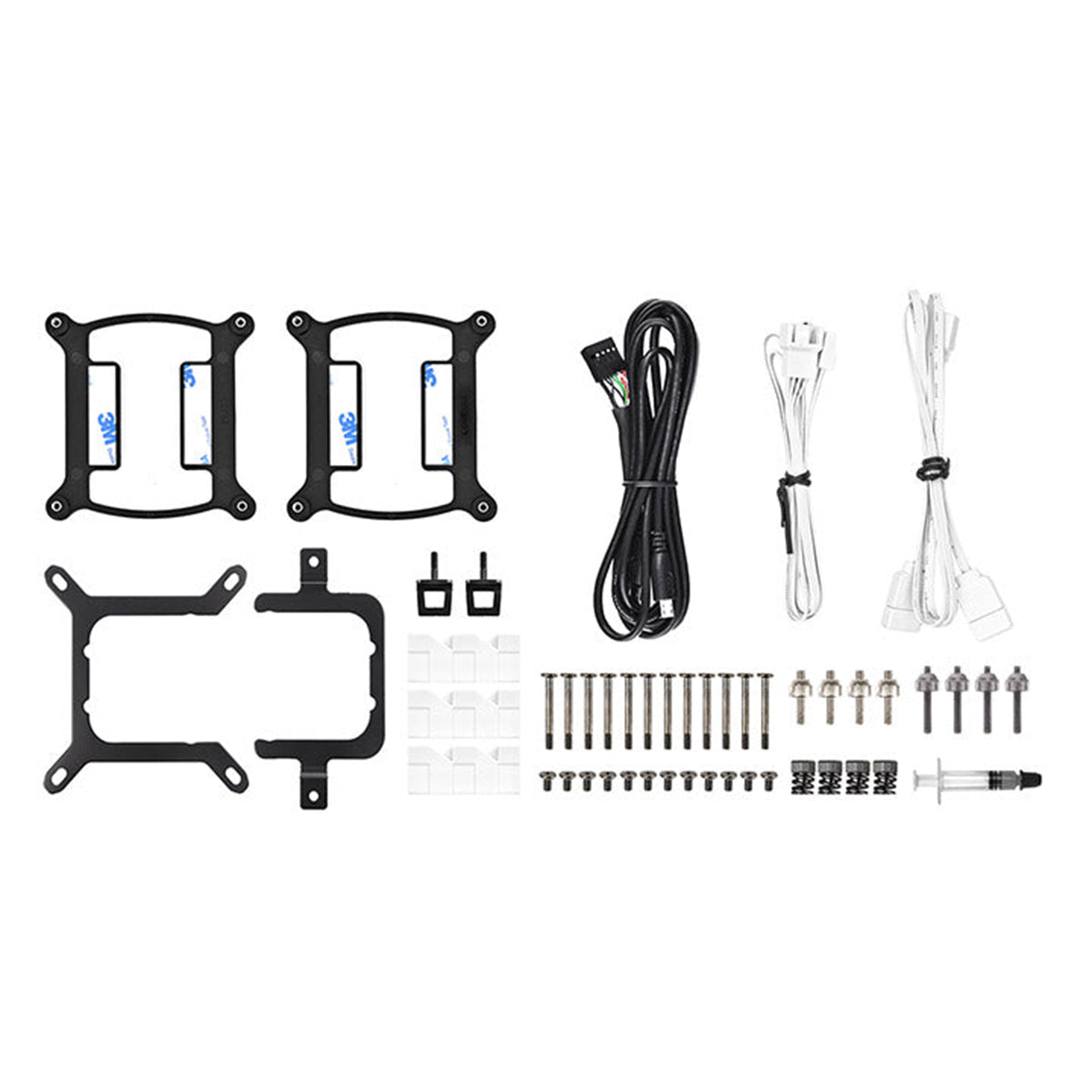

The package includes brackets for the latest Intel and AMD CPU sockets, ensuring compatibility with modern platforms like Intel LGA1700 and AMD AM5 CPUs.

Compatibility list:

  • Intel: LGA 2066/2011/1700/1200/1156/1155/1151/1150
  • AMD: AM5/AM4/AM3+/AM3/AM2+/AM2

Specifications

P/N CL-W420-PL12BU-A
Pump Motor Speed : PWM 1500~3300 RPM
Rated Voltage : 12V
Rated Current : 0.43A
Power Input : 5.16W
CPU Display Rated Voltage : 5V
Power Input : 1.15W
Display Type : 2.1"TFT-LCD
Display Resolution : 480x480 (RGB) px
Display Support Interface : Micro USB to USB (9PIN)
System Compatibility : Windows 10 / 11
Water Block Material : Copper
Fan Dimension : 120 x 120 x 25 mm
Speed : PWM 500~2000 R.P.M
Rated Voltage : 12V/5V
Rated Current : 0.11A & 0.31A (one fan)
Power Input : 1.32W & 1.55W (one fan)
Air Flow. : 57.05 CFM (one fan)
Static Pressure. : 2.23mm-H2O (one fan)
Noise Level. : 25.8dB-A
Tube Length : 460mm
Material : Rubber
Radiator Dimension : 396 x 120 x 27 mm
Material : Aluminum
Compatibility CPU Socket :
Intel LGA 2066/2011-3/2011/1700/1200/1156/1155/1151/1150
AMD AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
