Thermaltake TH120 V2 ARGB Sync Edition AIO Liquid CPU Cooler

Thermaltake  |  SKU 69070  |  MPN CL-W360-PL12SW-A
$109.00

Warranty and Support

Warranty: 3 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

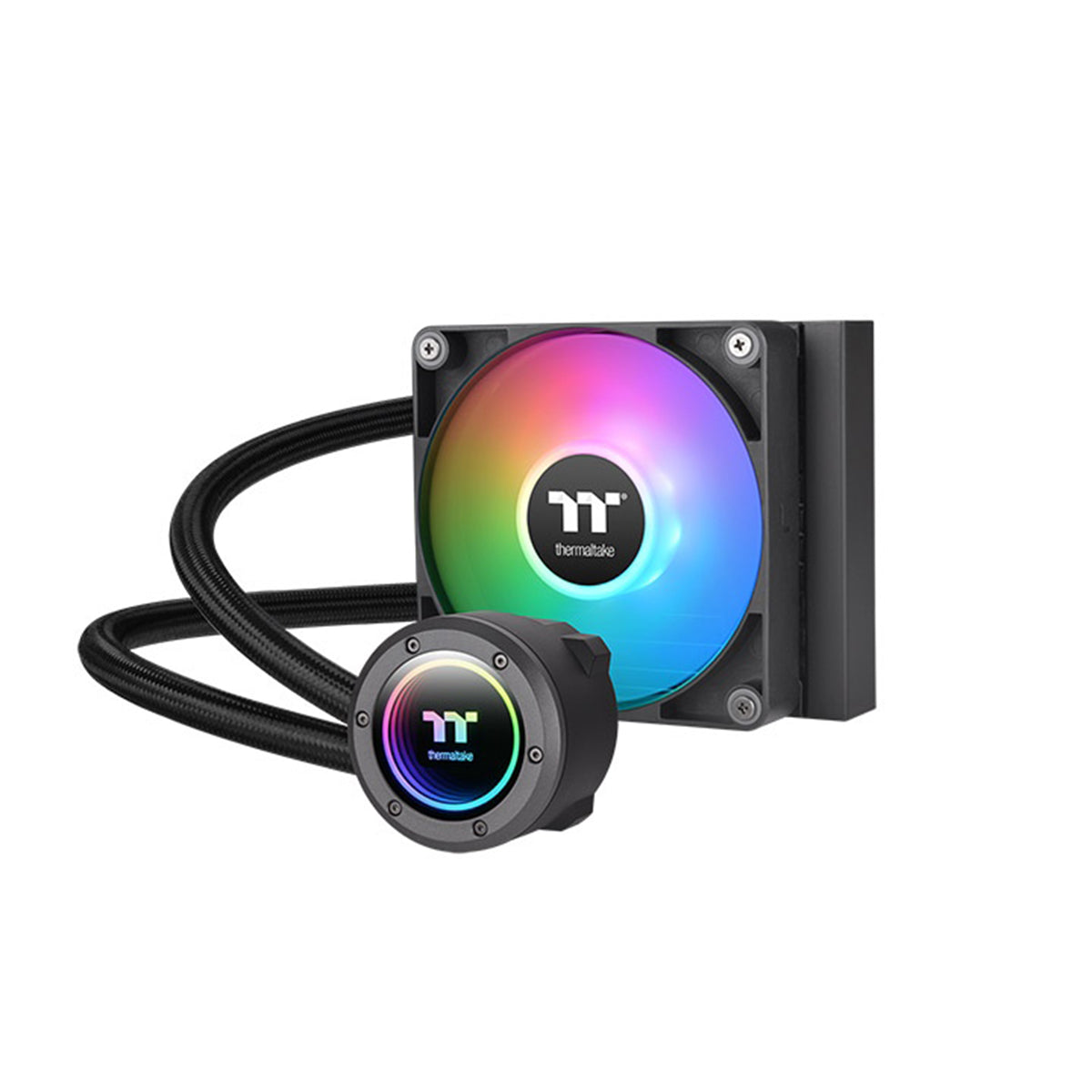

TH120 V2 ARGB Sync All-In-One Liquid Cooler

The TH120 V2 ARGB features a new industrial cap with an infinity mirror light design, bringing a fresh vibe to the TH series. Equipped with one CT120 ARGB fan, this cooler is perfect for small chassis that support 120mm AIOs. It is also ideal for users who want to control lighting effects through 5V motherboard-controlled software.

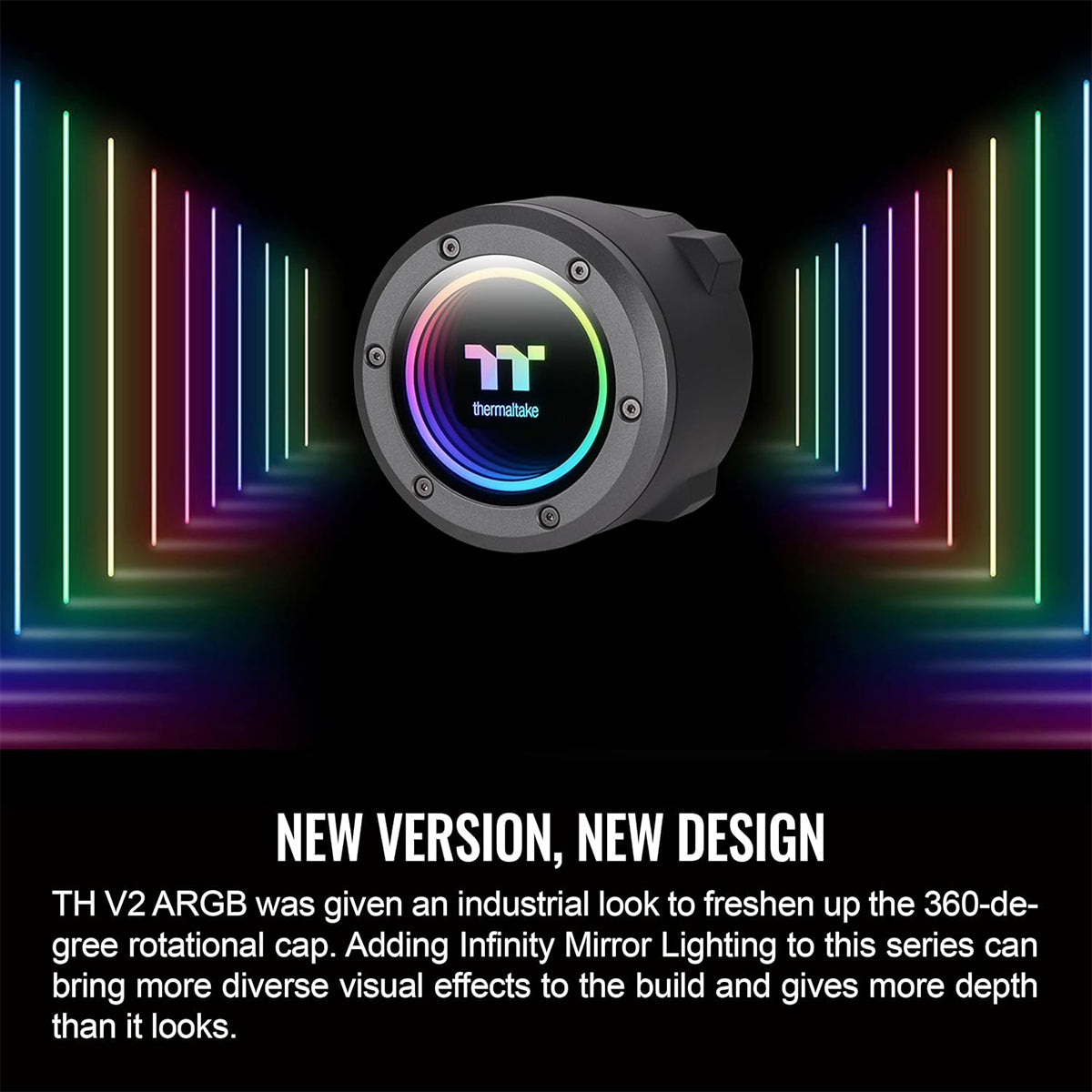

New Version, New Design

The TH V2 ARGB was designed with an industrial look to refresh the 360-degree rotational cap. The addition of Infinity Mirror Lighting brings more diverse visual effects and depth to the build.

Sync with CT120 ARGB Fans

Using the CT120 ARGB Fans in this model, users can match them with pre-installed chassis fans and unify the lighting effects. The CT120 ARGB provides 57.05 CFM airflow with 2.23 mm-H2O static pressure, while maintaining a 25.8 dB-A noise level.

Enhanced Cooling Surface With A Compact Design

The TH V2 ARGB Series features a 27mm slim radiator with a thickened 20mm copper chamber. This design ensures easy installation while providing improved cooling performance.

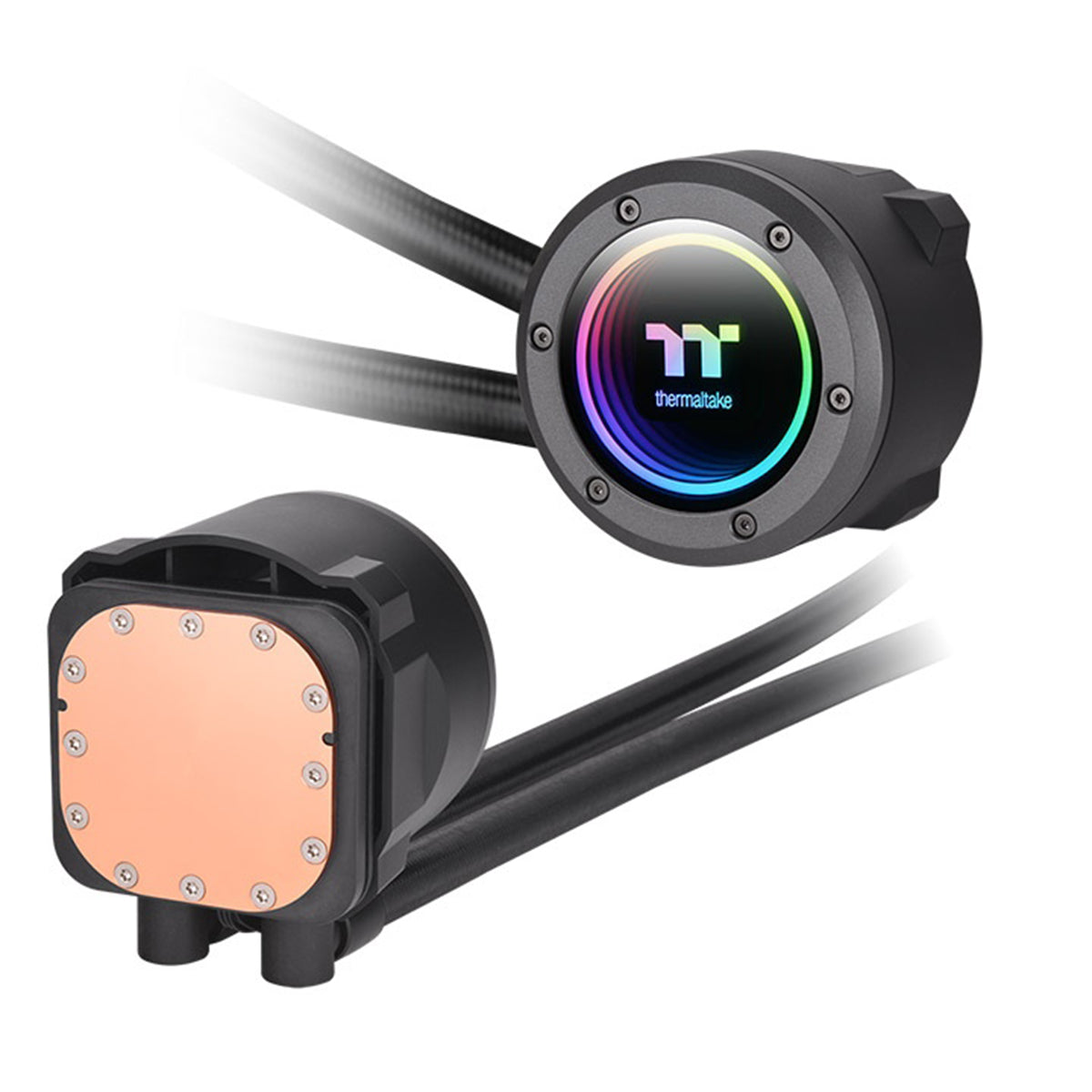

Keep it COLD with Copper

The high-performance copper base plate accelerates heat conductivity, while the reliable pump maximizes water circulation, keeping the copper plate cool. The low evaporation tube reduces coolant loss, eliminating the need for refills.

Any CPU Can Be the Right CPU

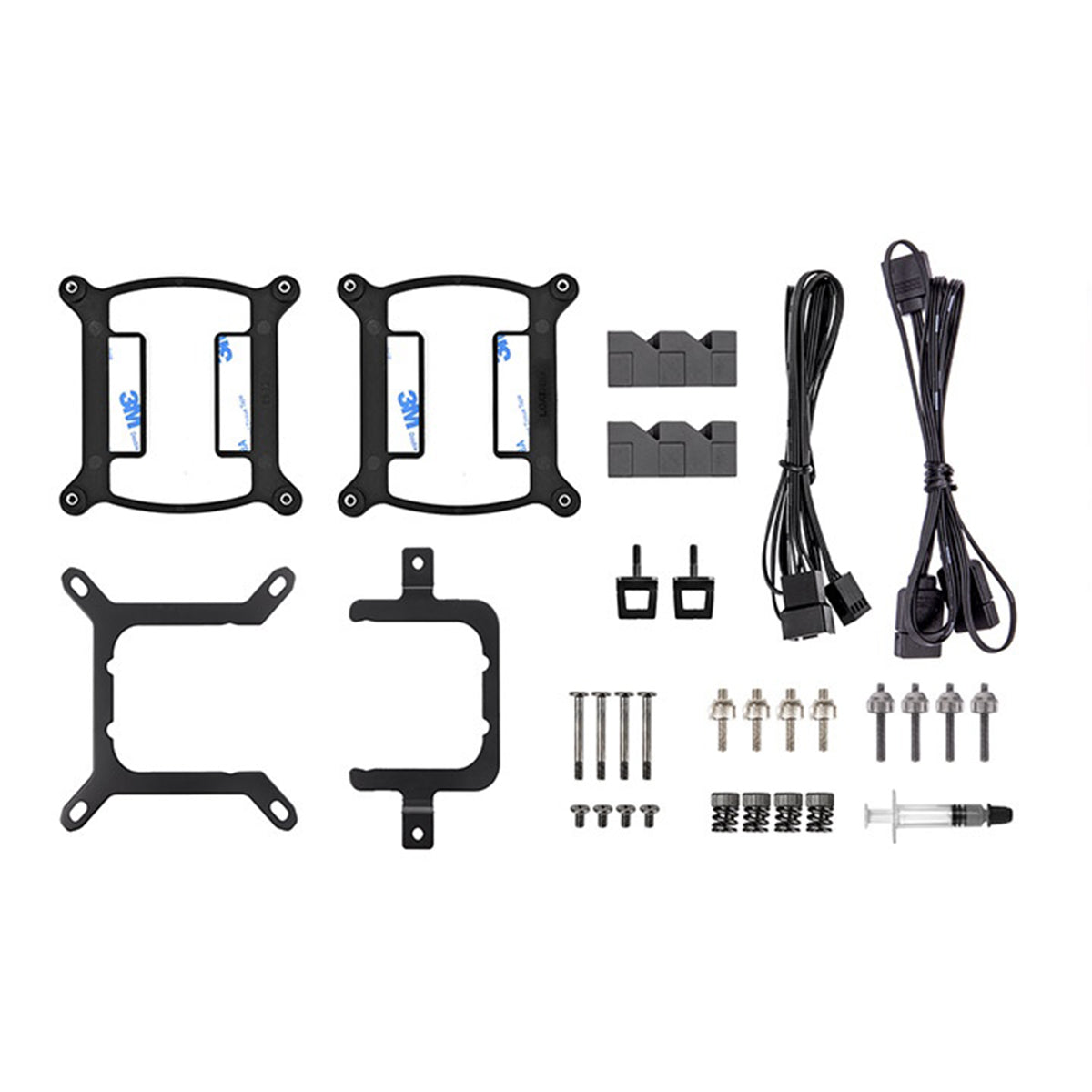

The package includes brackets compatible with the latest Intel and AMD CPU sockets, including Intel LGA1700 and AMD AM5 CPUs, ensuring compatibility with modern CPU platforms.

Compatibility List

  • Intel: LGA 2066/2011/1700/1200/1156/1155/1151/1150
  • AMD: AM5/AM4/AM3+/AM3/AM2+/AM2

Sync with Motherboard RGB Software

The TH120 V2 ARGB is designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing users to control lighting directly from the software without needing extra lighting software or controllers. For more details, visit the official websites of ASUS, GIGABYTE, MSI, and ASRock.

Specifications

P/N CL-W360-PL12SW-A
PUMP Speed : PWM 1500~3300 R.P.M
Rated Voltage : 12 V & 5V
Rated Current : 0.43 A & 0.32 A
Power Input : 5.16 W & 1.6 W
Connector : 2510–4 Pin / 5V ARGB header–3 Pin
WATER BLOCK Material : Copper
Fan Dimension : 120 x 120 x 25 mm
Speed : PWM 500~2000 R.P.M
Noise Level : 25.8 dB-A
Rated Voltage : 12 V & 5V
Rated Current : 0.11 A & 0.31 A (one fan)
Power Input : 1.32 W & 1.55 W (one fan)
Max. Air Flow : 57.05 CFM
Max. Static Pressure : 2.23 mm-H2O
Connector : 2510 - 4 Pin PWM , 5V ARGB header - 3 Pin
Bearing Type : Hydraulic Bearing
Life expectation : 40,000 hrs, 25℃
Tube Length : 460 mm
Material : Rubber
Radiator Dimension : 157 x 120 x 27 mm
Material : Aluminum
COMPATIBILITY Intel: LGA 1851/1700/1200/1156/1155/1151/1150
AMD: AM5/AM4/AM3+/AM3/AM2+/AM2
