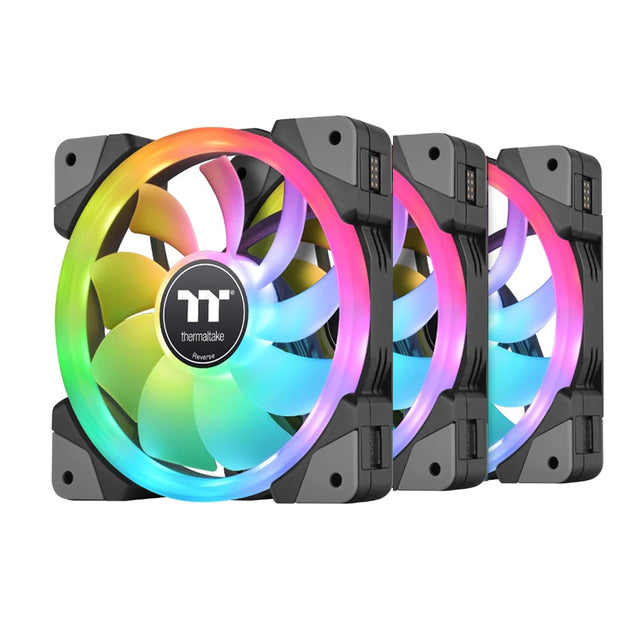

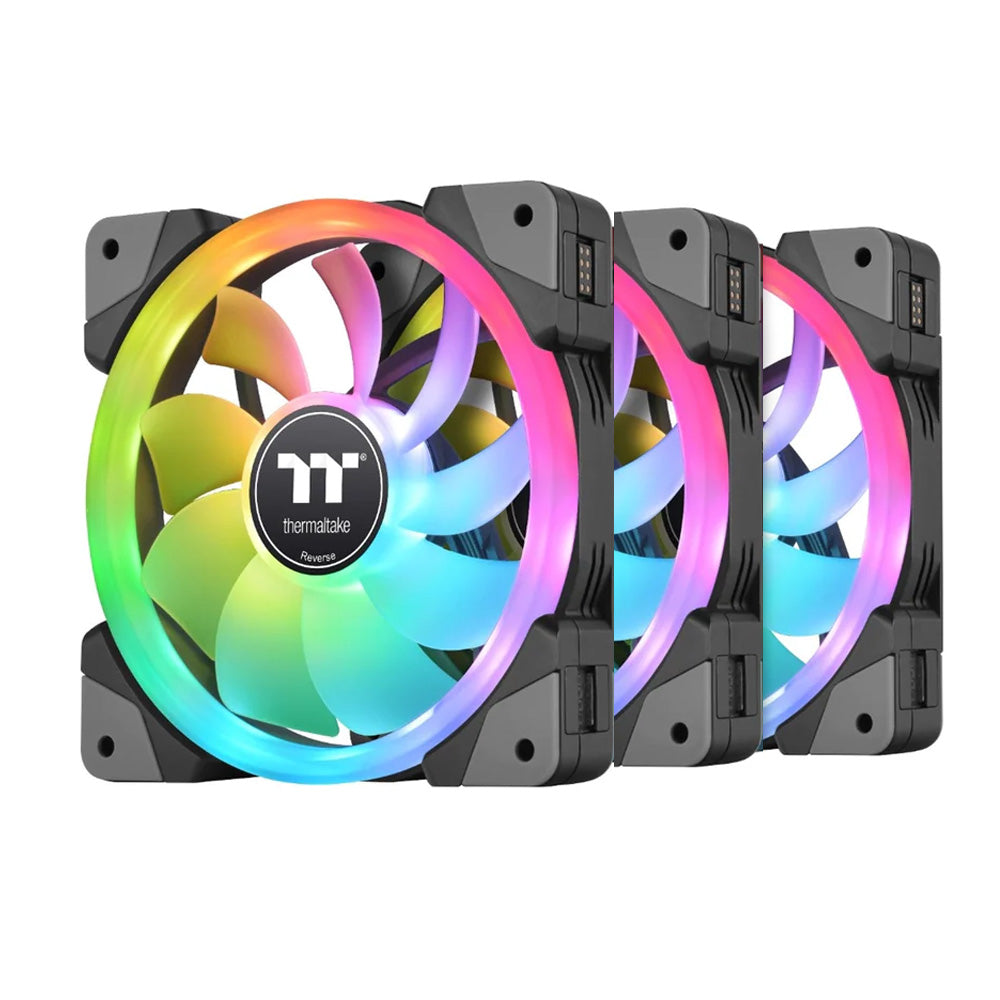

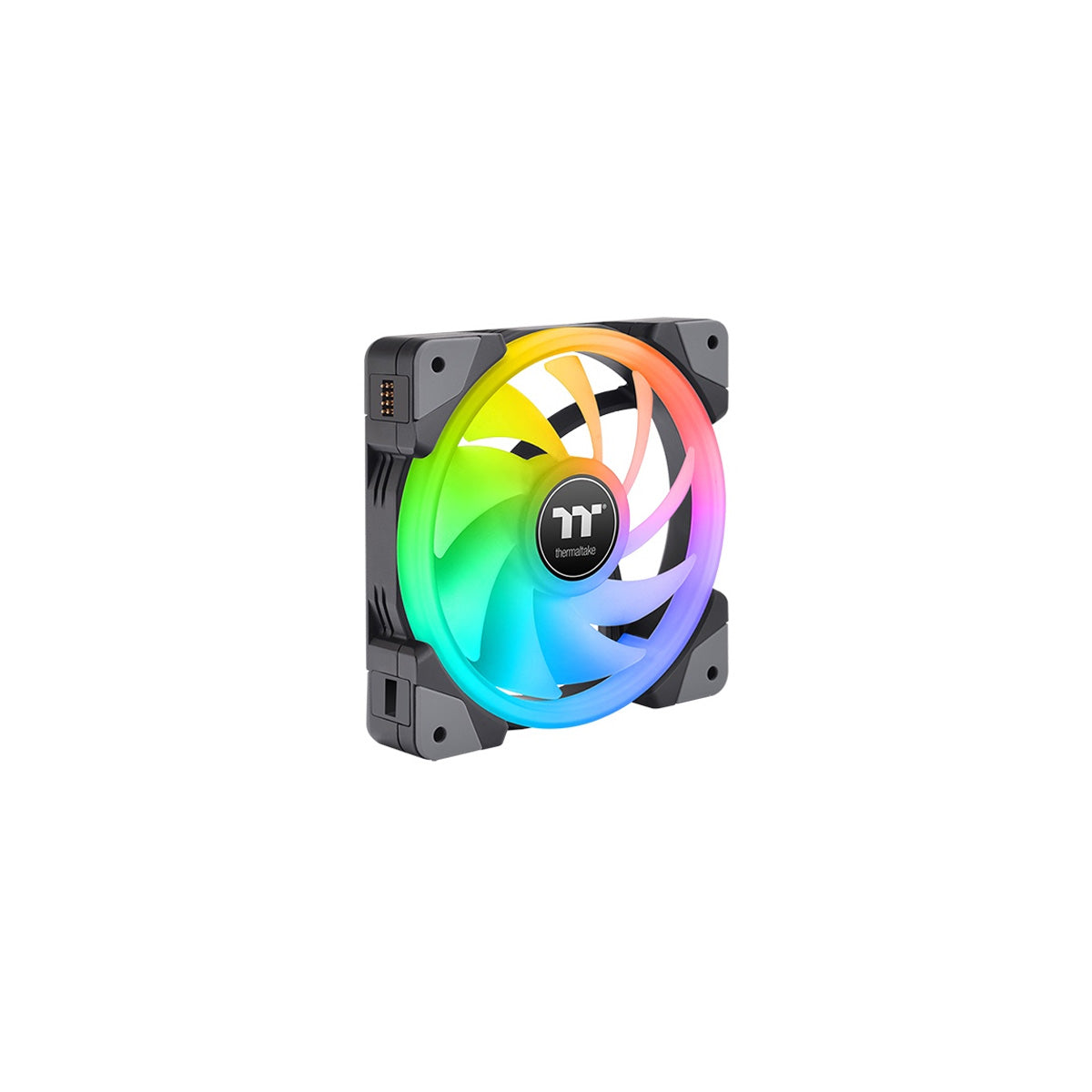

Thermaltake SWAFAN EX12 Magnetic PWM RGB Fan Black Edition - 3 Pack
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 2 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description

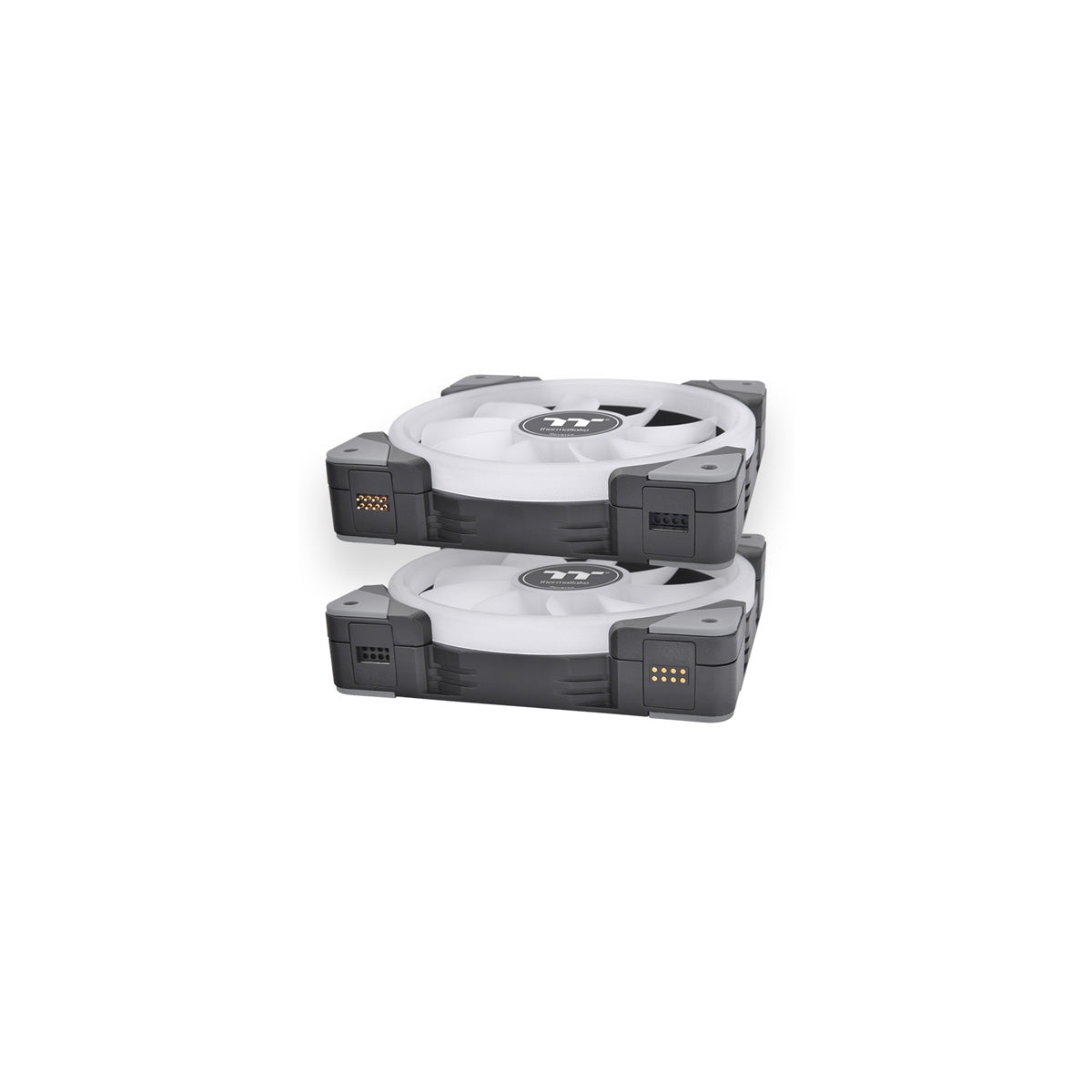

Quick Connect with Magnetic Force Design
The magnetic force design is used on the 12V cable core and the fans to achieve quick connection. Simply placing the cable to the fan or having the fans lying side by side, the magnet connectors will instantly draw the fan frames together while keeping them in place, thus powering and lighting up the fans by daisy-chaining them. This design keeps the assembly process simple while reducing installation time, making this fan more user-friendly and bringing extra fun while building your PC.

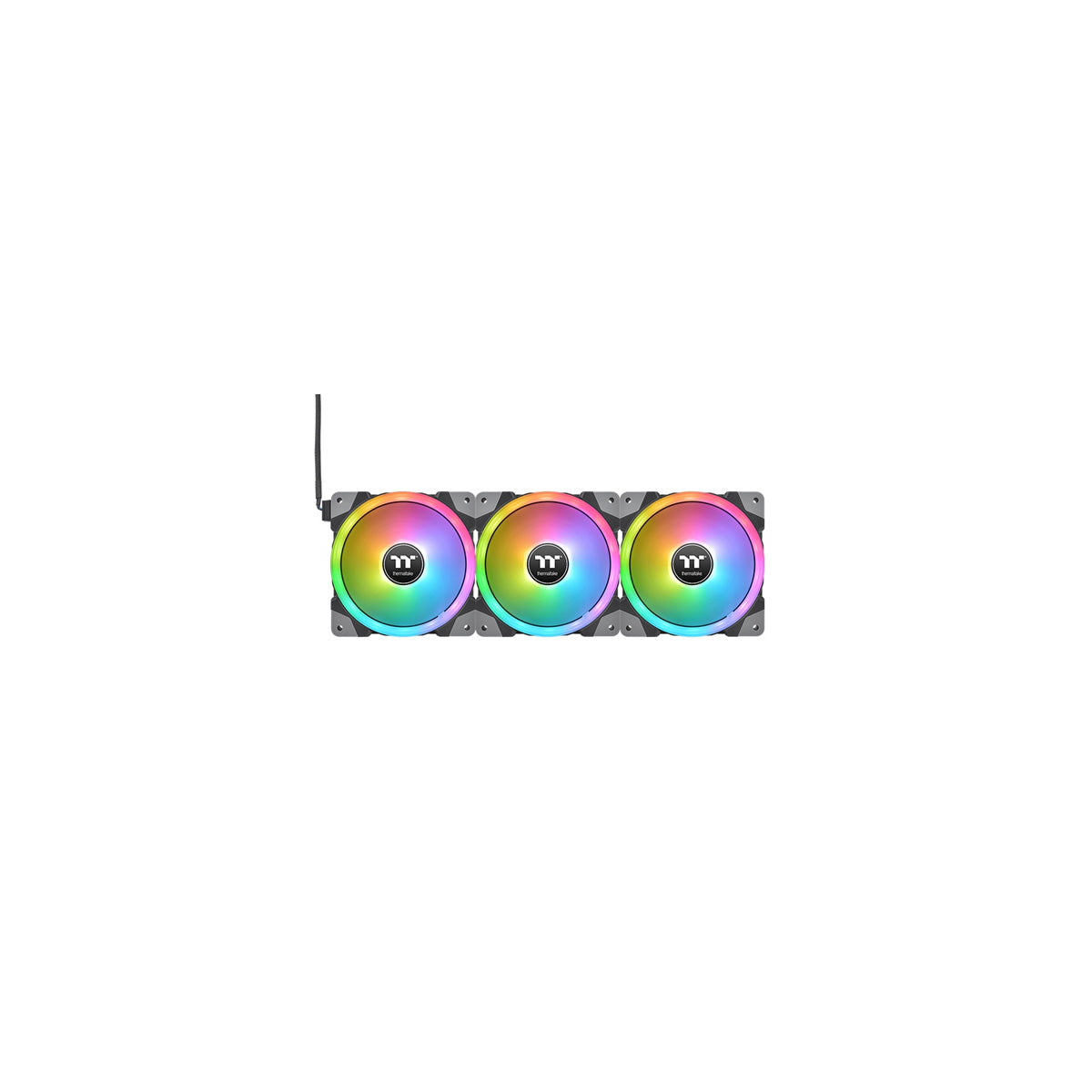

Say Goodbye to Most of Your Cables
Eliminate cable usage and stray away from crazy cable management by using this Magnetic Force Quick Connect Design fan. You only need to connect one cable to power up three fans at once, making PC building even faster and easier.
Ultimate Cooling Performance
The design guarantees optimal cooling performance under different conditions, like installing fans on thick radiators or air coolers or even a chassis with multiple filters that are difficult to have air naturally pass through.

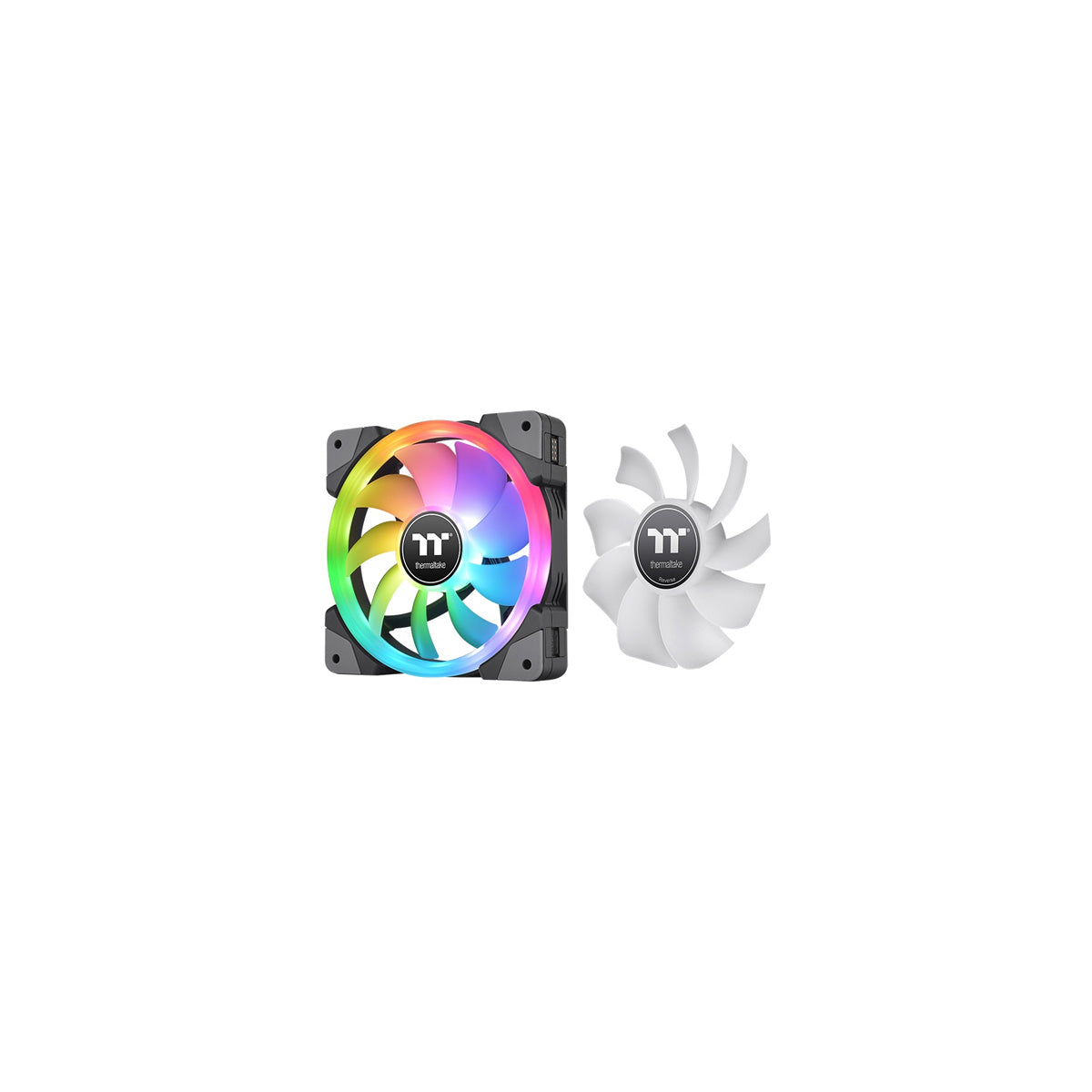

Swap the Fan Blades as You Like!
Simply pop out the blade and press the alternative one back in! It’s as easy as that to make the swap!
Cleaning Fans are now Easy and Fun!
Pop and insert, it is that easy.
If you want, you can even rinse the fan blades with water, just make sure you dry them thoroughly and apply bearing lubricant that is include in the package if needed.
Unlocks the Full Potential of RGB
No more sacrificing aesthetics for your airflow direction; the SWAFAN EX can now do both!
TT RGB PLUS 2.0 Software
The new version of Thermaltake’s TT RGB PLUS patented software, provides more lighting effects and PC monitoring functions.
*Thermaltake RGB PLUS required to alter RGB Function
Specifications
Specifications
P/N | CL-F143-PL12SW-A |
Fan Dimension | 120 x 120 x 25 mm |
INTERFACE | USB 2.0 connectors (9 Pin) |
System compatibility | Windows 10 /11 |
Fan Started Voltage | 9.0 V |
Fan Rated Voltage | 12 V & 5V |
Rated Current | 12 V - 0.23 A , 5 V – 0.72 A (one fan) |
Power Input | 12 V – 2.76 W , 5 V – 3.6 W (one fan) |
Fan Speed | 500 ~ 2000 R.P.M |
Max. Air Pressure | Standard Fan Blade : 2.39 mm-H2O (one fan) Reverse Fan Blade : 2.02 mm-H2O (one fan) |
Max Air Flow | Standard Fan Blade : 57.11 CFM (one fan) Reverse Fan Blade : 56.26 CFM (one fan) |
NOISE LEVEL | Standard Fan Blade : 30.6 dB-A (one fan) Reverse Fan Blade : 32.5 dB-A (one fan) |
Bearing Type | Hydraulic Bearing |
Life Expectation | 40,000 hrs,25℃ |
Included items | Fan Frames x 3 Standard Fan Blade x 3 (Pre-installed) Reverse Fan Blade x 3 Controller x 1 |
