Description
Description

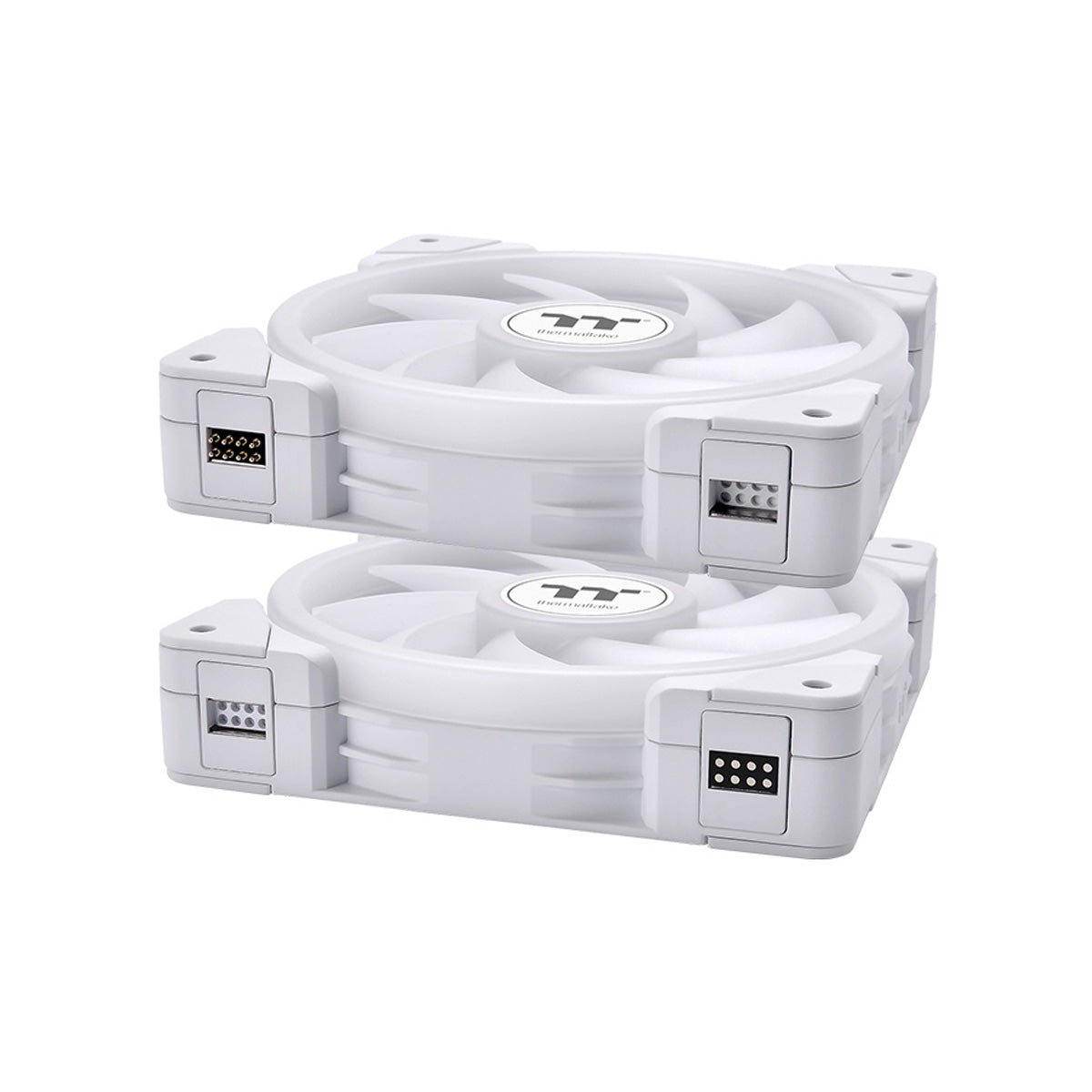

Quick Connect with Magnetic Force Design
Our magnetic force design ARGB version enables the connection of both the 12V PWM cable and the 5V ARGB lighting cable to a single magnetic connector; simply placing the fans side by side, the magnet connectors will instantly draw the fan frames together while keeping them in place, thus powering and lighting up the fans by daisy-chaining them. This design keeps the assembly process simple while reducing installation time, making this fan more user-friendly and bringing extra fun while building your PC.
Say Goodbye to Excessive Cables
Connect your fans with SWAFAN EX’s Magnetic Force Quick Connect Design and be free from messy cables!

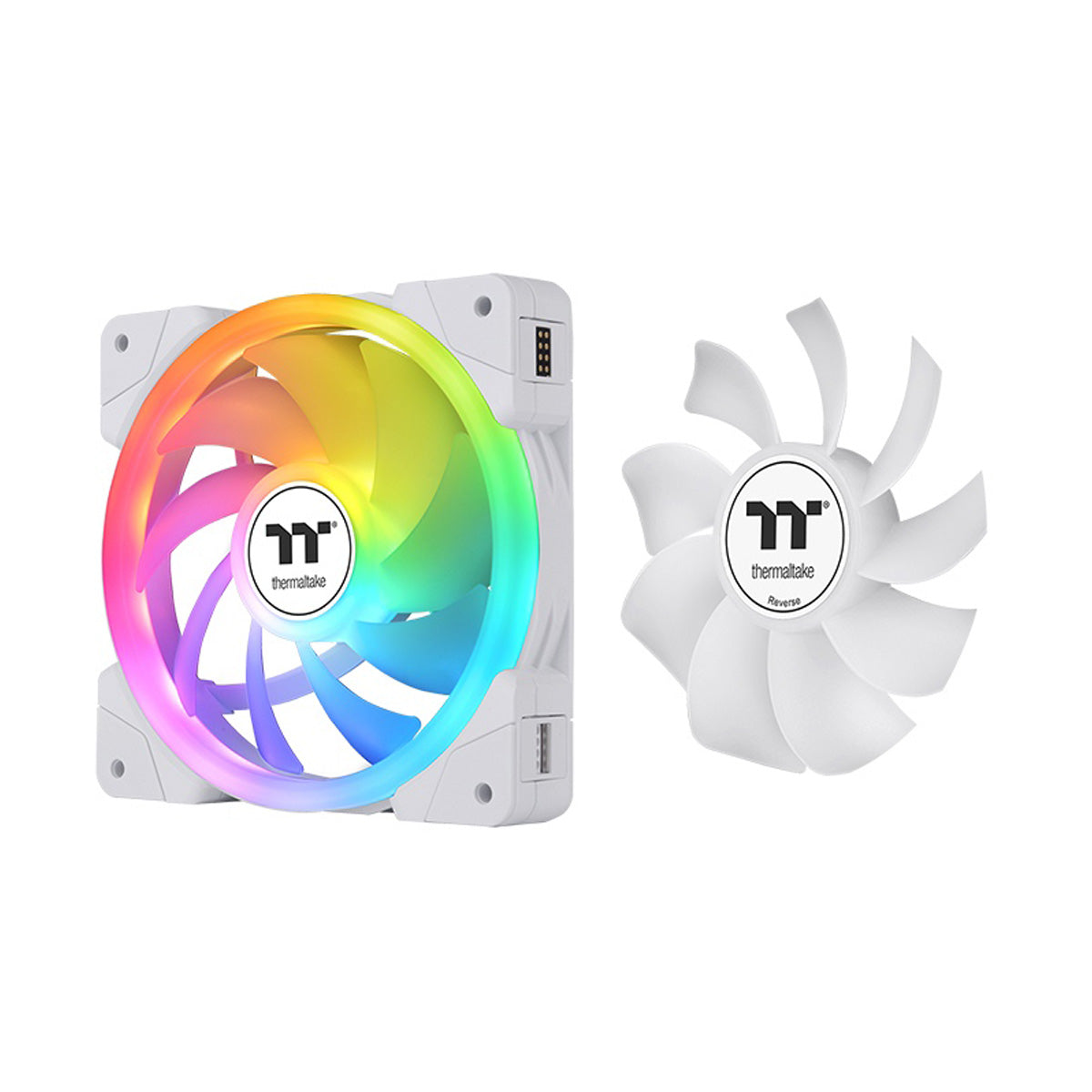

Swap the Fan Blades as You Like
Simply pop out the fan blades, switch up the blades and press them back in!
The Ultimate Cooling Performance of an RGB Fan
The design guarantees optimal cooling performance under different conditions, like installing fans on thick radiators or air coolers or even a chassis with multiple filters that are difficult for air to naturally pass through.
Cleaning Fans are now Easy and Fun!
Pop and insert, it is that easy. If you want, you can even rinse the fan blades with water, just make sure you dry them thoroughly and apply the bearing lubricant included in the package if needed.
Don’t Turn Your Back on Lighting Ever Again!
No more sacrificing aesthetics for your airflow direction; SWAFAN EX can now do both!
Great Lighting Effects with 16.8M Colors
Two independent LED rings with 20 LEDs (Inner ring: 6, Outer ring: 14) allow you to explore different build themes with 5V motherboard sync lighting software.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync, and ASRock Polychrome. It supports motherboards with a 5V addressable RGB header, allowing you to control the lights directly from the software mentioned above without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI, and ASRock official websites.
Specifications
Specifications
| P/N | CL-F169-PL12SW-A |
| Fan Dimension | 120 × 120 × 25 mm |
| Interface | 2510-4 PIN PWM, 5V ARGB header-3PIN |
| Fan Started Voltage | 9.0 V |
| Fan Rated Voltage | 12 V & 5 V |
| Rated Current | 12 V - 0.27 A, 5 V – 0.72 A (one fan) |
| Power Input | 12 V – 3.24 W, 5 V – 3.6 W (one fan) |
| Fan Speed | PWM 500 ~ 2000 R.P.M |
| Max Air Pressure | Standard Fan Blade: 2.39 mm-H2O (one fan) Reverse Fan Blade: 2.02 mm-H2O (one fan) |
| Max Air Flow | Standard Fan Blade: 57.11 CFM (one fan) Reverse Fan Blade: 56.26 CFM (one fan) |
| Noise Level | Standard Fan Blade: 30.6 dB-A (one fan) Reverse Fan Blade: 32.5 dB-A (one fan) |
| Bearing Type | Hydraulic Bearing |
| Life Expectation | 40,000 hrs, 25℃ |
| Included Items | Fan Frames x 3 Standard Fan Blade x 3 (Pre-installed) Reverse Fan Blade x 3 Cable x 3 |
