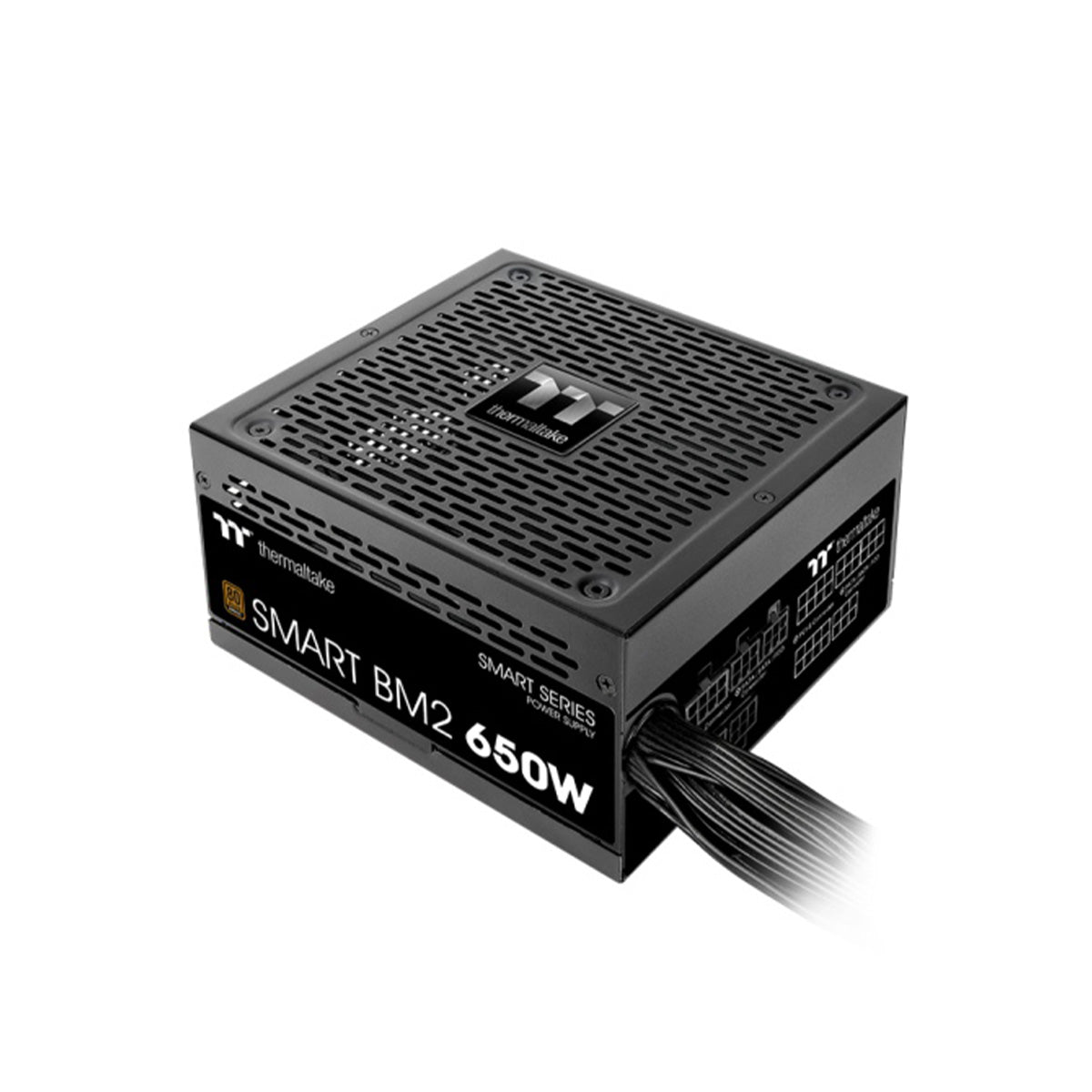

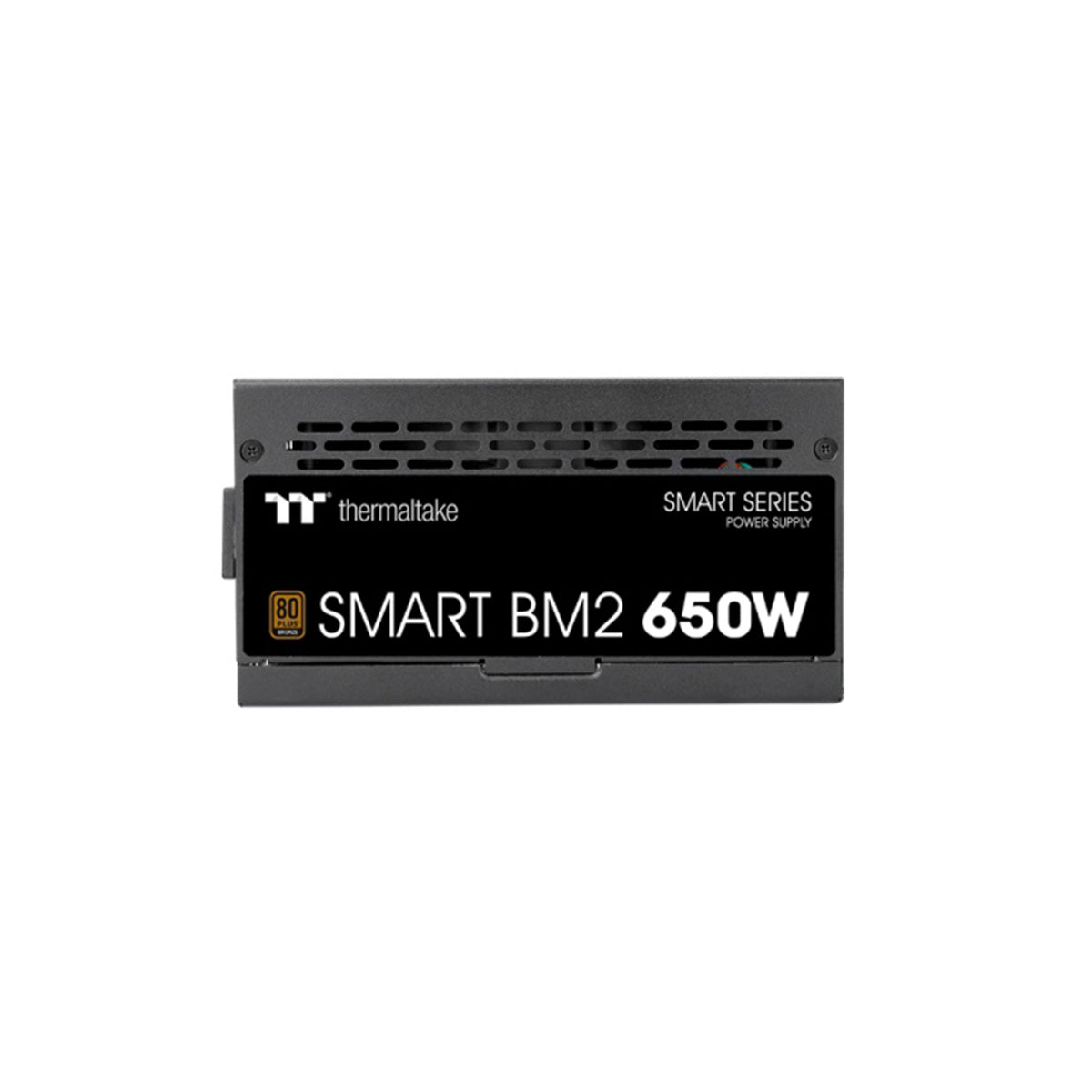

Thermaltake Smart BM2 650W 80+ Bronze Semi-Modular PSU
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Smart BM2 650W - TT Premium Edition
Built to deliver 80 PLUS Bronze efficiency with up to 85% of it, the Smart BM2 series is available in 450W/550W/650W/750W. Constructed with a 140mm rifle bearing fan, Japanese main capacitors and other premium components, the Smart BM2 650W delivers a continuous and stable power output at 40℃, allowing near silent operation and reliable performance. With an ample 5-year warranty, the Smart BM2 650W is able to satisfy the market, where value-oriented users are looking for a new power supply with all the latest features.
Ultra Quiet 140mm Rifle Bearing Fan
The Smart BM2 650W adopts a 140mm silent Rifle Bearing fan with intelligent preset RPM control guarantying cooling performance and silent operation.

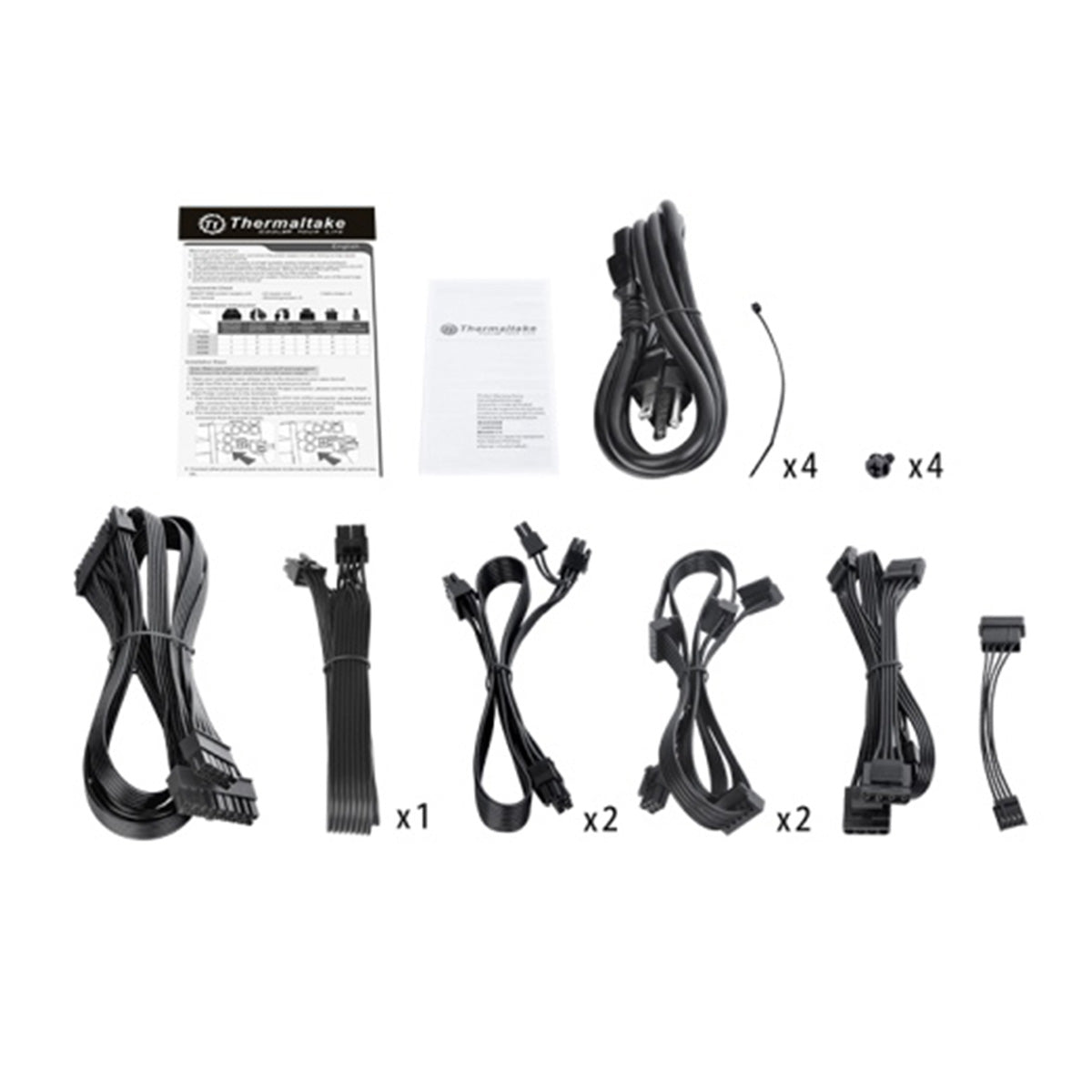

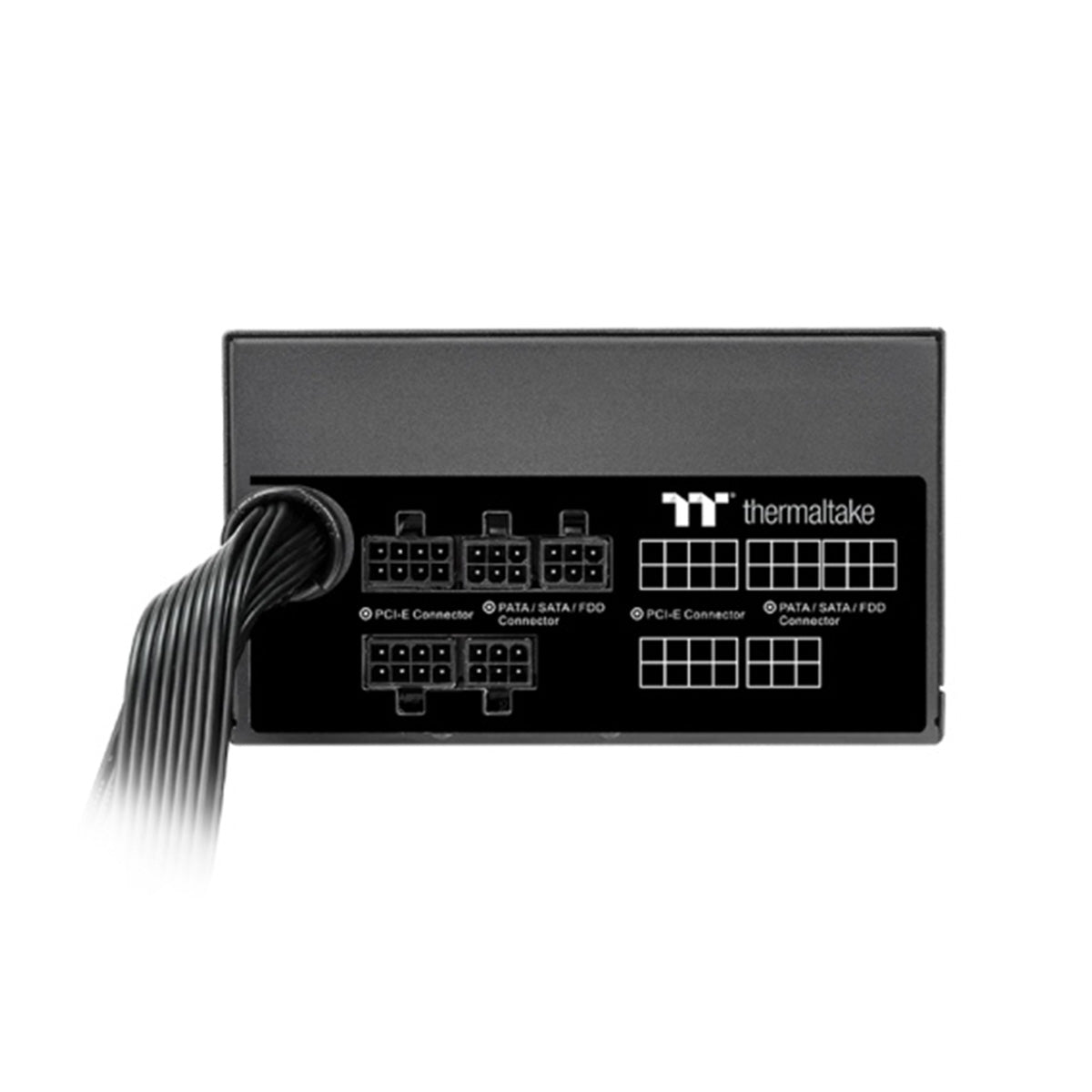

Semi Modular Flat Cable Design
Soft flat black cables come with sleeve cabling, designed to make cable installation an easy task while fully powering the system at optimal voltages.
Japanese Main Capacitor
High quality Japanese main capacitor greatly improves the power supplies durability and ensures the Smart BM2 Series to have highest stability and reliability.
DC to DC for Stable Output Voltage
With DC to DC design, the unit can optimize maximum energy harvest for your system. Such as efficiently change voltage level for 12V, 5V, and 3V and to match the loads to your power supply.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
80 PLUS Bronze Certified and Intel C6/C7 States Ready
Smart BM2 650W saves energy through its high energy efficiency up to 85%. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy savings.
Specifications
Specifications
| Watts | 650W |
| RGB Fan | No |
| Model | SP-650AH3CCB-B |
| Type | ATX 12V v2.4 and EPS v2.92 |
| Max. Output Capacity | 650W |
| Peak Output Capacity | 780W |
| Color | Black |
| Dimension ( W / H / D ) | 150mm(W) x 86mm(H) x 160mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-500 msec |
| Hold Up Time | > 12msec at 80% of full load at 230Vac input |
| Input Current | 10A max. |
| Input Frequency Range | 47Hz -63Hz |
| Input Voltage | 100V-240V~ |
| Operating Temperature | 0°C to +40°C |
| Operating Humidity | 20% to 90%,non-condensing |
| Storage Temperature | -20 °C to +70 °C |
| Storage Humidity | 5% to 95%, non-condensing |
| Cooling System | 140mm Fan: 2300 R.P.M. ± 10% |
| Efficiency | Meet 80 PLUS®Bronze at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | cTUVus/TUV/CE/FCC/S-mark/EAC/BSMI/C-TICK/CCC |
| PCI-E 6+2pin | 4 |
| Protection | OVP ,OPP, OCP, OTP |
