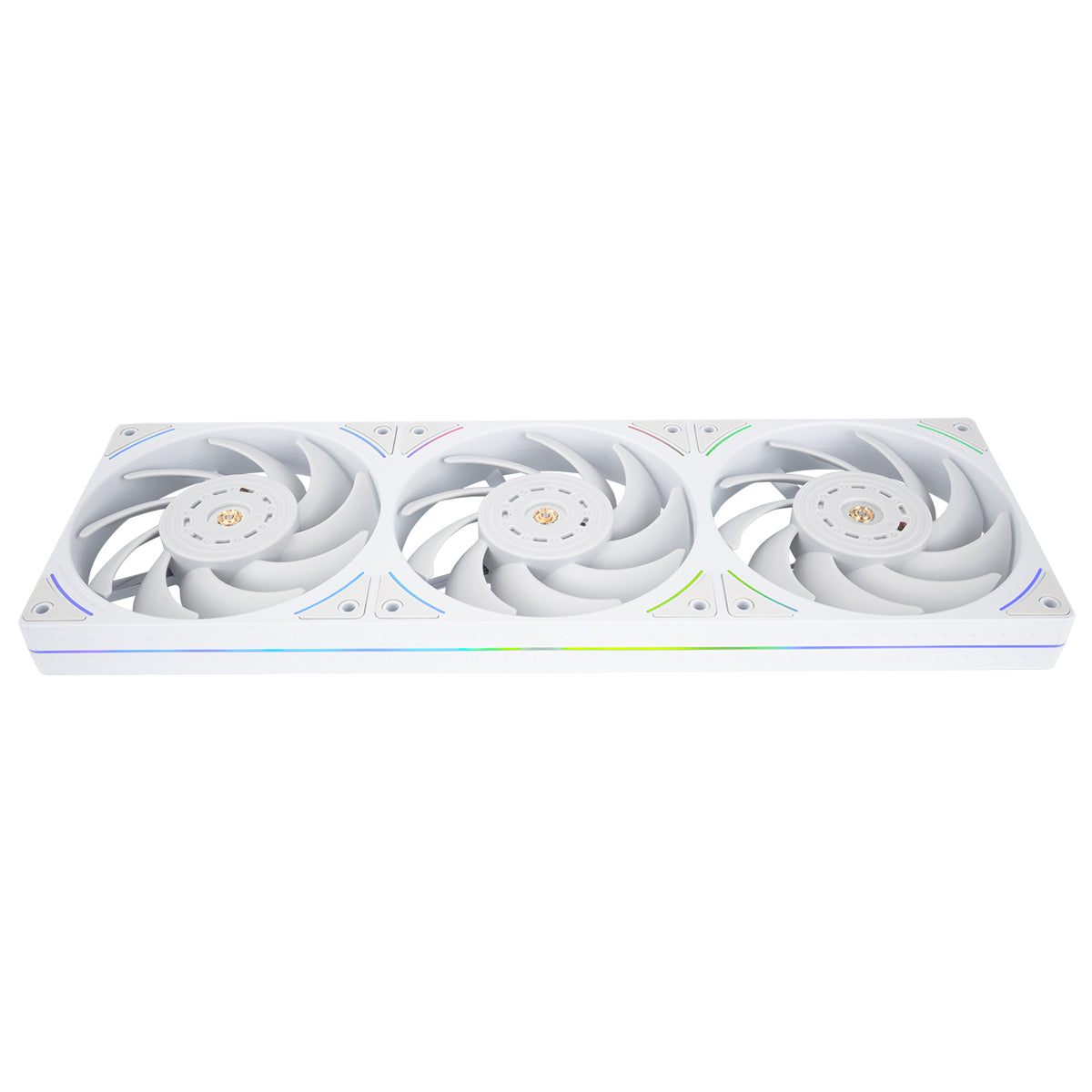

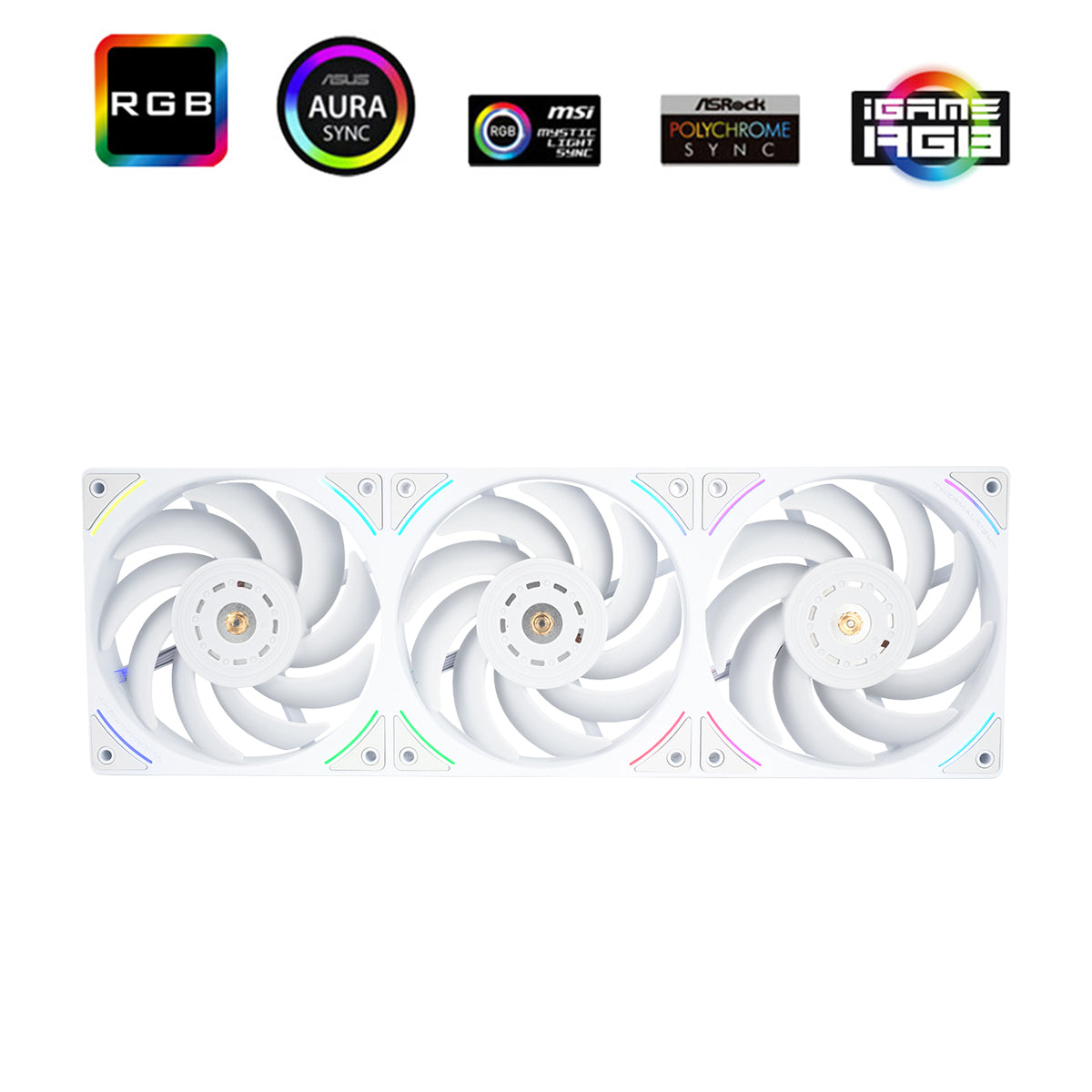

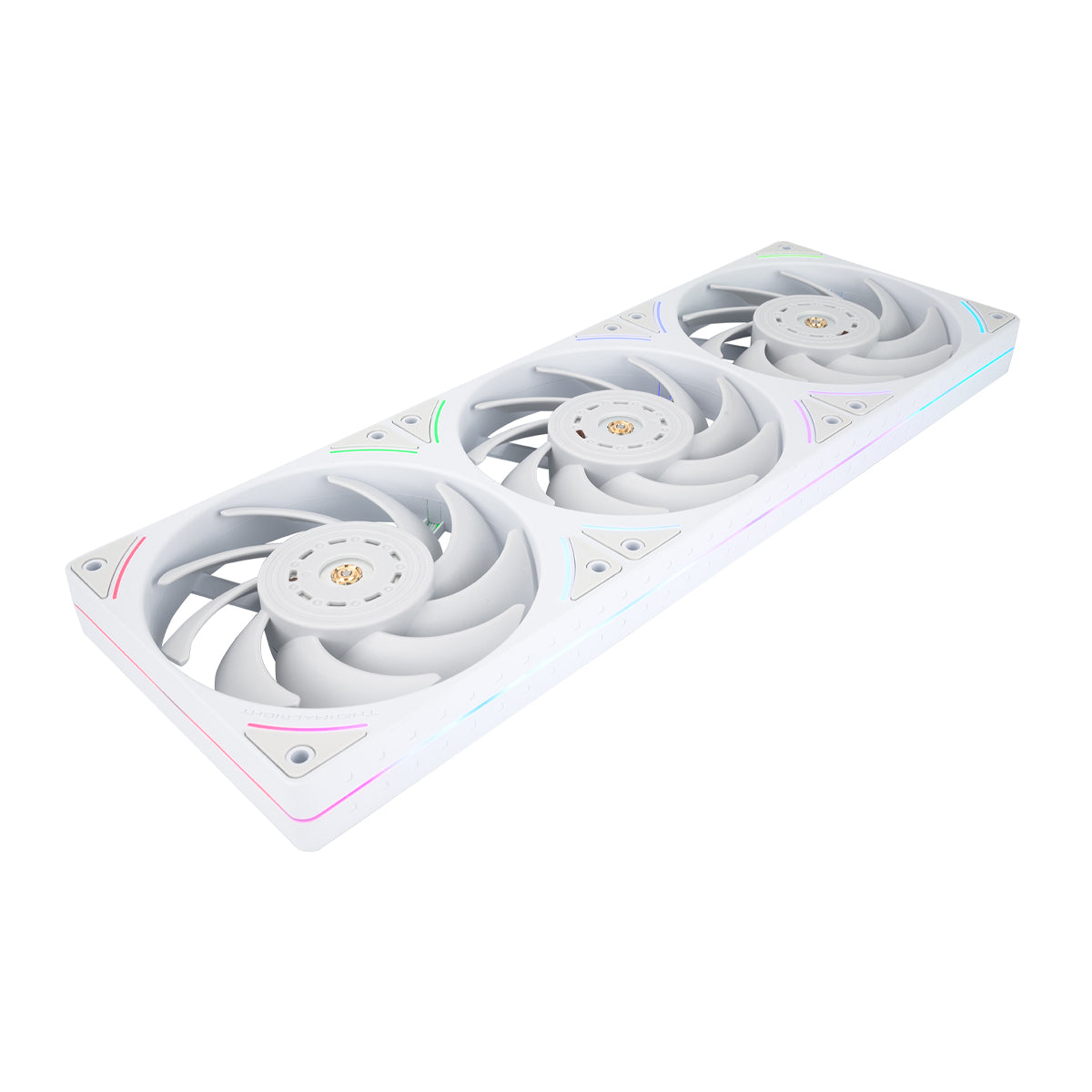

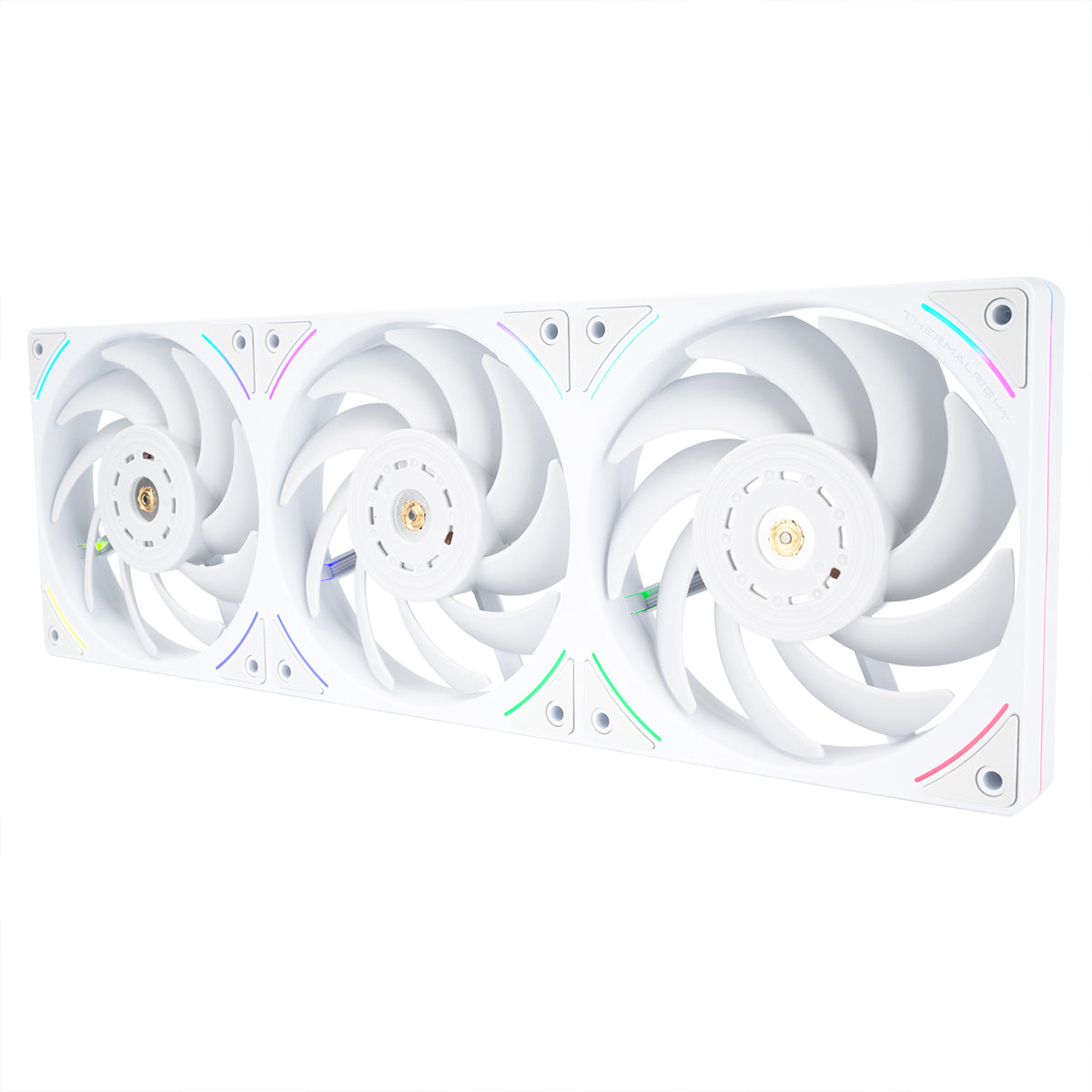

Thermalright TL-UB36W 360mm RGB Single-Frame Cooling Fan - White OEM
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
All-in-One Design
The single-frame design with integrated fans streamlines installation and lighting control—no need to connect individual fans.
High Speed & Efficient Cooling
With a maximum rotation of 2150 RPM, the fan quickly dissipates high temperatures from the chassis. The 9-blade design improves airflow smoothness, increasing cooling performance while keeping noise levels low.
Dispensing Process
The CPU fan uses a three-dimensional dynamic balancing correction process of the point-glue type, maintaining balance and stable output at different angles. The triangular symmetrical back frame design increases effective wind area and enhances structural strength.
Quality Bearings
Equipped with high-quality S-FDB V2 bearings, the fan minimizes blade shaking and reduces noise while providing maximum cooling performance. This design also extends the lifespan of the PWM fan.
Perfect Match

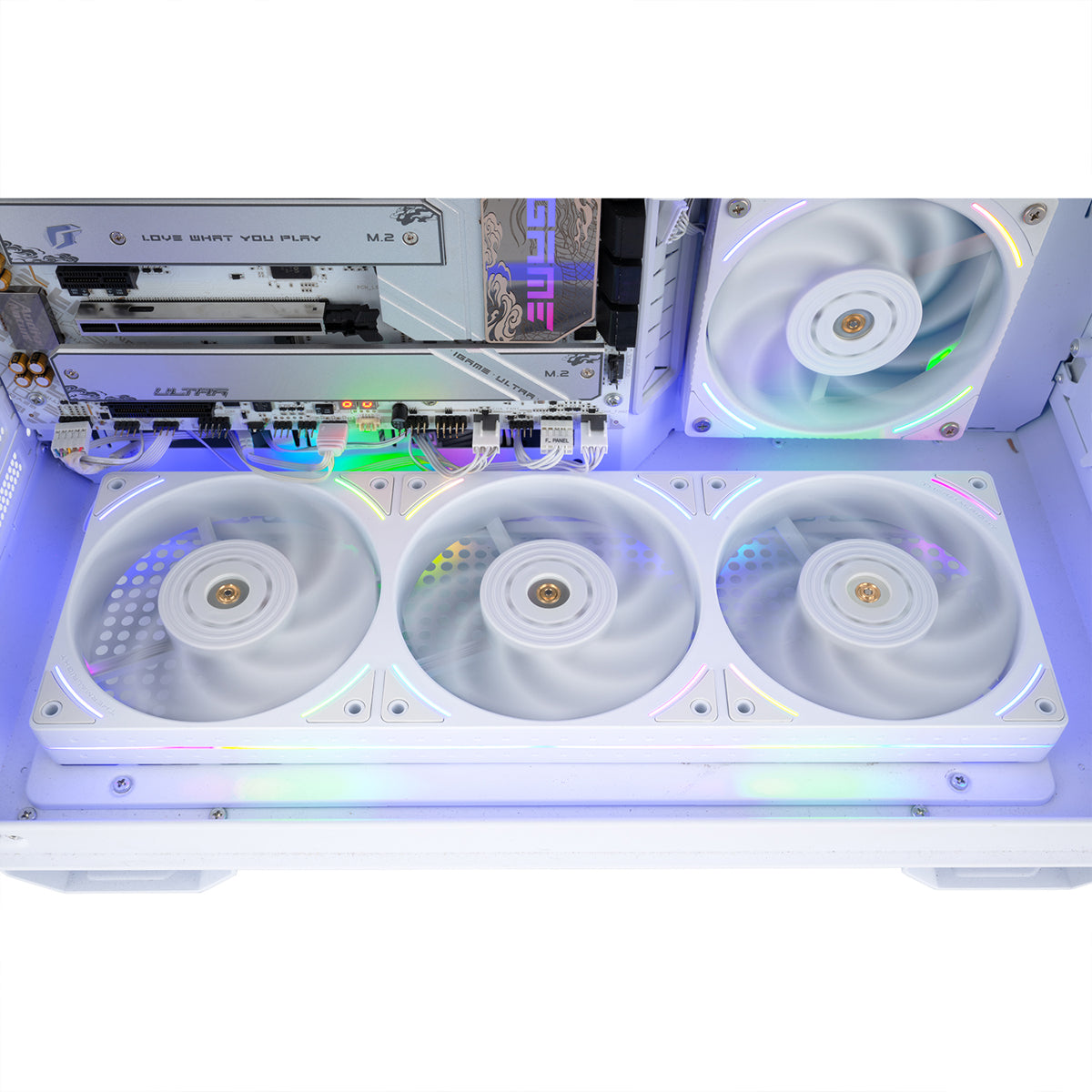

This fan can be used as a case fan or paired with a liquid cooler for enhanced cooling. It efficiently removes heat from both the chassis and CPU, making it ideal for PCs, liquid coolers, and high-performance cases.
Specifications
Specifications
| Dimension | 360 mm (L) × 120 mm (W) × 25 mm (H) |
| Rated Speed | 2150 RPM ±10% (MAX) |
| Maximum Rotational Speed | 2150 RPM |
| Noise Level | 27 dBA (MAX) 27 Decibels |
| Air Flow | 69 × 3 CFM (MAX) |
| Air Pressure | 2.87 mm H₂O (MAX) |
| Ampere | 0.6 A |
| Power Connector Type | 4-Pin |
| Voltage | 12 Volts |
| Wattage | 12 watts |
| Cooling Method | Air |
| Compatible Devices | Desktop |
| Connector | 4-pin PWM |
| ARGB Connector | 3-pin 5V |
| Material | Plastic |
| Bearing Type | S-FDB V2 Bearing |
