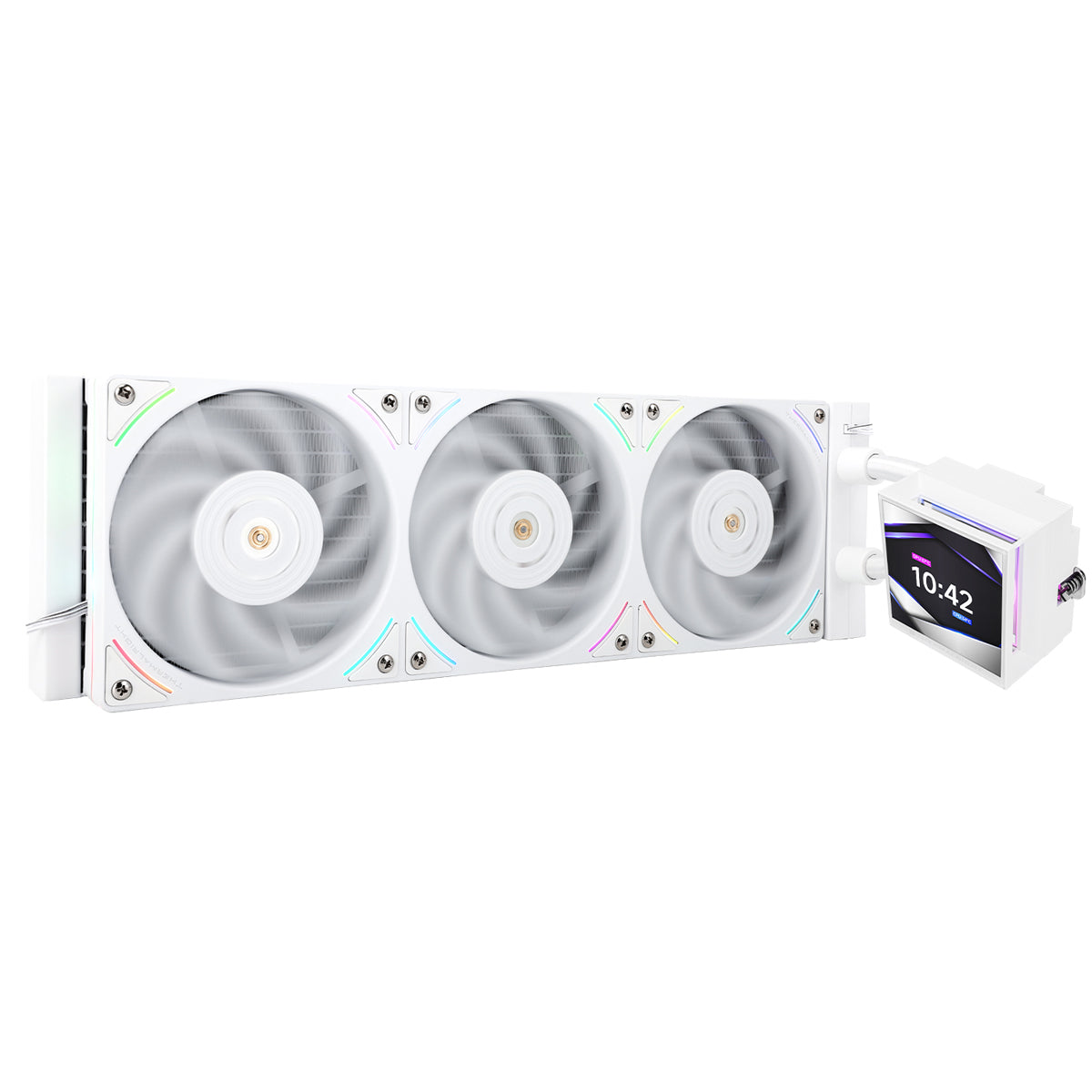

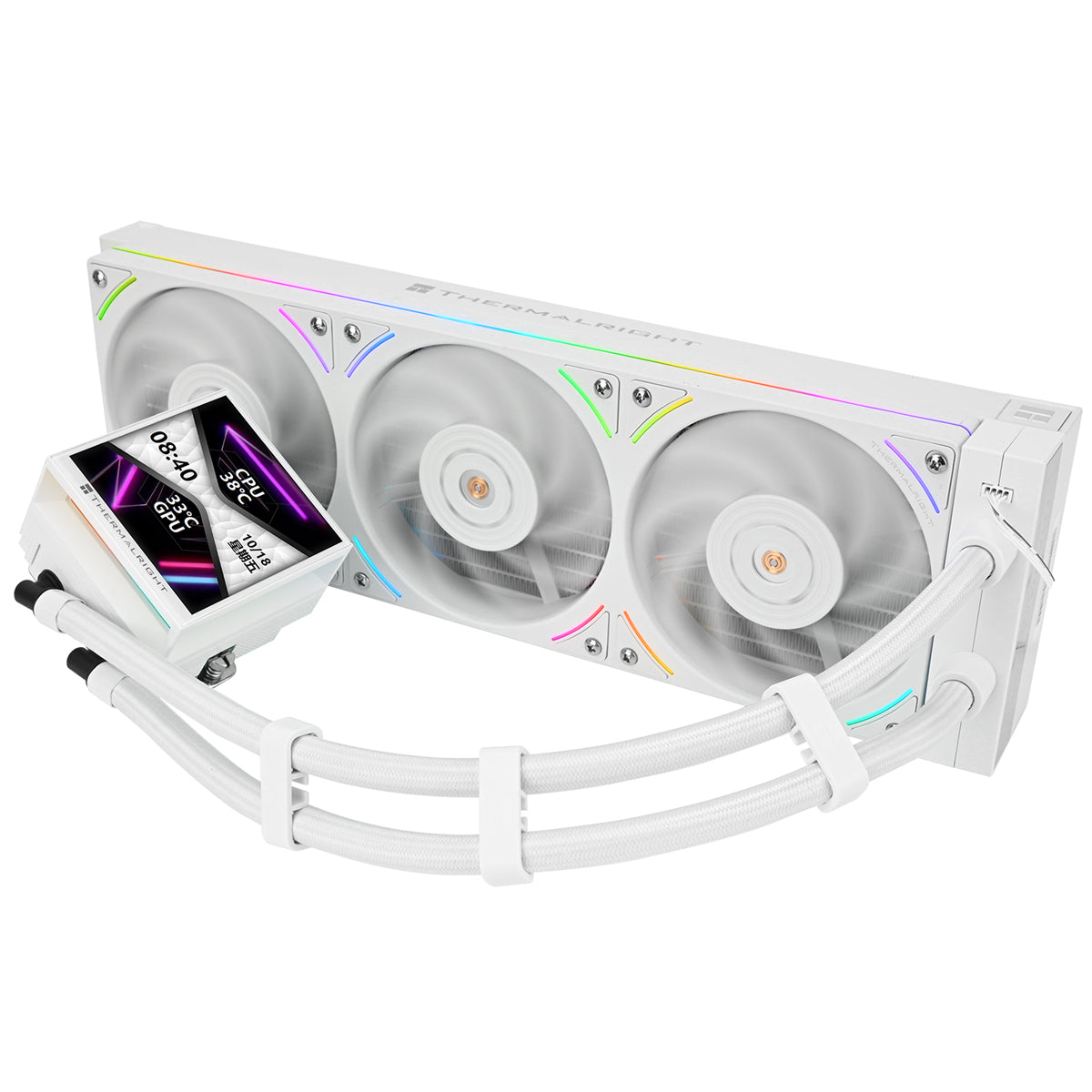

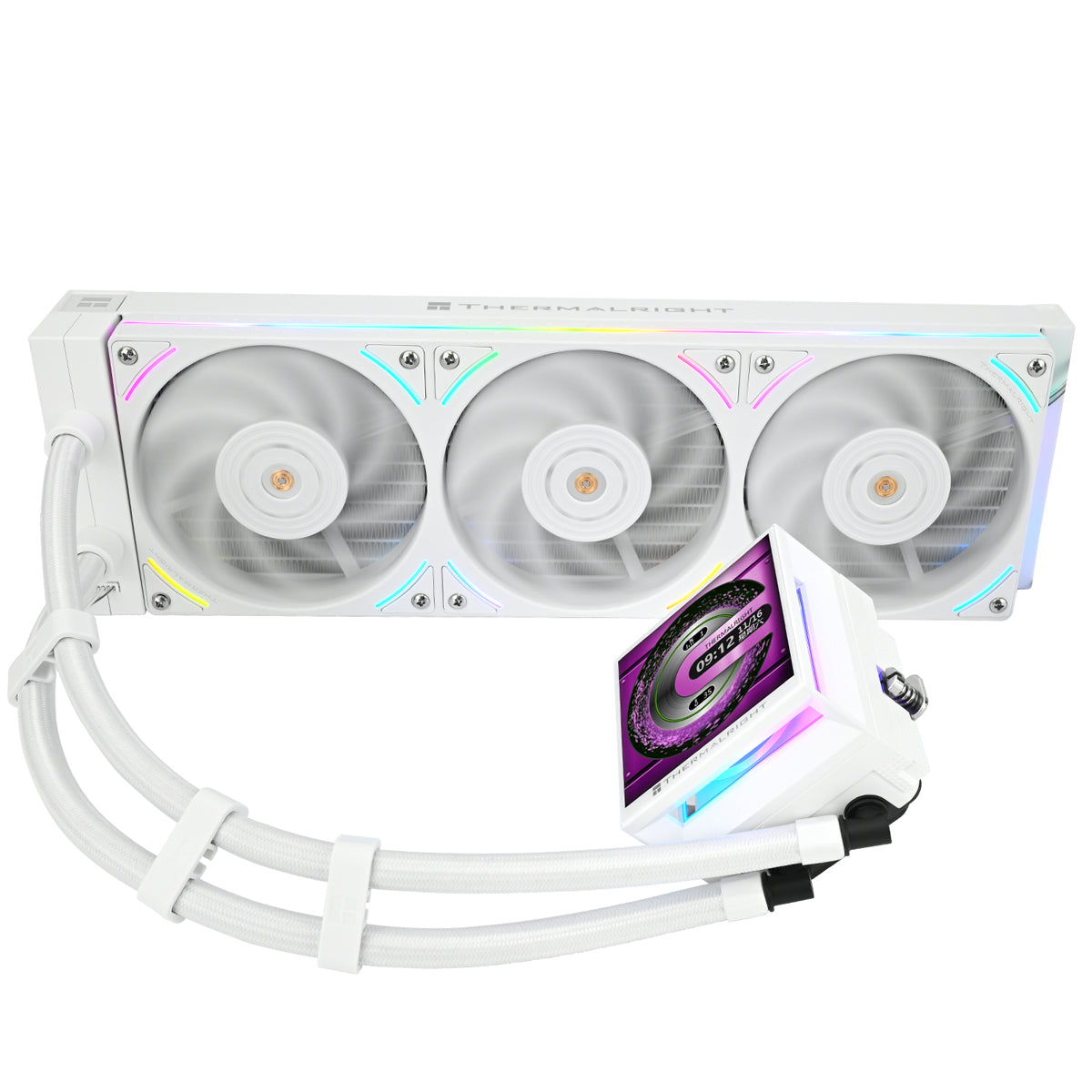

Thermalright Hyper Vision 360 UB ARGB White 360mm LCD AIO CPU Liquid Cooler
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description

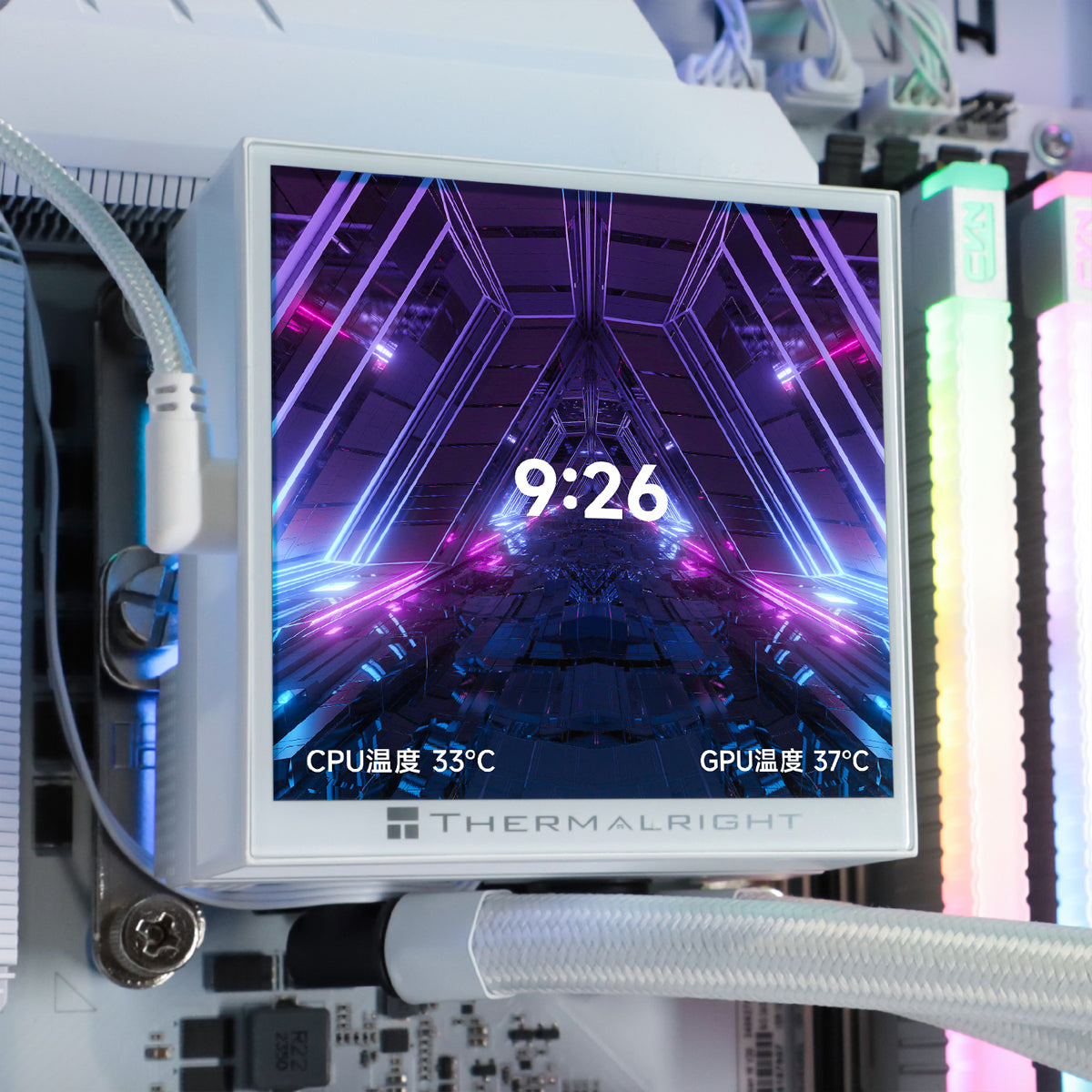

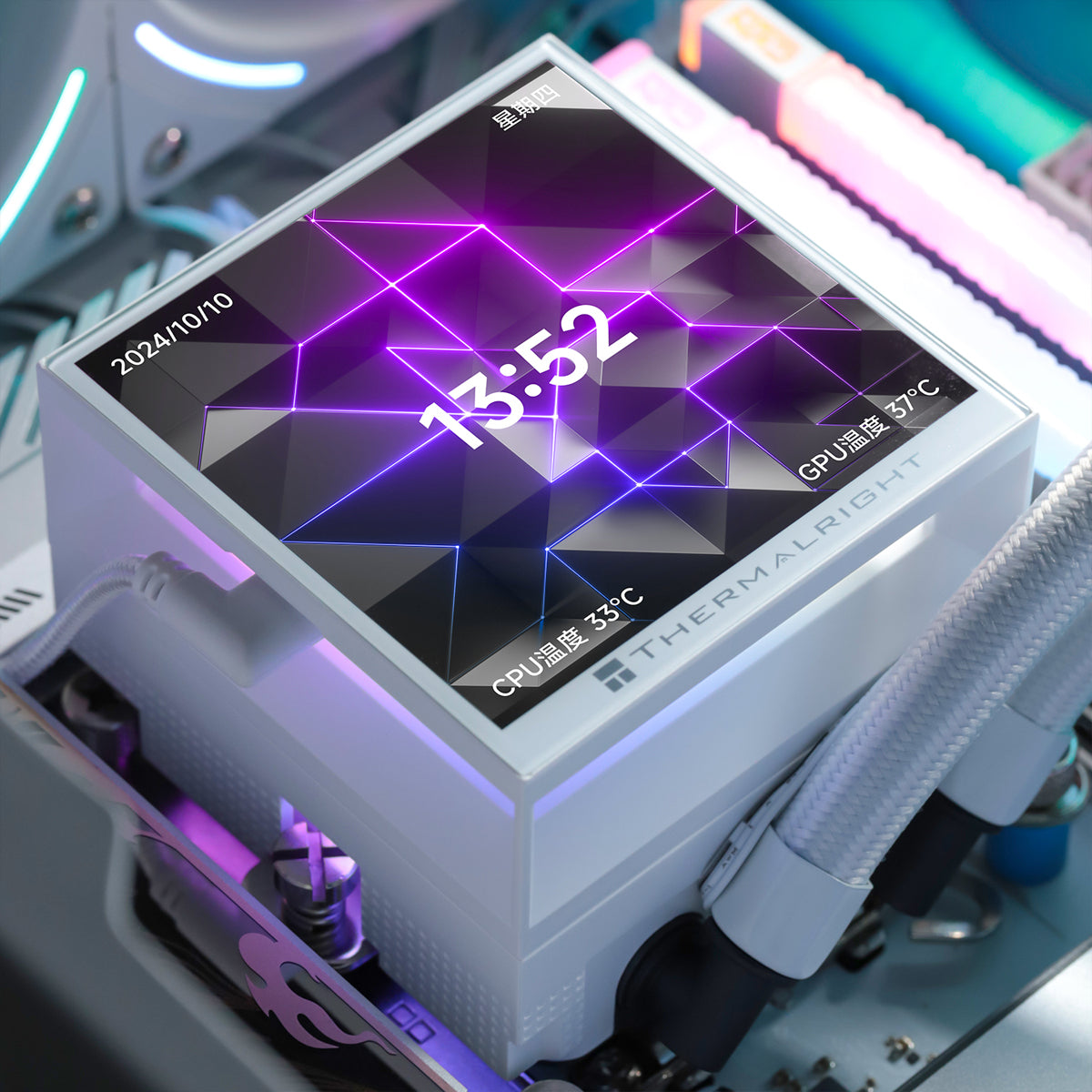

Magnetic Fixed & Customizable LCD Display
The HV360 features a 3.95"" LCD screen with sharp 480x480 pixel resolution, offering a visually stunning display inside your PC case. Users can switch between system modes to view real-time statistics or upload custom images and animated GIFs. Download the official Thermalright application from their website to unlock full customization.
New Pump Design
The redesigned pump maximizes heat transfer efficiency, featuring a robust nine-pole rotor motor and a new fluid impeller that can rotate up to 6400 RPM while maintaining quiet operation under 27 dB(A). Pre-applied thermal paste ensures optimal cooling performance.
Freely Switchable Cooling Modes
Equipped with the SS2 buckle body system and a full set of metal brackets, the HV360 allows easy switching between standard and water cooling modes. Most radiators using the SS2 system (except AK120 MINI, TS120 MINI, TA120EX MINI, TA140EX MINI) are compatible, enabling shared parts across the FW series for maximum flexibility.
Liquid Leak-Proof Technology
All Thermalright AIO coolers utilize patented anti-leak technology. The radiator includes a pressure relief device to safely discharge internal air pressure caused by high temperatures, preventing leaks and protecting your equipment.
Wide Compatibility
Installation is quick and straightforward on the latest Intel and AMD sockets: Intel: LGA115X / 1200 / 1700 / 1851 / 2011 / 2066, AMD: AM4 / AM5. Each platform comes with the corresponding mounting fasteners for simple and secure installation.
Specifications
Specifications
| Pump Dimensions | 78.65 mm (L) × 80.7 mm (W) × 68 mm (H) |
| Radiator Dimensions | 403 mm (L) × 120 mm (W) × 27 mm (H) |
| Pump Rated Speed | 6400 RPM ±10% (MAX) |
| Pump Connector | 4-pin PWM |
| ARGB Connector | 3-pin 5V |
| Radiator Material | Aluminum |
| TL-UB36W Dimensions | 360 mm (L) × 120 mm (W) × 25 mm (H) |
| Rated Speed | 2150 RPM ±10% (MAX) |
| Noise Level | 27 dBA (MAX) |
| Air Flow | 207 CFM (integrated-MAX) |
| Air Pressure | 2.87 mm H₂O (MAX) |
| Fan Connector | 4-pin PWM |
| Fan ARGB Connector | 3-pin 5V |
| Bearing Type | S-FDB V2 Bearing |
