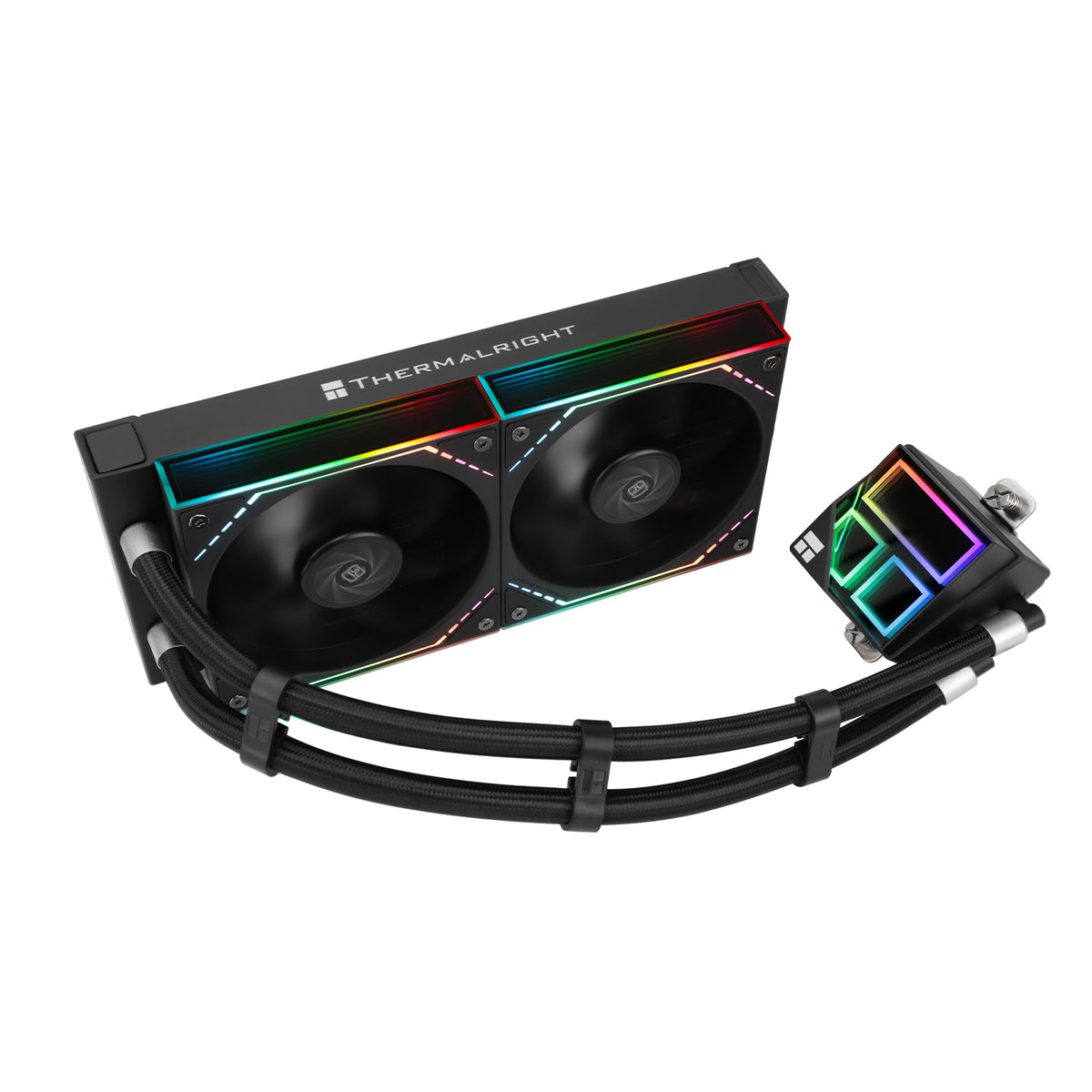

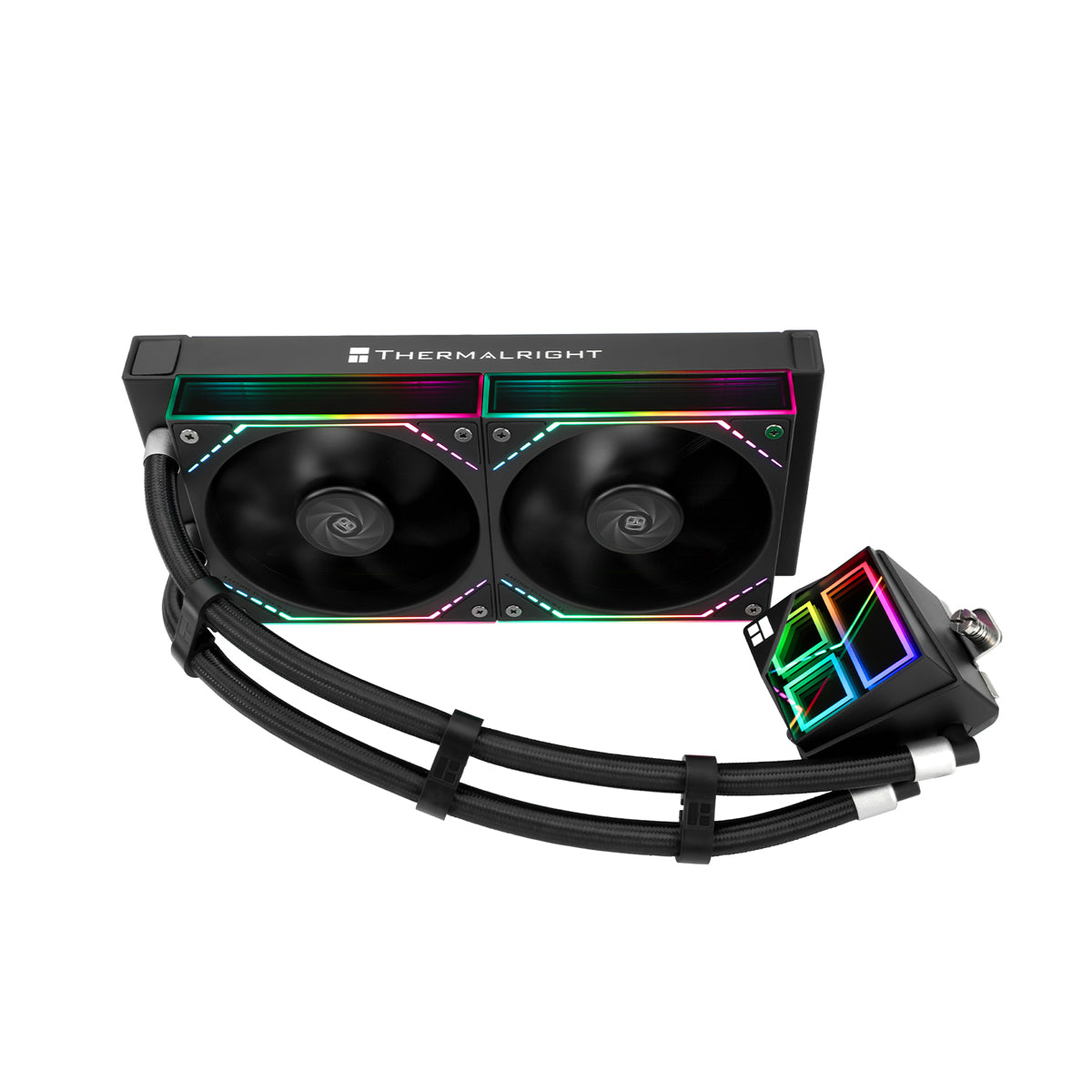

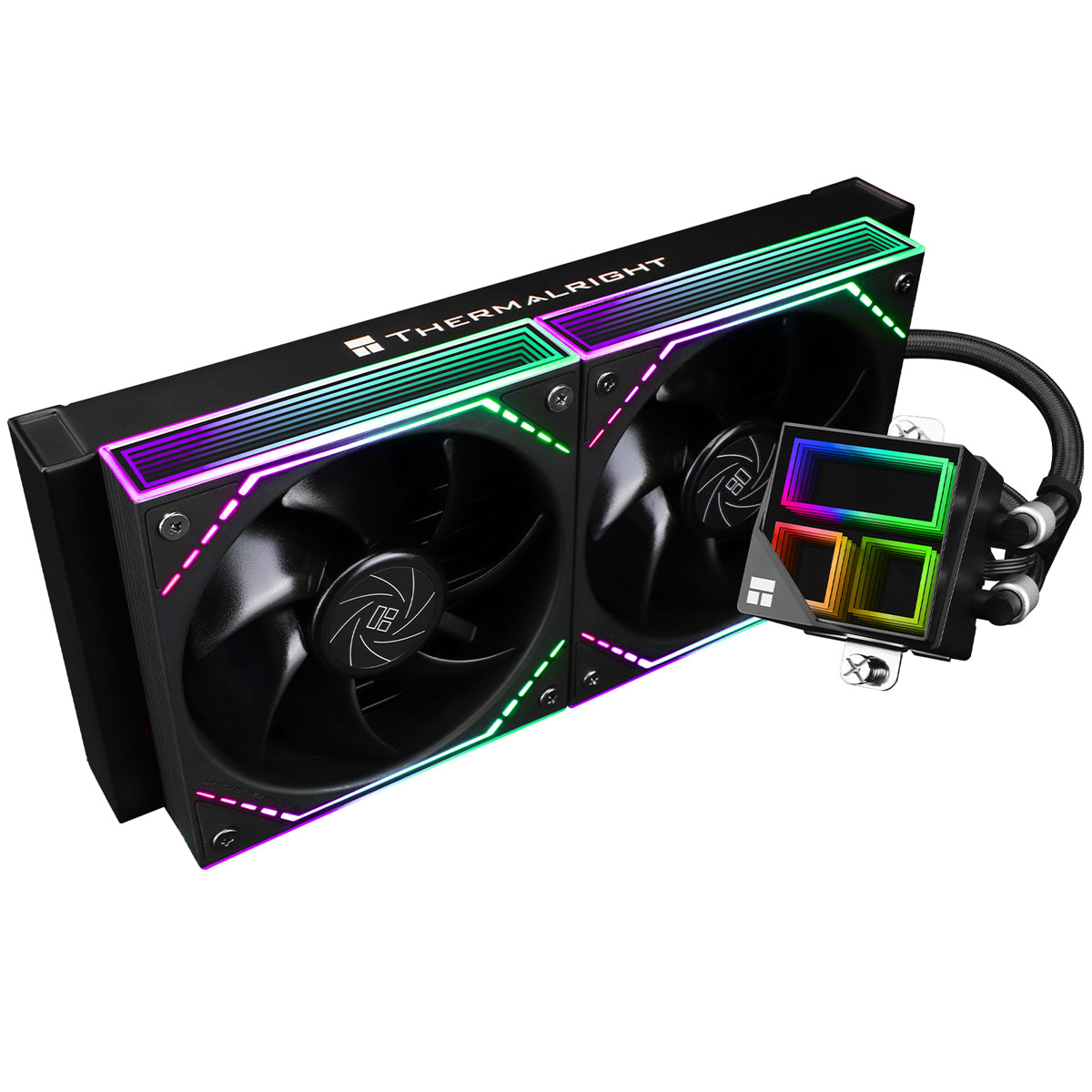

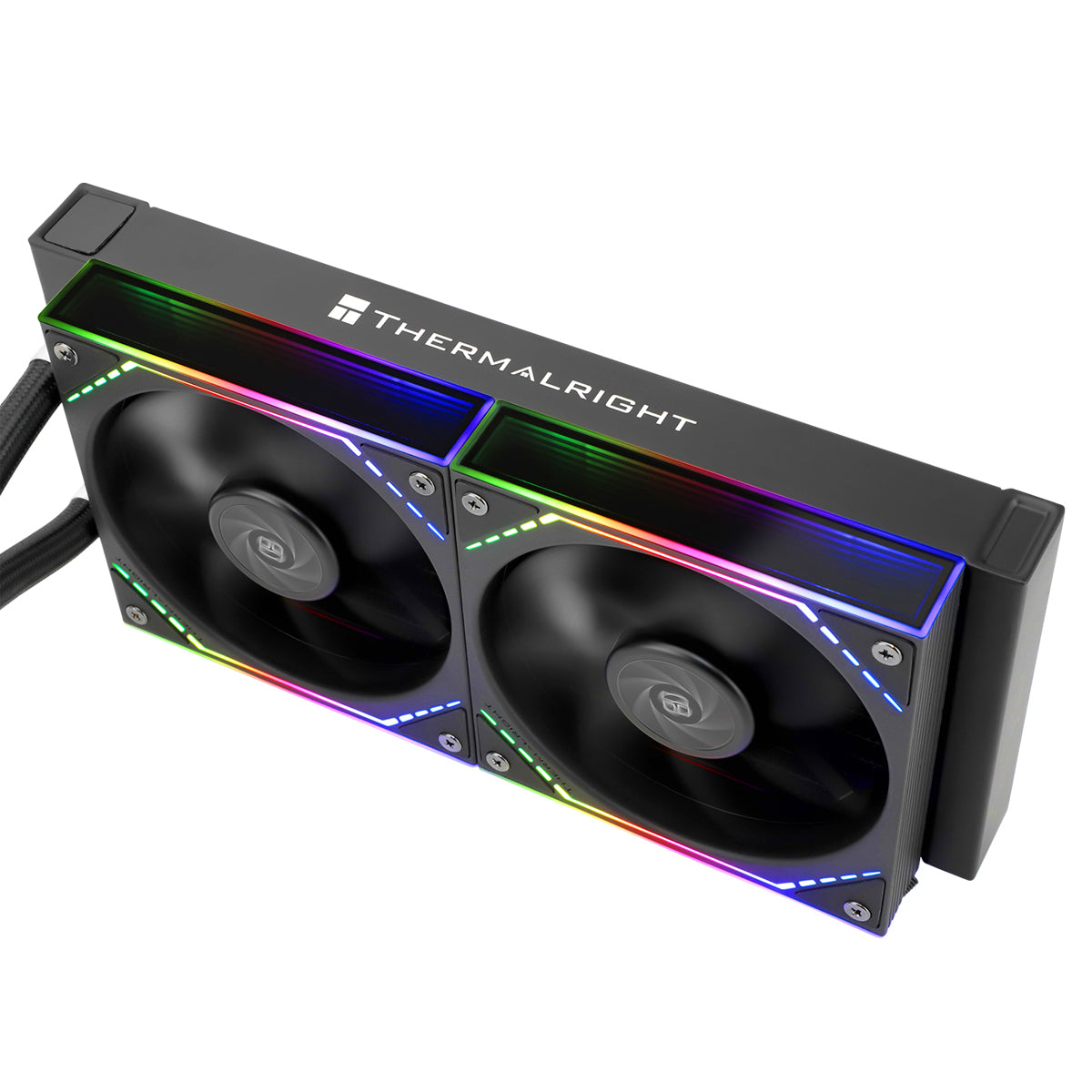

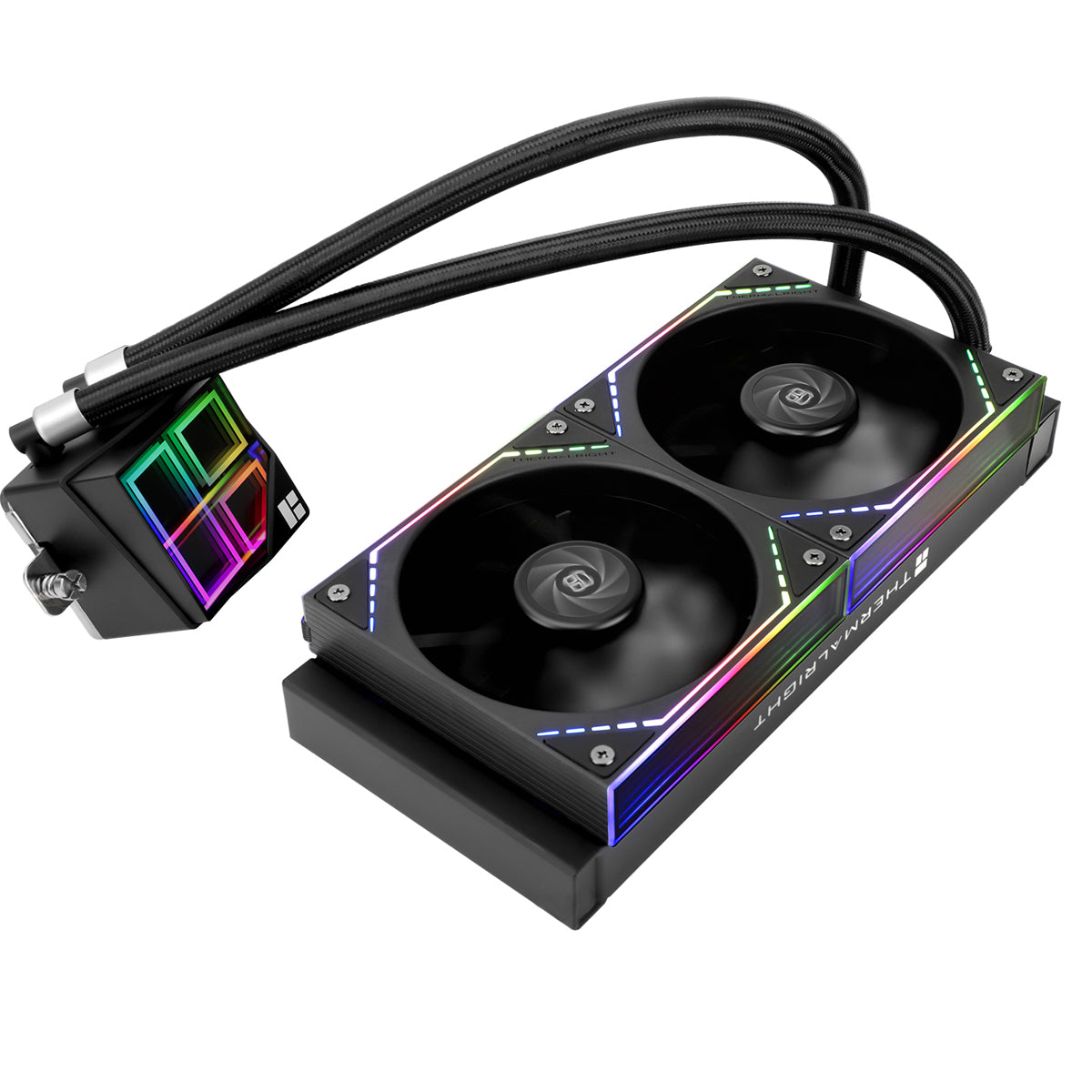

Thermalright Frozen Infinity 240 Black AIO Liquid CPU Cooler TLM12W Fans - Bulk Pack

Parameters of Water-Cooled Radiator

The water-cooled radiator measures 277 × 120 × 52 mm (including fan). The pump head size is 63 × 63 × 60 mm. Fan size is 124 × 120 × 25 mm with a speed of 2000 RPM ±10%. Operating noise is ≤28.2 dB(A), voltage is DC 12V, and airflow reaches 68.9 CFM. The high-speed water pump and fan work together to ensure efficient and stable CPU cooling.

Infinity Mirror Pump Design

The new-generation pump system features the Core V1.0 framework with a square pump design and exclusive infinity mirror logo lighting. Frosted triangular cut corners enhance the unique visual appearance. Designed for low-vibration operation, the pump uses a 4-pin PWM power interface and a 5V ARGB lighting interface, which can be connected separately to the motherboard. This design combines effective heat dissipation with vibrant visual appeal.

ARGB Divine Light Synchronisation

The ARGB lighting of the fan and pump synchronizes through the motherboard’s 5V 3-pin interface, delivering unified and dynamic lighting effects. Daisy-chain lighting support helps prevent insufficient lighting headers while maintaining efficient cooling performance.

Optimization of Details

The pre-installed radiator fan and included tube clips allow for simple installation and improved tube organization. A Y-type adapter cable helps avoid motherboard header limitations, while the SS2 mounting system ensures compatibility with a wide range of CPU models.

Wide Range of Compatibility

Supports AMD AM4 and AM5 platforms, as well as Intel LGA1150 / 1151 / 1155 / 1156 / 1200 / 2011 / 2066 / 1700 / 1851. Each platform includes the appropriate mounting hardware for straightforward installation.
