Description
Description
Better Cooling
Using aluminum alloy cooler head + 360 size black aluminum fin cooler plate + polymer compilation protection water pipe + standard configuration 120mm high speed fan to create a low resistance, high cooling and high life CPU liquid cooler.

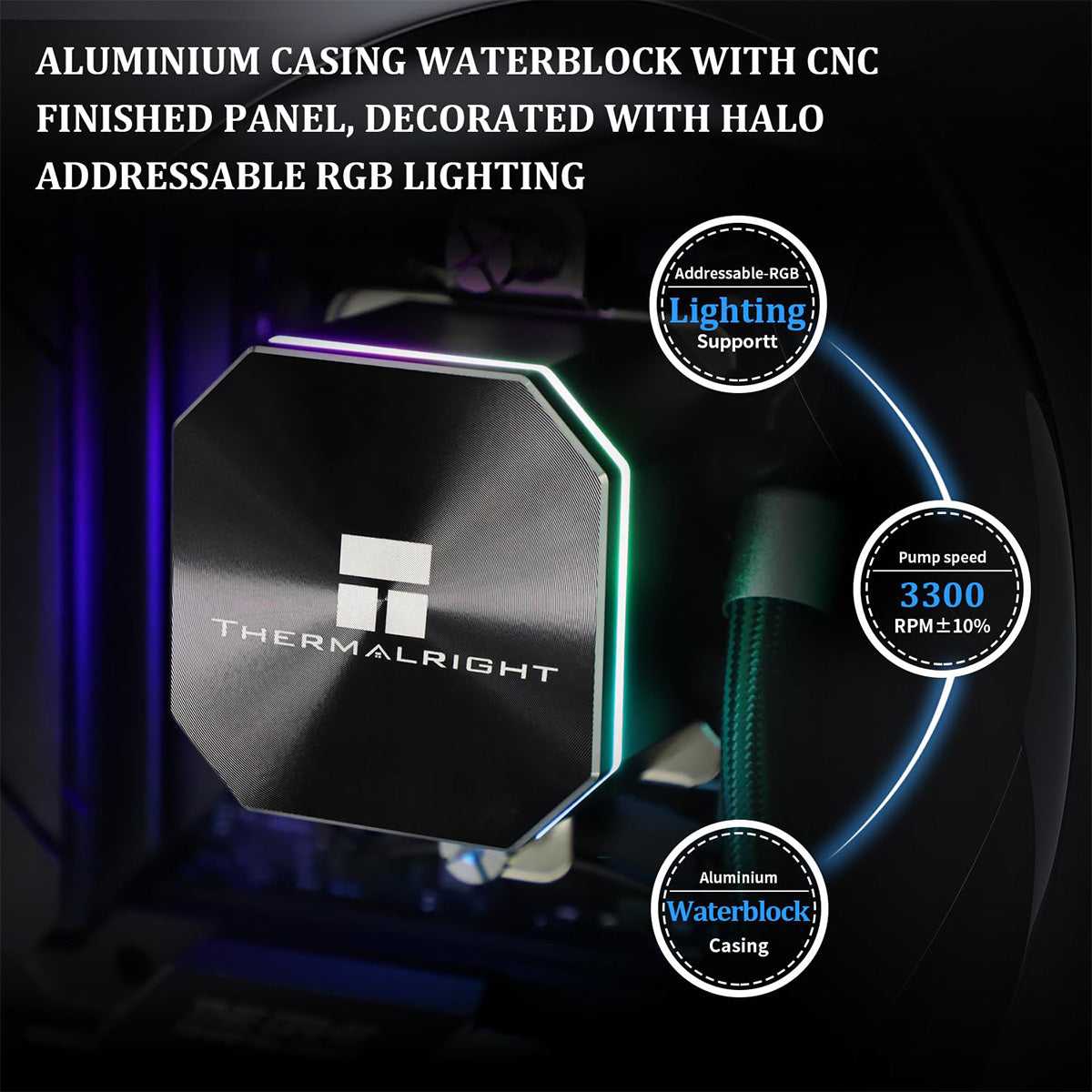

High Performance Cooler Head
The fourth generation pump body frame with all-metal cooler head has excellent thermal conductivity technology with low thermal resistance, ARGB halo around the pump body, water cooler head life up to 40,000 hours, speed up to 3300RPM ±10%, not only can operate with low vibration, but also ensure long and excellent CPU cooling.
Detail Optimization
Liquid CPU Cooler is made of insulation grade PBT+PC, soft silicone corner pads around the fan can reduce vibration and achieve the effect of noise reduction, the configured boxed junction can be directly plugged into the fan connector for use.

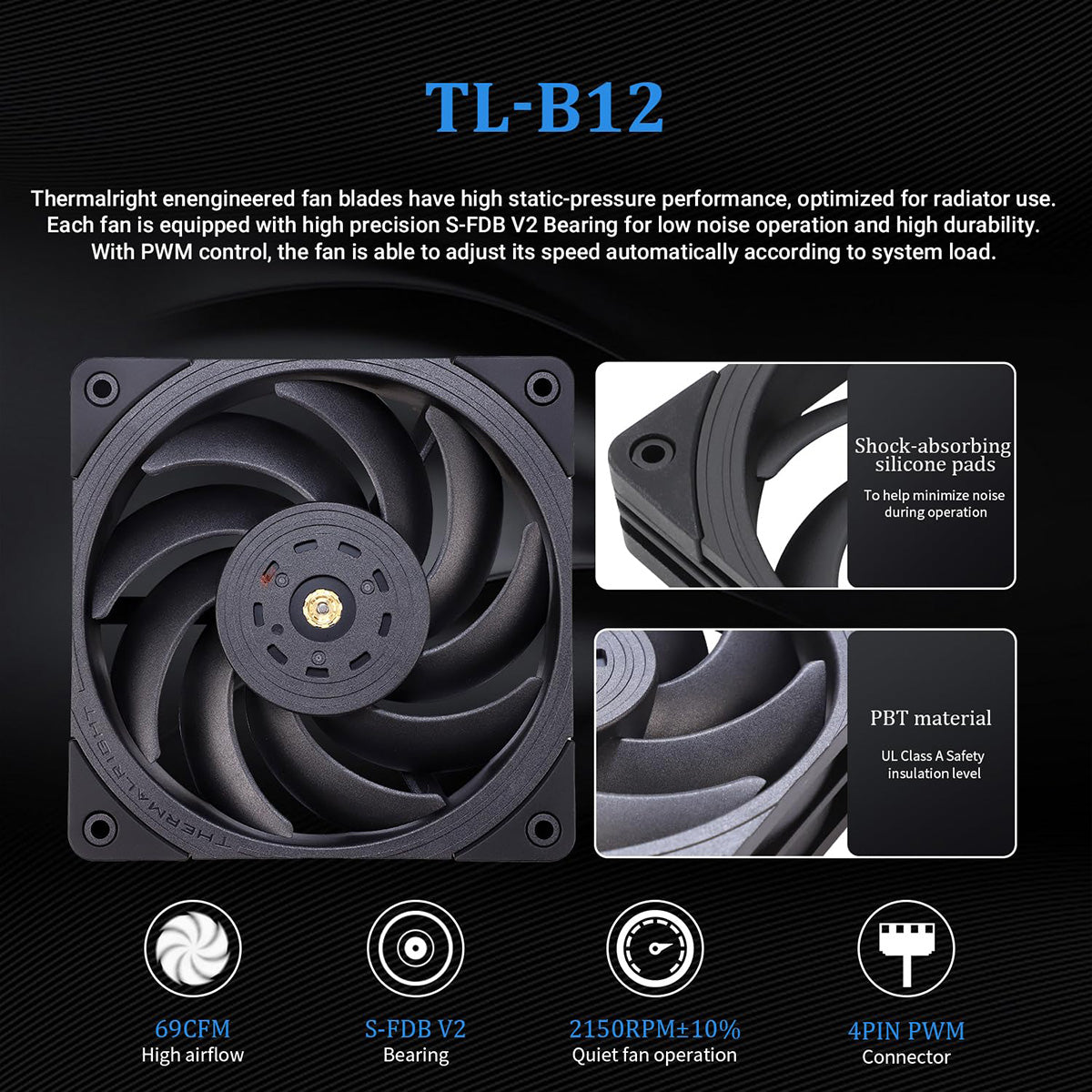

3 PWM Fan
With TL-B12 balanced fan x 3, speed up to 2150RPM±10%, size 120*120*25mm, noise≤28.1DBA, interface: 4pin PWM, air pressure: 2.87mmH2O(MAX), air volume: 69CFM(MAX), fan with PWM function and balance correction function, PWM can automatically adjust the speed according to the CPU temperature, providing powerful airflow and lower noise (Note: the red clay dot on the fan is balancing clay, do not snap off).
Specifications
Specifications
Pump Dimensions | W62 mm x D62 mm x H53 mm |
Pump Rated Speed | 3300 RPM±10% (MAX) |
Pump Noise Level | 23 dBA (MAX) |
Pump Power Consumption | 4.8W (MAX) |
Pump Rated Voltage | 12V DC |
Ampere | 0.4±10% A |
Connector | 4 PIN PWM |
ARGB Connector | 3 PIN 5V |
Radiator | Aluminum |
Pump MTTF | 40000 Hours |
TL-B12 SPECIFICATION
Dimension | L120 mm x W120 mm x H25.6 mm |
Rated Speed | 2150 RPM±10% (MAX) |
Noise Level | 28.1 dBA (MAX) |
Air Flow | 69 CFM (MAX) |
Air Pressure | 2.87 mm H2O (MAX) |
Ampere | 0.16 A |
Connector | 4 PIN PWM |
Bearing Type | S-FDB V2 Bearing |
