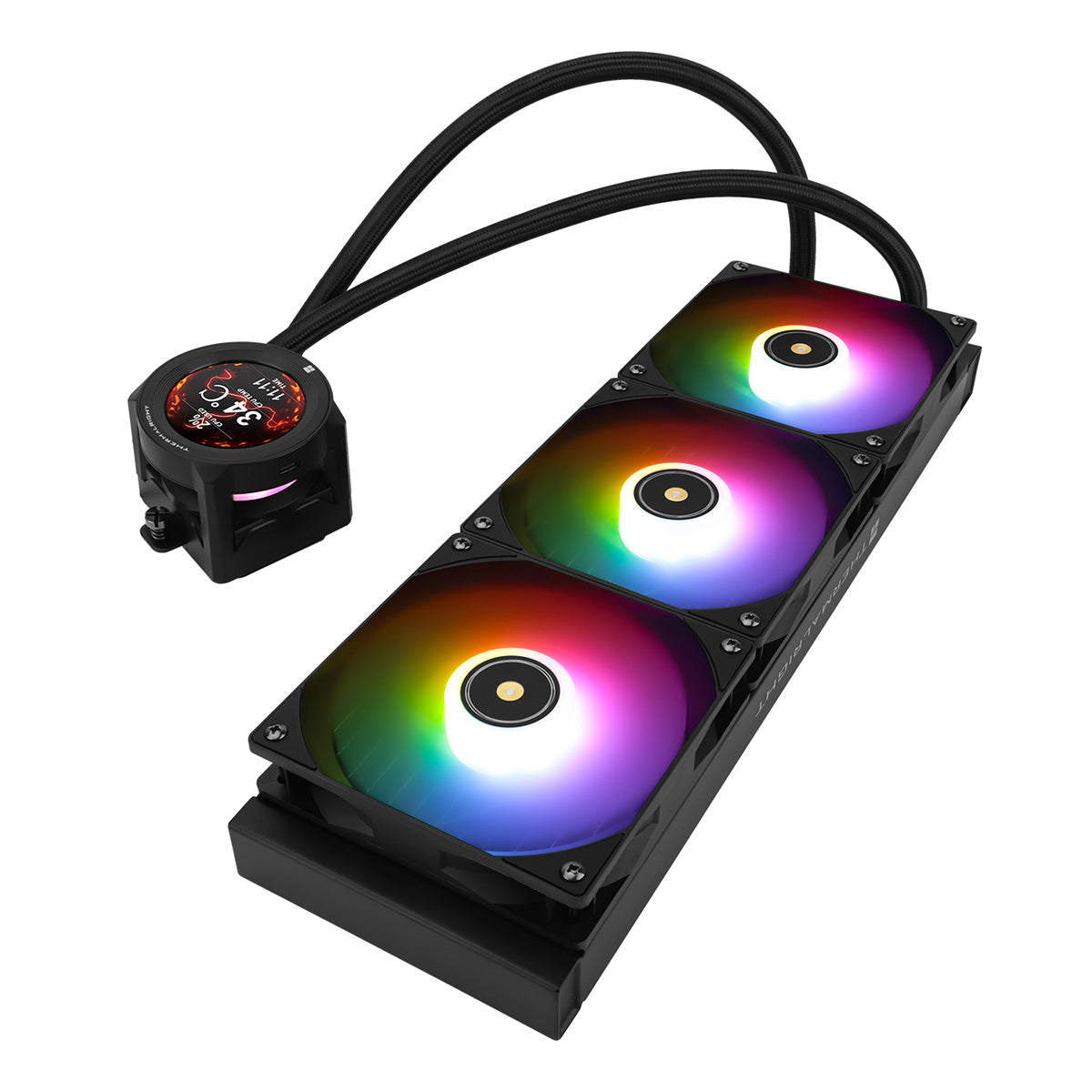

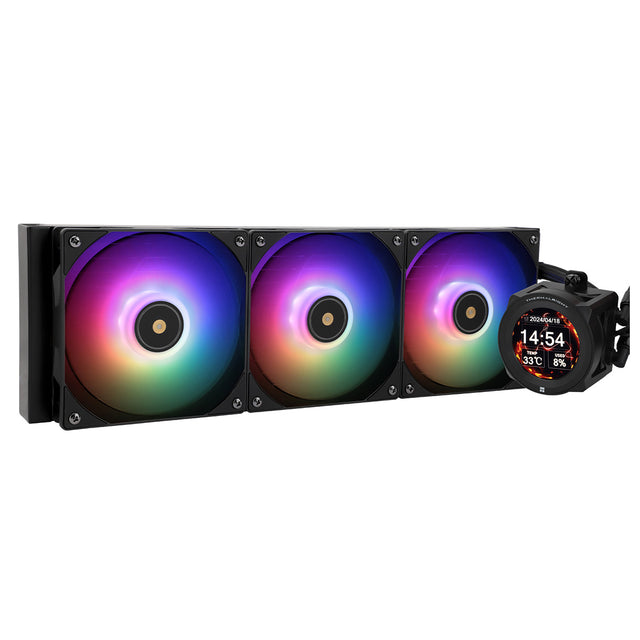

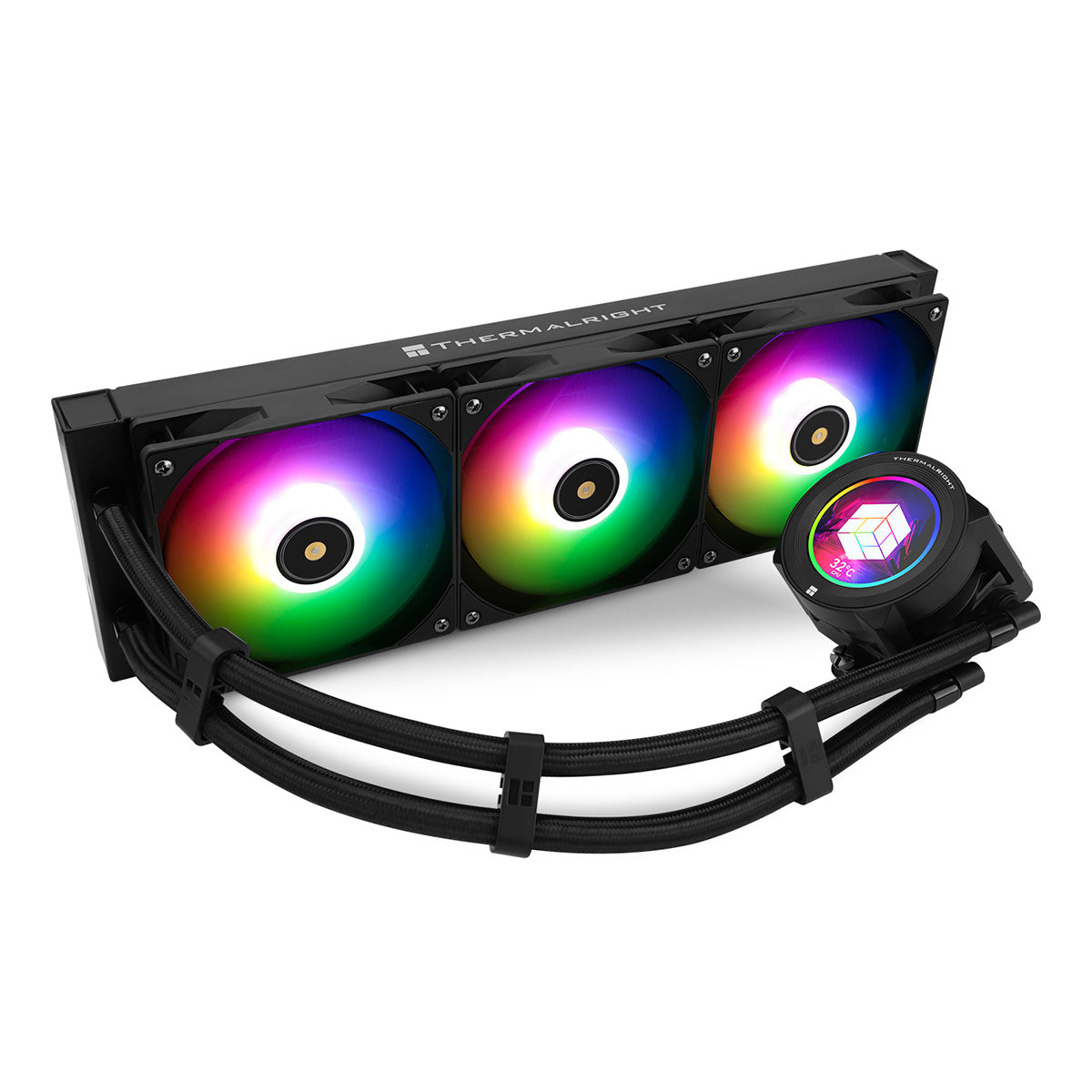

Thermalright Core Vision 360 Black ARGB 360mm LCD AIO Liquid CPU Coler

Thermalright  |  SKU 67838  |  MPN Core Vision 360 Black ARGB
$199.00

Warranty and Support

Warranty: 5 Years Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

Excellent cooling combination:
CPU water cooling with detachable LCD display + 360 specification, full black, nano-painted cold drain + polymer compiles protective water pipe + standard configuration 120mm PWM air pressure fan, dedicated to creating an all-in-one water cooler, with high cooling, high service life, high degree of refinement and low evaporation.

Magnetic suction, detachable LCD display:
The water pump of the water-cooled cooler is a brand new generation of the water pump system, which not only improves the heat absorption efficiency, but also reduces the noise. The water pump is a new IPS LCD screen, can itself support various static and dynamic image switching, support system Cast Screen Display (subject to the software)

ARGB Divine Light Synchronization:
The ARGB of the fan is synchronized with the 5V 3-pin on the motherboard to achieve light synchronization, achieve brilliant ARGB light effects, provide rich lighting effects in efficient cooling, and support lighting effects in series to avoid insufficient light slots.

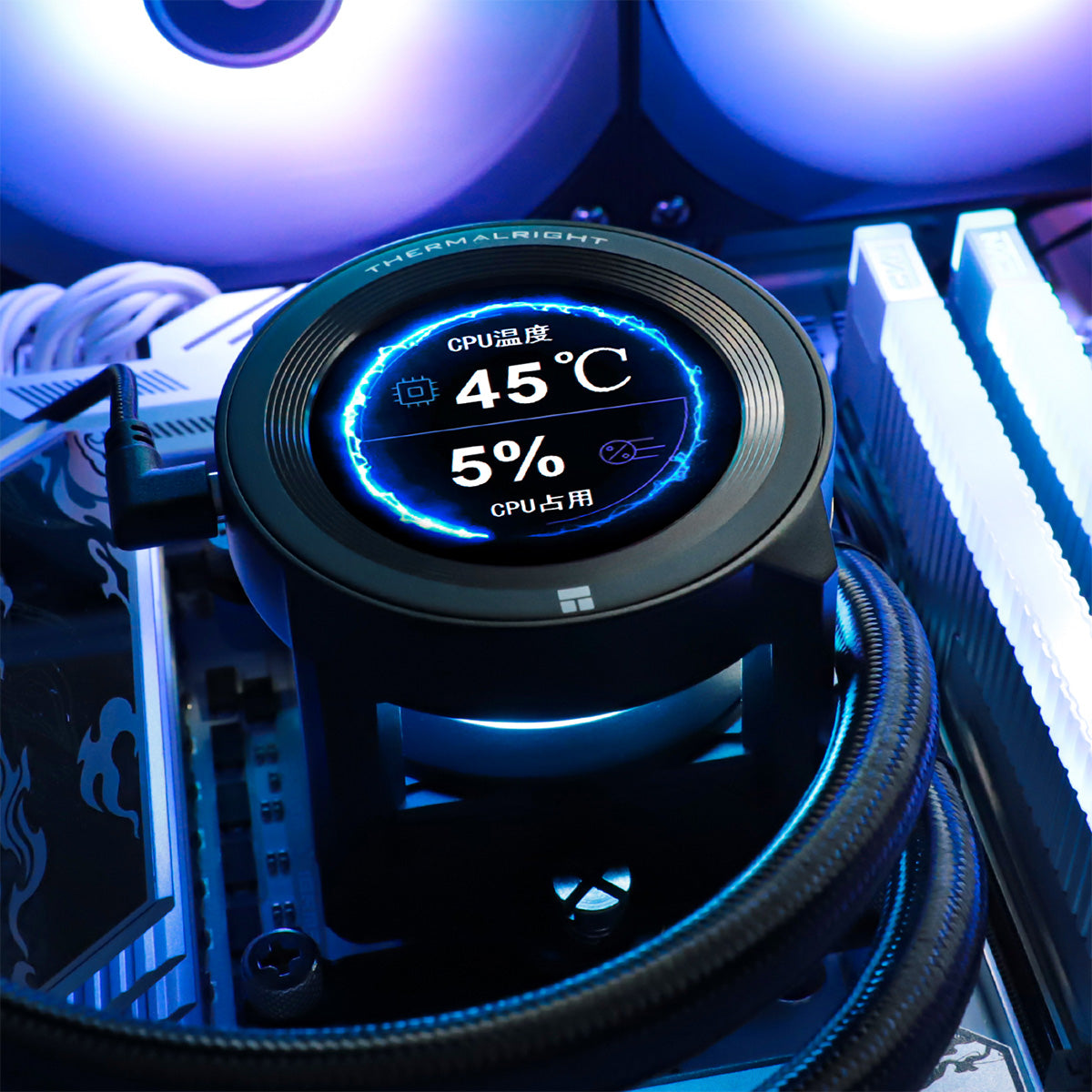

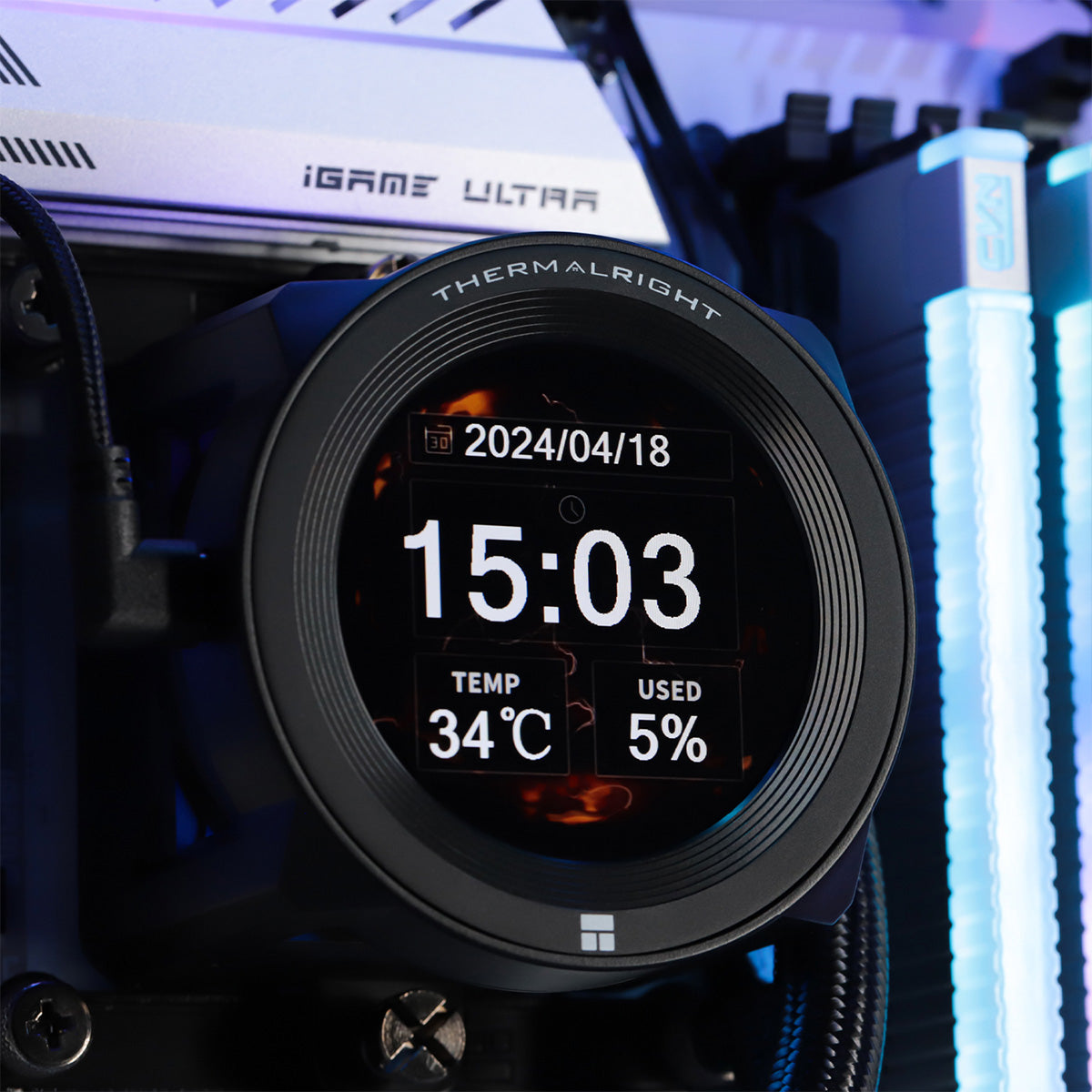

2.1 inch display:
The heat dissipation LCD supports the personalized display of moving images, 450 NITS peak brightness, 24 bit True Color, ARGB ring light on the side of the cold light head, free monitoring of the display of different system parameters, background format and custom text can be displayed, excellent display game.

LCD Display Software Description
The power supply and data transfer of the LCD is done via the 9PIN USB port of the motherboard. Before installing the software, check that the wiring is complete. The software can be downloaded from the Thermalright website. For more information, please contact our customer service.

Wide compatibility:
The water cooling radiator supports Intel 14. Generation + AMD RYZEN 7000, Supported slots: AMD: AM4/AM5, Intel: LGA1150/1151/1155/1156/1200/2011/2066/1700/1851, comes with multi-platform mounting holes that can be installed well on the correct CPU platform. CPU platform, it is recommended to follow the installation video or instructions for installation. If you have any questions, please contact our customer service.

Specifications

Pump Dimensions W76 mm x D76 mm x H66 mm
Radiator Dimensions L397 mm x W120 mm x H27 mm
Pump Rated Voltage 12V DC
Connector 4 PIN PWM
Radiator Aluminum

TL-E12B-S V2 SPECIFICATION:

Dimension L120 mm x W120 mm x H25 mm
Rated Speed 2000 RPM±10% (MAX)
Noise Level 27.7 dBA (MAX)
Air Flow 72.37 CFM (MAX)
Air Pressure 2.87 mm H2O (MAX)
Connector 4 PIN PWM
ARGB Connector 3 PIN 5V
Bearing Type S-FDB Bearing
