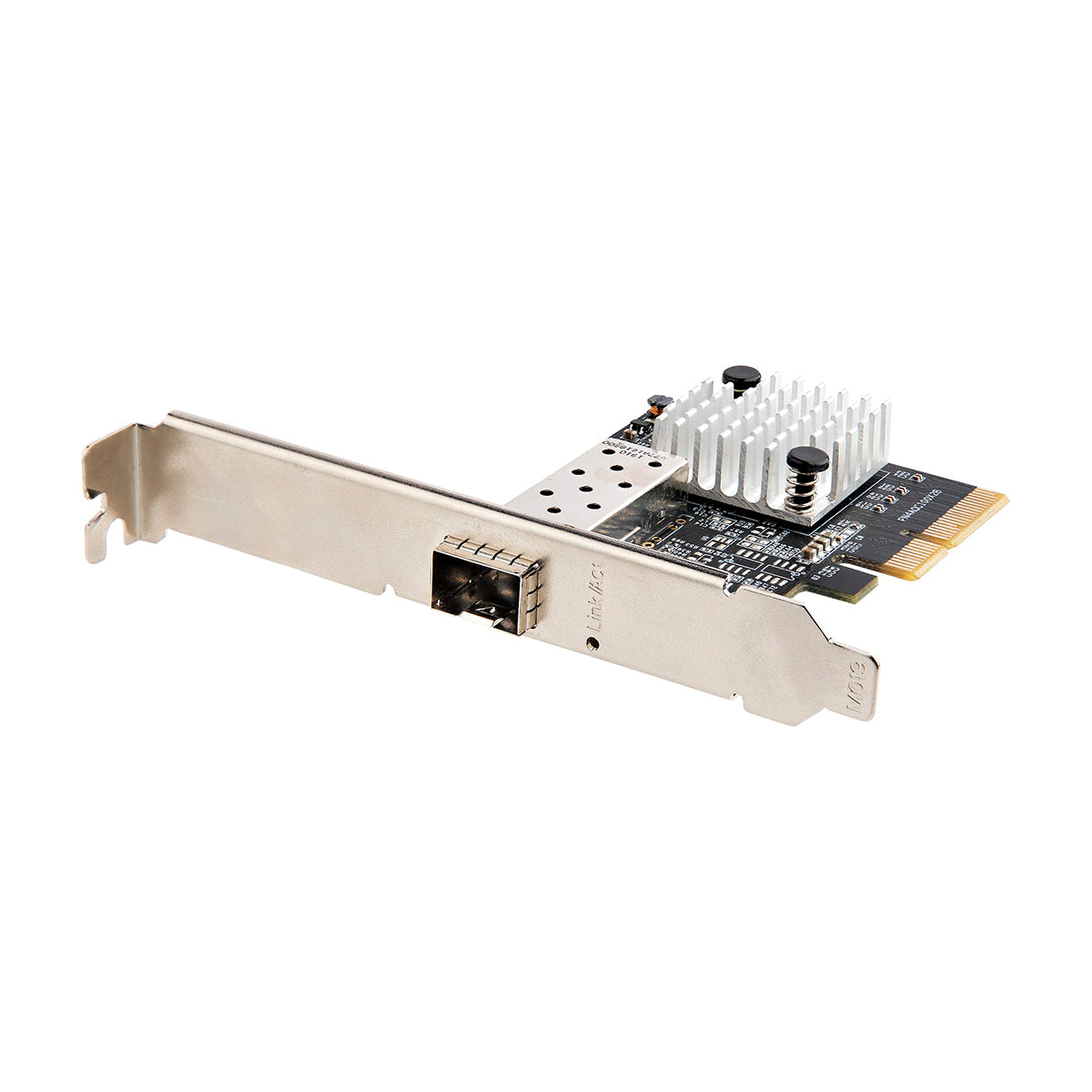

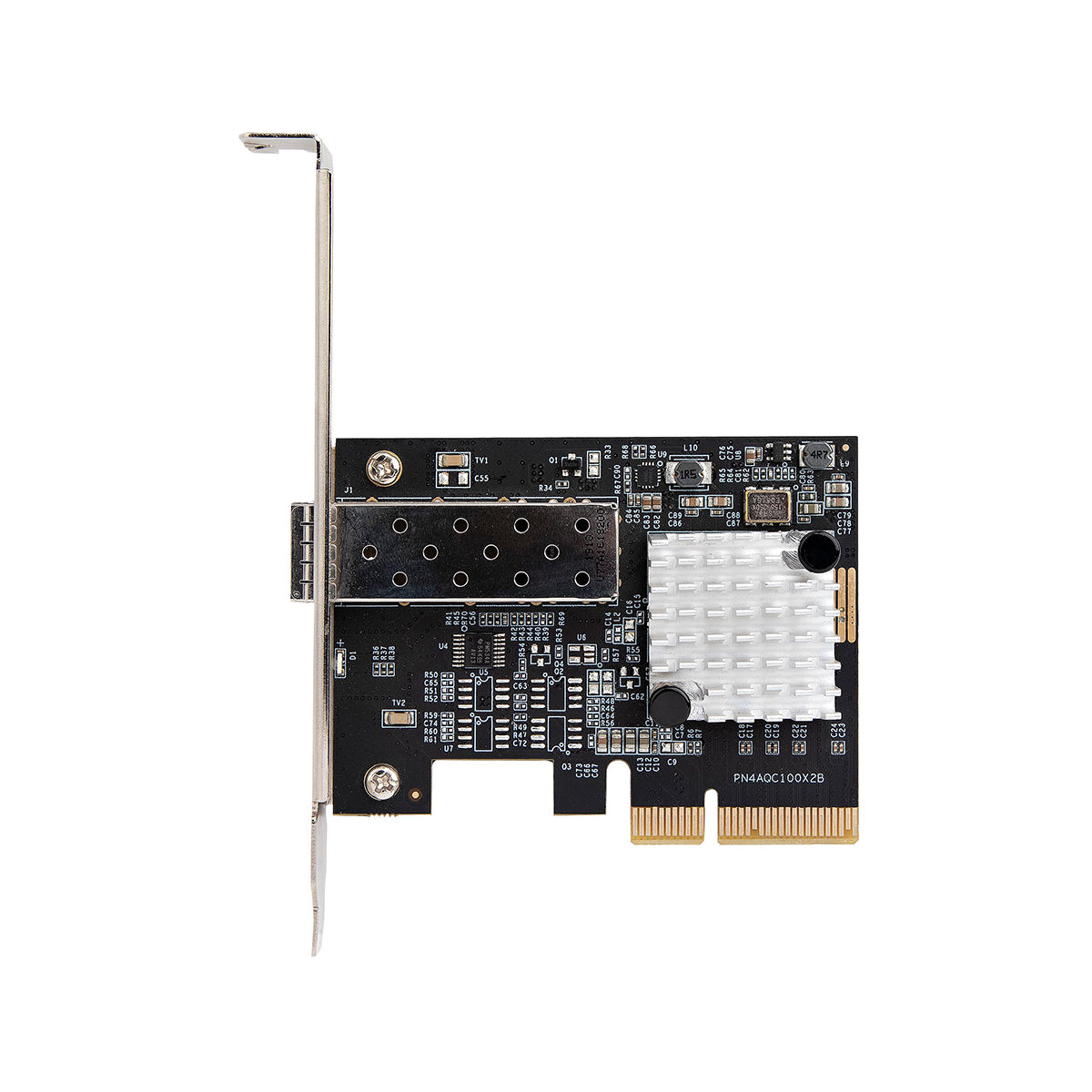

StarTech PEX10GSFP 10GbE SFP+ Network Card
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Increase Your Network Speed

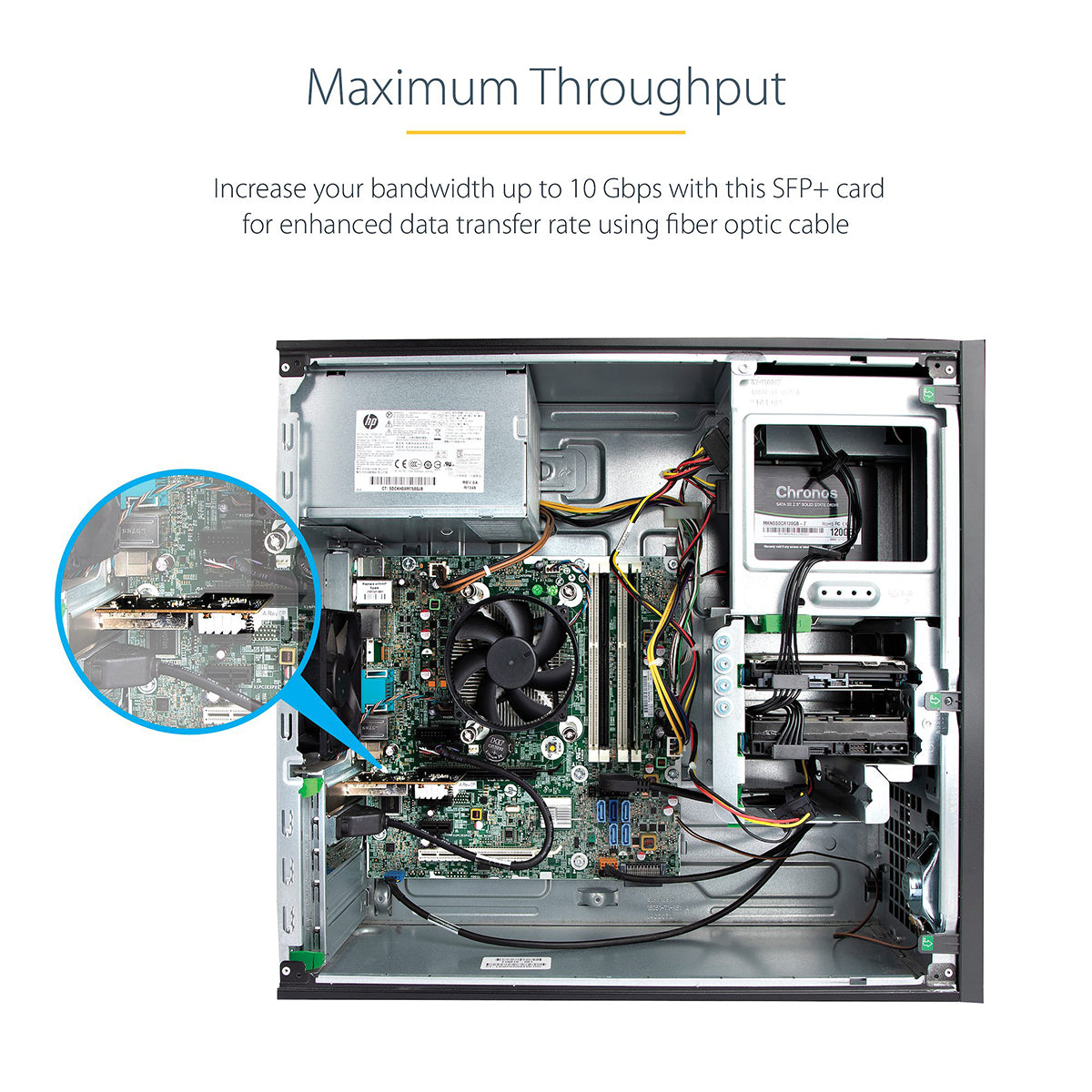

This PCIe network card lets you take advantage of improved bandwidth in data-intensive applications such as multimedia streaming and large file transfers. This fiber NIC offers data transfer rates of up to 10Gbps, which improve speeds and reduce load times.
Scalable Network Connection
Featuring an open SFP+ slot, you have the flexibility to make changes as needed just by swapping the module in use, whether it is fiber, copper, or direct attach cables (DAC). The card complies with MSA, allowing use with modules from StarTech.com or 3rd parties that support MSA.
Enhance Your Existing Hardware

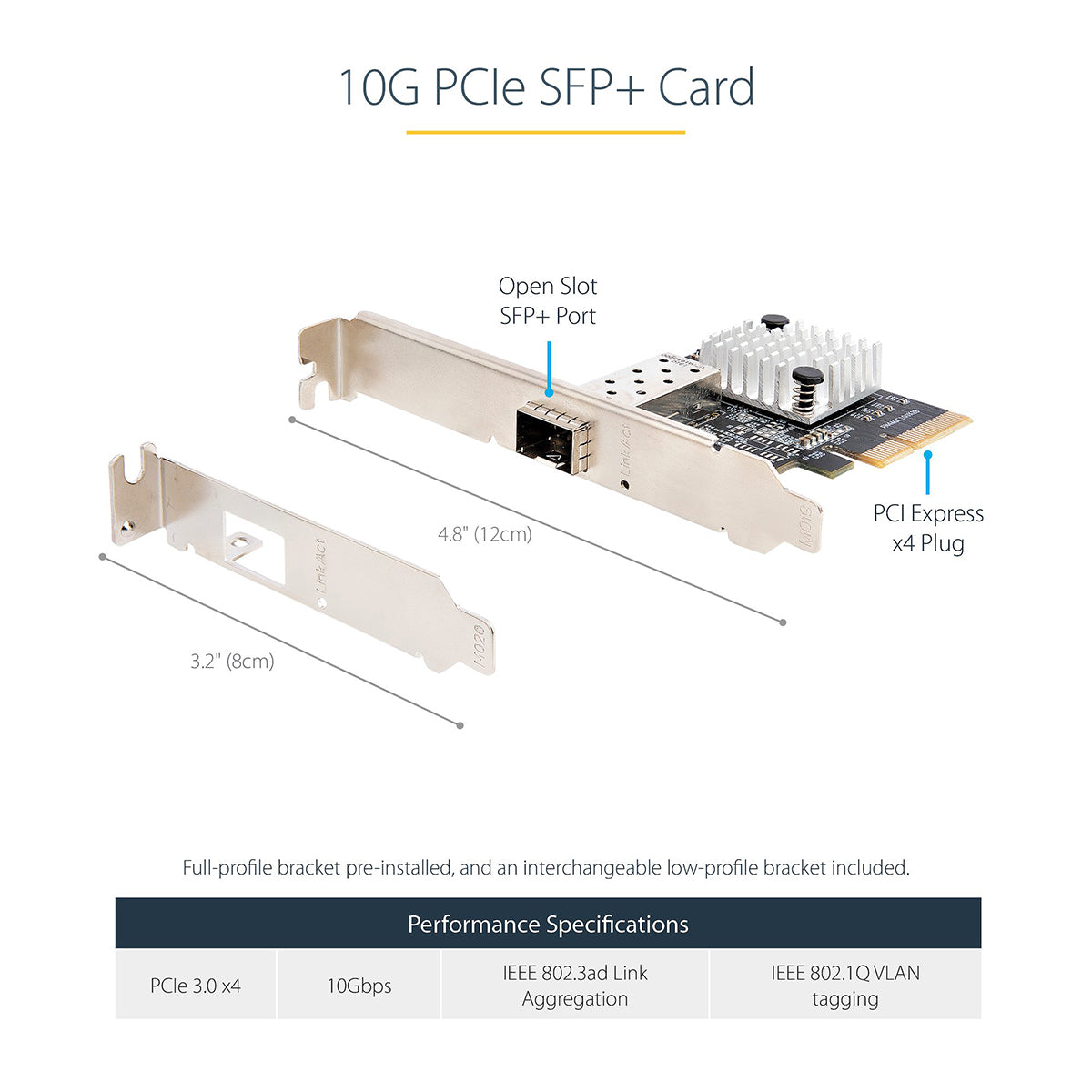

The 10Gb network card easily connects via an available x4 PCI Express 3.0 expansion slot. The card is shipped with a standard-profile bracket and includes a low-profile bracket for installation in various types of computer chassis. It supports a wide variety of OSes including Windows and Linux.
Specifications
Specifications
| Connector(s) | 1 - PCI Express x4 |
| Connector Type(s) | 1 - SFP+ |
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 20% ~ 80% RH |
| Compatible Brand | MSA Compliant |
| Ports | 1 |
| Interface | Fiber (10 Gigabit Ethernet) |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Industry Standards | IEEE 802.3ae (10GBASE-LR/SR), IEEE 802.3aq (10GBASE-LRM), PCI Express Rev 3.0 |
| Chipset ID | Aquantia - AQC100S |
| Package Height | 1.4 in [3.5 cm] |
| Package Length | 5.7 in [14.5 cm] |
| Shipping (Package) Weight | 4.9 oz [140.0 g] |
| Package Width | 8.3 in [21.0 cm] |
| Package Quantity | 1 |
| Maximum Data Transfer Rate | 20000 Mbps (20 Gbps) - Full-Duplex |
| Type | Single Mode, Multi Mode |
| Compatible Networks | 10 Gbps |
| Jumbo Frame Support | 9K max. |
| Supported Protocols | IEEE 802.3ad (Link Aggregation), IEEE 802.3x (Flow Control Support), IEEE 802.1Q (VLAN tagging) |
| Product Height | 4.8 in [12.1 cm] |
| Product Length | 3.7 in [9.4 cm] |
| Weight of Product | 1.9 oz [55.0 g] |
| Product Width | 0.7 in [1.8 cm] |
| Material | Steel |
| OS Compatibility | Windows 7, 8, 8.1, 10, 11; Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022; Linux Kernel 3.10 and up - LTS Versions only; VMWare ESXi 7.0 and up |
| System and Cable Requirements | Not compatible with 10/100/1000 Mbps SFP transceivers. 10 Gigabit SFP+ transceiver or DAC required |
| Included in Package | 1 - Network Card, 1 - Low Profile Bracket, 1 - Quick-Start Guide |
