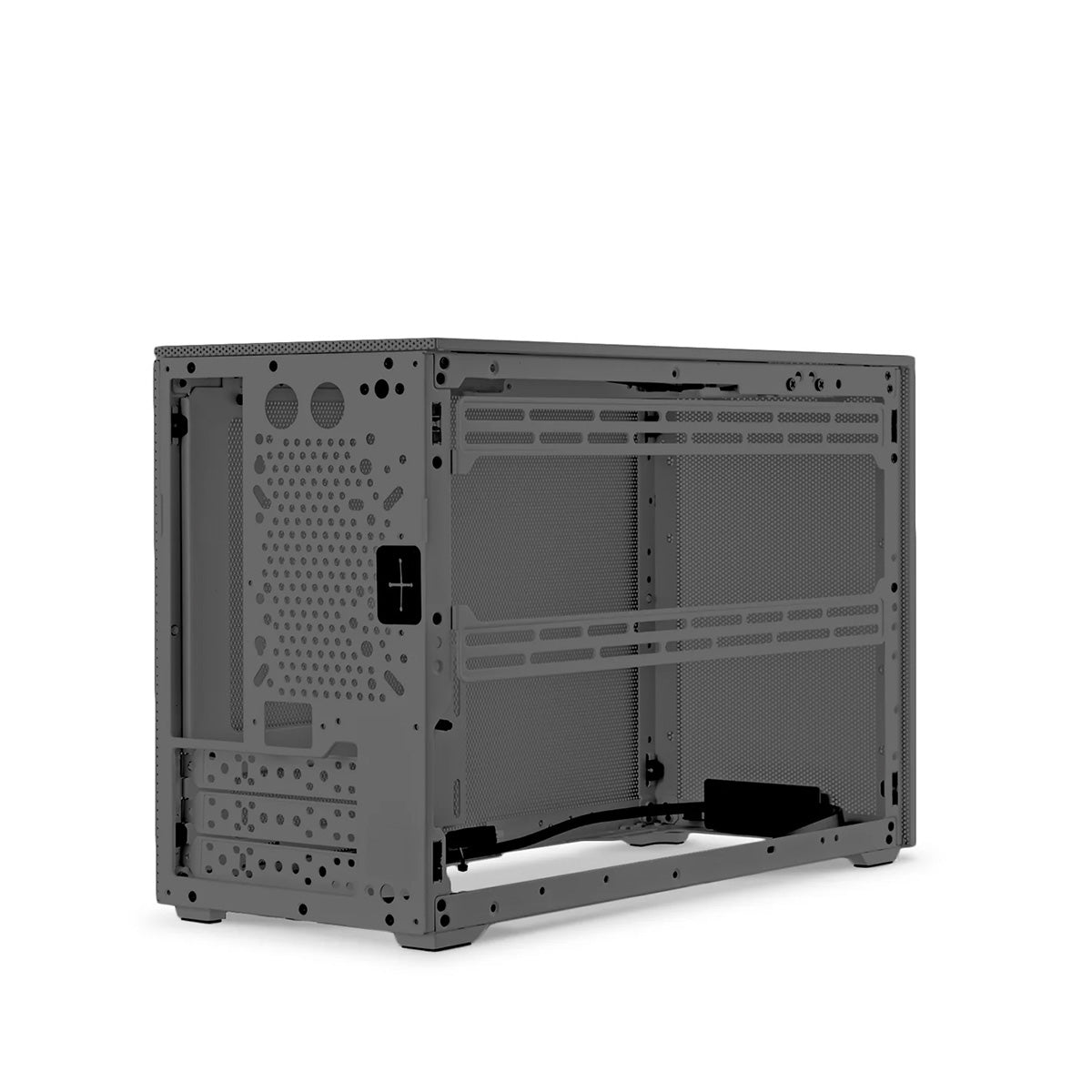

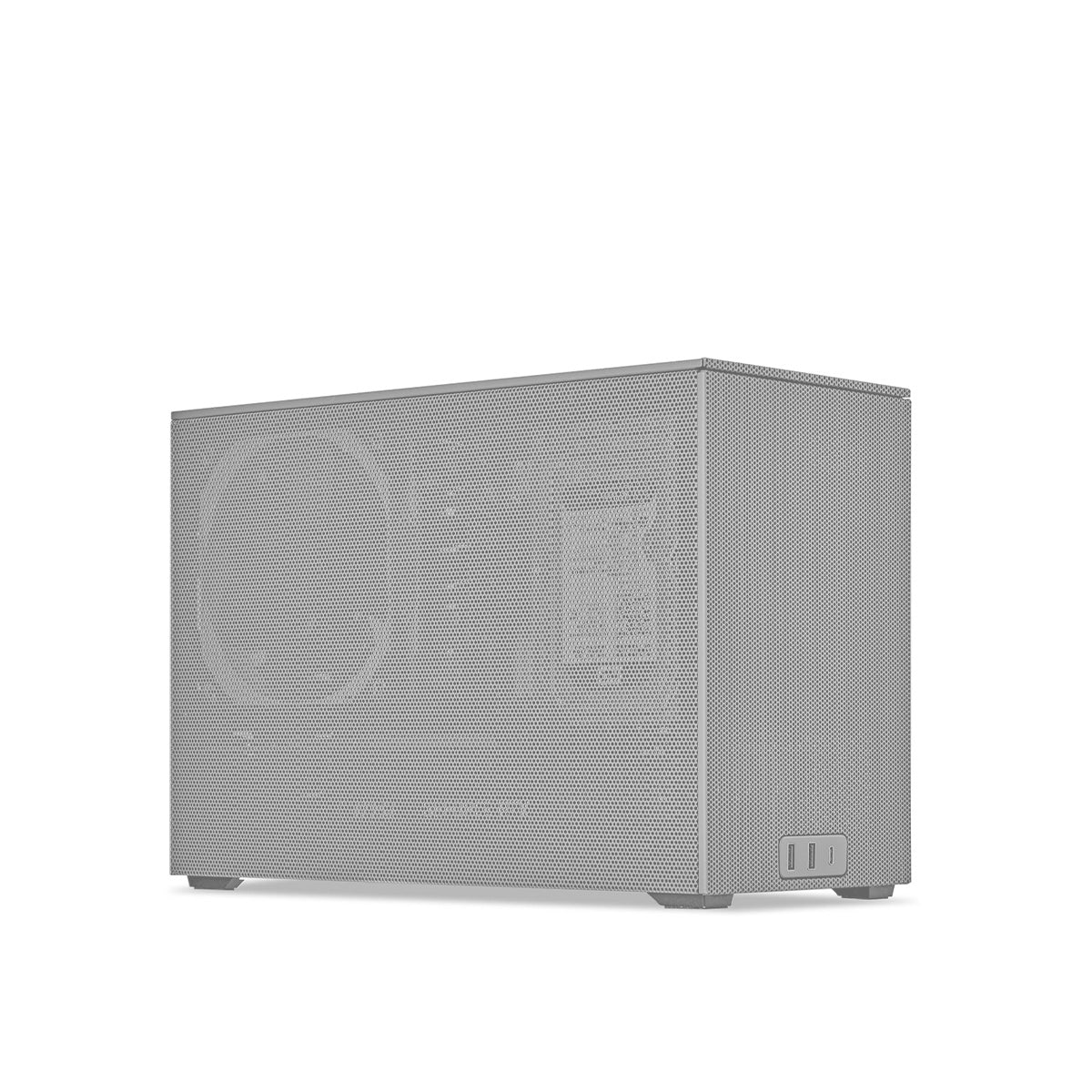

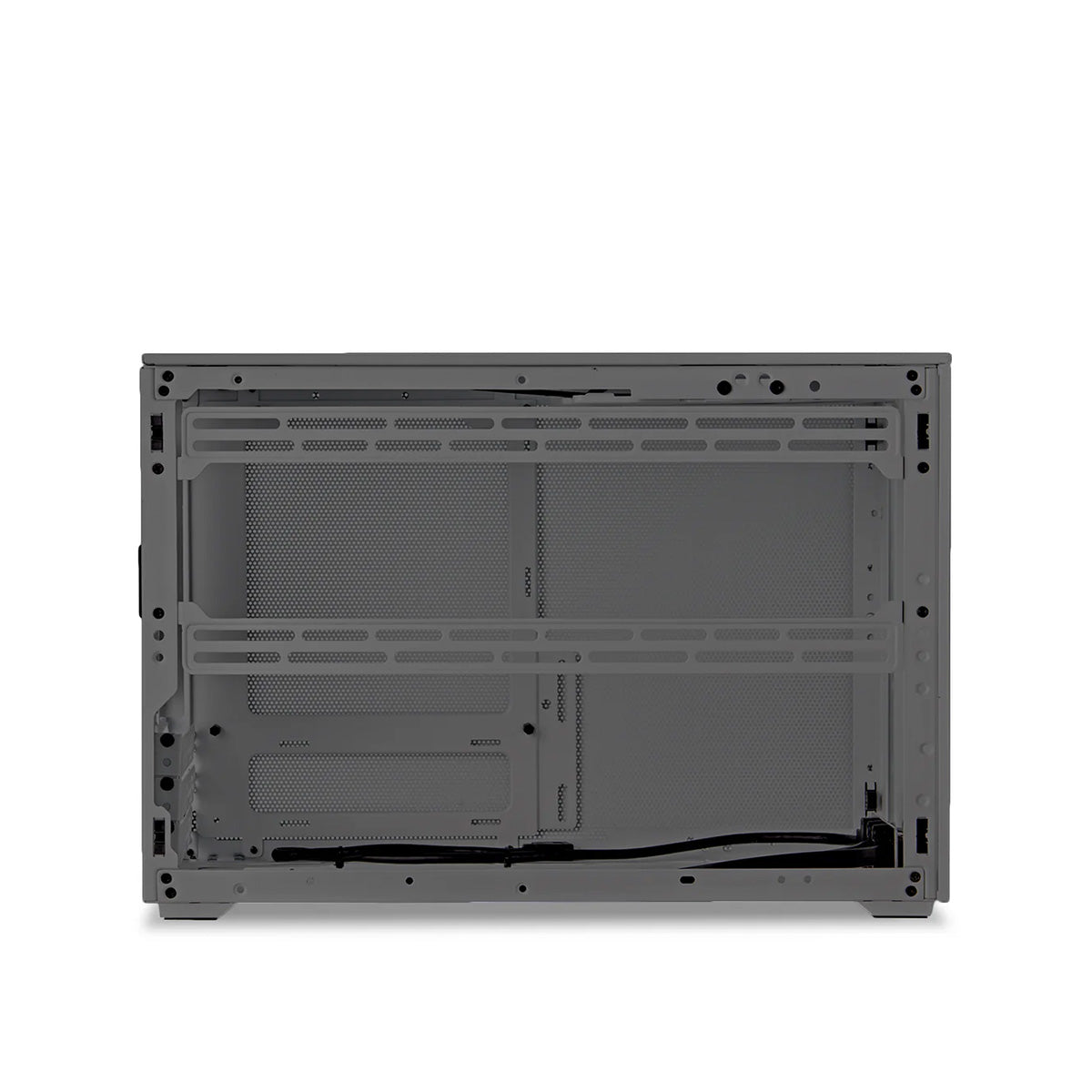

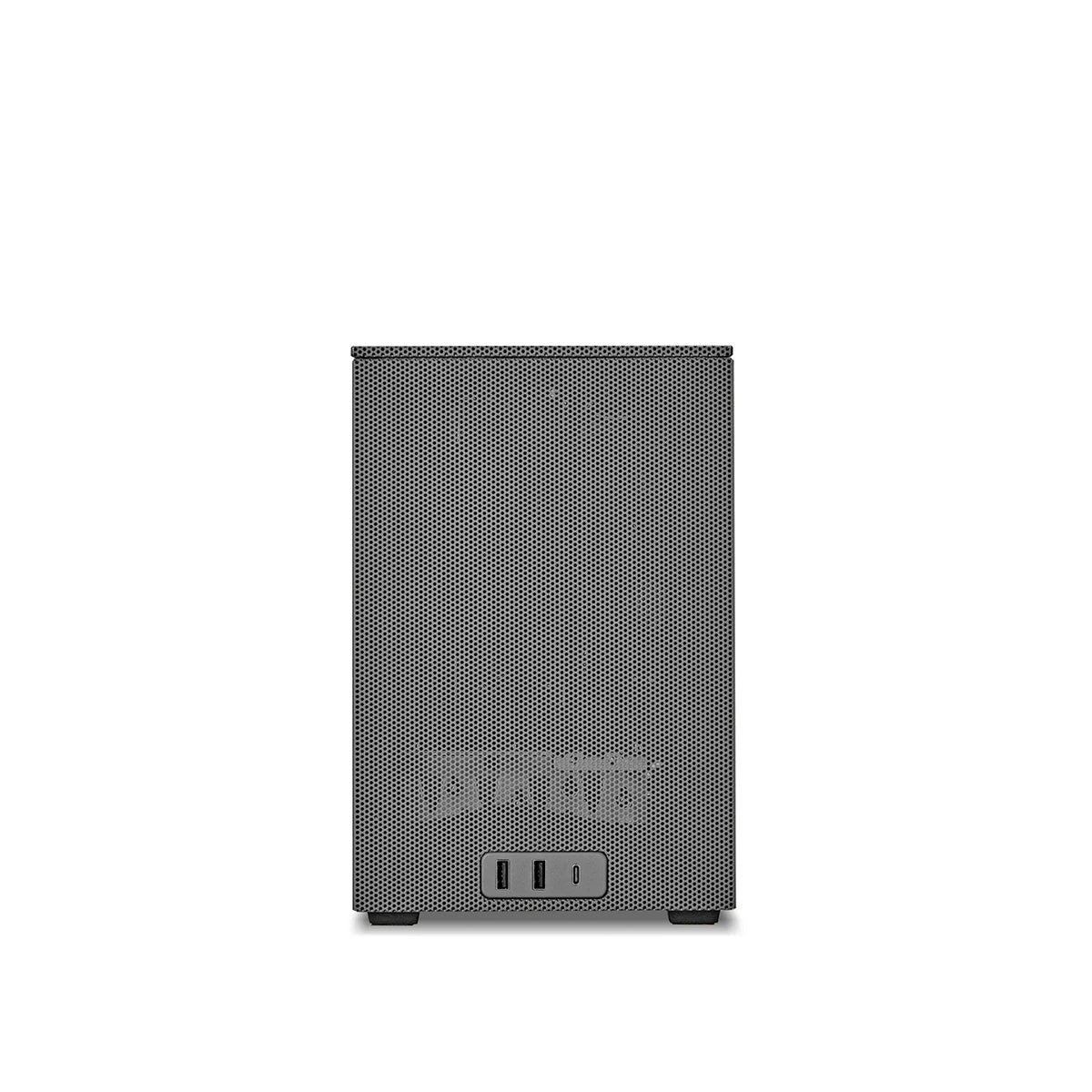

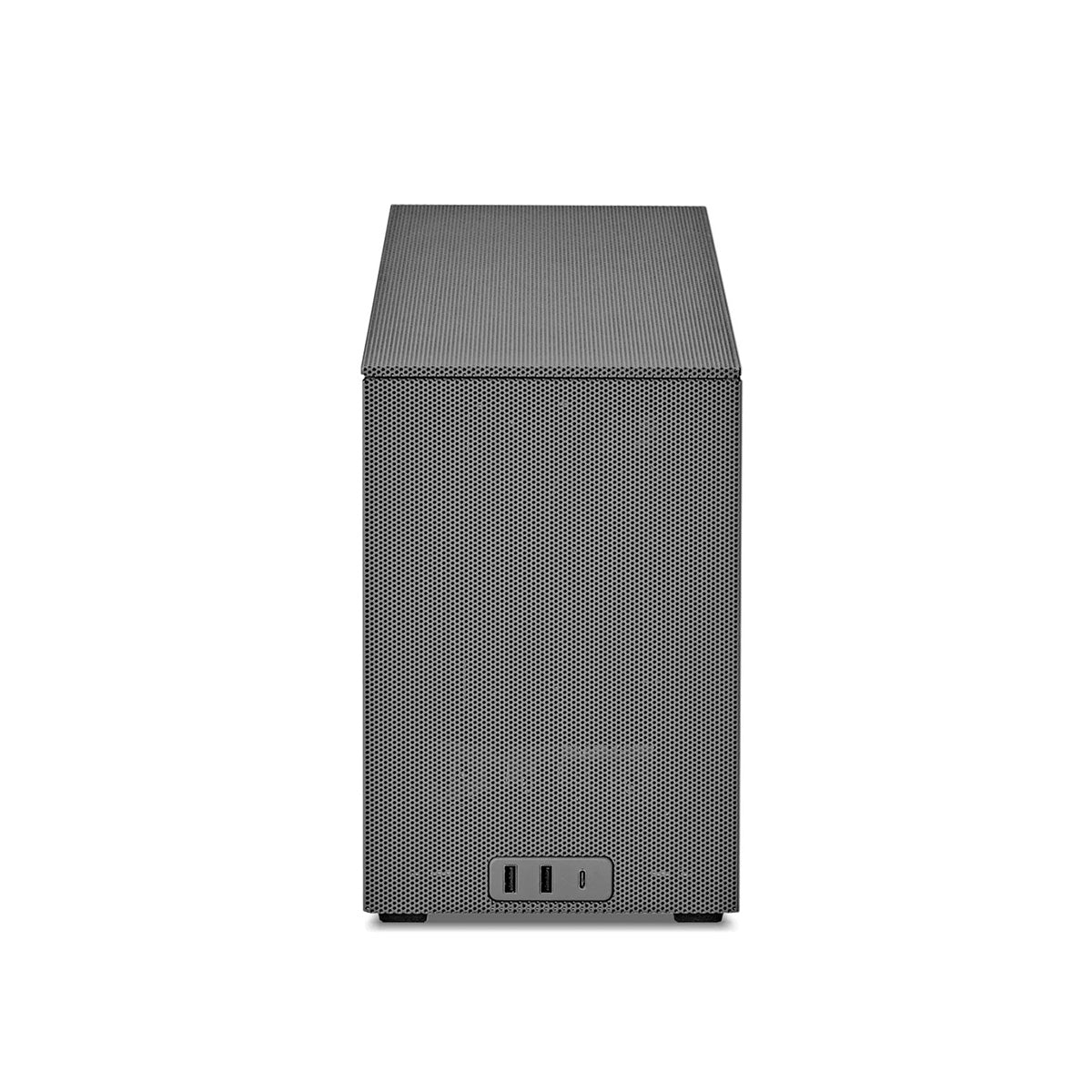

Ssupd Meshroom D Mini ITX Case - Full Mesh - Fossil Gray
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Description
Introduce a new horizon in small form factor case design - Meshroom D, covered 4-side by extreme 1.5mm fine full mesh panels prompting optimized ventilation, engineered to house high-end components and unleash maximum performance during even the most intense tasks in a 14.97 liters volume. Featuring flexible space arrangement, the case is a master of build versatility able to accommodate a full size GPU up to 3.4 slot with highly flexible power supply options up to 150mm. Designed for custom loop enthusiasts, it boasts dedicated room for dual radiators and a DDC pump. Crafted in a stylish steel exterior, Meshroom D harmonizes aesthetics with functionality, providing an adaptable solution that complements any workspace.
- Unleash Graphics Power:Â Designed to Supported GPUs up to 3.4 slots, 325mm in length, 136mm in width
- Mesh for Optimal Ventilation:Â Breathable, mesh panels enables higher airflow and better cooling
- More Room for Cooling:Â Supports CPU cooler heights up to 142mm
- Small in Size, Big on Capability:Â Minimized footprint with ultimate potential
- Unleash Your Build with MATX:Â Support MATX motherboard with extra extender bracket for diverse installation configurations.
- Custom loop Ready:Â Featuring 240mm dual radiator custom loop water-cooling design and assuring with a ddc pump simultaneously.
Specifications
Specifications
| Expansion slots | 3 |
| Front IO ports | 1 x USB 3.1 Type-C, 2 x USB 3.0 |
| Rear IO ports | Power button |
| Top and front panel | Fine mesh panels |
| Side panel | Fine mesh panels |
| Tool-less push-to-lock | Both side, top, and front panels |
| 2.5" drive mounts | 6 x 2.5” HDD (with SFX PSU); 4 x 2.5” HDD (with ATX PSU) |
| 3.5" drive mounts | 3 x 3.5” HDD (with SFX PSU); 2 x 3.5” HDD (with ATX PSU) |
| Left side fan mounts | 2 x 120/140 mm (with PSU mounted on right or top) |
| Front fan mounts | 1 x 120/140 mm (with SFX PSU mounted on top) |
| Rear fan mounts | 1 x 80/90 mm |
| Dust filters | Bottom |
| Motherboard compatibility | Mini-ITX, Mini-DTX; MATX (extra extender bracket needed) |
| Power supply type | SFX, SFX-L, ATX |
| Power supply max length | 150 mm (PSU mounted on left); 140 mm (PSU mounted on right); 130 mm (PSU mounted on top) |
| CPU cooler max height | 142 mm (without side fan bracket installed); 138 mm (with side fan bracket installed) |
| GPU max length | With 3.3 slots (67mm): 323 mm length and 140 mm width; With 2.2 slots (44mm): 336 mm length and 140 mm width |
| Left side radiator | 1 x 240/280 mm (max 332 mm length, 144 mm wide, 65 mm thick with fans) |
| Bottom radiator | 45 mm thickness of 240/280 mm radiator + fans allow GPU in 22 mm thick |
| Case dimensions | 247 x 167 x 363 mm / 9.72 x 6.57 x 14.29 inch |
| Package dimensions | 415 x 220 x 310 mm / 16.34 x 8.66 x 12.2 inch |
| Net weight | 2.8 kg / 6.17 lb |
| Gross weight | 3.35 kg / 7.39 lb |
| Volume | 14.97 liters |
| Case material | SGCC powder coated steel, plastic, PVC filter |
| Package contents | Case, accessory box, user manual |
| Warranty | 2 years |
| User Guide | Meshroom D User Guide |
