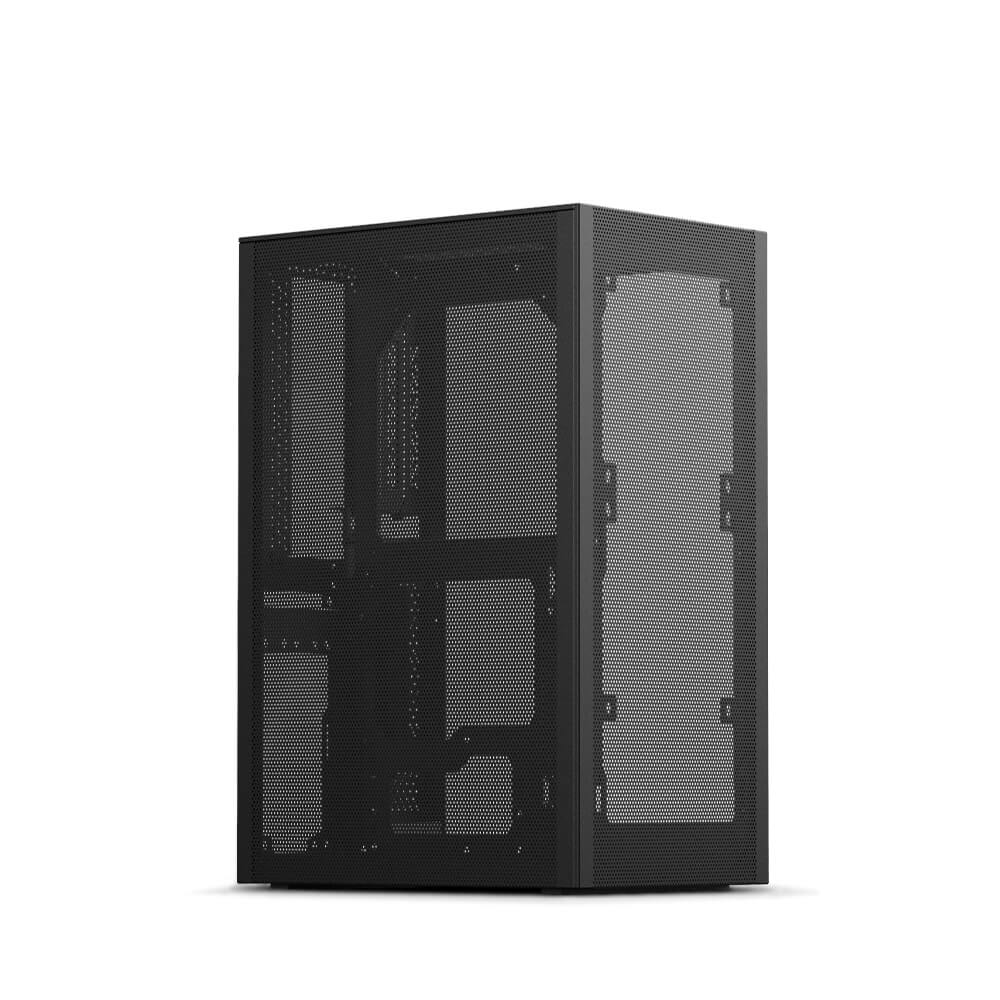

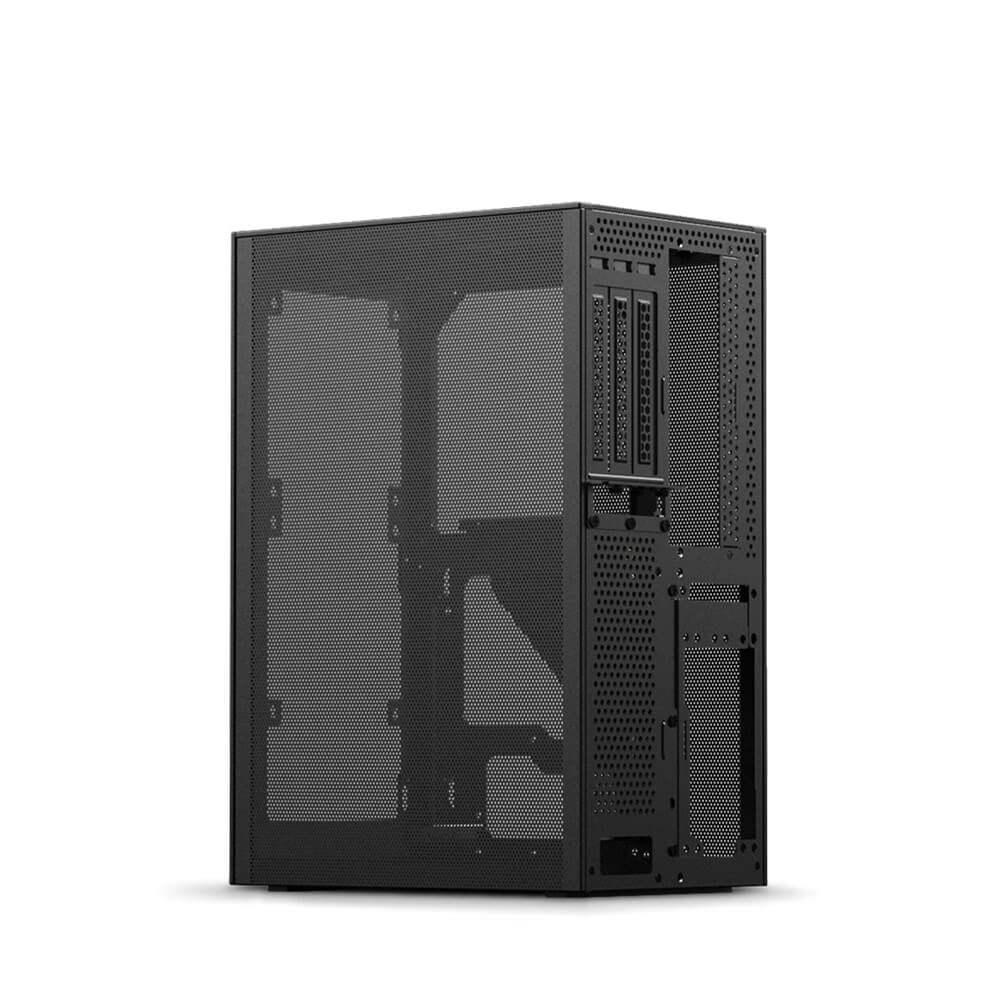

Ssupd Meshlicious Mini ITX Case - Full Mesh - Black - PCIE 3.0
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
SUPPORT RADIATORS UP TO 280MM.
Meshlicious is great for liquid cooling. It can support a wide range of radiators up to 280mm. Dimensions up to length 320mm, width 143mm, thickness 63mm.
Well Ventilated For Highend Hardware
Breathable, Mesh panels enable higher airflow and better cooling.
LARGE GPU SUPPORT- UP TO 4 SLOTS

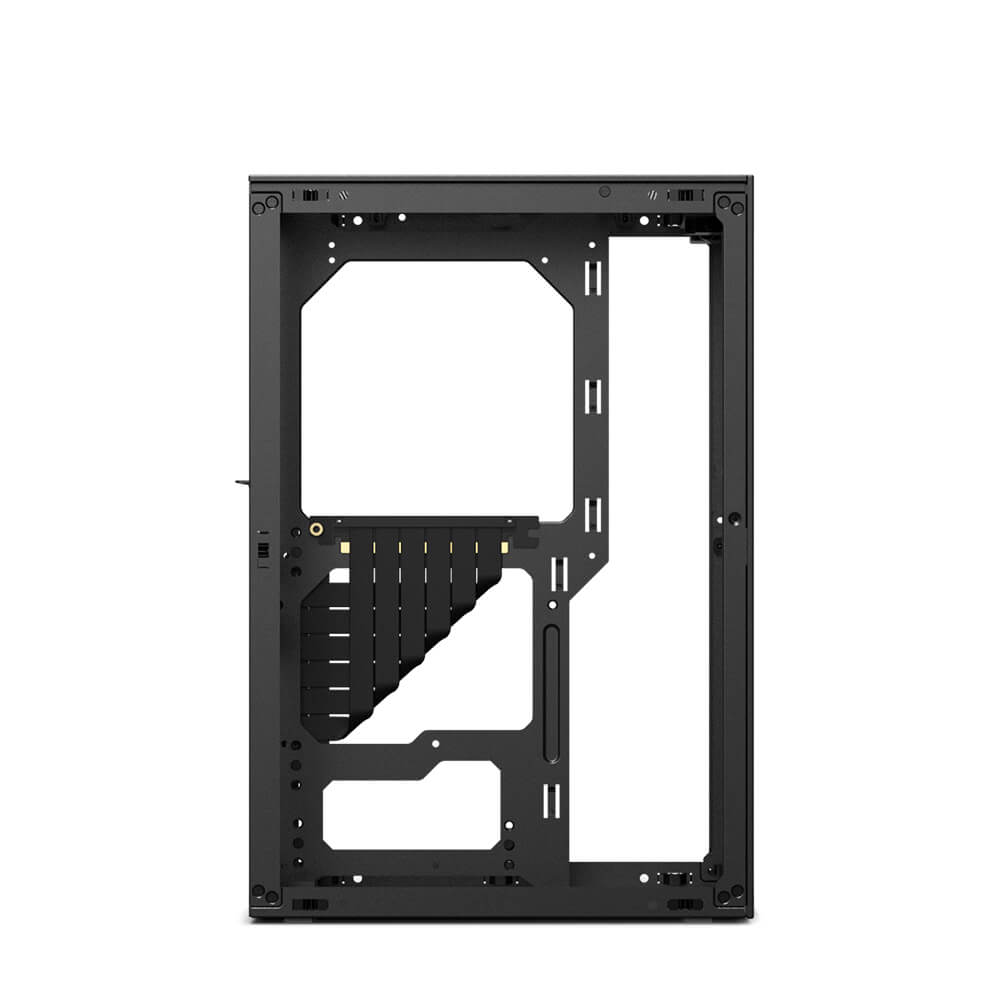

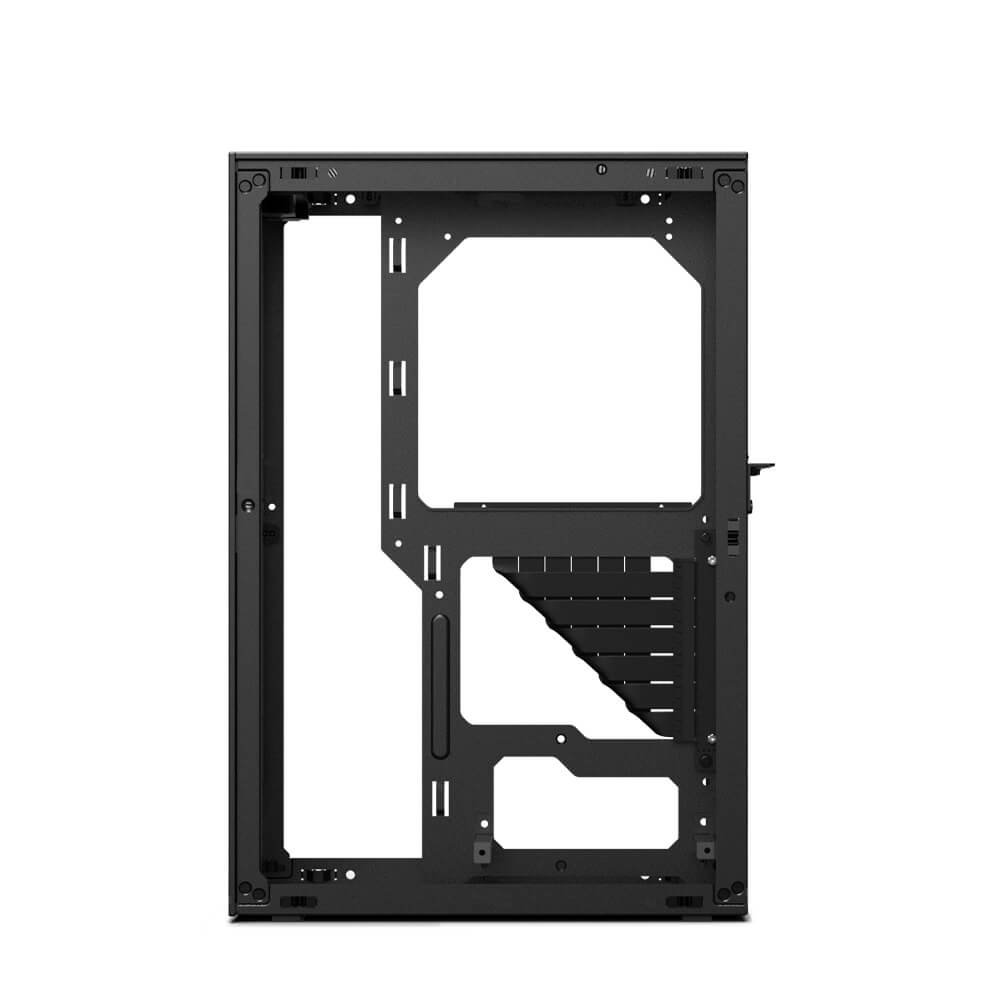

The motherboard tray also functions as a divider. So you can split the CPU space and GPU space, making it possible to support GPUs up to 4 slots thick.
The GPU bracket is adjustable vertically, allowing for adjustments to the space available for the cables that are connected to the GPU.
ATX AND SFX POWER SUPPLY SUPPORTED
Compatible with both ATX and SFX power supplies. Meshlicious makes transitioning from an ATX build easy. There's no need to buy a new power supply.
STORAGE DRIVE SUPPORT UP TO 2 X HDD AND 3 X SSD
Despite the small size, Mesh-Licious can support up to two 3.5’ harddrives or four 2.5’ hard drives (dependent on GPU size).
KEEPING IT COOL BY DESIGN
Meshlicious is a high airflow, Small Form Factor (SFF) enclosure designed to keep your high end components cool and performing at their best.
Specifications
Specifications
| Expansion slots | Full Length GPU : Up to 4 slot; Small Form Factor GPU : 3 slot |
| Front fan | 2x 120 mm or 2x 140 mm |
| 3.5” drive support | Up to 2 x 3.5” HDD (with Small Form Factor GPU) |
| Front ports | 1x USB 3.0; 1x Type-C 3.1 Gen 2; Power LED |
| Tool-less push-to-lock | Both side, Top side, and Front side Panels |
| Full mesh version side panel | Two mesh panels (1mm thick) |
| 2.5” drive support | 2 x 2.5” SSD (with full length GPU & ATX PSU) / 3 x 2.5” SSD (with full length GPU & SFX PSU) / 7 x 2.5” SSD (with SFF GPU & SFX PSU) |
| Motherboard compatibility | Mini ITX / Mini-DTX (need additional 20cm PCIe riser cable) |
| Front radiator | 120 / 140 / 240 / 280 mm (Up to 320mm length, 143 mm width, 63 mm thickness with fans, dependent on GPU position / type) |
| GPU max length | Full length GPU: 4 slots mode up to 336mm length(GPU Baffle not included), 346mm length(GPU Baffle included )/ 3 slots mode up to 332mm length(GPU Baffle not included), 342mm length(GPU Baffle included) and 155 mm tall; small form factor GPU: Up to 211 mm length (without radiator) |
| Power supply type | ATX, SFX-L, SFX |
| PSU max length | 170mm ATX PSU (with front fan only) / up to 160mm ATX PSU (with upward tubing AIO) / 140mm ATX PSU (with downward tubing AIO) |
| CPU cooler max height | 3 slots GPU mode: Up to 73mm Height / 4 slots GPU mode: 53mm Height |
| Dimensions Case dimensions (L x W x H) | 245 mm x 166.4 mm x 360 mm |
| Net weight | 3.6 kg. |
| Package dimensions (L x W x H) | 415 mm x 220 mm x 310 mm |
| Volume | 14.67 liters |
