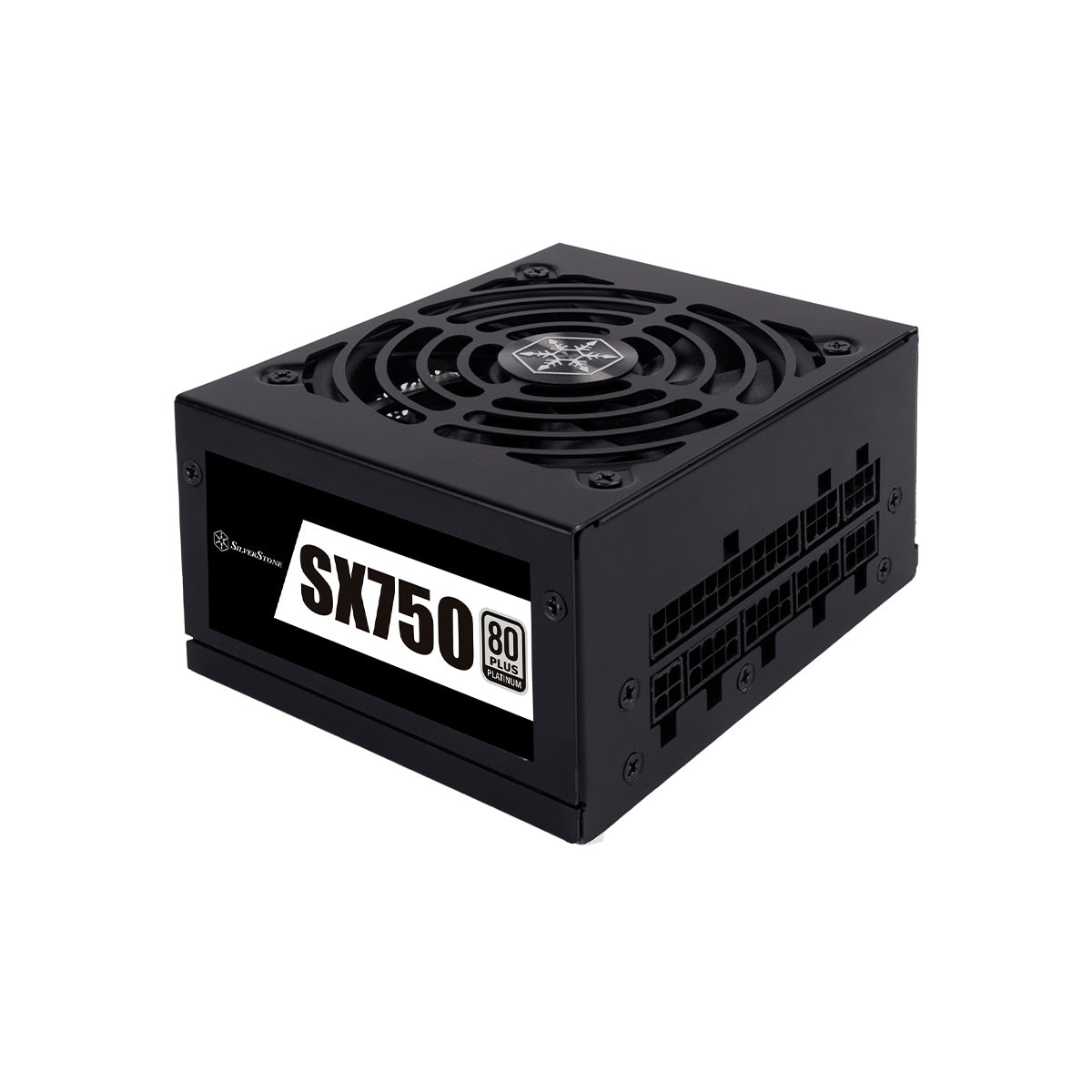

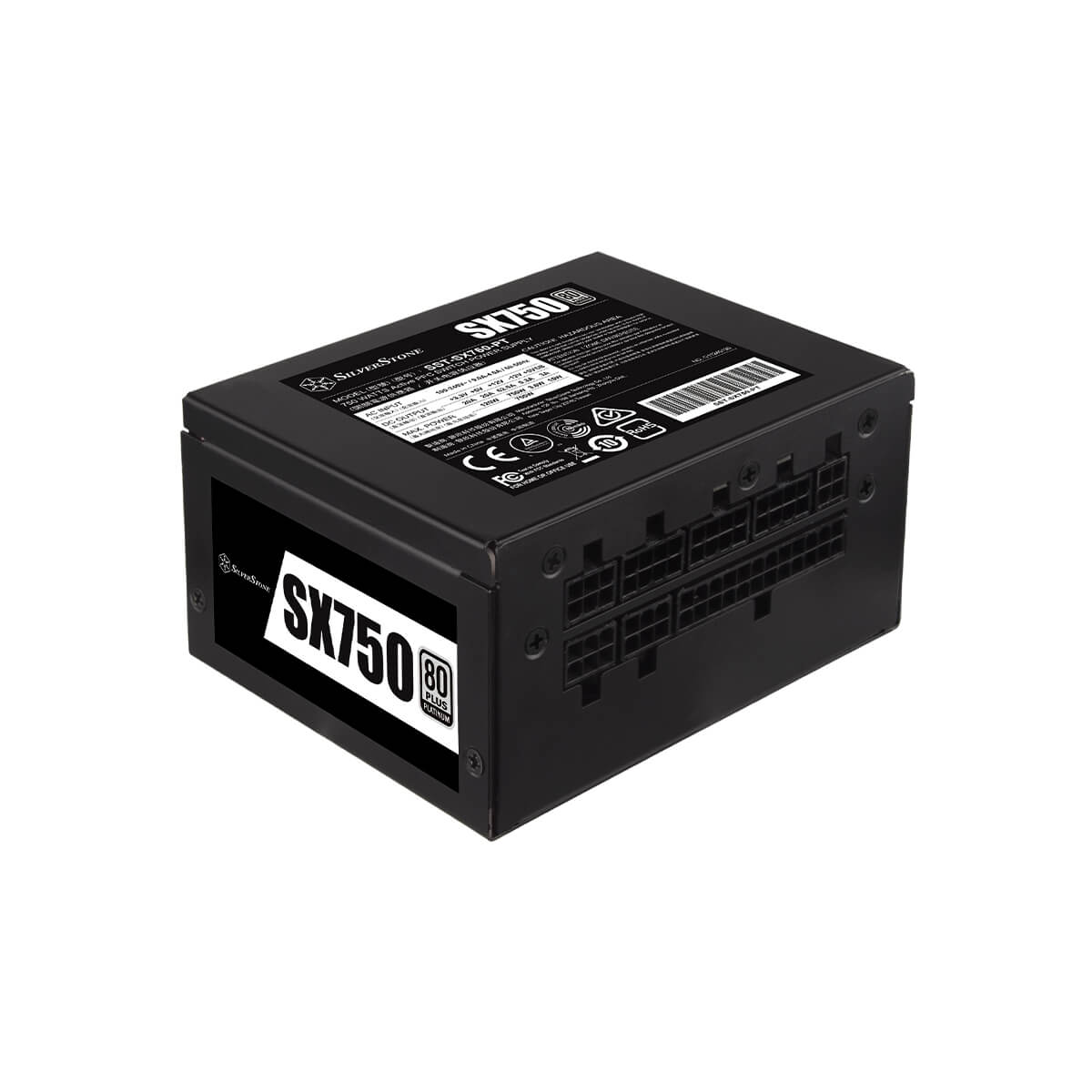

Silverstone SX750-PT 750W 80Plus Platinum Fully Modular SFX Power Supply
Ultra silent | SFF | All Japanese capacitors
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 5 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
SX750 750W SFX fully modular 80 PLUS Platinum power supply
Standard SFX form factor
Silent running 92mm dual ball bearing fan with minimum 0dBA
All Japanese capacitors
High efficiency with 80 PLUS Platinum certification
Class-leading single +12V rail
Strict ±3% voltage regulation and low ripple & noise
100% modular cables
All cables with flexible flat arrays
- High efficiency with 80 PLUS Platinum certification
- Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking
- Built-in 92mm dual ball bearing fan has excellent airflow and low noise, perfect for quite home or office use
- 100% modular cable design for easy removal in a case with cable routed and tied down
- ±3% regulation and low ripple & noise performance for high stability
- Flexible flat cables have much greater flexibility allowing for tighter folding and management of cables
Specifications
Specifications
| Product No. | SST-SX750-PT |
| Model (safety certification) | SST-SX750-PT |
| Color | Black（Lead-Free Paint） |
| Max. DC Output | 750W |
| Power density | 945W per liter |
| Load Range | |
| Output | |
| +3.3V | 20A |
| +5V | 20A |
| +12V | 62.5A |
| +5VSB | 3A |
| -12V | 0.3A |
| Peak (Amps) | / |
| Min.(Amps) | 0A |
| Range (%) | ±3% |
| Line Reg.(%) | ±1% |
| Ripple(mVp-p) | 40mV |
| Combined +3.3V & +5V | 120W |
| Combined +12V | 750W |
| Input Voltage | 90V ~ 264V |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC（PF>0.9 at full load） |
| Efficiency | 89% ~ 92% at 20% ~ 100% loading |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 40°C |
| Protection | Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection Over Current Protection |
| Connectors | 1 x 24 / 20-Pin motherboard connector（300mm） 1 x 8 / 4-Pin EPS / ATX 12V connector（400mm） 2 x 8 / 4-Pin EPS / ATX 12V connector（400mm / 150mm） 4 x 8 / 6-Pin PCIE connector（”400mm / 150mm” x 2） 8 x SATA connector（”300mm / 200mm / 100mm / 100mm” x 2） 3 x 4-Pin Peripheral connector（300mm / 200mm / 200mm） 1 x 4-Pin Floppy connector（100mm） |
| Cooling System | Single 92mm dual ball bearing fan |
| Noise Level | 0 dBA minimum |
| Certification | 80 PLUS Platinum |
| Form factor | SFX |
| Dimension | 125 mm (W) x 63.5 mm (H) x 100 mm (D) |
| Weight | 1.01 Kg |
| Other | GPU Support list |
