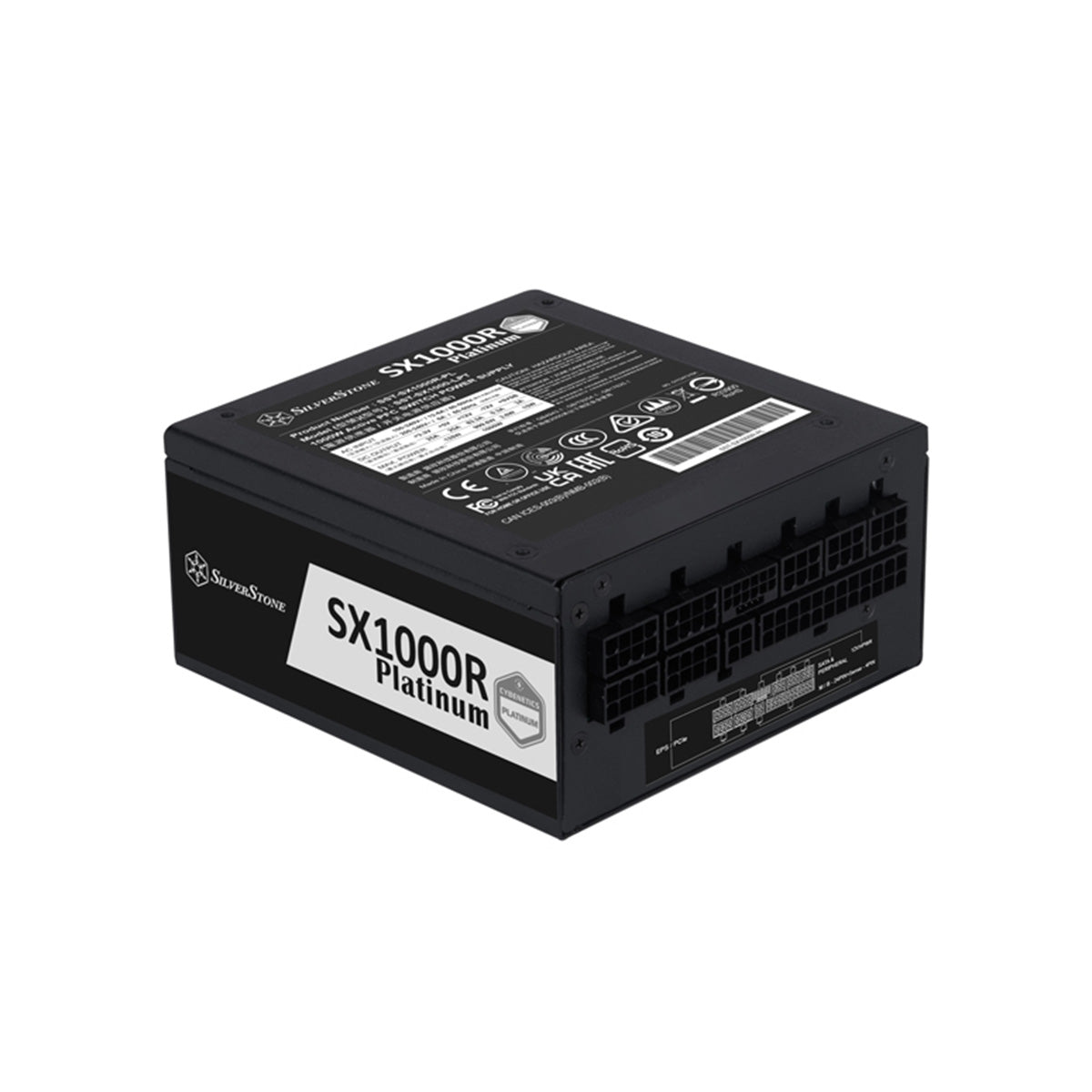

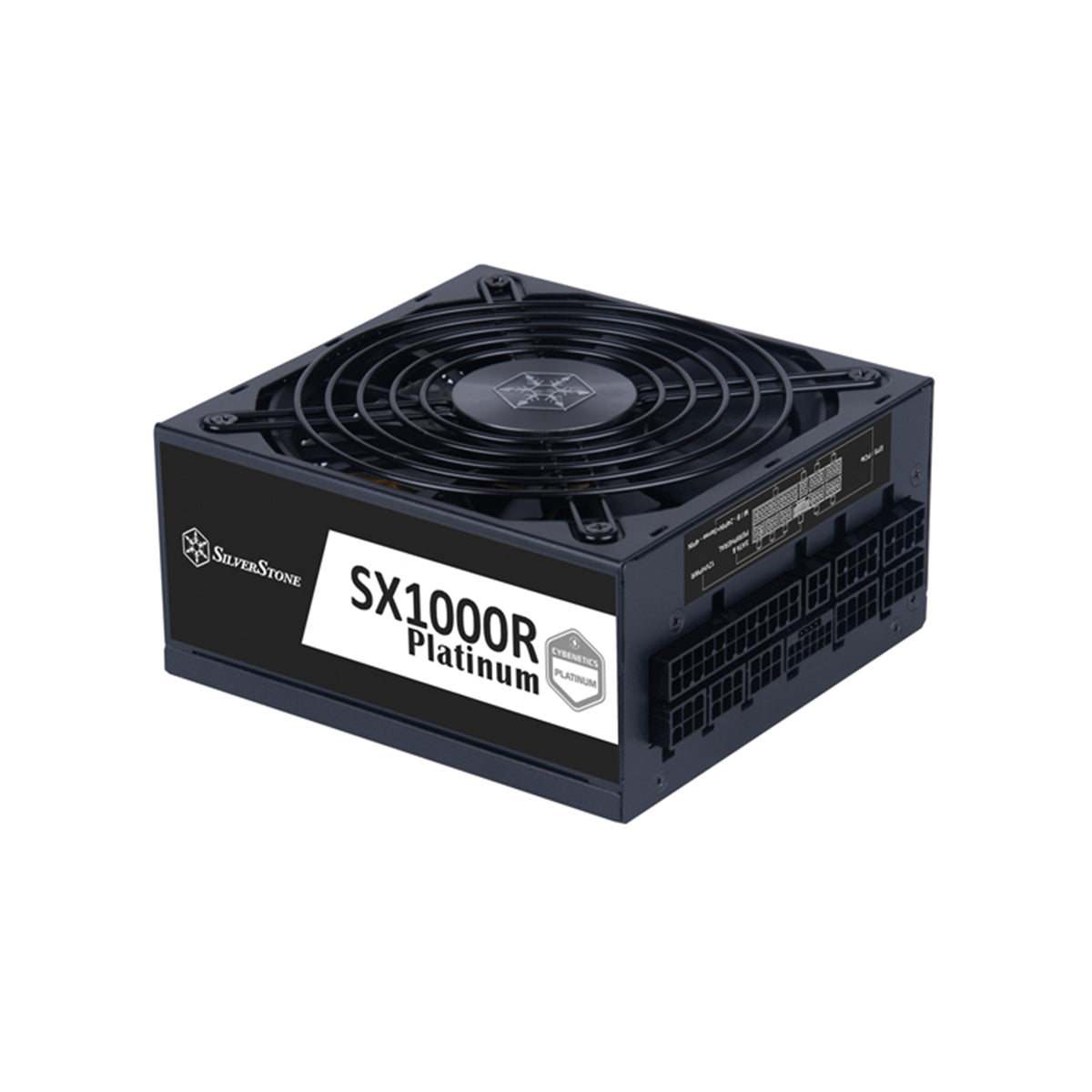

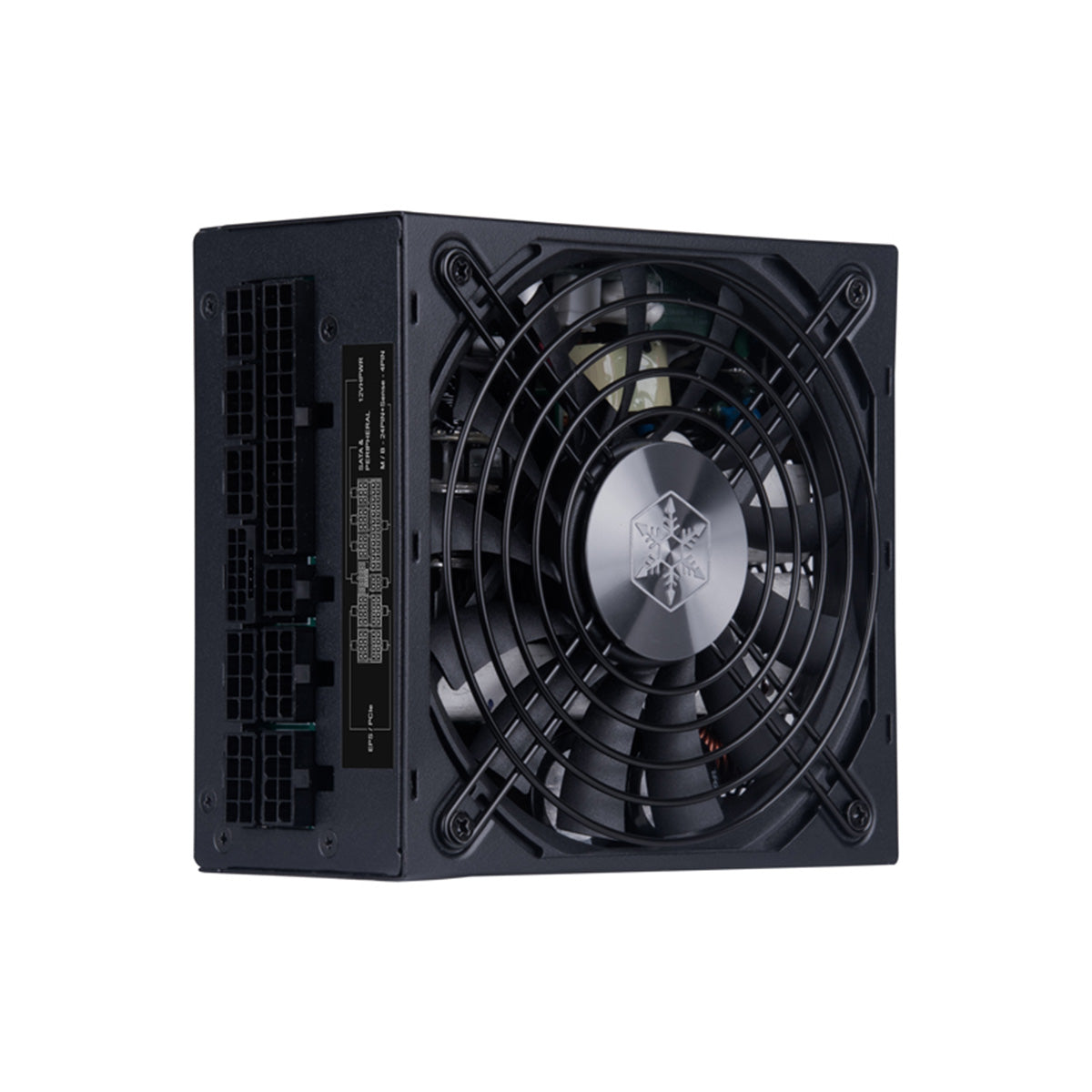

Silverstone SX1000R Cybenetics Platinum 1000W Fully Modular SFX-L Power Supply
PCIe 5.0 | 12VHPWR connector | Ultra silent
Silverstone
| SKU
46319
$349.00
$429.00
Unit price
/
Unavailable
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 7 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
SX1000R Platinum - Cybenetics Platinum 1000W SFX12V 4.0 & PCIe 5.0 Fully Modular SFX-L Power Supply
- Equipped with Gen5 12VHPWR PCIe connector, meeting Intel SFX 12V V4.0 specification standard
- Cybenetics Platinum efficiency certification
- Powerful single +12V rail design, ideal for future high-end component upgrades and overclocking
- All Japanese electrolytic capacitors

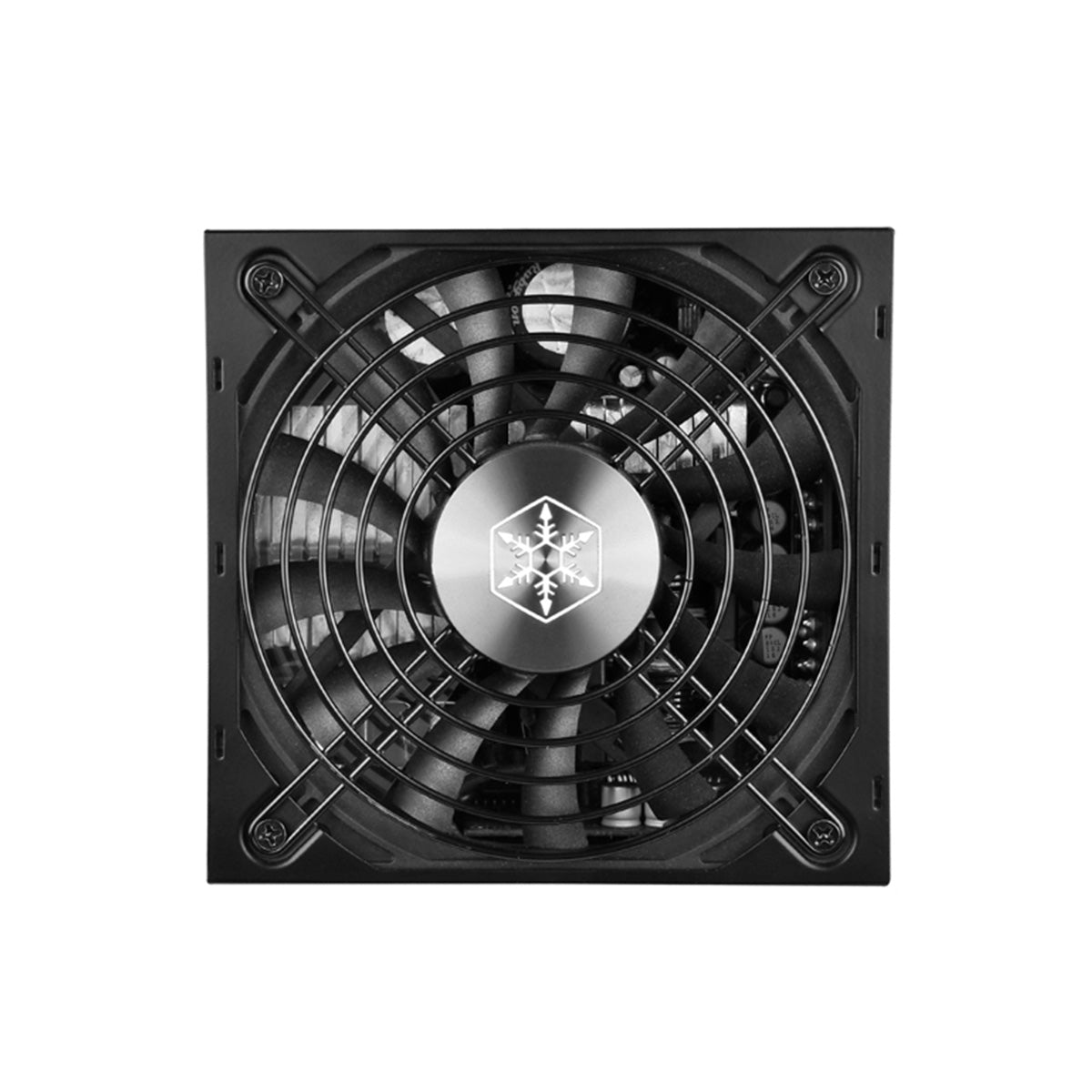

- Silent running 120mm dual ball bearing fan with advanced semi-fanless operation
- Fully modular design with universal EPS / PCIe connector interface
Specifications
Specifications
| Product No. | SST-SX1000R-PL |
| Model (safety certification) | SST-SX1000-LPT |
| Color | Black (lead-free paint) |
| Max. DC Output | 1000W |
| Power density | 969W per liter |
| Load Range | |
| Output | |
| +3.3V | 25A (±3%, ±1%, 40mVp-p) |
| +5V | 25A (±3%, ±1%, 40mVp-p) |
| +12V | 83.3A (±3%, ±1%, 100mVp-p) |
| +5VSB | 3.0A (±5%, ±1%, 40mVp-p) |
| -12V | 0.3A (±10%, ±1%, 80mVp-p) |
| Combined +3.3V & +5V | 125W |
| Combined +12V | 999.6W |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC（PF>0.9 at full load） |
| Efficiency | 89% ~ 91% overall efficiency |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 50°C |
| Protection | Over Current Protection, Over Power Protection, Over Voltage Protection, Short Circuit Protection, Over Temperature Protection, Under Voltage Protection |

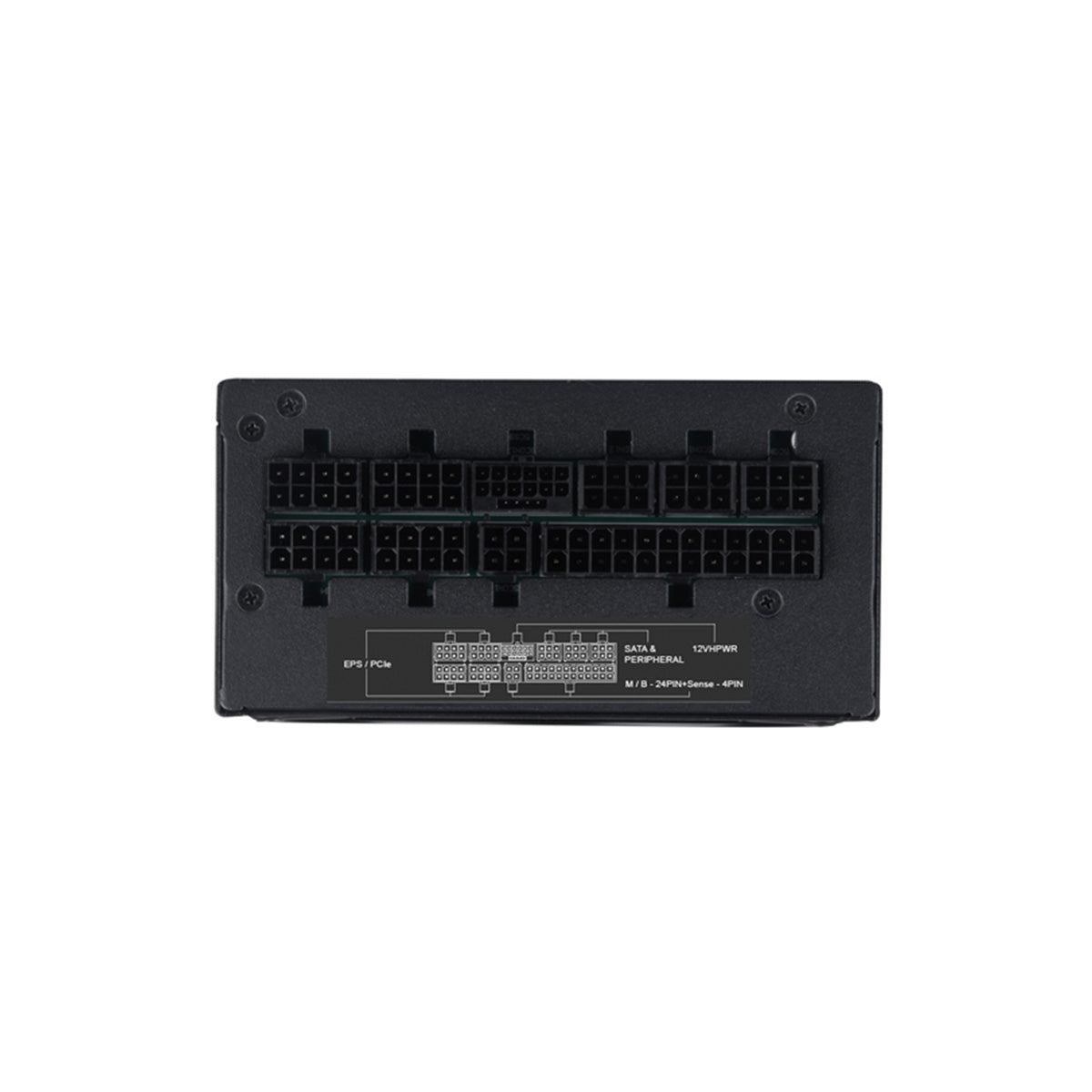

| Connectors | 1 x 24 / 20-Pin motherboard connector, 2 x 8 / 4-Pin EPS / ATX 12V connector, 4 x 8 / 6-Pin PCIe connectors, 1 x 12+4-Pin 12VHPWR connector, 8 x SATA connector, 3 x 4-Pin Peripheral connector + 1 x 4-Pin Floppy adapter connector |
| Cooling System | Single 120mm dual ball bearing fan |
| Noise Level | 0 ~ 36 dBA |
| Certification | Cybenetics Platinum |
| Form factor | SFX-L |
| Dimension | 125mm (W) x 63.5mm (H) x 130mm (D), 4.92” (W) x 2.5” (H) x 5.12” (D) |
| Weight | 1.39 kg |
| Other | GPU Support list, Compatible with ATX12V v2.4 |
