Silverstone HELA 2500Rz Platinum 2500W Fully Modular Power Supply
Compliant with ATX 3.1 and PCIe Gen 5 standards | 4 x native 12V-2x6 connectors with cables included
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description

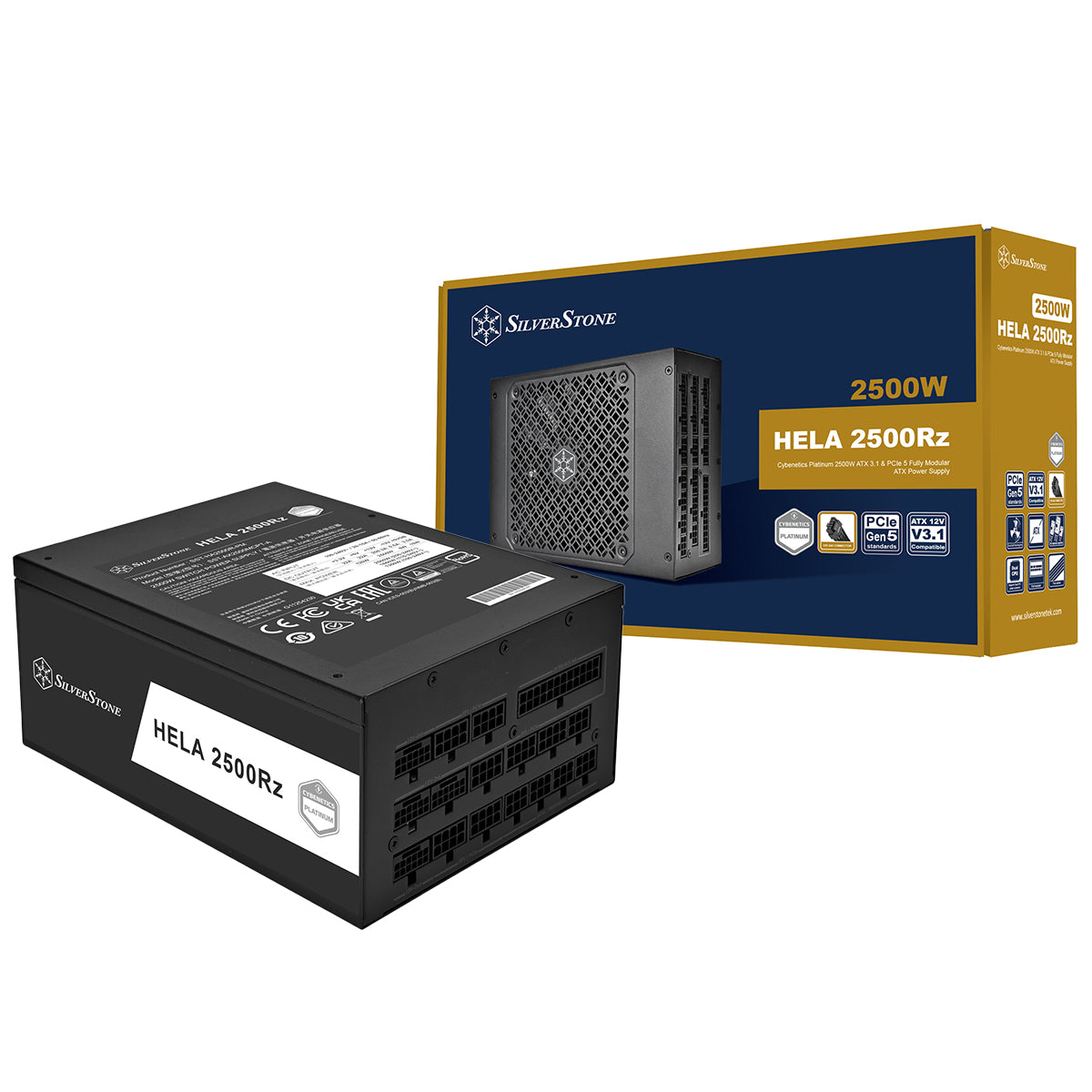

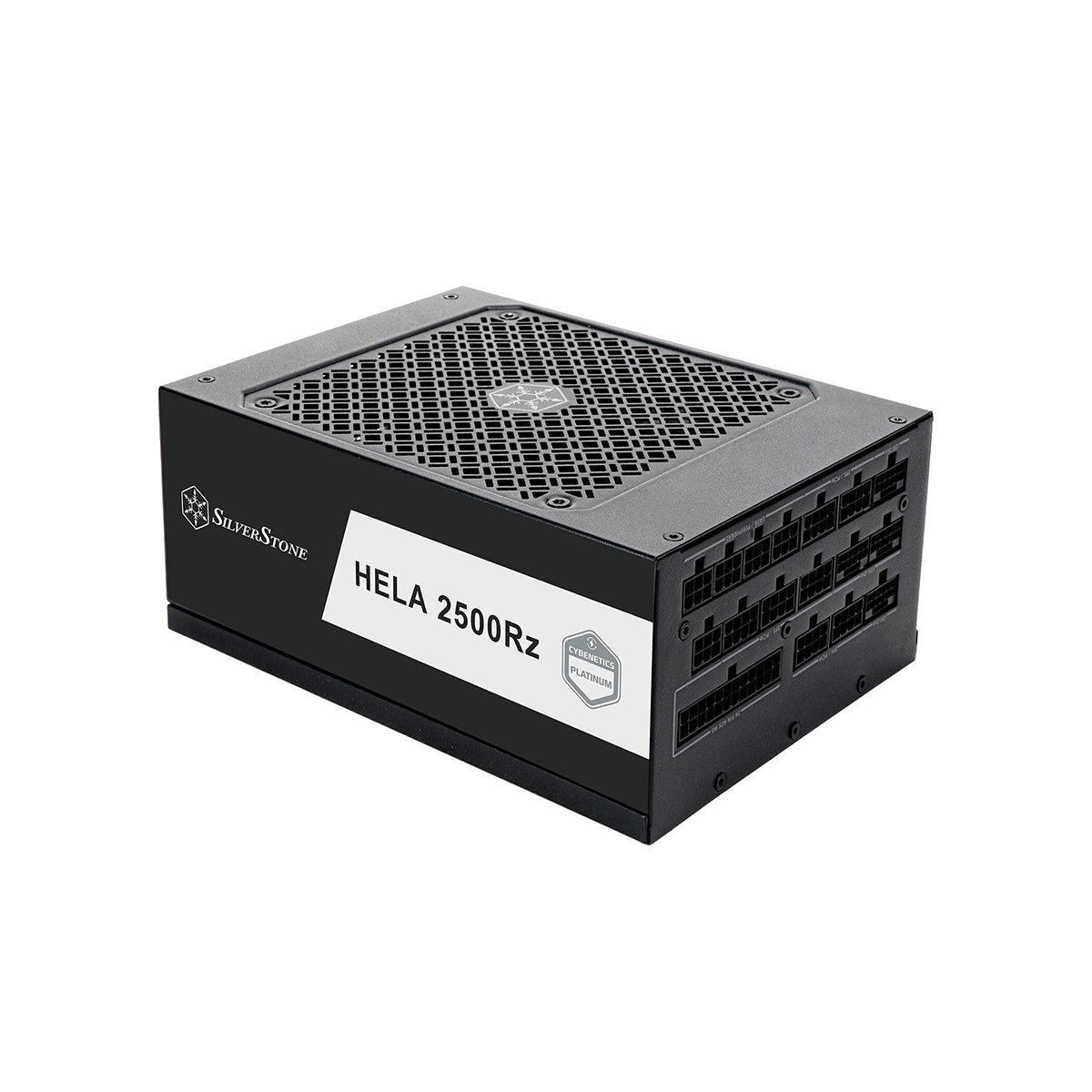

HELA 2500Rz
Cybenetics Platinum 2500W ATX 3.1 & PCIe 5 Fully Modular ATX Power Supply
- Compliant with ATX 3.1 and PCIe Gen 5 standards, supporting 12V-2x6 PCIe connectors
- 4 x native 12V-2x6 connectors with cables included, supporting RTX 40/50 series GPUs.
- High efficiency with Cybenetics Platinum certification
- 24/7 continuous power output with 50℃ operating temperature
- Fully modular design with SilverStone’s 3rd generation modular interface
- Silent running 135mm dual ball bearing fan with delayed shut-off function
- Compact 200mm depth design allows for easy system integration
12V-2x6 PCIe connector with ATX 3.1 and PCIe Gen5 standards
Easily and efficiently power high-end systems with the latest graphics cards, including RTX 40 and RTX 50 series.
Cybenetics Platinum certified
Designed for Cybenetics Platinum level of efficiency, to minimize wasted heat while significantly reducing electricity consumption.
Fully modular design with universal EPS / PCIe connector interface
Included are flat cables that offer exceptional flexibility, enabling easy and efficient cable folding and management.
All Japanese electrolytic capacitors
Guarantees dependable power delivery and an extended lifespan.
High reliability cooling fan with delayed shut-off function
Equipped with a 135mm cooling fan that delivers exceptional airflow and operates quietly. It also features a delayed shut-off function, which extends the cooling process after the system powers down, helping to dissipate residual heat and protect sensitive components.
Specifications
Specifications

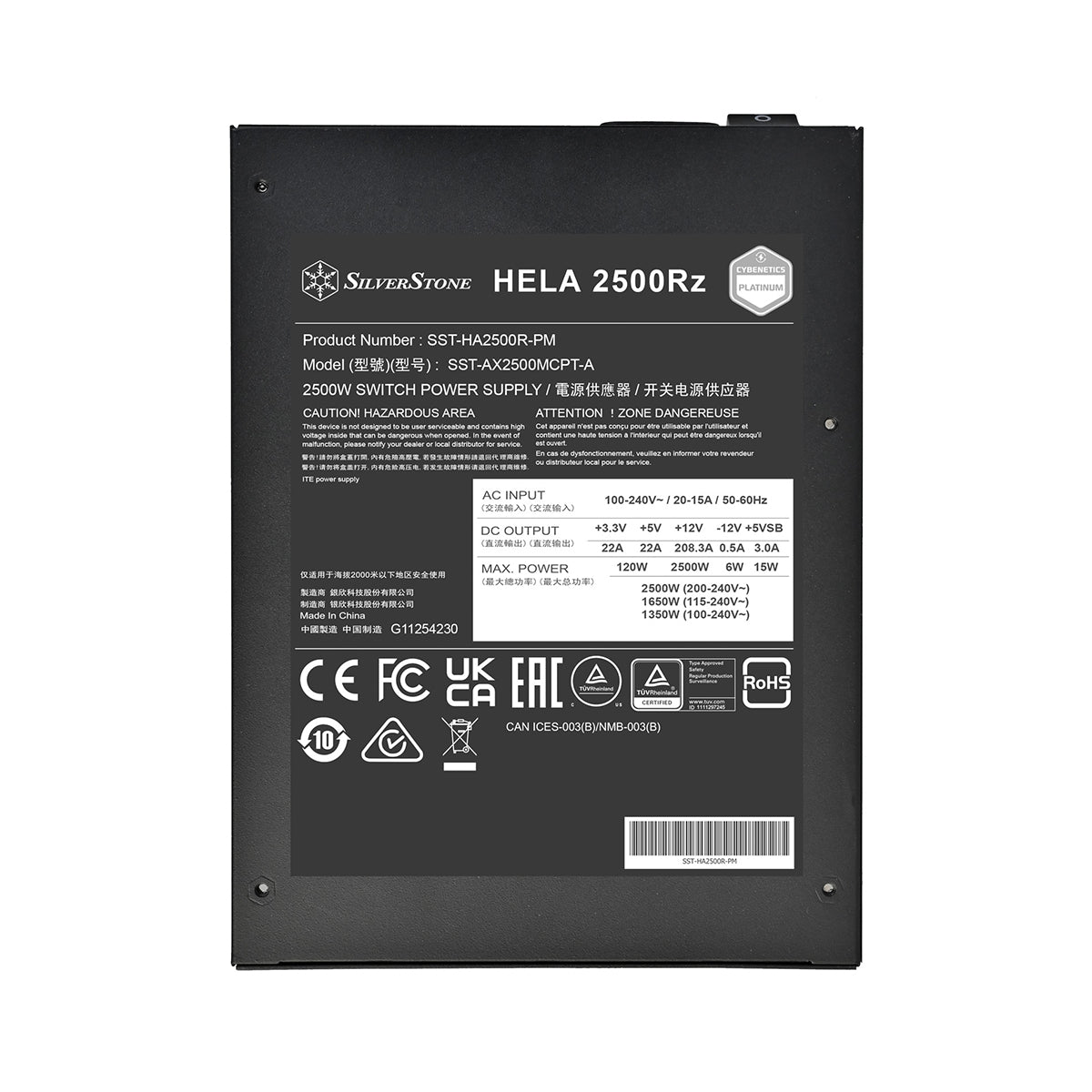

| Product No. | SST-HA2500R-PM |
| Model (safety certification) | SST-AX2500MCPT-A |
| Color | Black (lead-free paint) |
| Max. DC Output | 2500W |
| Power Density | 969W/L |
| Load Range |
Output: +3.3V / +5V / +12V / +5VSB / -12V Max. (Amps): 22A / 22A / 208.3A / 3.0A / 0.5A Min. (Amps): 0A / 0A / 0A / 0A / 0A Range (%): ±3% / ±3% / ±3% / ±3% / ±10% Line Reg. (%): ±1% / ±1% / ±1% / ±1% / ±1% Ripple (mVp-p): 30mV / 30mV / 50mV / 30mV / 50mV Combined +3.3V & +5V: 120W Combined +12V: 2500W |
| Input Voltage | 2500W: 200 ~ 240 Vrms 1650W: 103 ~ 264 Vrms 1350W: 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC (PF>0.9 at full load) |
| Efficiency | ≥89% <91% overall efficiency |
| MTBF | 100,000 hours |
| Operating Temperature | 0°C ~ 50°C |
| Protection |
Over Current Protection Over Power Protection Over Voltage Protection Under Voltage Protection Short Circuit Protection Over Temperature Protection |
| Connectors |

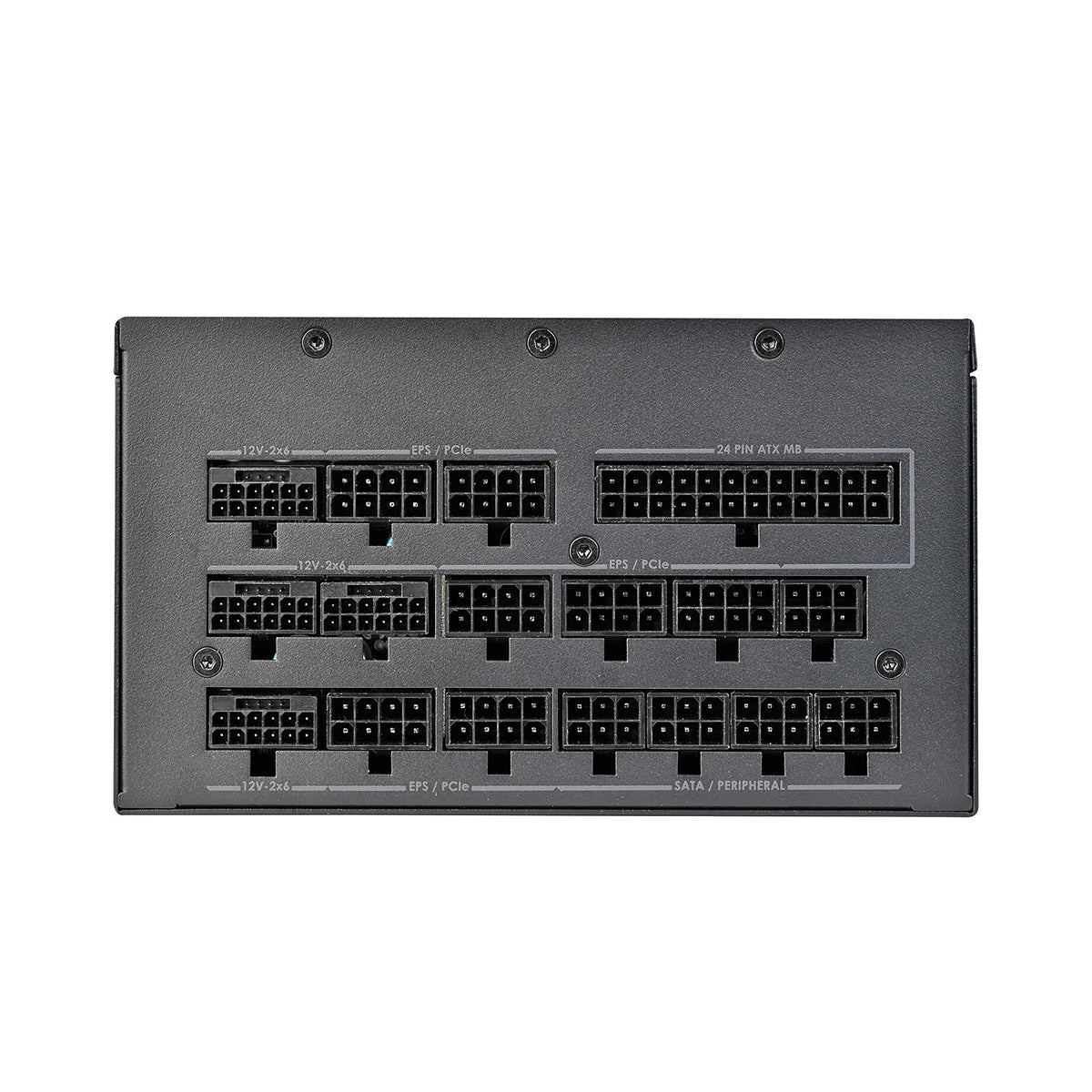

1 x 24 Pin motherboard connector 4 x 8 / 4-Pin EPS / ATX 12V connect 7 x 8 / 6-Pin PCIe connectors 4 x 12+4-Pin 12V-2x6 connector 12 x SATA connector 4 x 4-Pin Peripheral connector |
| Cooling System | 135mm dual ball bearing fan |
| Noise Level | 18 dBA minimum |
| Certification | Cybenetics Platinum |
| Form Factor | ATX (PS2) |
| Dimension | 150mm (W) x 86mm (H) x 200mm (D) 5.91" (W) x 3.39" (H) x 7.87" (D) |
| Weight | 4.16 kg |
