Description
Description

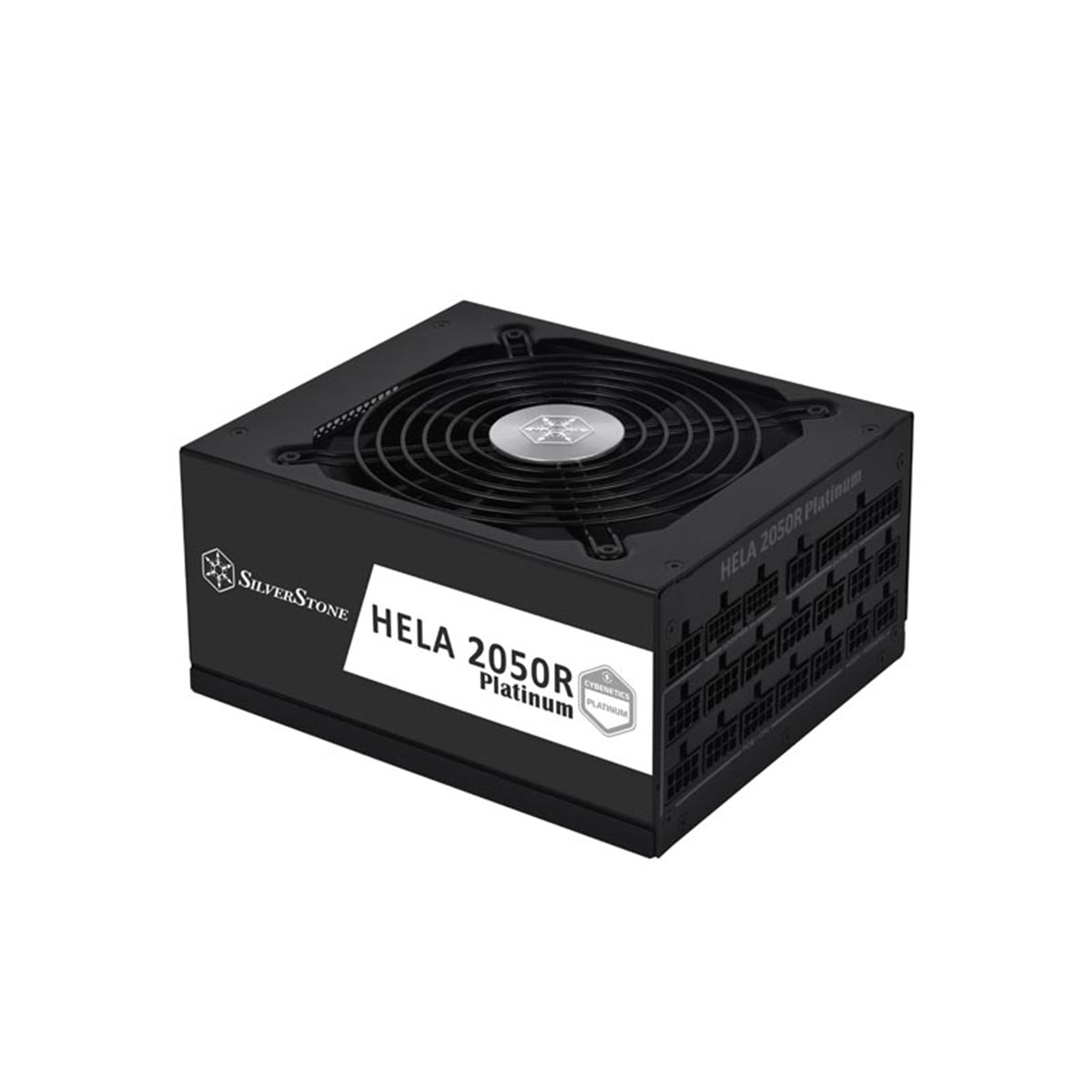

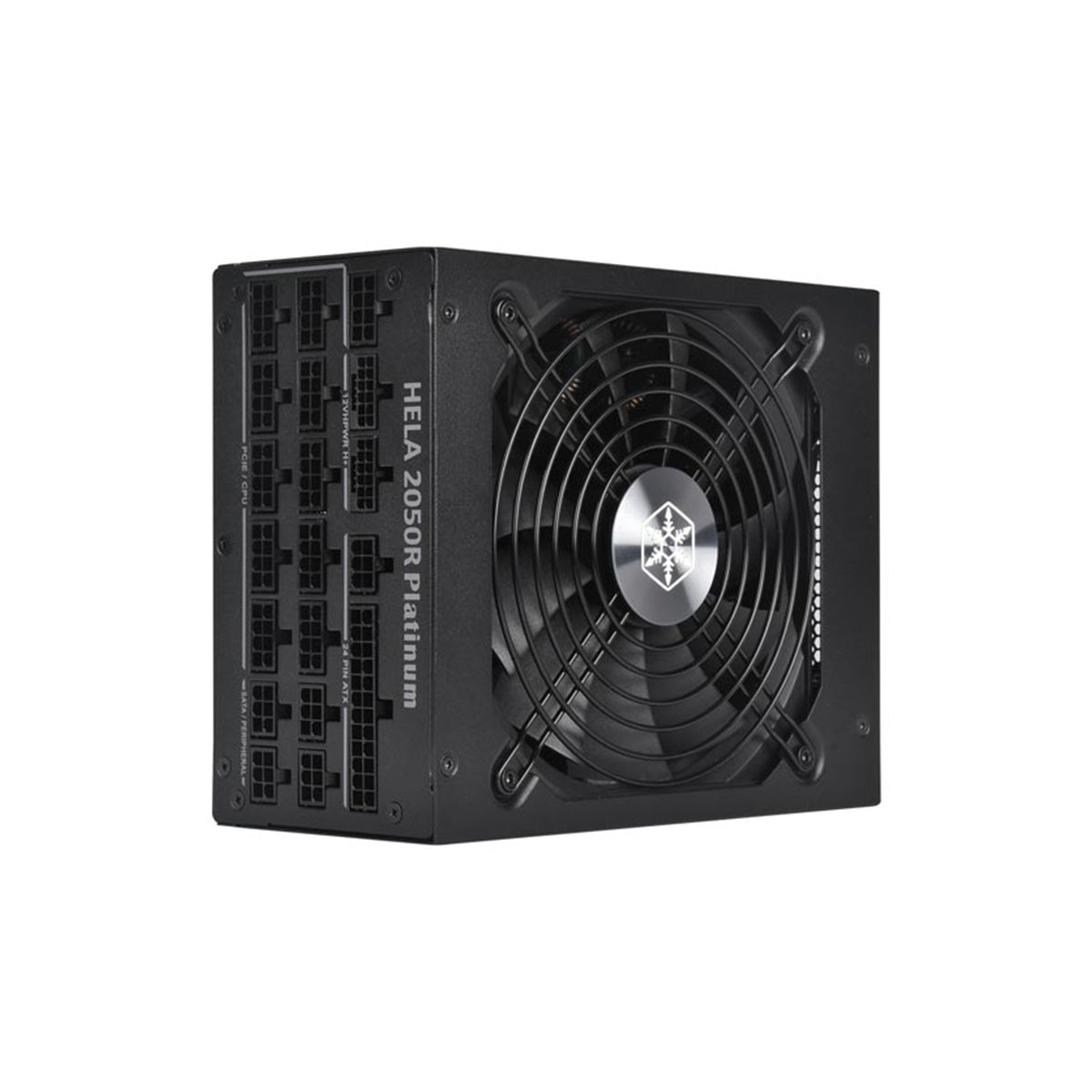

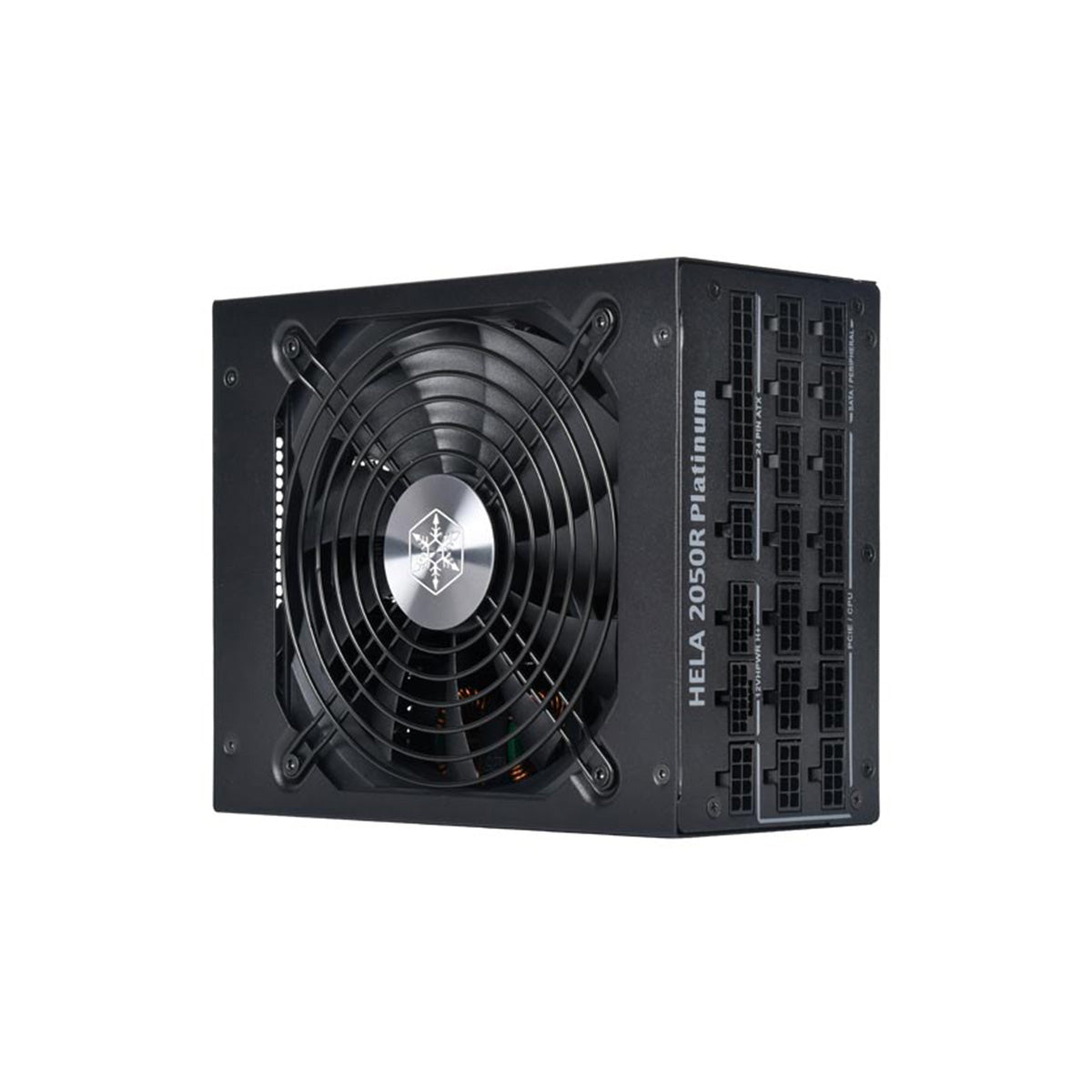

HELA 2050R Platinum
Cybenetics Platinum 2050W ATX 3.0 & PCIe 5.0 Fully Modular ATX Power Supply
- Supports 12VHPWR PCIe connector with ATX 3.0 and PCIe Gen 5 standard
- High efficiency with Cybenetics Platinum certification
- Built-in MCU semi-fanless mode to achieve optimized cooling performance
- 2050W continuous power output rated for 24/7 operation
- Fully modular design with SilverStone’s 3rd generation modular interface
- 2 x native 12VHPWR connector on modular interface with 3 x 12VHPWR cable included
- Silent running 135mm dual-ball bearing fan with advanced semi-fanless operation
Includes 12VHPWR PCIe connector with ATX 3.0 and PCIe Gen 5 standard
The 12+4 pin (12VHPWR) design is capable of withstanding power failure caused by a running graphics card’s instantaneous peak power consumption, whilst providing higher stability and efficiency power output for high-end systems
Cybenetics Platinum Certified
Designed for Cybenetics Platinum level of efficiency to reduce wasted heat and save on electricity
Depth of 180mm establishes a new benchmark for high-wattage PSUs featuring modular cables.
Fully modular design with universal EPS / PCIe connector interface
Included are flat cables that offer exceptional flexibility, enabling easy and efficient cable folding and management.
All Japanese electrolytic capacitors
Guarantees dependable power delivery and an extended lifespan.
HELA 2050R Platinum features a sophisticated built-in intelligent fan controller, powered by a microcontroller unit (MCU). This controller ensures whisper-quiet operation during idle or low-powered computing tasks, seamlessly transitioning to maximum cooling efficiency under stress and maximum load
Specifications
Specifications
| Product No. | SST-HA2050R-PM |
| Model (safety certification) | SST-AX2050MCPT-C |
| Color | Black (lead-free paint) |
| Max. DC Output | 2050W |
| Power density | 882W/L |
| Combined +3.3V & +5V | 120W |
| Combined +12V | 2040W |
| Input Voltage | 2050W: 200~240 Vrms 1650W: 103 ~ 264 Vrms 1350W: 90~264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC（PF>0.95 at full load） |
| Efficiency | 89% ~ 91% overall efficiency |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 50°C |
| Protection | Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection |

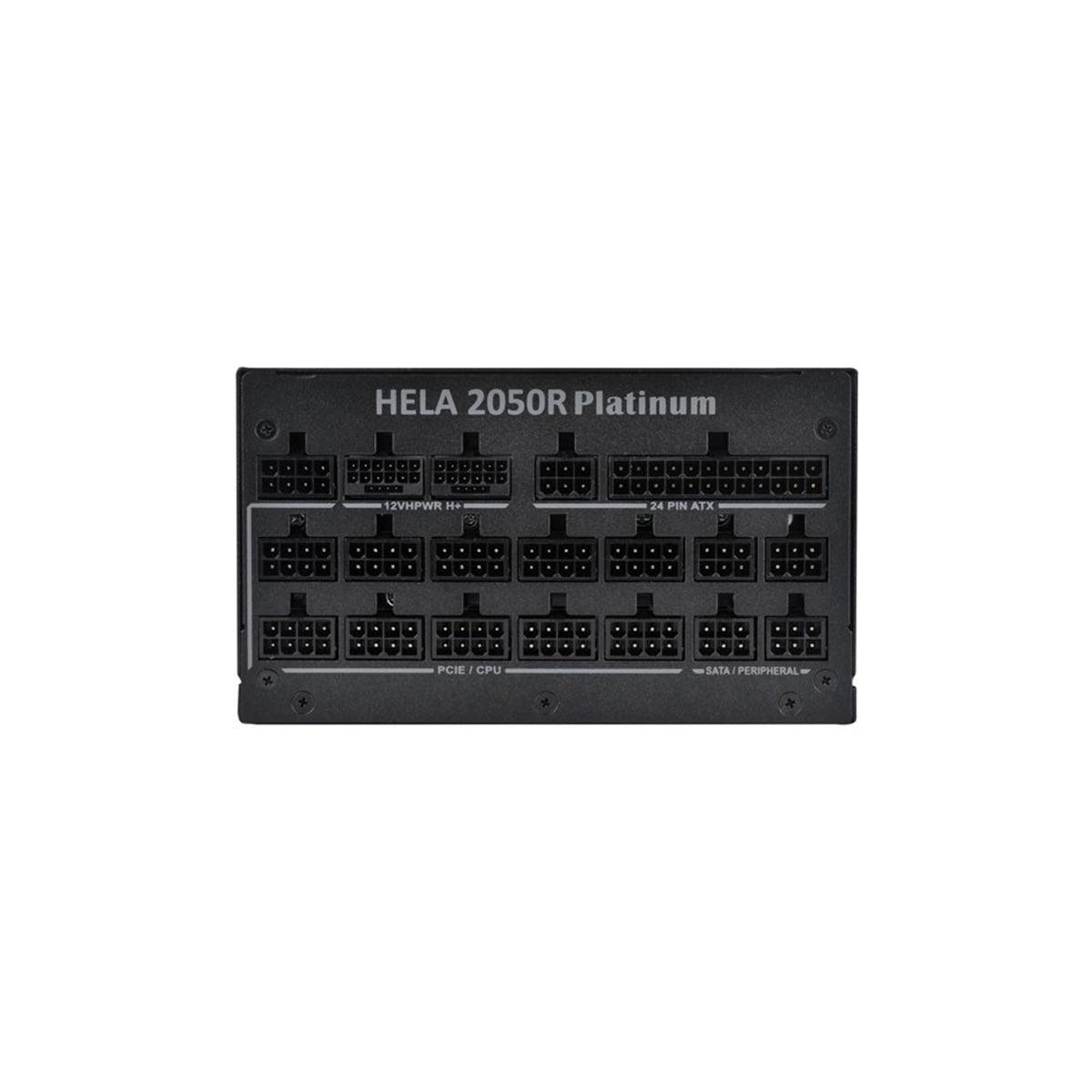

| Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 14 x 8 / 6-Pin PCIe connectors 3 x 12+4-Pin 12VHPWR connector 12 x SATA connector 3 x 4-Pin Peripheral connector 1 x 4-Pin Floppy adapter connector |
| Cooling System | 135mm dual-ball bearing fan |
| Noise Level | 0 dBA minimum |
| Certification | Cybenetics Platinum |
| Form factor | ATX (PS2) |
| Dimension | 150mm (W) x 86mm (H) x 180mm (D) 5.91" (W) x 3.39" (H) x 7.09" (D) |
| Weight | 4.34 kg |

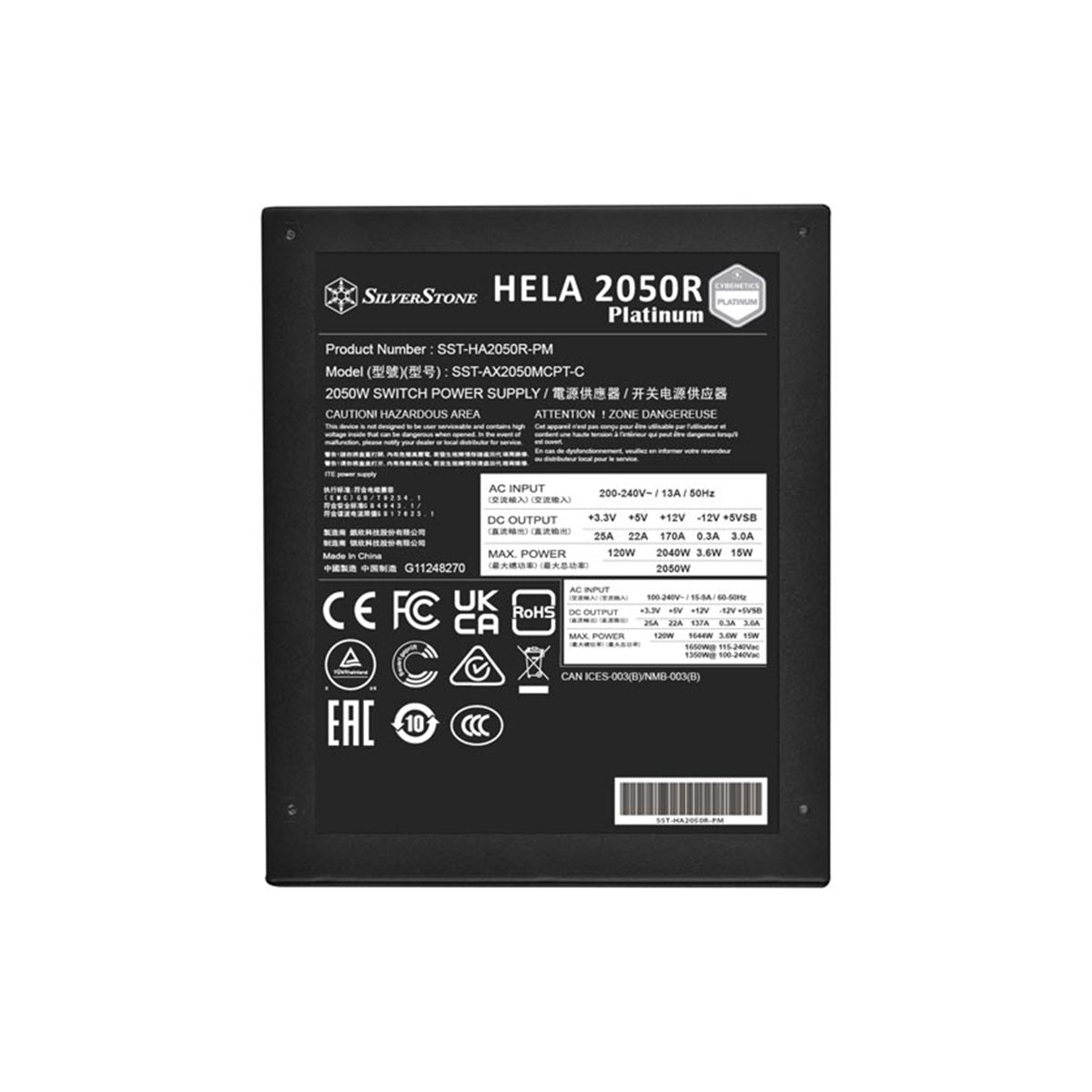

| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max. (Amps) | 25A | 22A | 170A | 3.0A | 0.3A |
| Min. (Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | ±3% | ±5% | ±5% |
| Line Reg. (%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple (mVp-p) | 30mV | 30mV | 60mV | 30mV | 60mV |
