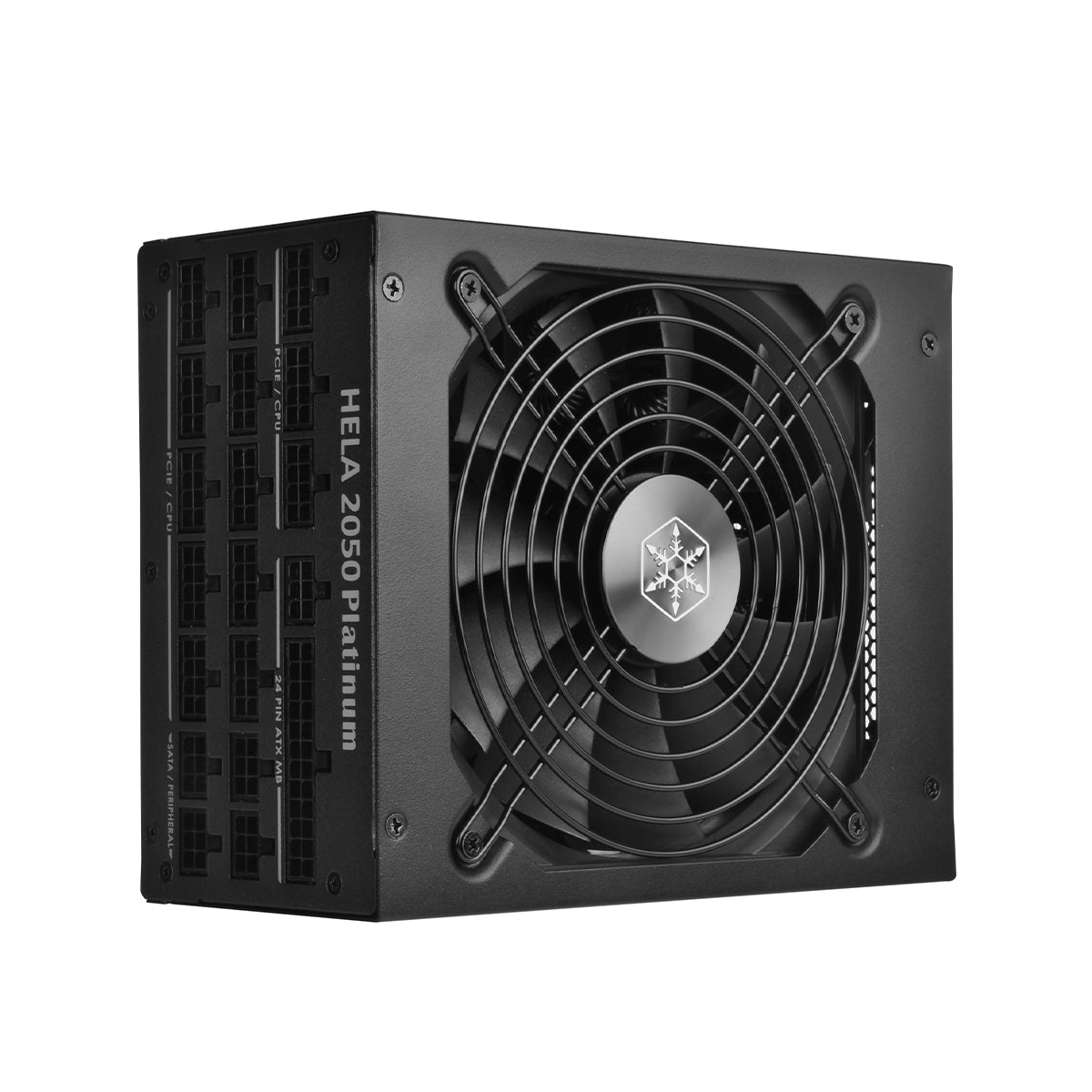

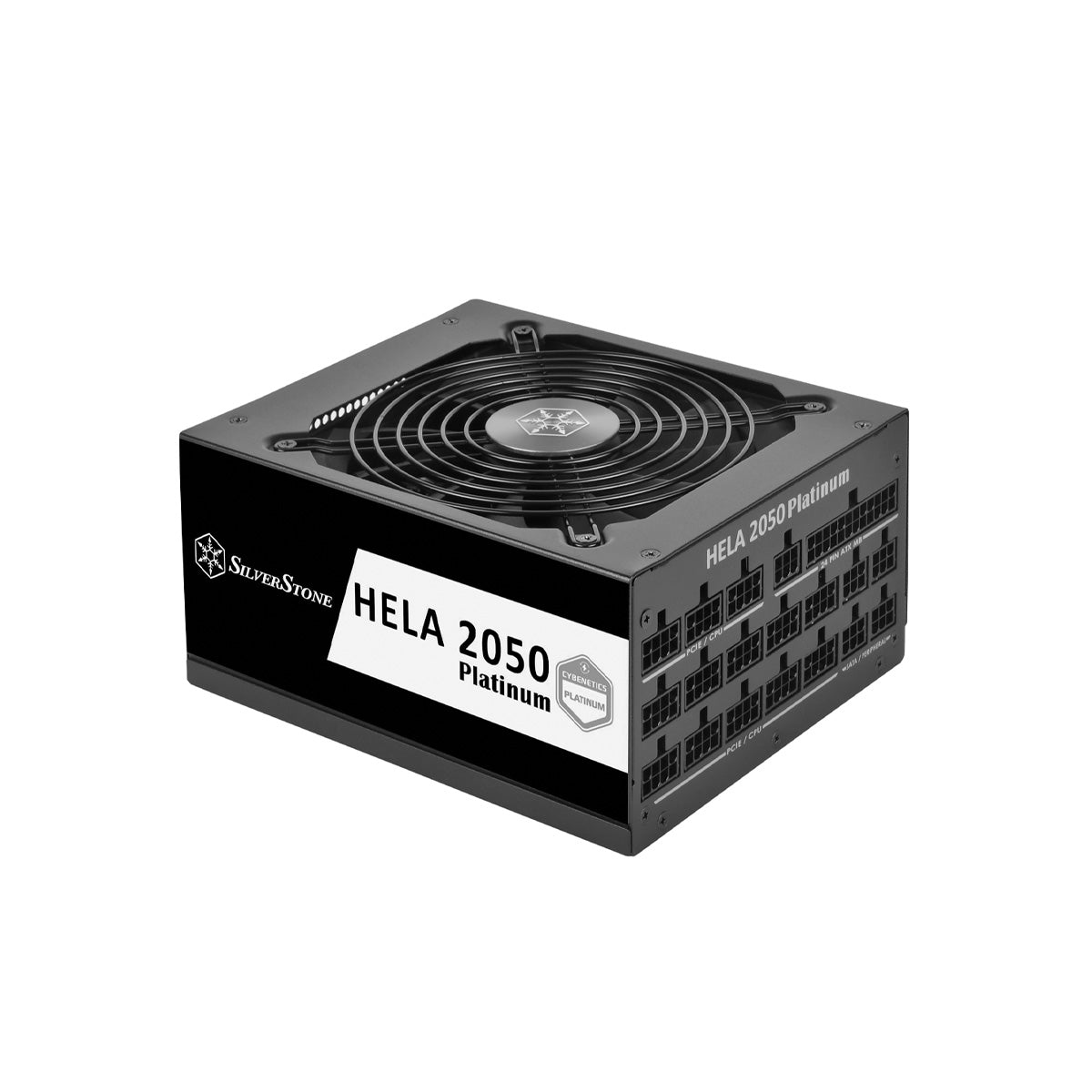

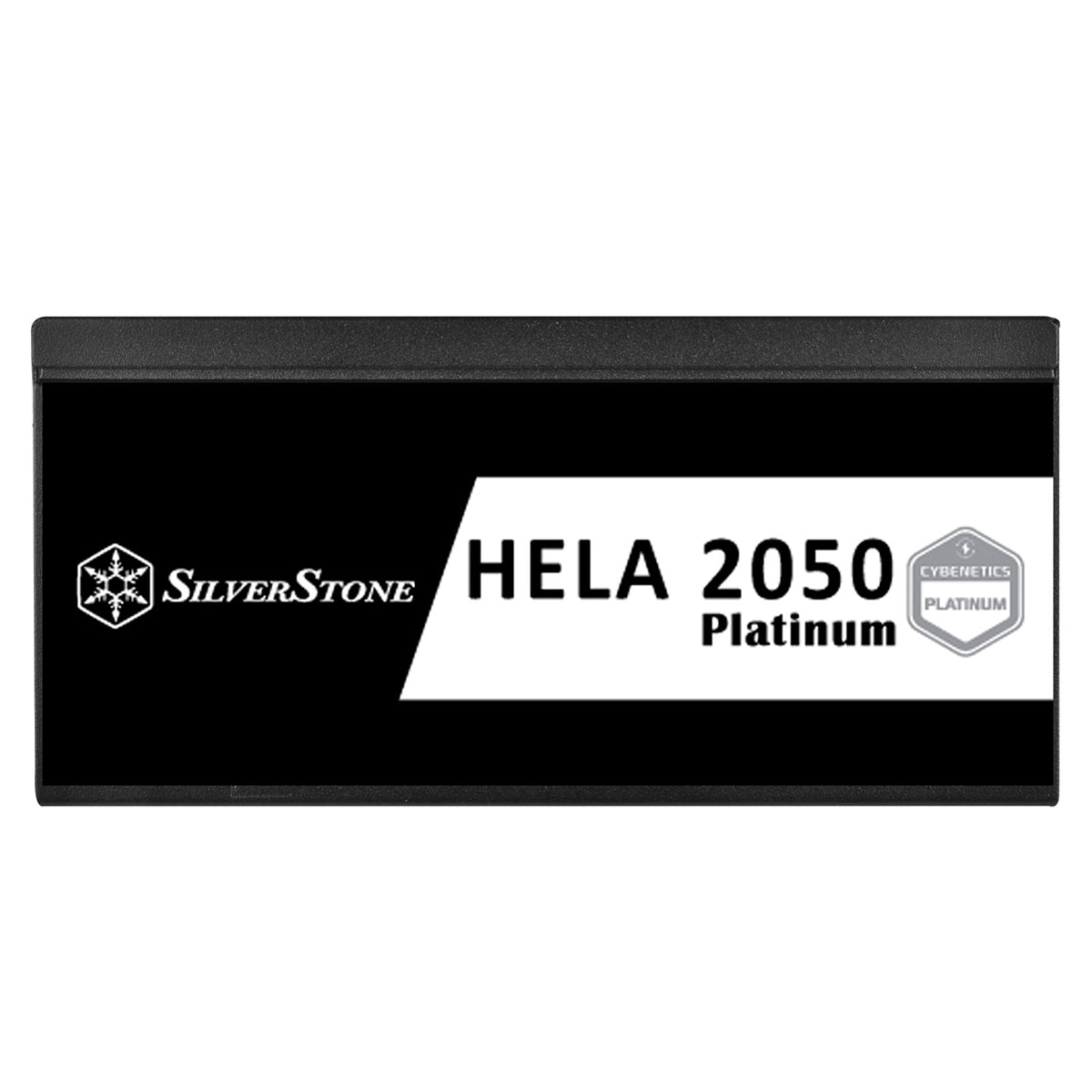

Silverstone HELA 2050 Platinum 2050W Fully Modular Power Supply
Warranty and Support
Warranty and Support
Warranty: 5 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Cybenetics Platinum 2050W fully modular ATX power supply
- Compact and high density design with a depth of 180mm for easy integration
- Intel ATX12V 2.52 support
- Built-in MCU semi-fanless mode to achieve optimized cooling performance
- 2050W 24/7 continuous power output with 50℃ operating temperature
- Super flexible black flat cables
- 100% modular cables
- 12-Pin GPU connector support
Designed for Cybenetics Platinum level of efficiency to reduce wasted heat and save on electricity
180mm depth sets new standard for high wattage PSUs with modular cables
Complies with Intel ATX12V V2.52 power supply design guide to support the latest Intel / AMD CPUs with stable and plentiful power to your system

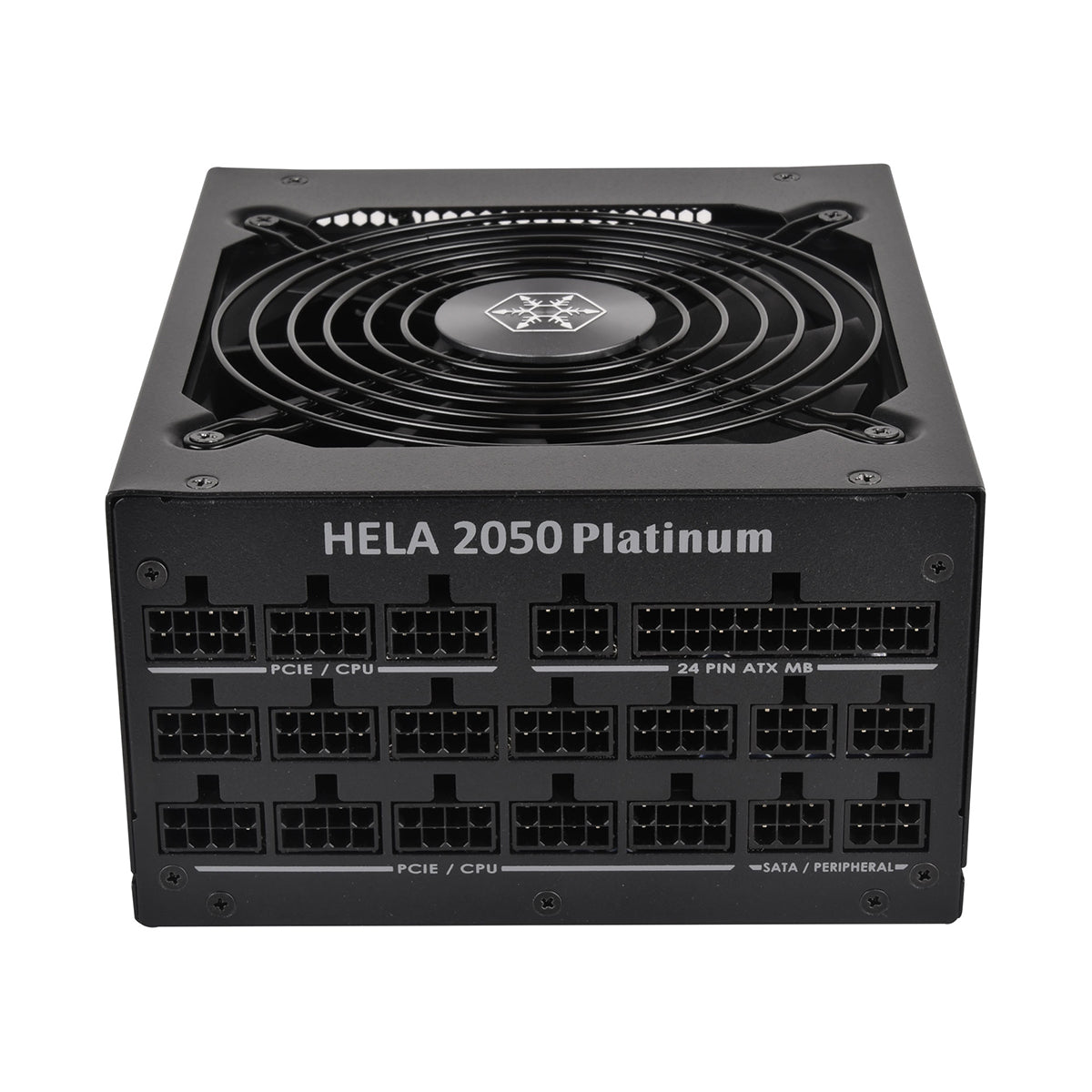

Fully modular design with universal EPS / PCIe connector interface. Flat cables have much greater flexibility to allow for tighter folding and management of cable
Japanese electrolytic capacitors / ±3% regulation and low ripple & noise performance for high stability
A built-in intelligent fan controller (microcontroller unit, MCU) enables the HELA 2050 Platinum to operate quietly during idle or low powered computing activities while ramping up for maximum cooling during stress and max loads
12-Pin GPU connector support
Specifications
Specifications
| Product No. | SST-HA2050-PT |
| Model (safety certification) | SST-AX2050MCPT-A |
| Color | Black (lead-free paint) |
| Max. DC Output | 2050W |
| Power density | 882W per liter |
| Load Range | |
| Output | |
| +3.3V | 25A |
| +5V | 22A |
| +12V | 170A |
| +5VSB | 3.0A |
| -12V | 0.3A |
| Max.(Amps) | |
| 25A | |
| 22A | |
| 170A | |
| 3.0A | |
| 0.3A | |
| Min.(Amps) | |
| 0.0A | |
| 0.0A | |
| 0.0A | |
| 0.0A | |
| 0.0A | |
| Range (%) | |
| ±3% | |
| ±3% | |
| ±3% | |
| ±5% | |
| ±5% | |
| Line Reg.(%) | |
| ±1% | |
| ±1% | |
| ±1% | |
| ±1% | |
| ±1% | |
| Ripple(mVp-p) | |
| 30mV | |
| 30mV | |
| 60mV | |
| 30mV | |
| 60mV | |
| Combined +3.3V & +5V | 120W |
| Combined +12V | 2040W |
| Input Voltage | 2050W: 200~240 Vrms | 1650W: 103 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC (PF>0.95 at full load) |
| Efficiency | ≥89% & <91% overall efficiency |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 50°C |
| Protection | Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection |
| Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connectors 1 x 12-Pin GPU connector 18 x 8 / 6-Pin PCIe connectors 12 x SATA connectors 3 x 4-Pin Peripheral connectors 1 x 4-Pin Floppy connector |
| Cooling System | 135mm dual ball bearing fan |
| Noise Level | 0 dBA minimum |
| Certification | Cybenetics Platinum |
| Form factor | ATX (PS2) |
| Dimension | 150 mm (W) x 86 mm (H) x 180 mm (D) |
| Weight | 4.34 kg |
