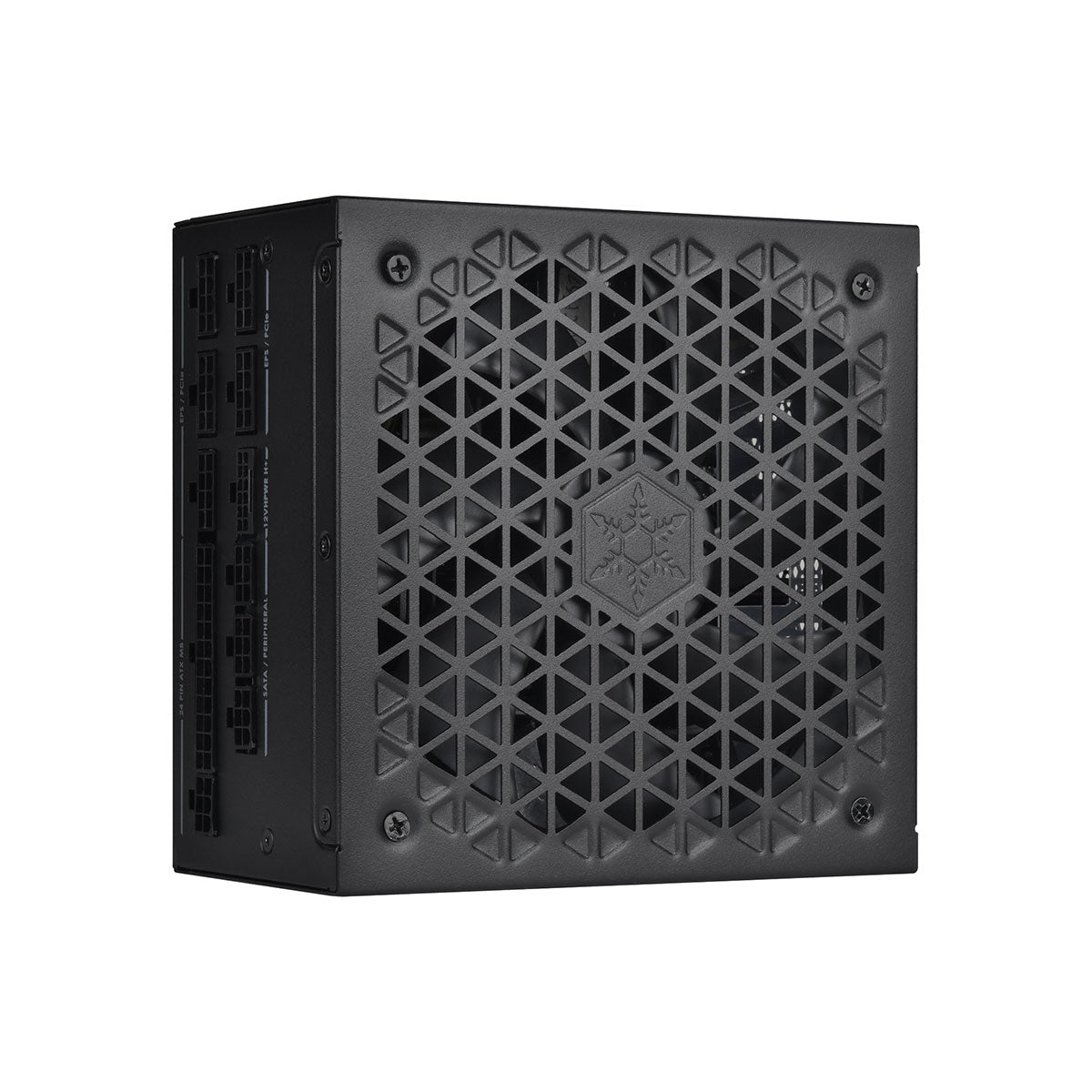

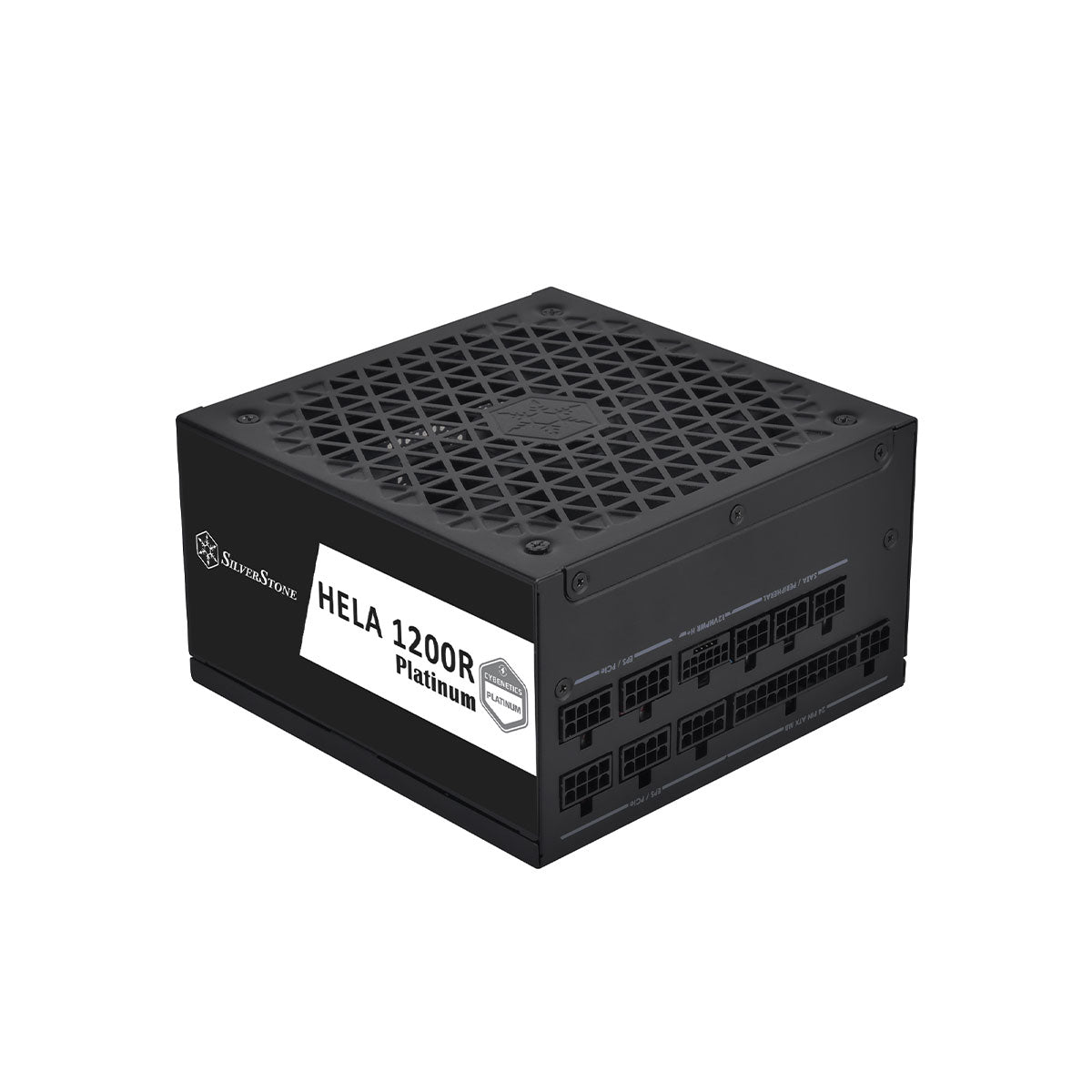

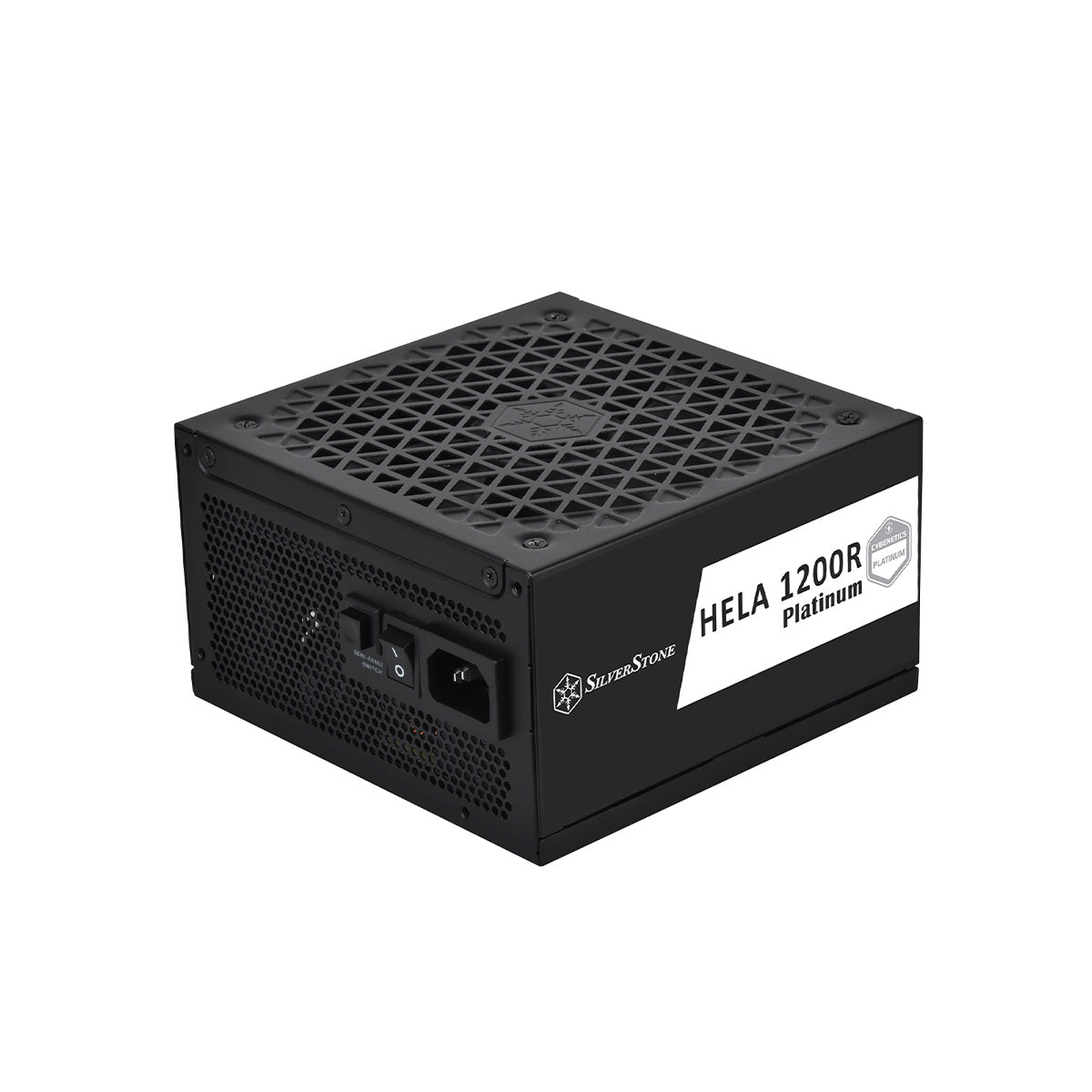

Silverstone HA1200R Fully Modular Cybernetics Platinum Power Supply

ATX 3.0 PCIe 5.0 | Ultra silent

Silverstone  |  SKU 46323  |  MPN SST-HA1200R-PM
$399.00 $449.00

In stock at Computer Lounge

Warranty and Support

Warranty: 1 Year Return to Base Warranty

Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.

Delivery and Shipping

All deliveries are signature required.

North Island: 1 – 2 working days
South Island: 2 – 3 working days

Please allow an additional 1 – 2 working days for delivery to rural addresses.

Buy Now, Pay Later & Finance Options:

Description

HELA 1200R Platinum

Cybenetics Platinum 1200W ATX 3.0 & PCIe 5.0 Fully Modular ATX Power Supply


12VHPWR PCIe connector supports ATX 3.0 specifications

The 12+4 pin (12VHPWR) design is capable of withstanding power failure caused by a running graphics card’s instantaneous peak power consumption, whilst providing higher stability and efficiency power output for high-end systems


Cybenetics Platinum Certified

Designed for Cybenetics Platinum level of efficiency to reduce wasted heat and save on electricity

Fully modular design with universal EPS / PCIe connector interface
Flat cables have much greater flexibility to allow for tighter folding and management of cable
All Japanese electrolytic capacitors
Ensure reliable power and extended life span

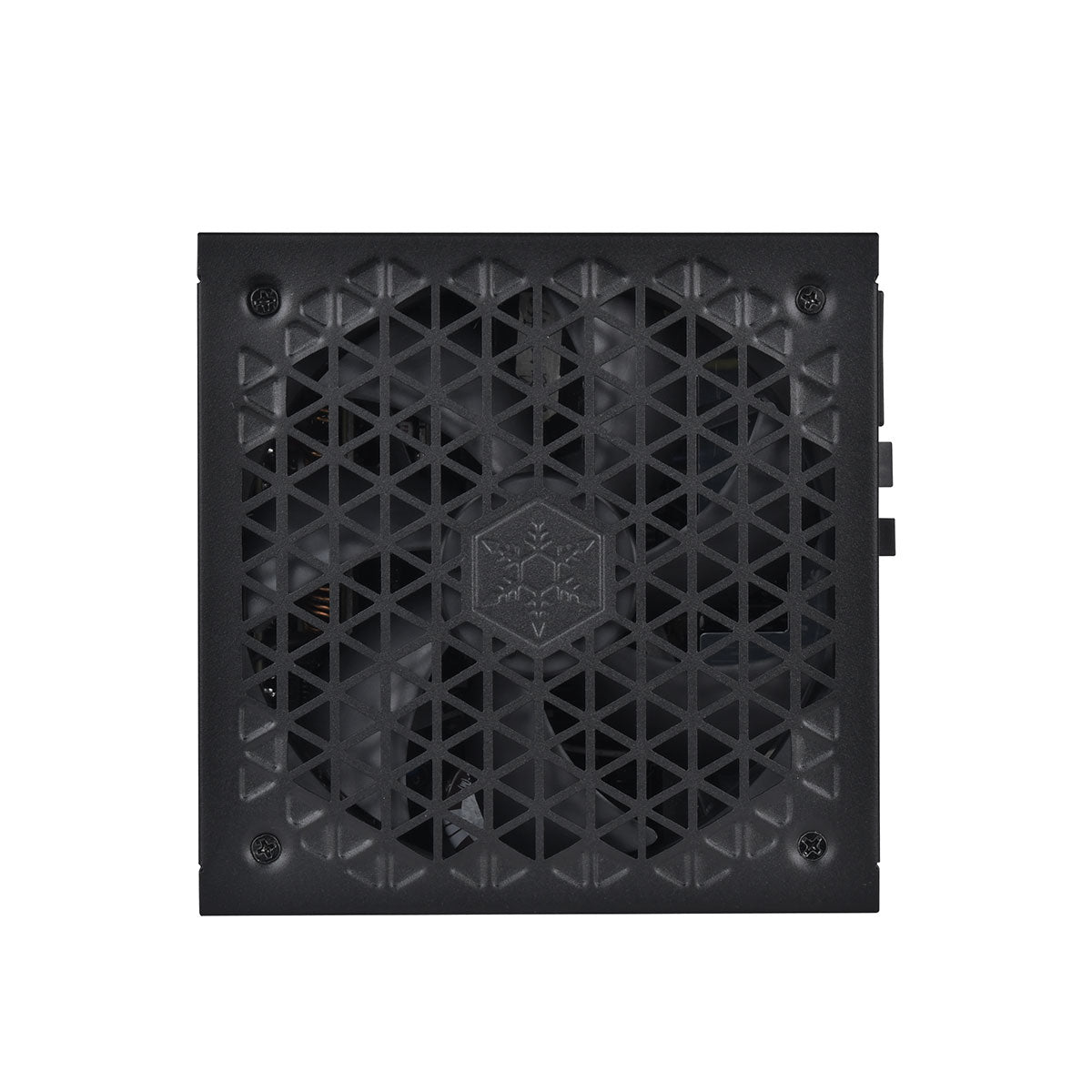

Silent 135mm FDB fan
Built-in 135 mm fan has excellent airflow and low noise, perfect for quiet home or office us

Advanced protections for safety and security
  • Over current protection
  • Over power protection
  • Over voltage protection
  • Short circuit protection
  • Under voltage protection
  • Over temperature protection

Specifications

Product No.SST-HA1200R-PM
Model (safety certification)SST-AX1200MCPT-A
ColorBlack (lead-free paint)
Max. DC Output1200W
Power density620W per liter
Load Range
Output
+3.3V22A (±3%, ±1%, 30mVp-p)
+5V22A (±3%, ±1%, 30mVp-p)
+12V100A (+5/-7%, ±1%, 70mVp-p)
+5VSB2.5A (±5%, ±1%, 40mVp-p)
-12V0.3A (±5%, ±1%, 40mVp-p)
Combined +3.3V & +5V120W
Combined +12V1200W
Input Voltage90 ~ 264 Vrms
Input Frequency Range47Hz ~ 63Hz
PFCActive PFC (PF>0.9 at full load)
Efficiency≥87% & <89% overall efficiency
MTBF100,000 hours
Operating temperature0°C ~ 50°C
ProtectionOver Current Protection, Over Power Protection, Over Voltage Protection, Short Circuit Protection, Under Voltage Protection, Over Temperature Protection, No load operation

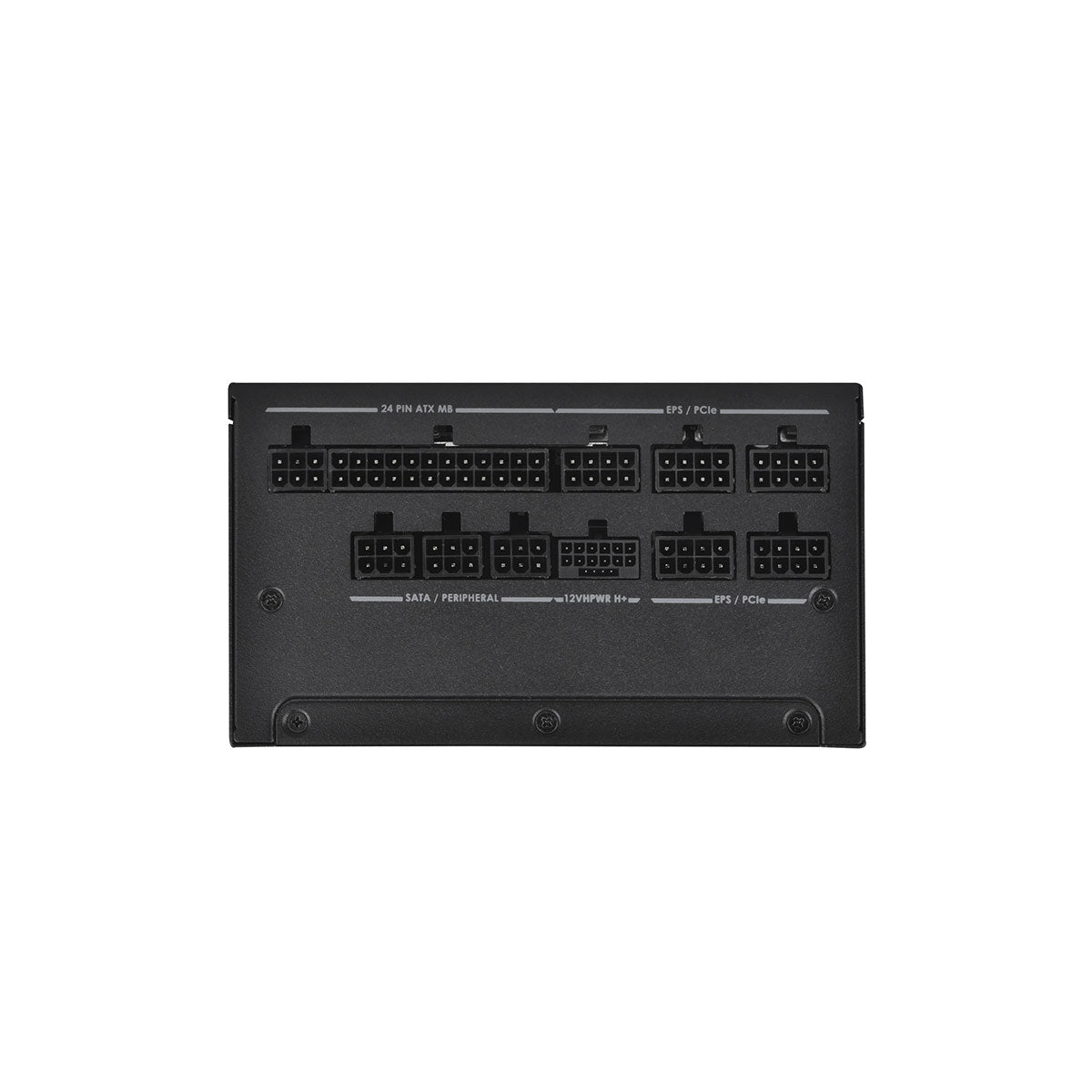

Connectors1 x 24 / 20-Pin motherboard connector, 2 x 8 / 4-Pin EPS / ATX 12V connector, 6 x 8 / 6-Pin PCIe connectors, 1 x 12+4-Pin 12VHPWR connector, 12 x SATA connectors, 3 x 4-Pin Peripheral connector, 1 x 4-Pin Floppy connector
Cooling SystemSilent 135mm FDB fan
Noise Level0 dBA minimum
CertificationCybenetics Platinum
Form factorATX (PS2)
Dimension150mm (W) × 86mm (H) × 150mm (D) / 5.91" (W) x 3.39" (H) x 5.91" (D)
Weight2.9 kg
OtherGPU Support list
