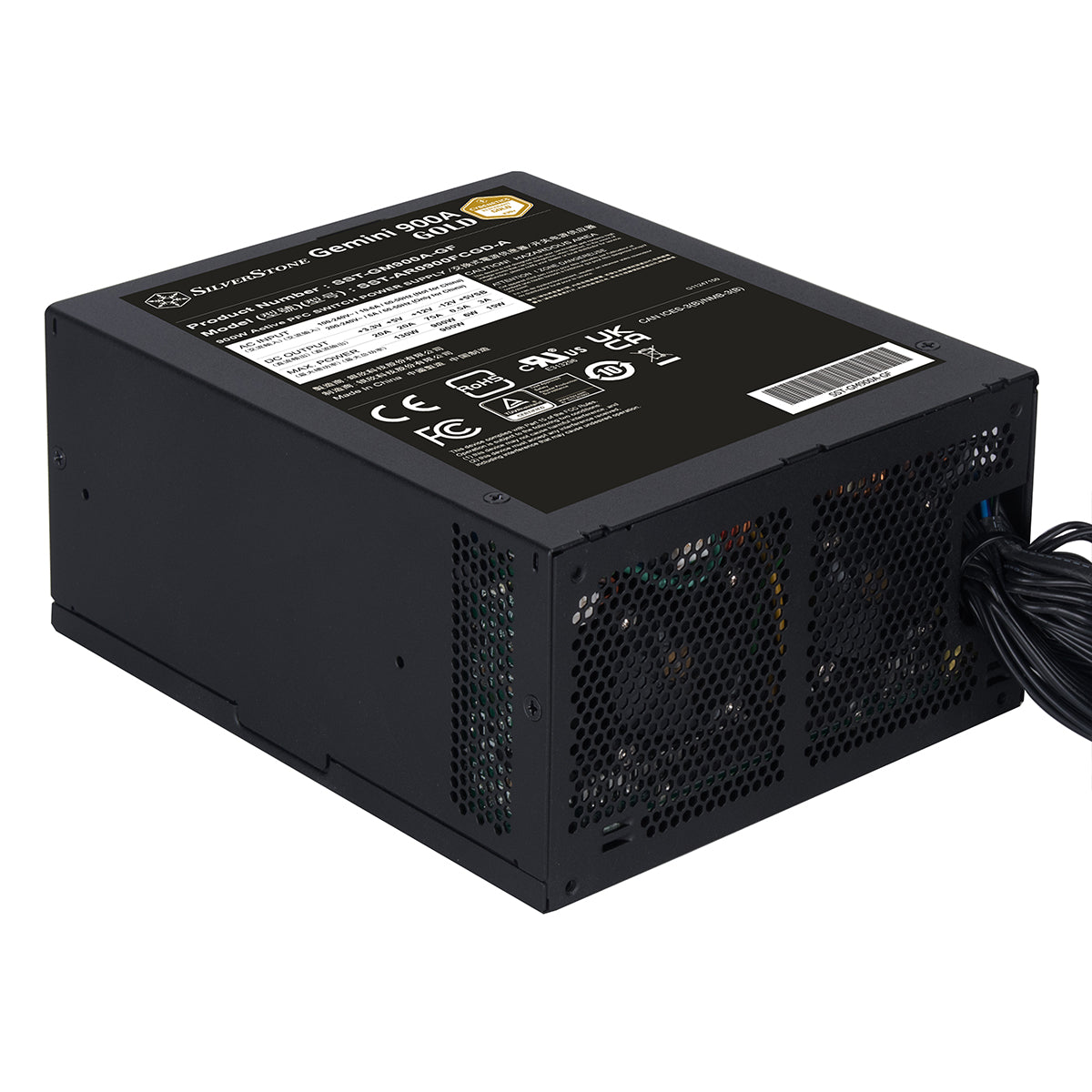

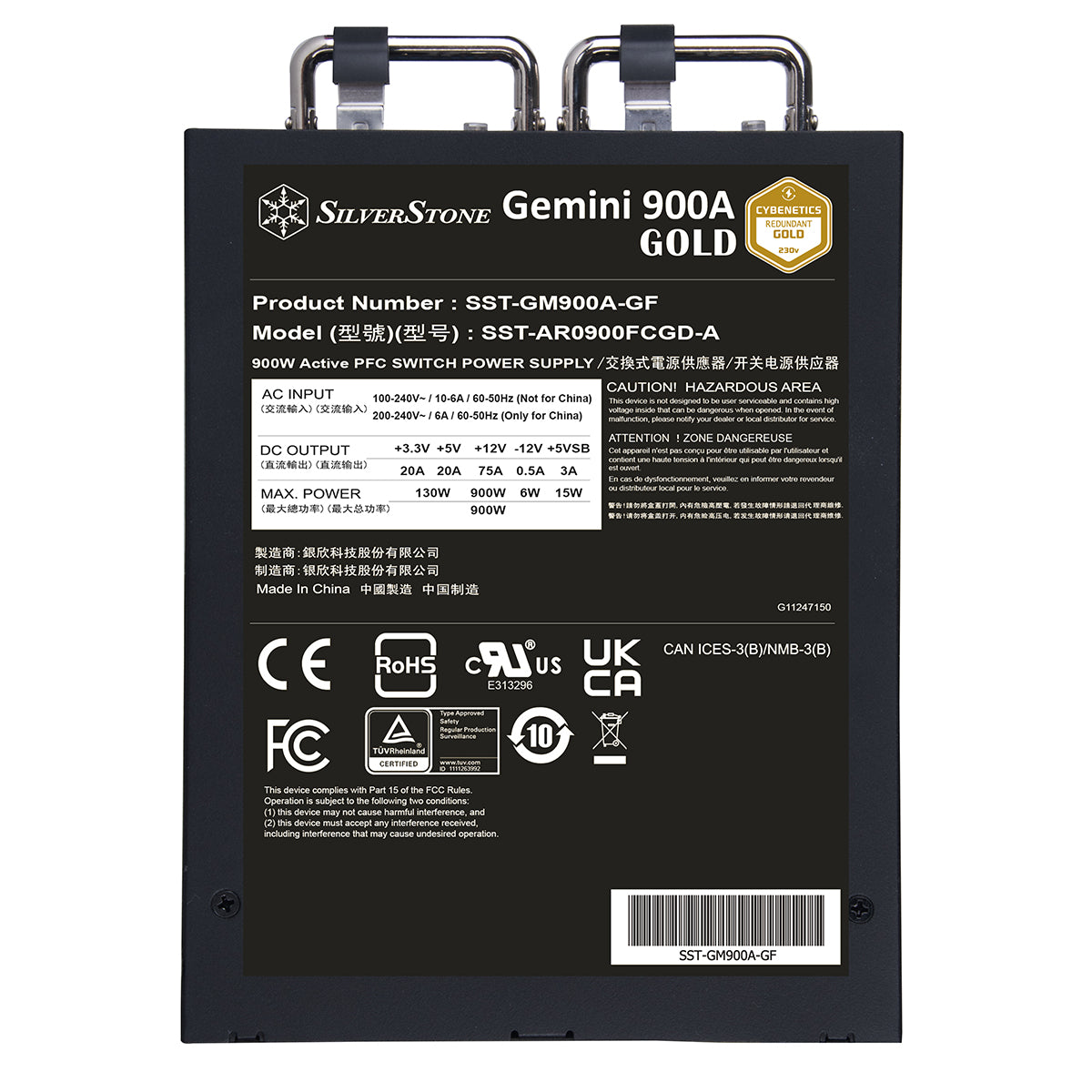

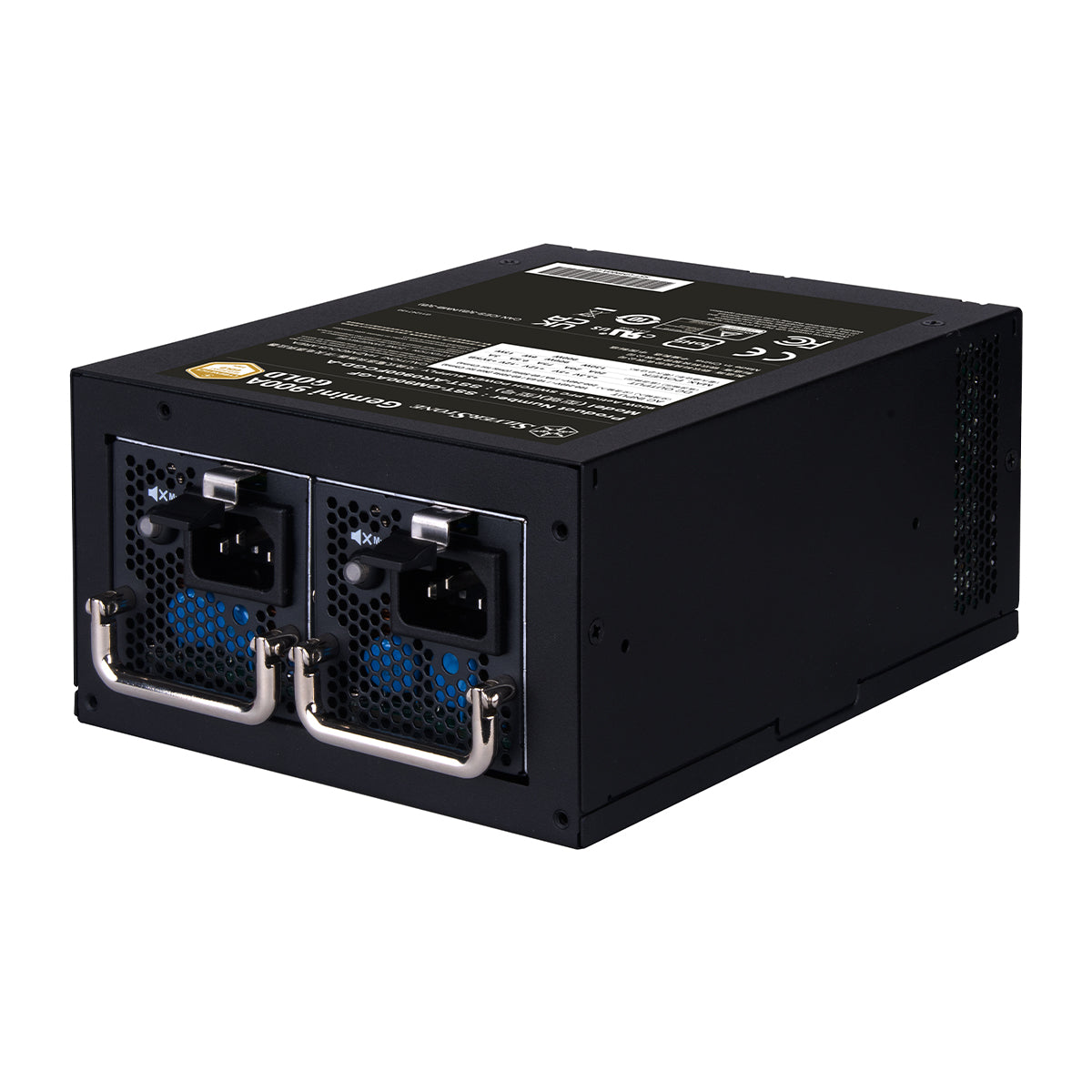

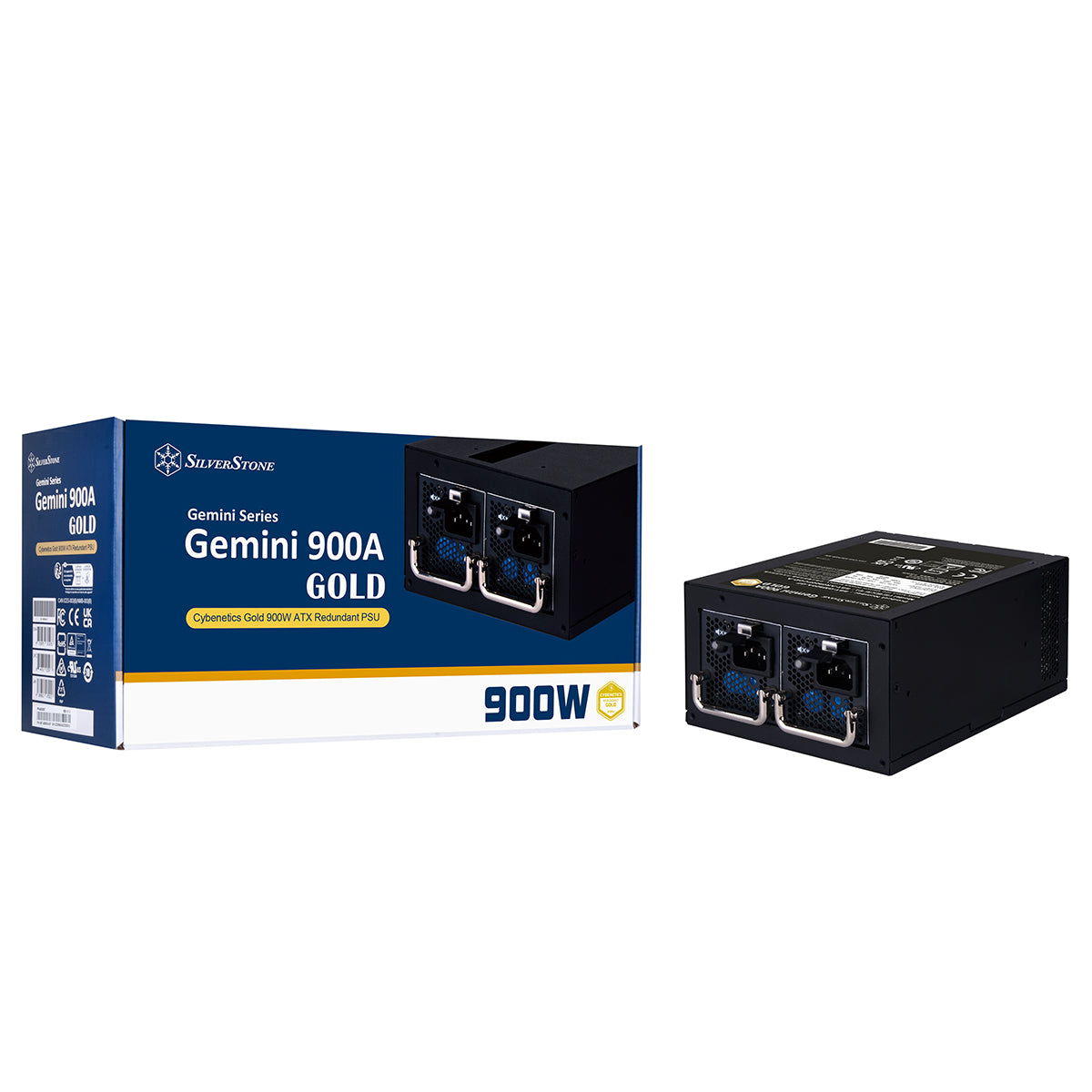

Silverstone Gemini 900A Gold ATX Redundant Power Supply
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Gemini 900A Gold
- 900W+900W 24-hour and well-working performance at 50°C fully continuous power output
- ATX form factor
- Cybenetics Gold Certification
- 1+1 ATX redundant configuration
- All Japanese electrolytic capacitors
- Hot swappable design
- Convenient pull-out handle bars
ATX form factor
Enables easy upgrade to desktop PCs, NAS/storage PCs, and workstations into redundant systems
Cybenetics Gold Certified
Designed for Cybenetics Gold level of efficiency to reduce wasted heat and save on electricity
Powerful single +12V rail design
Perfect for future high-end component upgrades or overclocking
Specifications
Specifications
| Product No. | SST-GM900A-GF | ||||||||||||||||||||||||||||||||||||
| Model (safety certification) | SST-AR0900FCGD-A | ||||||||||||||||||||||||||||||||||||
| Color | Black | ||||||||||||||||||||||||||||||||||||
| Max. DC Output | 900W | ||||||||||||||||||||||||||||||||||||
| Power density | 918W per liter | ||||||||||||||||||||||||||||||||||||
| Load Range |
|
||||||||||||||||||||||||||||||||||||
| Combined +3.3V & +5V | 130W | ||||||||||||||||||||||||||||||||||||
| Combined +12V | 900W | ||||||||||||||||||||||||||||||||||||
| Input Voltage | 90 ~ 264 Vrms | ||||||||||||||||||||||||||||||||||||
| Input Frequency Range | 47Hz ~ 63Hz | ||||||||||||||||||||||||||||||||||||
| PFC | Active PFC (PF>0.9 at full load) | ||||||||||||||||||||||||||||||||||||
| Efficiency | ≥89% & <91% overall efficiency | ||||||||||||||||||||||||||||||||||||
| MTBF | 100,000 hours | ||||||||||||||||||||||||||||||||||||
| Operating temperature | 0°C ~ 50°C | ||||||||||||||||||||||||||||||||||||
| Protection | Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Under Voltage Protection Over Temperature Protection |
||||||||||||||||||||||||||||||||||||
| Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connectors 4 x 8 / 6-Pin PCIe connectors 3 x SATA connectors 9 x 4-Pin Peripheral connectors 1 x 9-Pin USB connector |
||||||||||||||||||||||||||||||||||||
| Cooling System | 40mm DC fans | ||||||||||||||||||||||||||||||||||||
| Noise Level | 72 dBA maximum | ||||||||||||||||||||||||||||||||||||
| LED Indicator | Modular Status Indicator No AC power to all PSU: OFF AC present / only standby output on: Green blinking Power supply DC output ON and OK: Solid green Power supply failure: Solid red |
||||||||||||||||||||||||||||||||||||
| Certification | Cybenetics Gold | ||||||||||||||||||||||||||||||||||||
| Form factor | 1+1 ATX redundant | ||||||||||||||||||||||||||||||||||||
| Dimension | 150mm (W) x 86mm (H) x 201mm (D) (Housing with bracket, without handle) 150mm (W) x 86mm (H) x 190mm (D) (Housing without bracket) 140mm (W) x 40mm (H) x 175mm (D) (Module only without handle) |
||||||||||||||||||||||||||||||||||||
| Weight | 3.06 kg |
