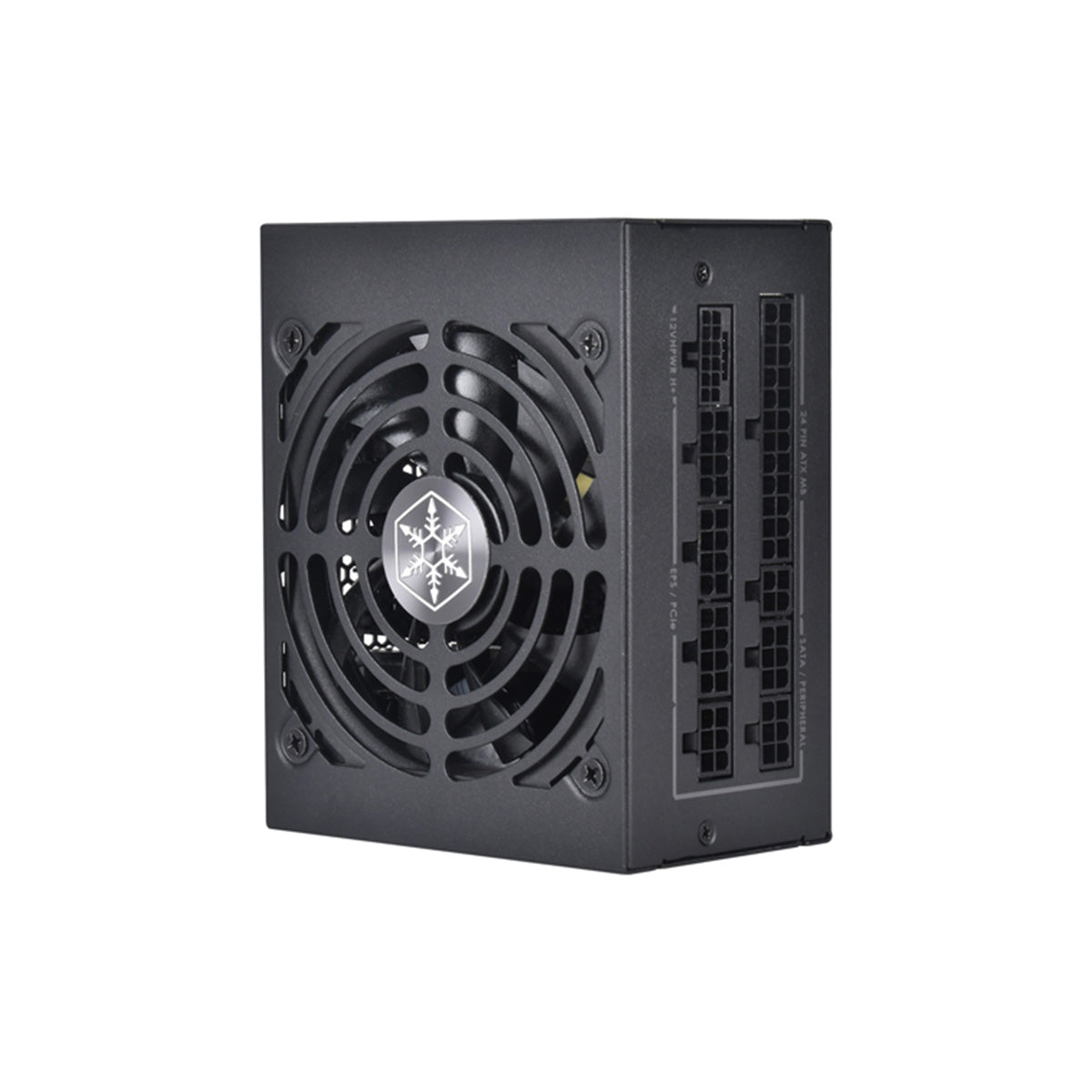

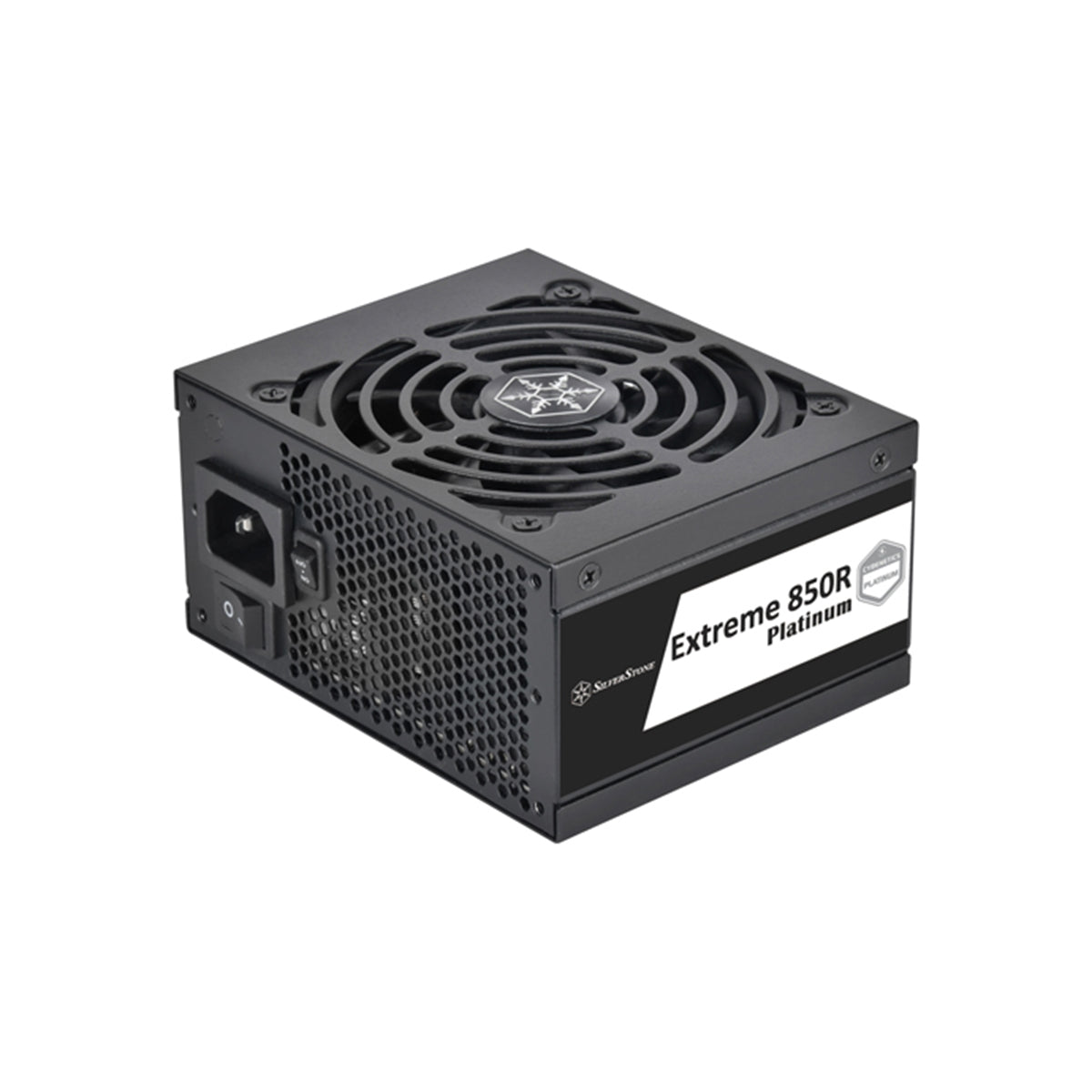

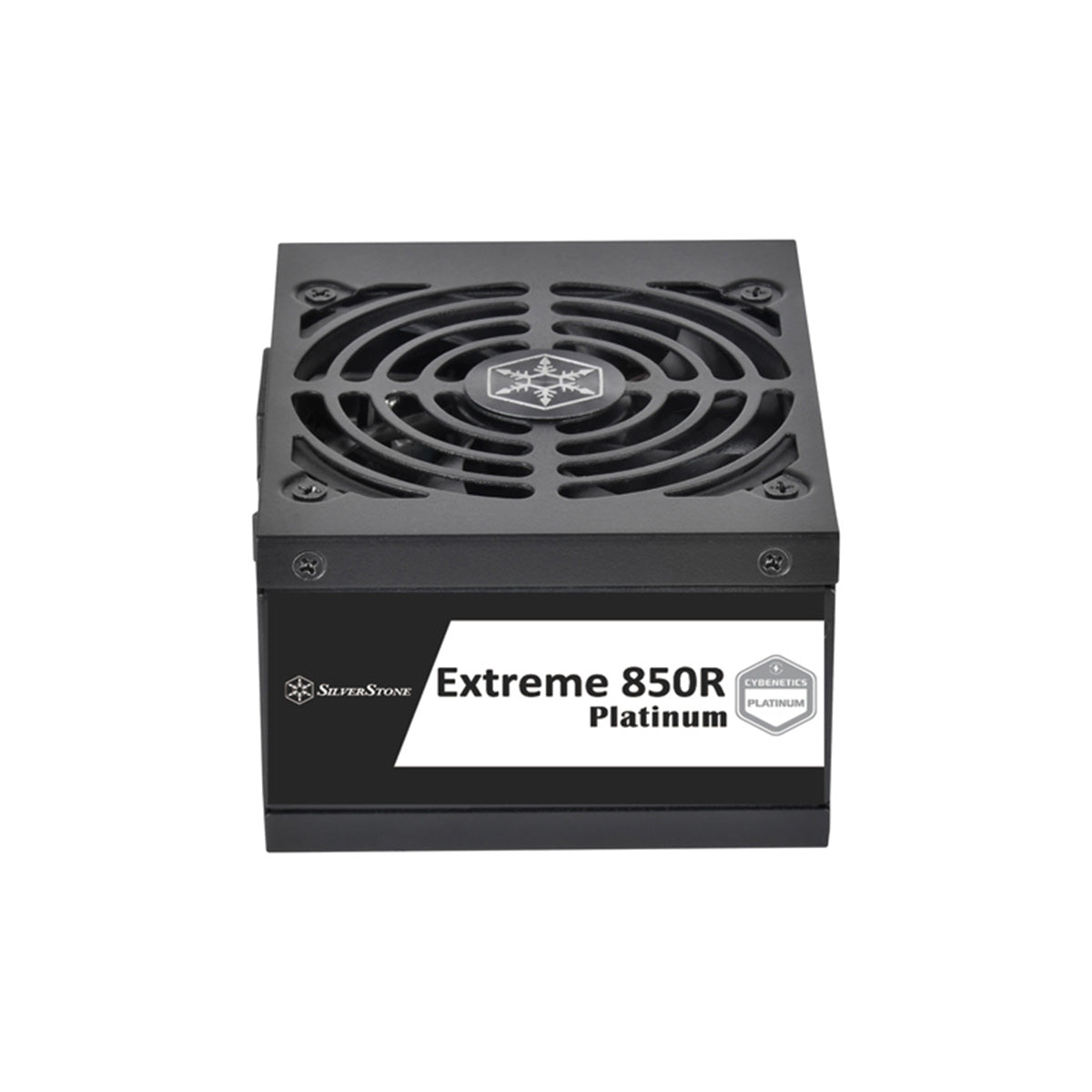

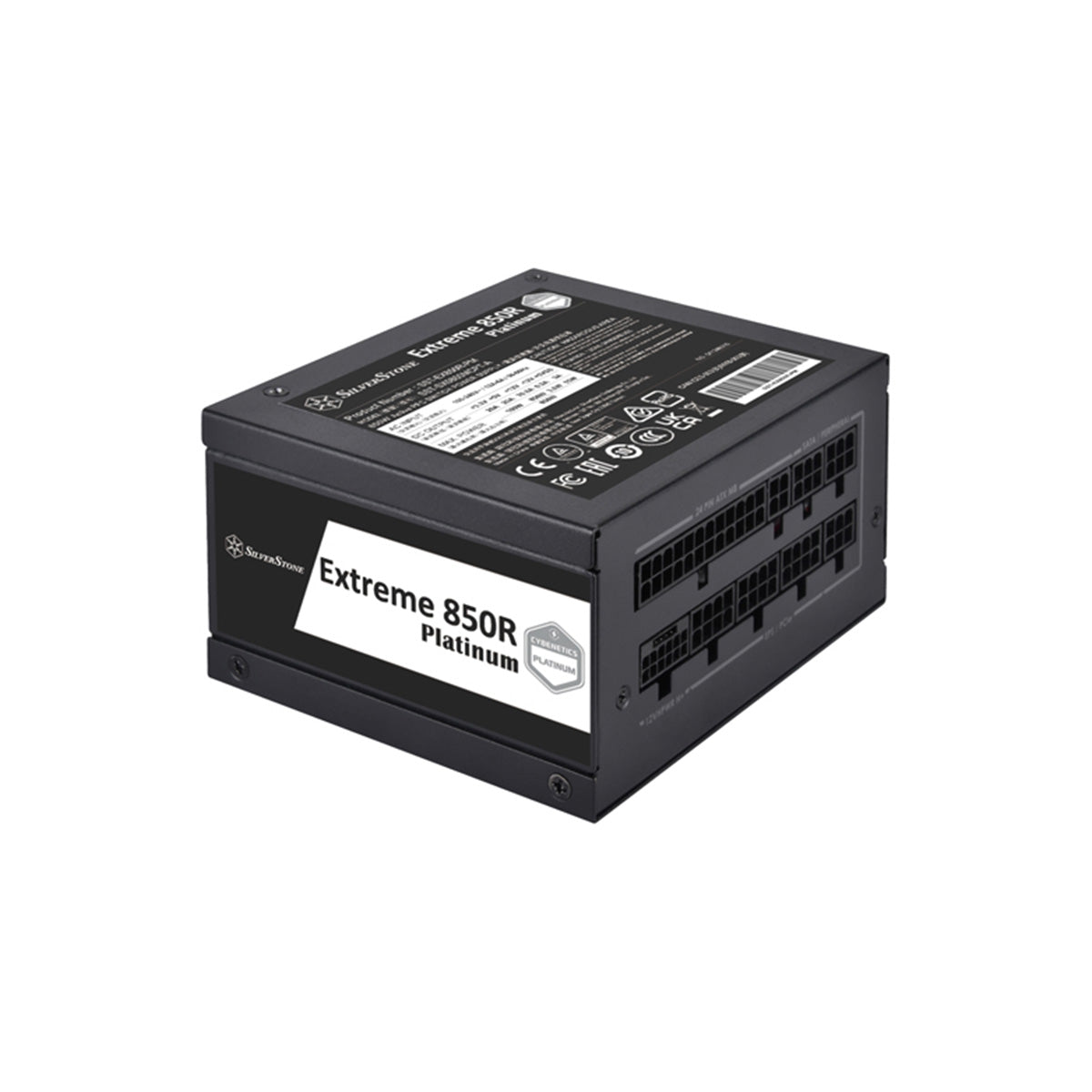

Silverstone EX850R Cybenetics Platinum 850W Fully Modular SFX Power Supply
PCIe 5.0 | 12VHPWR connector | Ultra silent
Silverstone
| SKU
46320
$309.00
$329.00
Unit price
/
Unavailable
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 7 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Extreme 850R Platinum - Cybenetics Platinum 850W SFX12V 4.0 & PCIe 5.0 Fully Modular SFX Power Supply
- Equipped with Gen5 12VHPWR PCIe connector, meeting Intel SFX 12V V4.0 specification standard
- Cybenetics Platinum efficiency certification
- 24/7 continuous power output with 50℃operating temperature
- Ultra-silent 92mm FDB fan with fan intelligent deactivates and delayed shut off function
- Flexible flat cables have much greater flexibility to allow for tighter folding
- Fully Modular design
- All Japanese electrolytic capacitors
- Advanced protections for safety and security
Specifications
Specifications
| Product No. | SST-EX850R-PM |
| Model (safety certification) | SST-SX0850MCPT-A |
| Color | Black (lead-free paint) |
| Max. DC Output | 850W |
| Power density | 1070W per liter |
| Load Range | |
| Output | |
| +3.3V | 20A (Max.), 0A (Min.), ±5% (Range), ±1% (Line Reg.), 40mVp-p (Ripple) |
| +5V | 20A (Max.), 0A (Min.), ±5% (Range), ±1% (Line Reg.), 40mVp-p (Ripple) |
| +12V | 70.8A (Max.), 0A (Min.), +5/-7% (Range), ±1% (Line Reg.), 80mVp-p (Ripple) |
| +5VSB | 3.0A (Max.), 0A (Min.), ±5% (Range), ±1% (Line Reg.), 40mVp-p (Ripple) |
| -12V | 0.3A (Max.), 0A (Min.), ±10% (Range), ±1% (Line Reg.), 80mVp-p (Ripple) |
| Combined +3.3V & +5V | 100W |
| Combined +12V | 850W |
| Input Voltage | 180 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC.（PF>0.9 at Full Load） |
| Efficiency | ≥89% & <91% overall efficiency |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 50°C |
| Protection | Over Current Protection, Over Power Protection, Over Voltage Protection, Short Circuit Protection, Over Temperature Protection, Under Voltage Protection, No load operation |

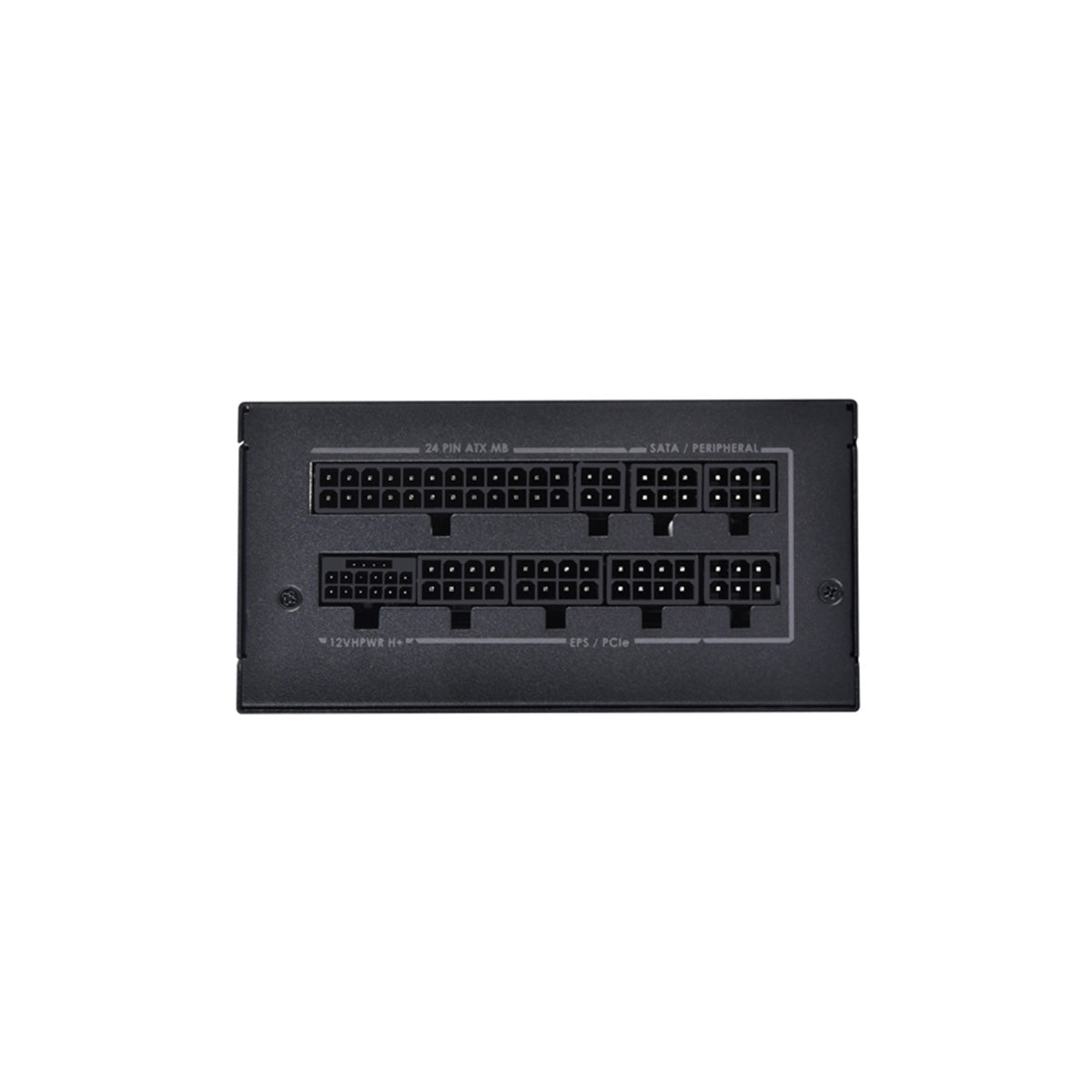

| Connectors | 1 x 24 / 20-Pin motherboard connector, 2 x 8 / 4-Pin EPS / ATX 12V connector, 2 x 8 / 6-Pin PCIe connectors, 1 x 12+4-Pin 12VHPWR connector, 8 x SATA connectors, 3 x 4-Pin Peripheral connector, 1 x 4-Pin Floppy connector |
| Cooling System | Silent 92mm FDB fan |
| Noise Level | 0 dBA minimum |
| Certification | Cybenetics Platinum |
| Form factor | SFX |
| Dimension | 125 mm (W) × 63.5 mm (H) × 100 mm (D) |
| Weight | 1.6kg |
| Other | GPU Support list |
