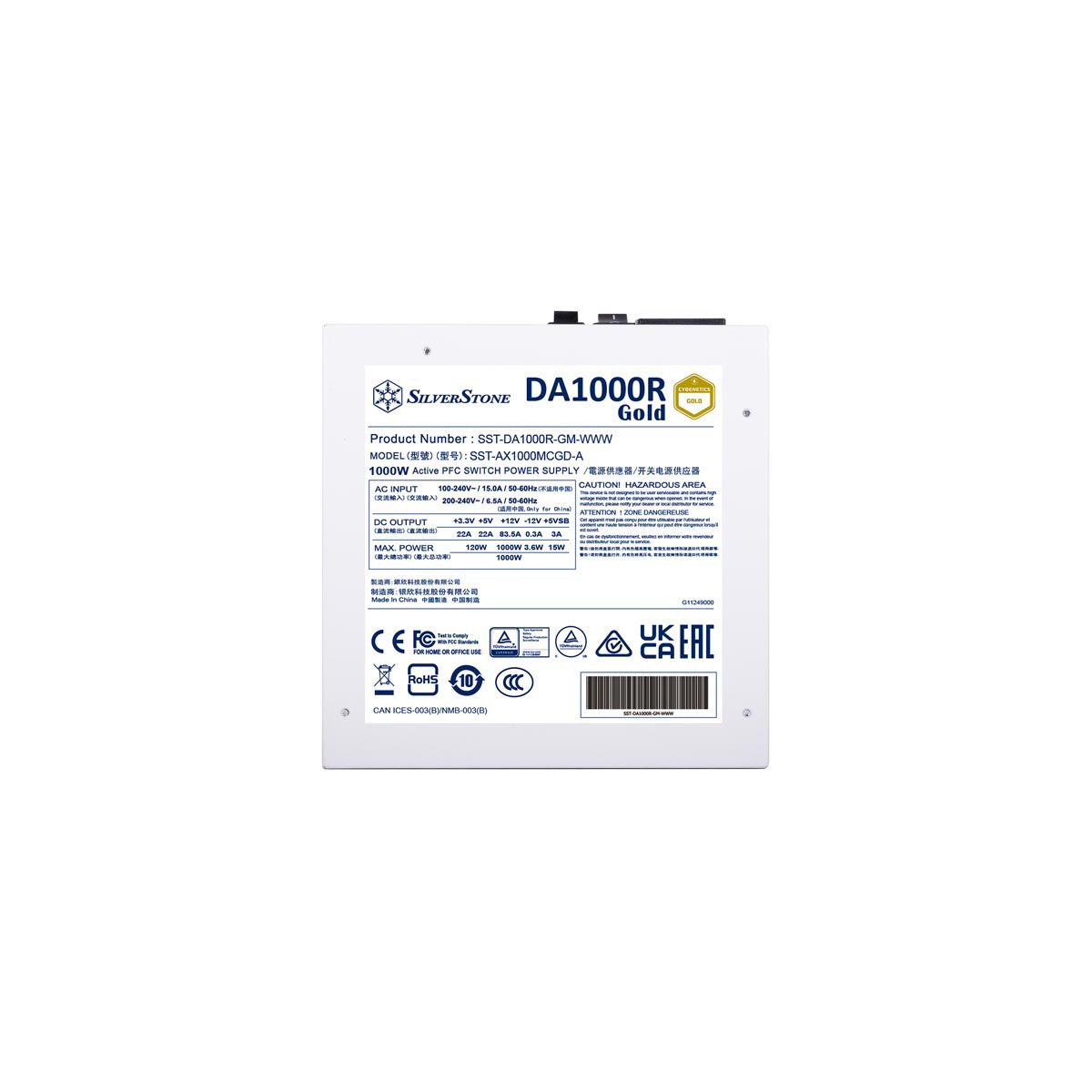

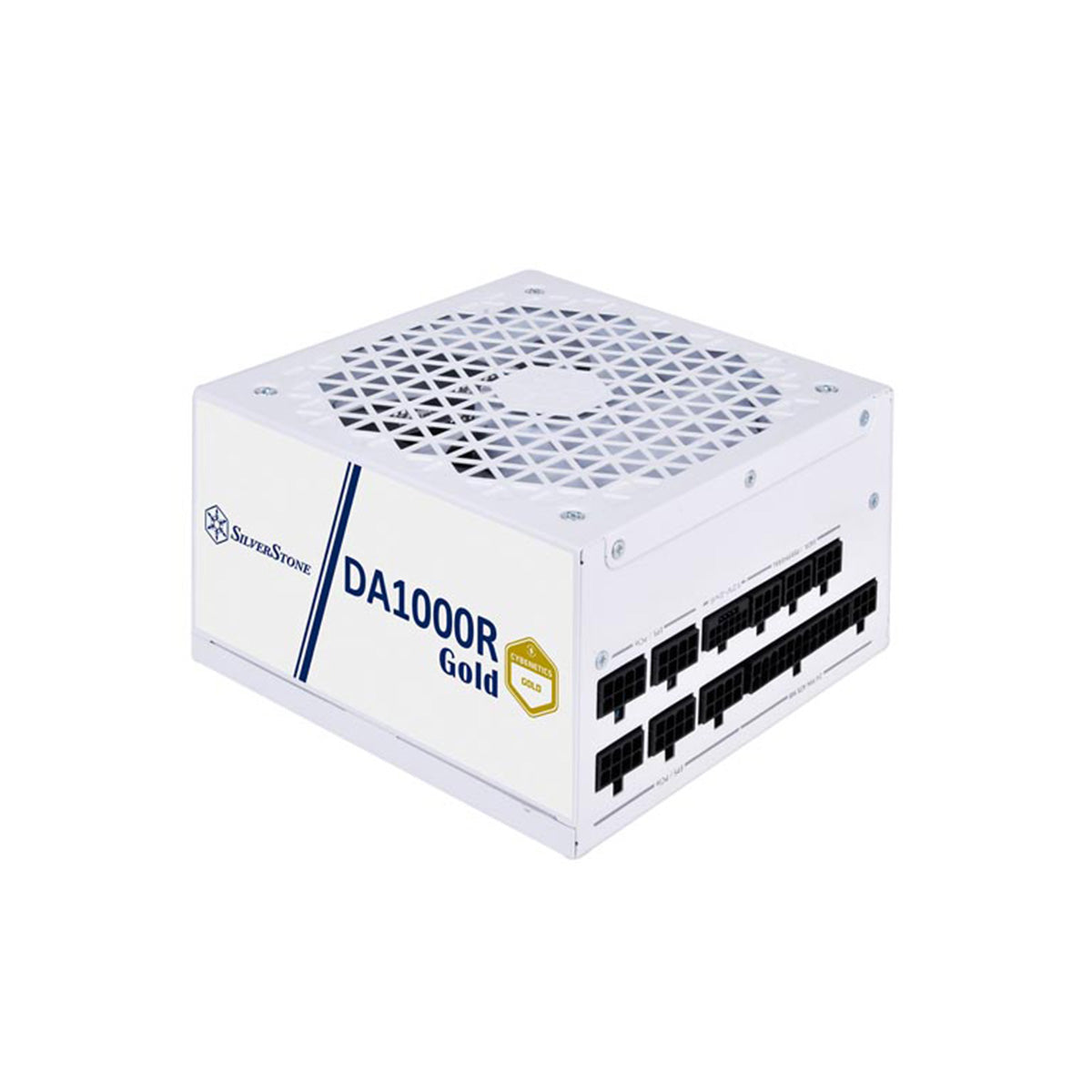

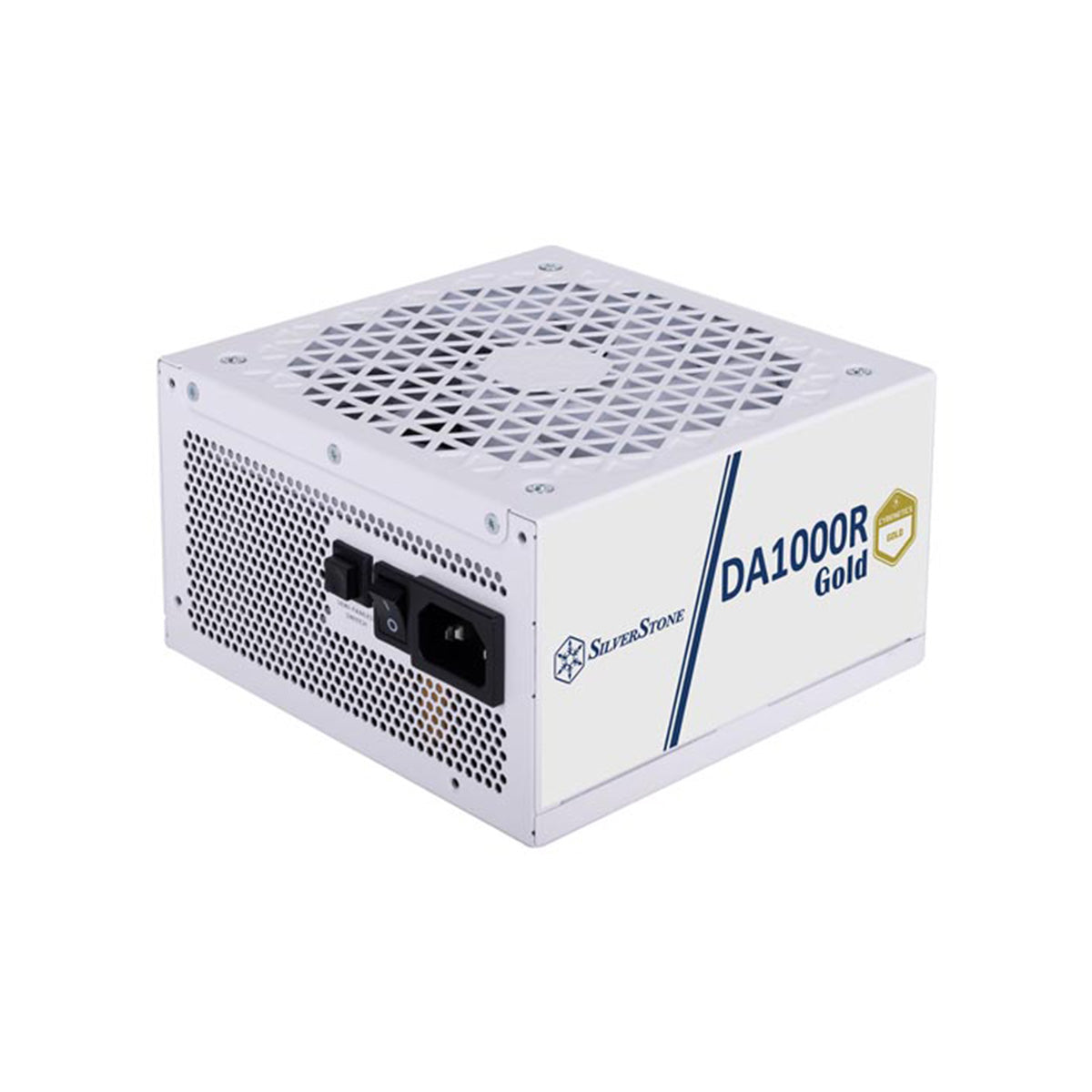

Silverstone DA1000R 1000W Fully Modular Gold Power Supply - White
Cybetnatics GOLD | All White Cables | ATX 3.0 PCIe 5.0 | 12VHPWR Connector | All Japanese capacitors
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
DA1000R Gold
Cybenetics Gold 1000W ATX 3.0 & PCIe 5.0 Fully Modular ATX Power Supply
- Equipped with Gen5 12VHPWR PCIe connector, meeting Intel ATX 3.0 specification standard
- Cybenetics Gold efficiency certification
- 24/7 continuous power output with 50℃operating temperature
- Fully Modular design
- All Japanese electrolytic capacitors
- Ultra silent 135mm FDB fan with semi-fanless function
12VHPWR PCIe connector supports ATX 3.0 specifications
The 12+4 pin (12VHPWR) design is capable of withstanding power failure caused by a running graphics card’s instantaneous peak power consumption, whilst providing higher stability and efficiency power output for high-end systems
Cybenetics Gold Certified
Designed for Cybenetics Gold level of efficiency to reduce wasted heat and save on electricity
Fully modular design with universal EPS / PCIe connector interface
Flat cables have much greater flexibility to allow for tighter folding and management of cable
All Japanese electrolytic capacitors
Ensure reliable power and extended life span

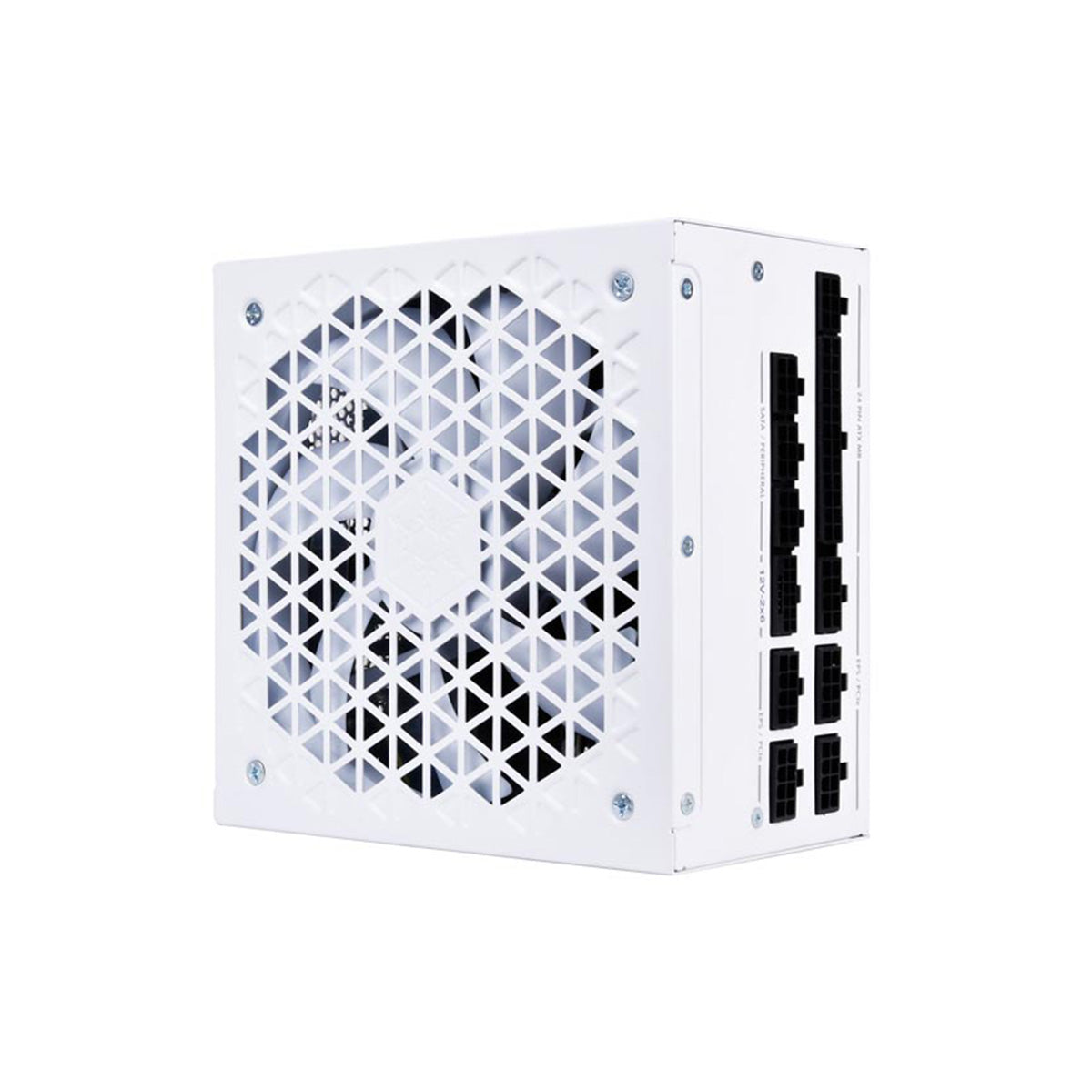

Silent 135mm FDB fan
Built-in 135 mm fan has excellent airflow and low noise, perfect for quiet home or office us
- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection
- Over temperature protection
Specifications
Specifications
| Product No. | SST-DA1000R-GM-WWW |
| Model (safety certification) | SST-AX1000MCGD-A |
| Color | White (lead-free paint) |
| Max. DC Output | 1000W |
| Power density | 517W per liter |
| Combined +3.3V & +5V | 120W |
| Combined +12V | 1000W |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC (PF>0.9 at full load) |
| Efficiency | ≥87% & <89% overall efficiency |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 50°C |
| Protection | Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Under Voltage Protection Over Temperature Protection No load operation |

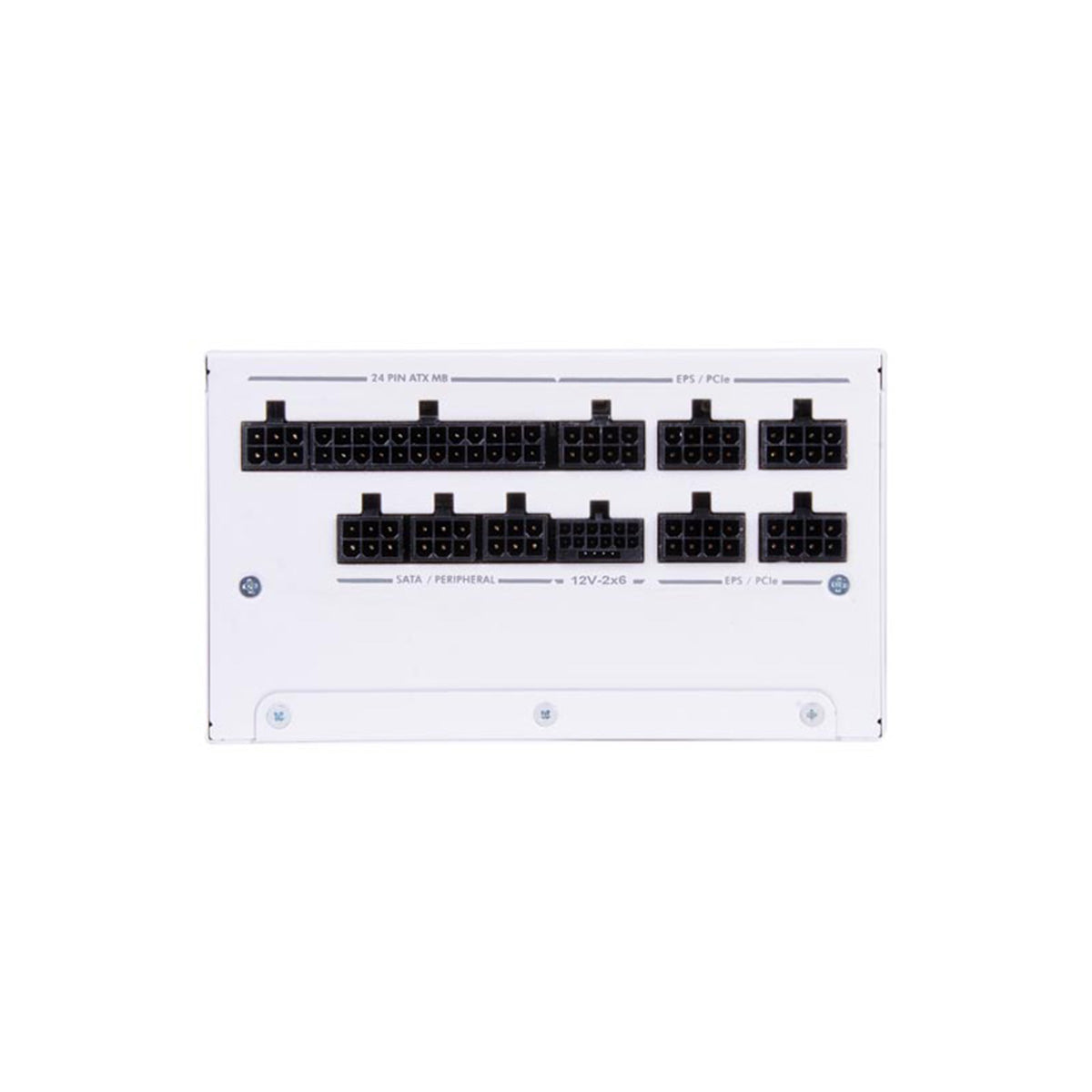

| Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 6 x 8 / 6-Pin PCIe connectors 1 x 12+4-Pin 12V-2x6 connector 12 x SATA connectors 3 x 4-Pin Peripheral connector 1 x 4-Pin Floppy connector |
| Cooling System | Silent 135mm FDB fan |
| Noise Level | 0 dBA minimum |
| Certification | Cybenetics Gold |
| Form factor | ATX (PS2) |
| Dimension | 150mm (W) × 86mm (H) × 150mm (D) 5.91" (W) x 3.39" (H) x 5.91" (D) |
| Weight | 2.88 kg |
| Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max. (Amps) | 22A | 22A | 83.5A | 3A | 0.3A |
| Min. (Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±3% | ±3% | +5/-7% | ±5% | ±5% |
| Line Reg. (%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple (mVp-p) | 30mV | 30mV | 70mV | 40mV | 40mV |
