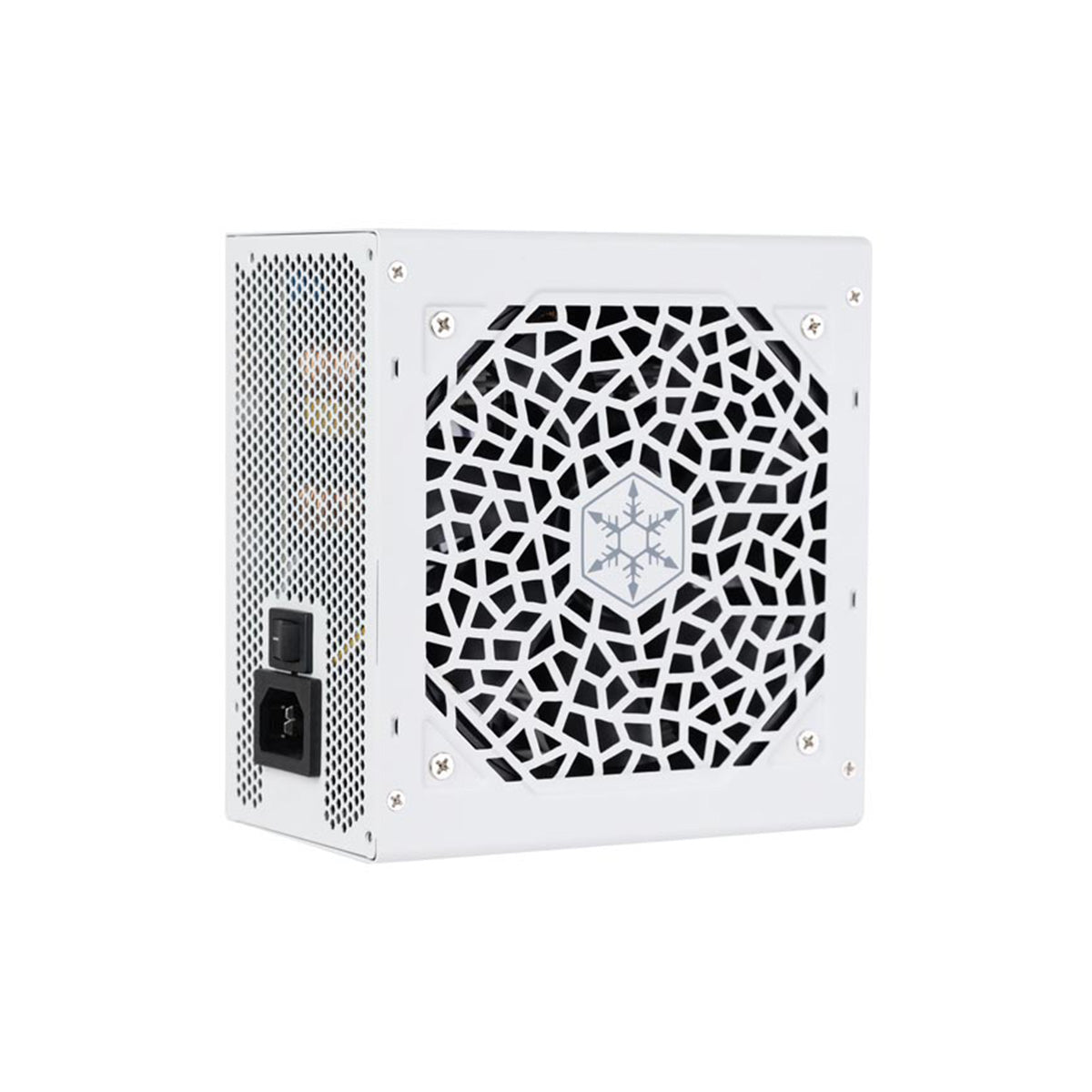

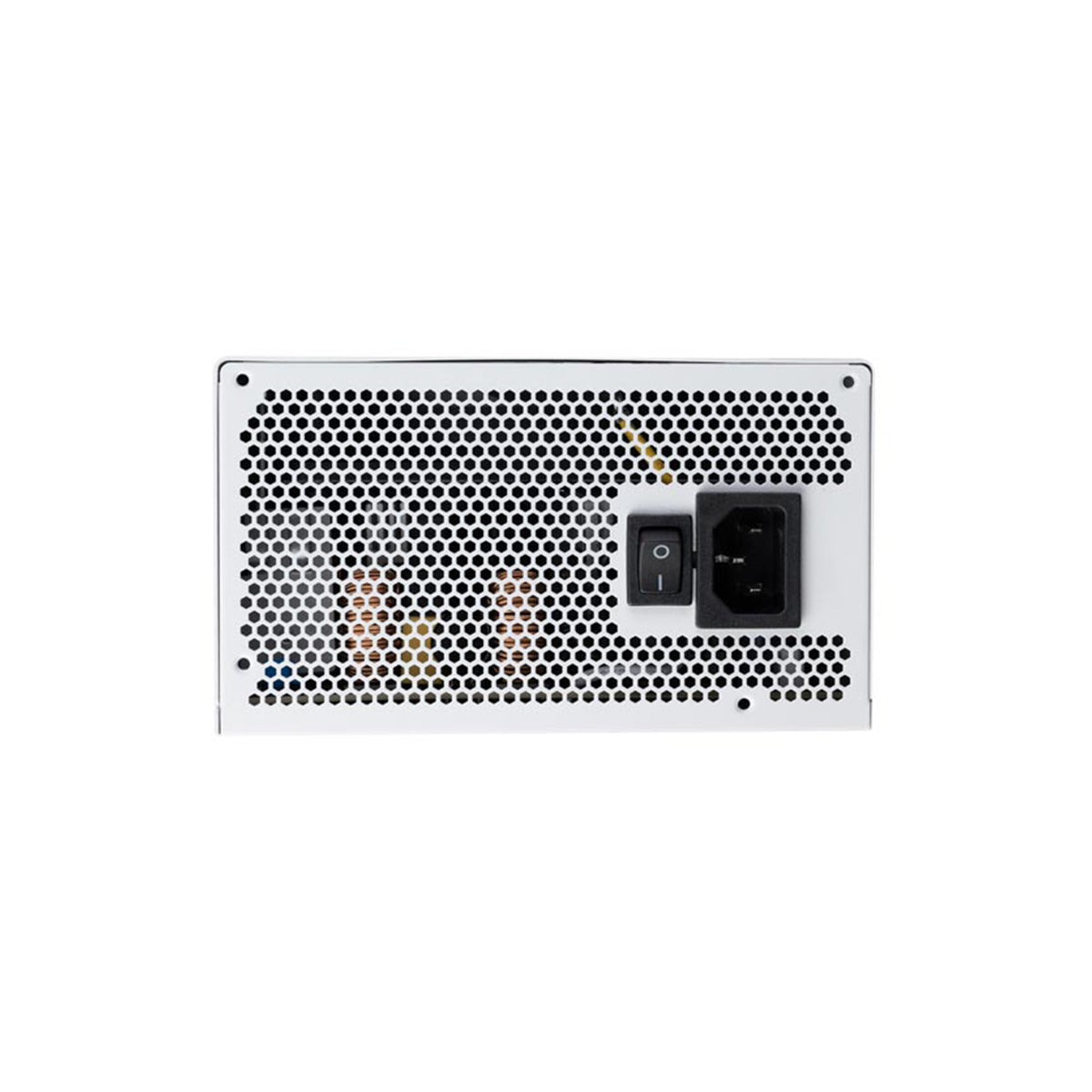

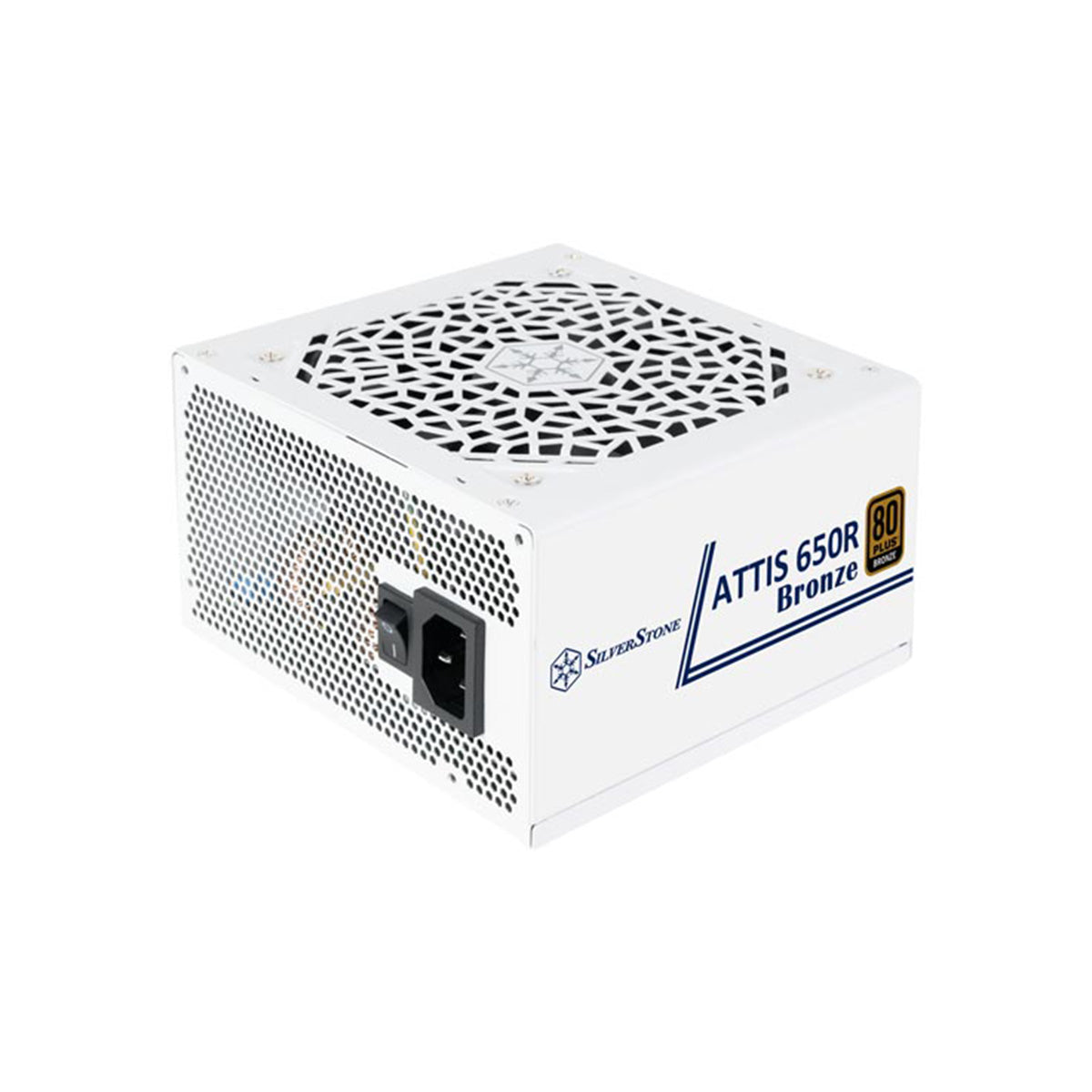

Silverstone AT650R 80Plus Bronze Power Supply - White
ATX 3.1
Warranty and Support
Warranty and Support
Warranty: 3 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
ATTIS 650R Bronze
80 PLUS Bronze 650W ATX 3.1 ATX Power Supply
- Compliant with ATX 3.1 standards and supports up to 2X power excursion
- High efficiency with 80 PLUS Bronze certification
- 24/7 continuous power output with 50℃ operating temperature
- Japanese primary capacitor
- Silent running 120mm fan with 18 dBA minimum
- Multiple protection circuitry
- Flat cable design
- Active PFC+Double forward+DC to DC Design
Bronze Efficiency Certified
Designed for 80 Plus Bronze level efficiency to minimize heat while considerably reducing electricity consumption.
High Reliability Cooling Fan
The cooling is entrusted to a 120mm fan that offers exceptional airflow and low operational-induced noise level.
- Compliant with ATX 3.1 standards and supports up to 2X power excursion
- Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking
- Flat cables have much greater flexibility to allow for tighter folding and management of cables
Advanced protections for safety and security
- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection
Specifications
Specifications

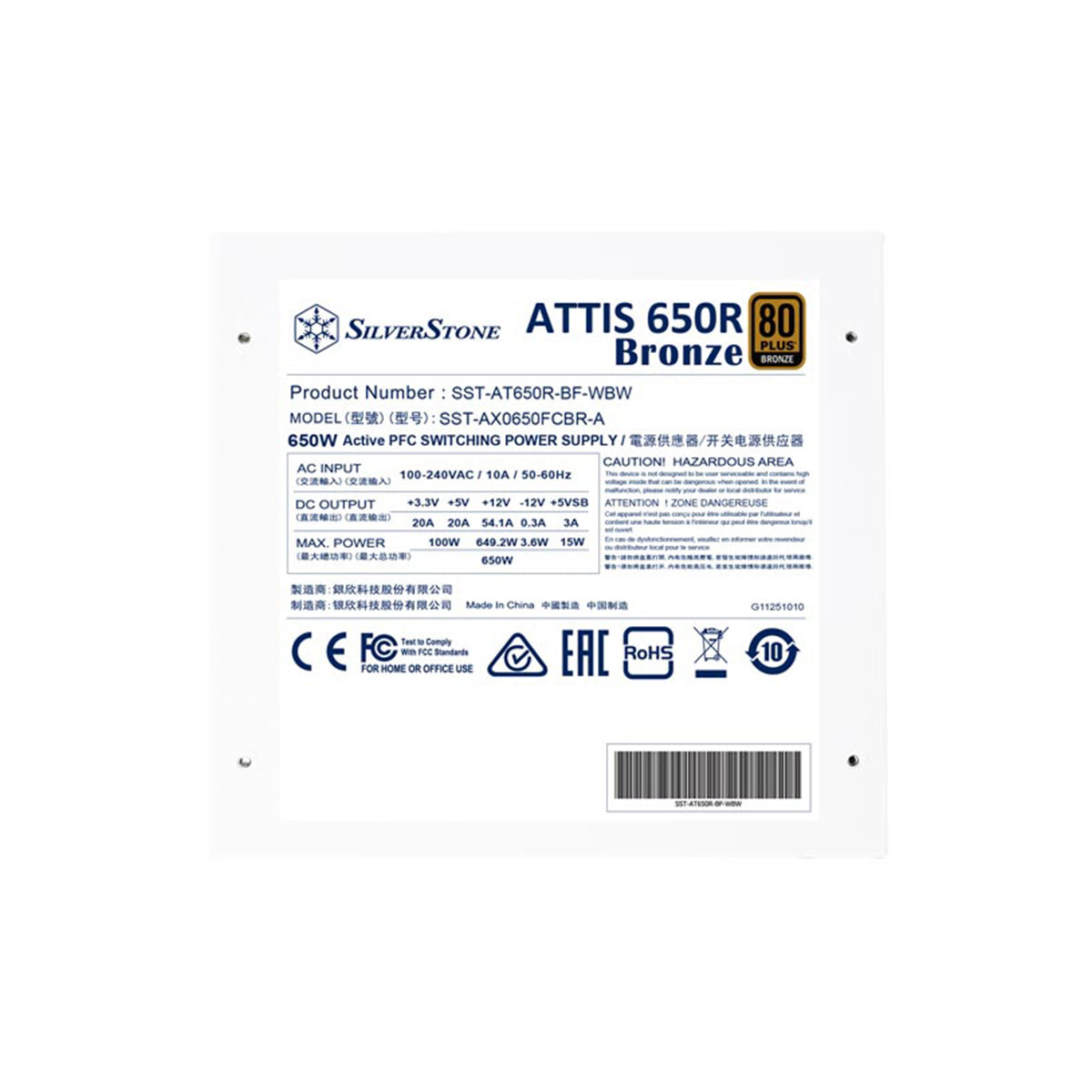

| Product No. | SST-AT650R-BF (Black) |
| SST-AT650R-BF-WBW (White) | |
| Model (safety certification) | SST-AX0650FCBR-A |
| Color | SST-AT650R-BF: Black (lead-free paint) |
| SST-AT650R-BF-WBW: White (lead-free paint) | |
| Max. DC Output | 650W |
| Combined +3.3V & +5V | 100W |
| Combined +12V | 649.2W |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC (PF>0.9 at full load) |
| Efficiency | 82% ~ 85% (at 20% ~ 100% loading) |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 50°C |
| Protection | Over Power Protection Over Voltage Protection Short Circuit Protection Under Voltage Protection |
| Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 4-Pin + 4-Pin ATX 12V connectors 4 x 8 / 6-Pin PCIe connectors 6 x SATA connectors 3 x 4-Pin Peripheral connector |
| Cooling System | Silent 120mm fan |
| Noise Level | 18 dBA minimum |
| Certification | 80 PLUS Bronze |
| Form factor | ATX (PS2) |
| Dimension | 150mm (W) × 86mm (H) × 140mm (D) 5.91" (W) x 3.39" (H) x 5.5" (D) |
| Weight | 1.52 kg |
| Other | GPU Support list |
Output | +3.3V | +5V | +12V | +5VSB | -12V |
|---|---|---|---|---|---|
| Max. (Amps) | 20A | 20A | 54.1A | 3A | 0.3A |
| Min. (Amps) | 0A | 0A | 0A | 0A | 0A |
| Range (%) | ±5% | ±5% | +5~-7% | ±5% | ±10% |
| Line Reg. (%) | ±1% | ±1% | ±1% | ±1% | ±1% |
| Ripple (mVp-p) | 50mV | 50mV | 120mV | 50mV | 50mV |
