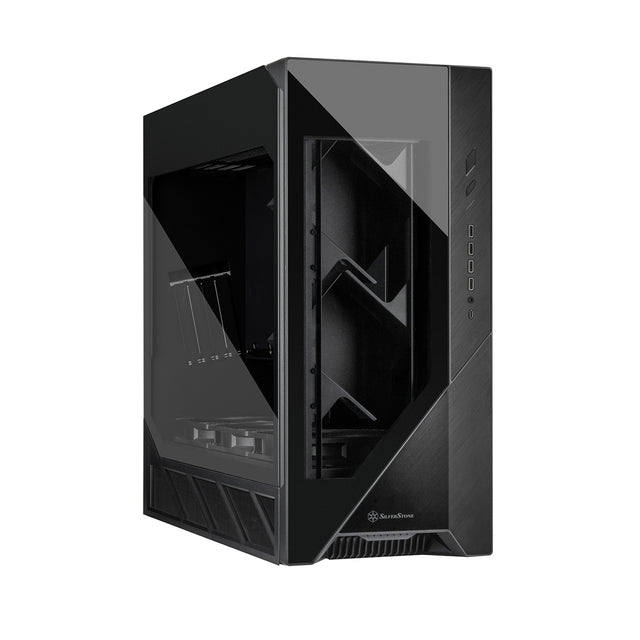

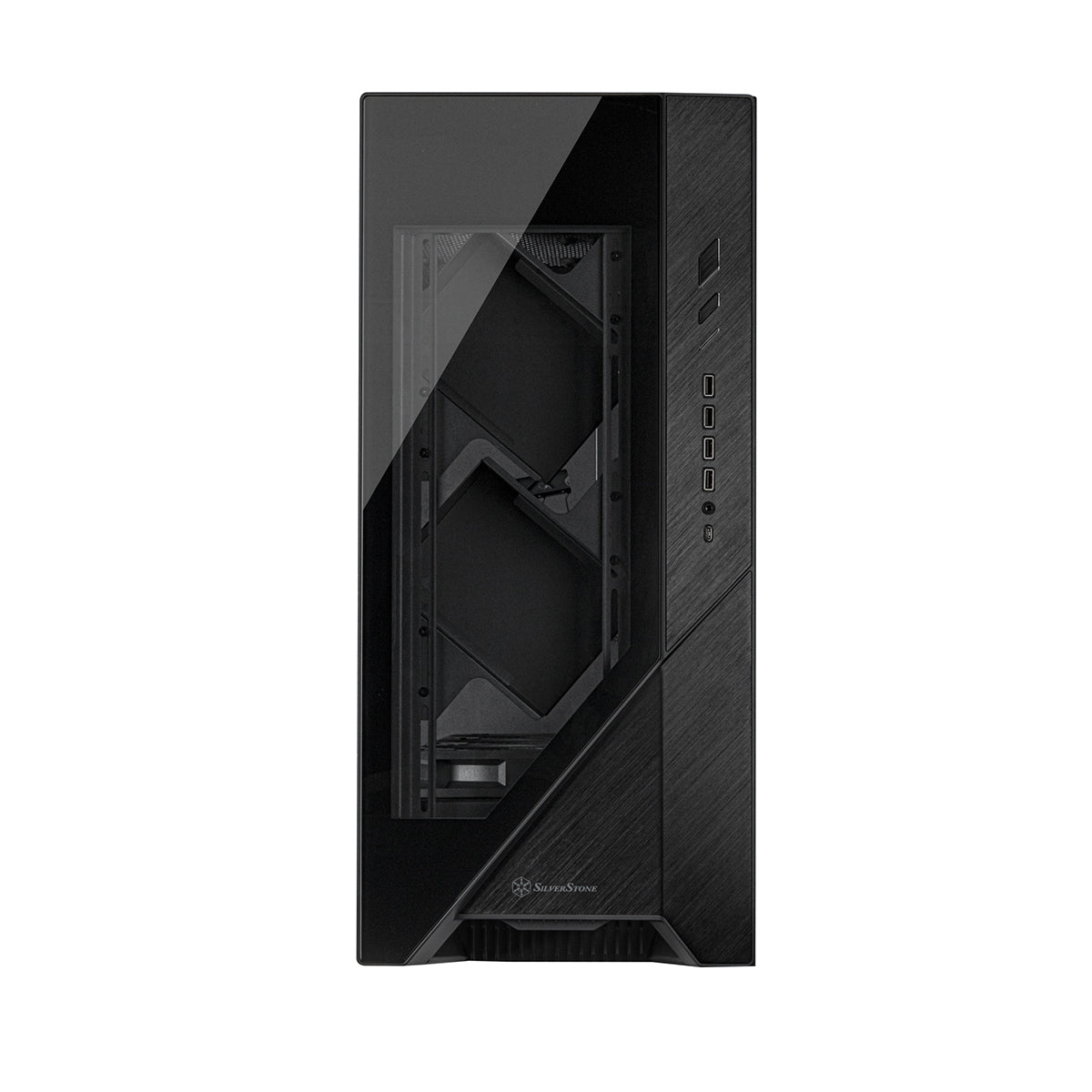

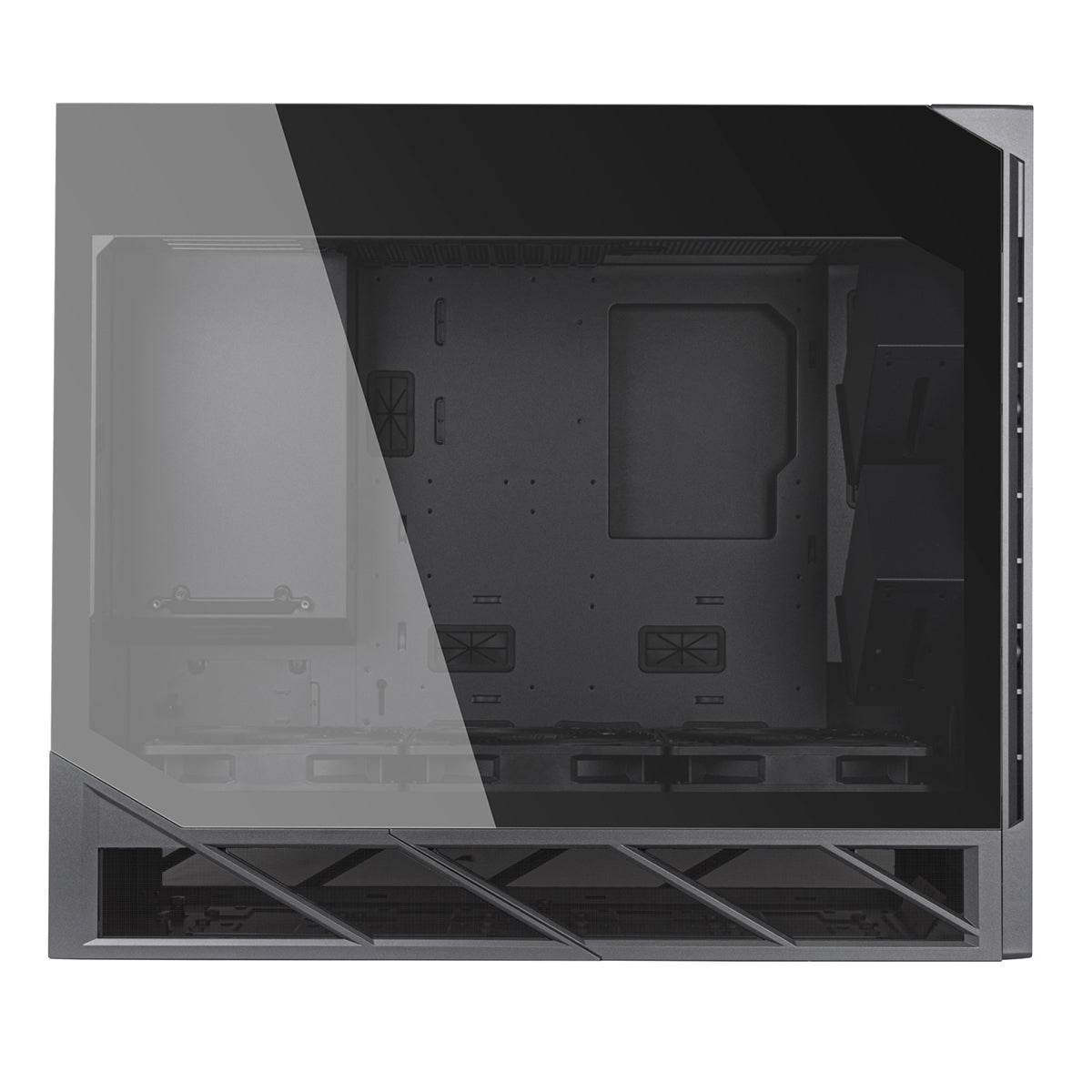

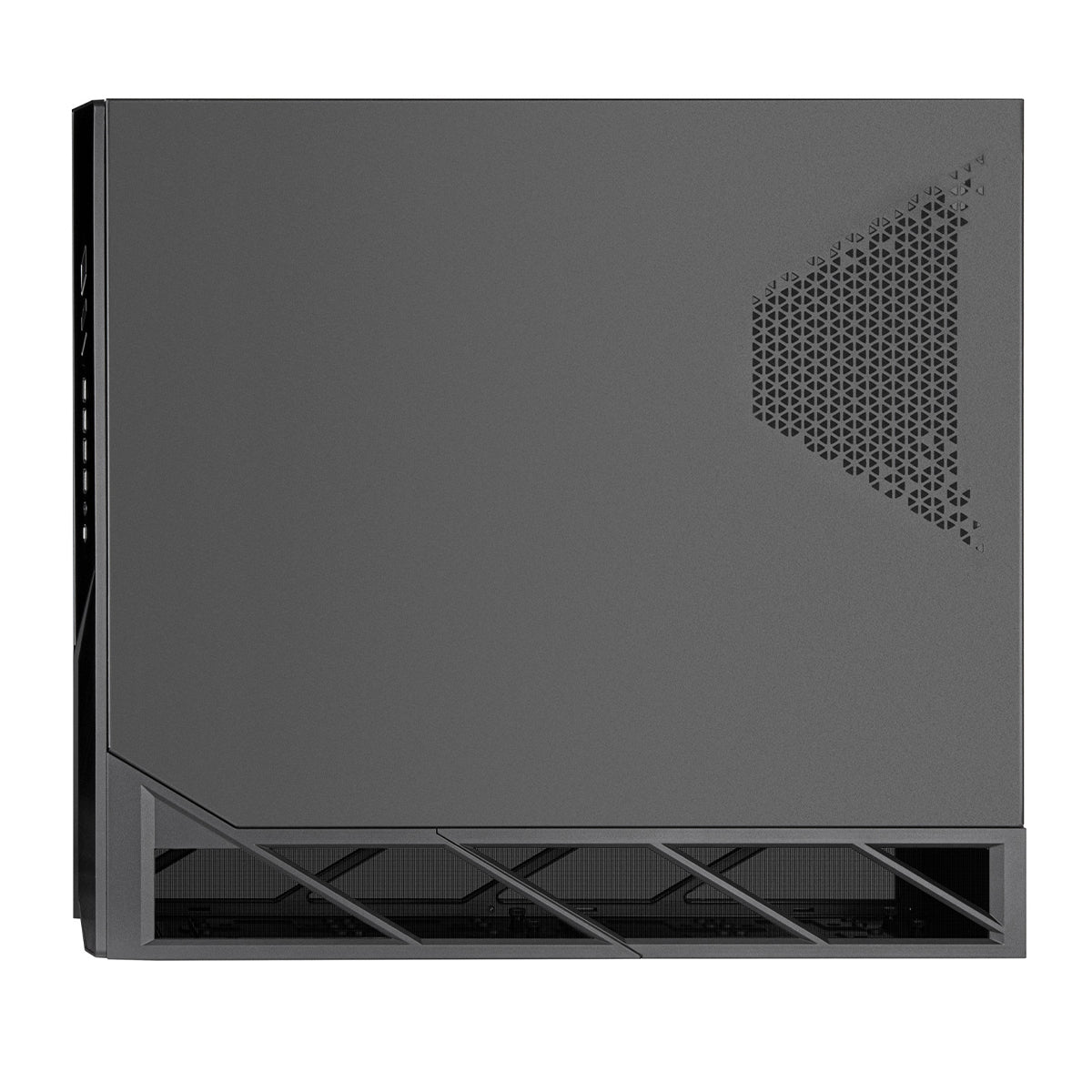

Silverstone ALTA F2 Premium Super Tower Chassis
In stock at Computer Lounge
Couldn't load pickup availability
Warranty and Support
Warranty and Support
Warranty: 1 Year Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Premium super tower chassis utilizing stack effect cooling layout with boundless hardware support.
- Stack effect design with 90-degree rotated motherboard layout
- Supports up to XL-ATX and SSI-EEB motherboards
- 3 x Air Penetrator 184i PRO fans included for immense stack effect intake performance
- Innovative GPU placement with 11.3° forward tilt
- Support for dual power supplies
- Supports up to 540mm (triple 180mm) liquid cooling radiator
- GPU & CPU in adjacent positions, both receiving independent cold air intake
- Push button design for easy removal of side panels
- Adjustable bottom fan bracket to increase airflow performance
- Mandatory cable routing design
- Front I/O includes USB 3.1 Gen 2 Type-C, USB 3.0 x 4 and combo audio x 1
SilverStone styling internal layout

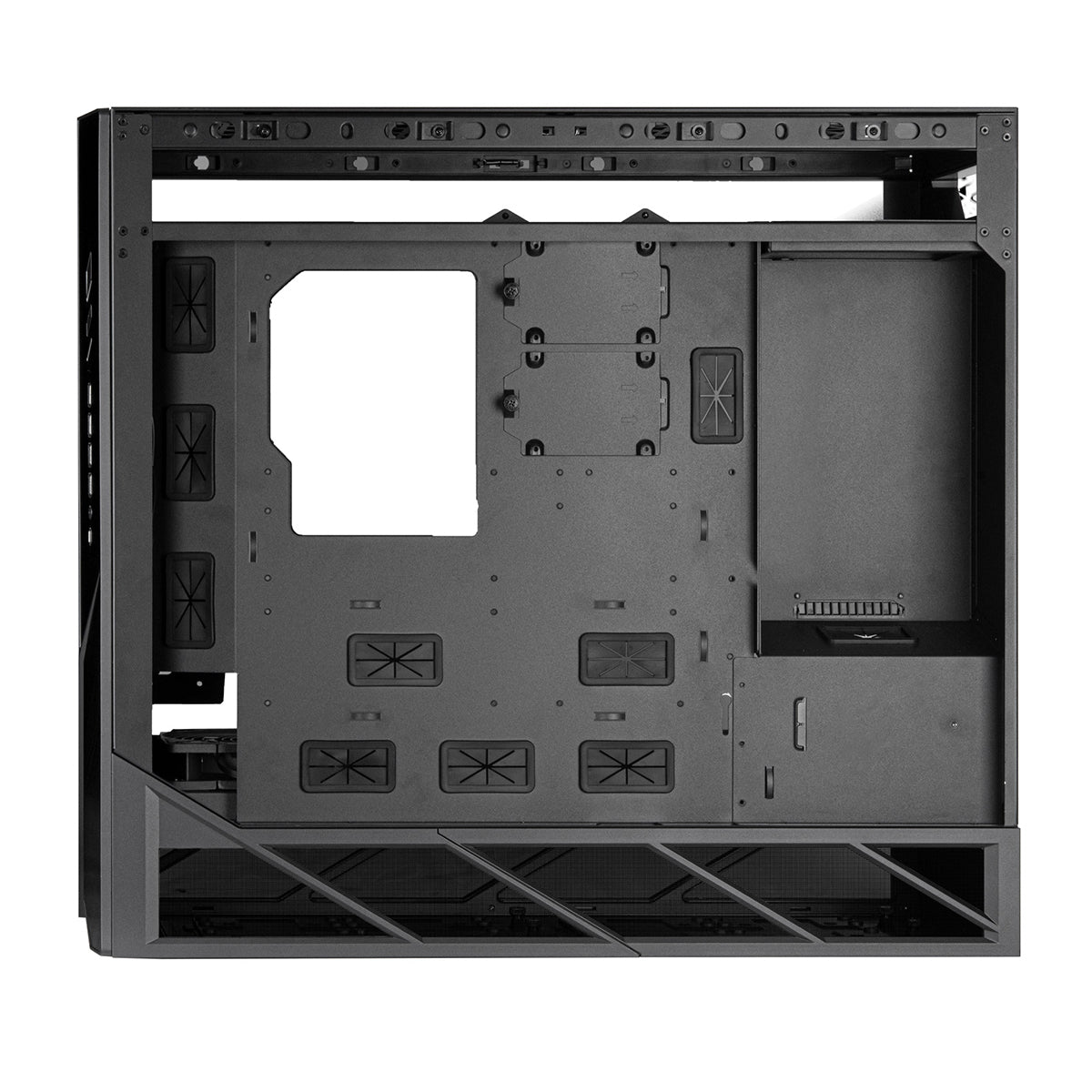

Utilizing a 90° rotated motherboard layout, ALTA F2 carries the torch of SilverStone’s stack effect, bottom-to-top directional airflow design legacy.
Unparalleled airflow performance
Equipped with 3 x Air Penetrator 184i PRO fans for bottom intake, supplies an immense intake volume to effectively cool internal components, whilst eliminating all possible dead spots.
Innovative GPU mounting position
To battle the ever-growing demand in graphics card power consumption, implemented at the rear of the chassis are 4 PCI slots with a 11.3° forward tilt, separating the GPU and CPU in adjacent positions, allowing both components to receive their respective air intake, thus heat generated do not overlap each other and is exhausted out of the case efficiently.
Never run out of power!
A high-end system might require extra power at times, hence, a secondary standard ATX (PS2) mount has been incorporated into its design to prepare for the unforeseeable.
Multiple GPU orientations
- Rear of the chassis with a 11.3° forward tilt
- Secondary PSU mount – an opportunity cost for users based on their system requirements and preferences
- Standard placement on motherboard PCIe slot
Specifications
Specifications
| Model No. | SST-ALF2B-G (Black) |
| Material | Aluminum, plastic, steel, tempered glass |
| Motherboard | SSI-EEB, SSI-CEB, Extended ATX, XL-ATX , ATX, Micro-ATX, Mini-ITX |
| Drive bay | Internal 3.5" x 4 (compatible with 2.5" x 4) 3.5" x 4 2.5" x 3 |
| Cooling system | Front 120mm x 2 / 140mm x 2 Top 120mm x 4 / 140mm x 1 Bottom 180mm x 3 (180mm x 3 Air Penetrator 184i PRO fans included) |
| Radiator support | Front 120mm / 140mm / 240mm / 280mm Top 120mm / 140mm / 240mm / 360mm / 480mm Bottom 120mm / 140mm / 240mm / 280mm / 360mm (120mm x 3) / 360mm (180mm x 2) / 420mm / 480mm / 540mm / 560mm |
| Limitation of CPU cooler | 205mm |
| Expansion slot | 9+4+4 |
| Limitation of expansion card | Length (vertical): 354mm Length (horizontal): 604mm (with front hard drive cages removed) Width: 209mm |
| Power supply | Standard PS2 (ATX) + Standard PS2 (ATX) under 1200W (Occupies the rear 4+4 expansion slots) |
| Limitation of PSU | 220mm |
| Front I/O port | USB Type-C x 1 USB 3.0 x 4 Combo audio x 1 |
| Dimension | 261mm (W) x 576mm (H) x 658mm (D), 99 Liters 10.28” (W) x 22.68” (H) x 25.91” (D), 99 Liters |
| Net weight | 21.14 kg |
