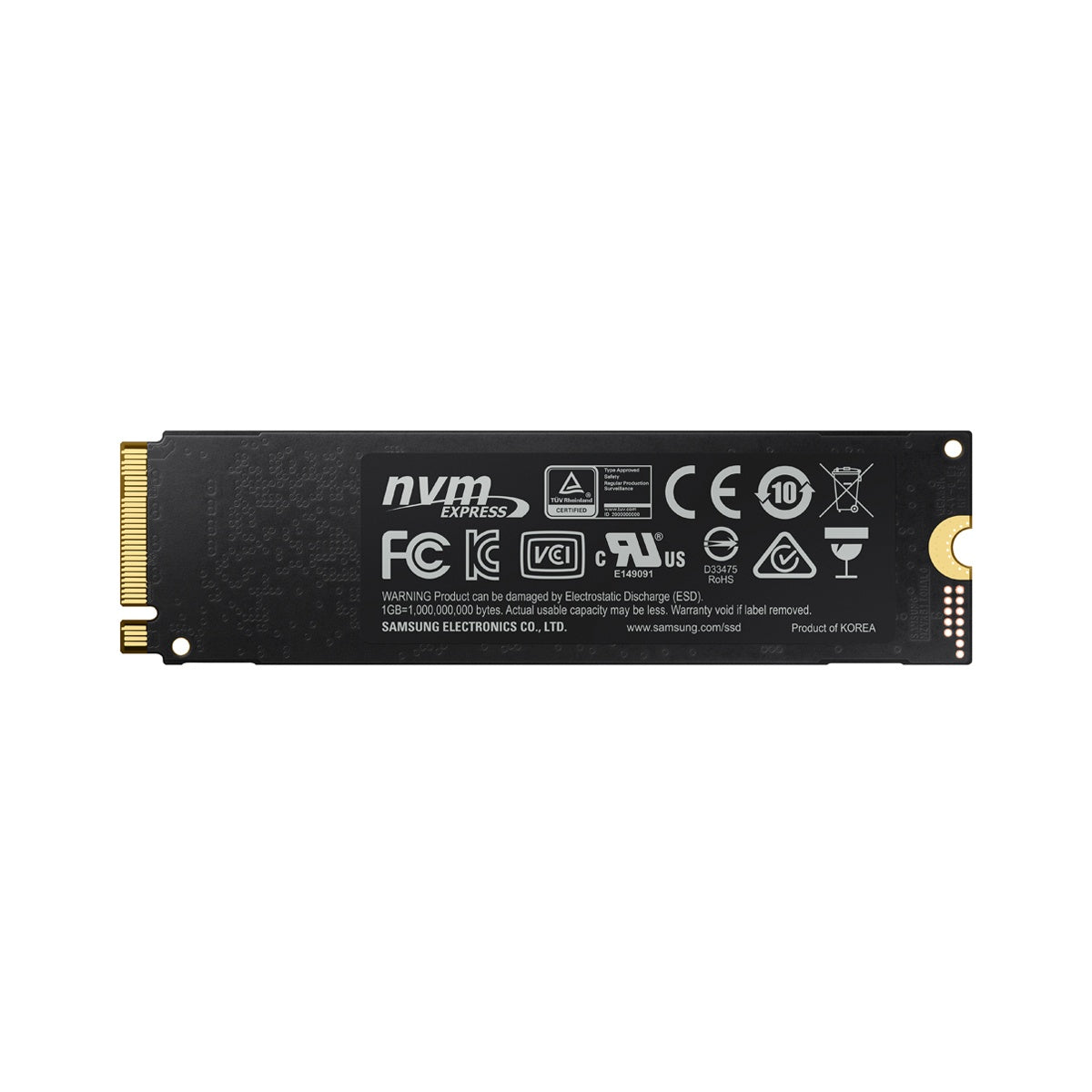

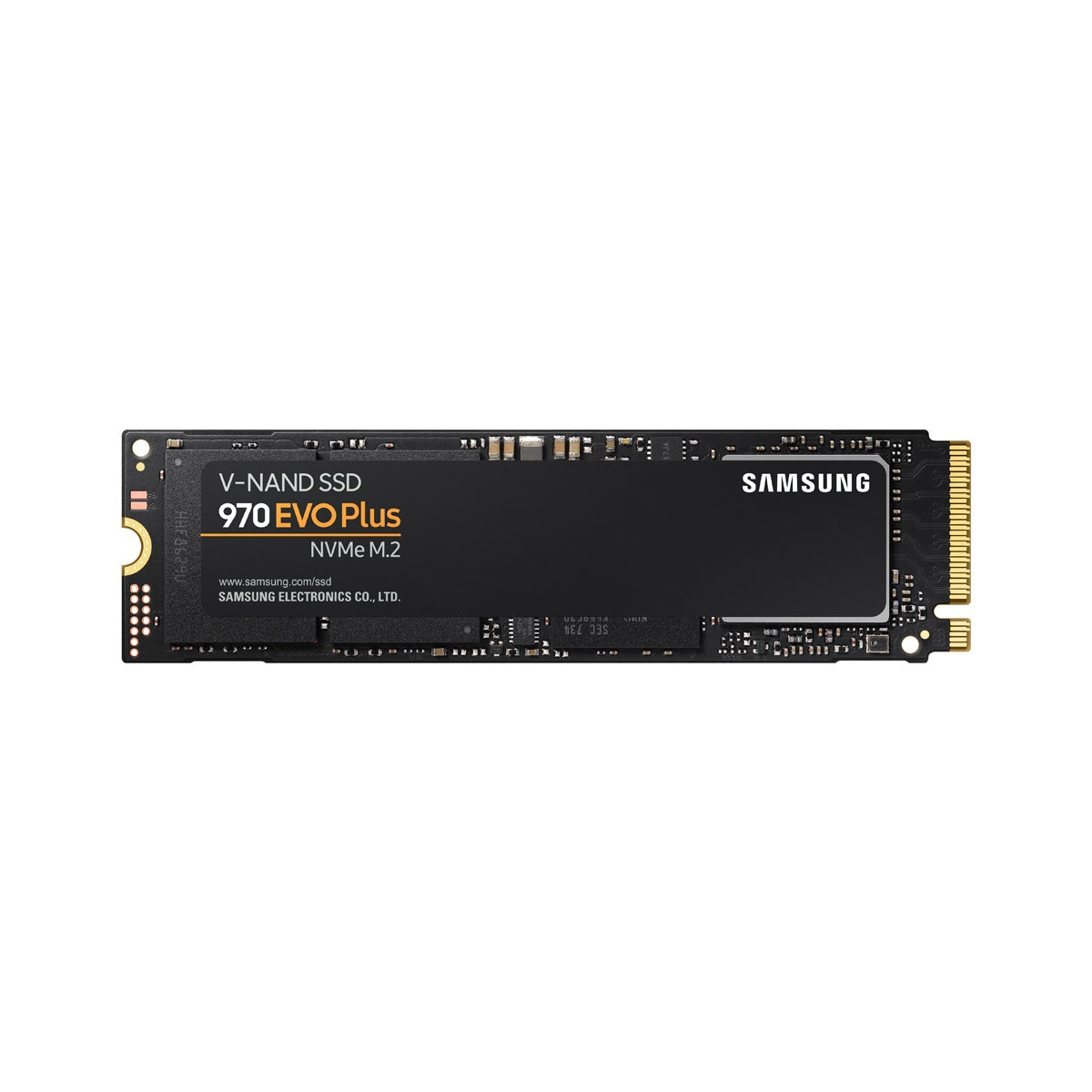

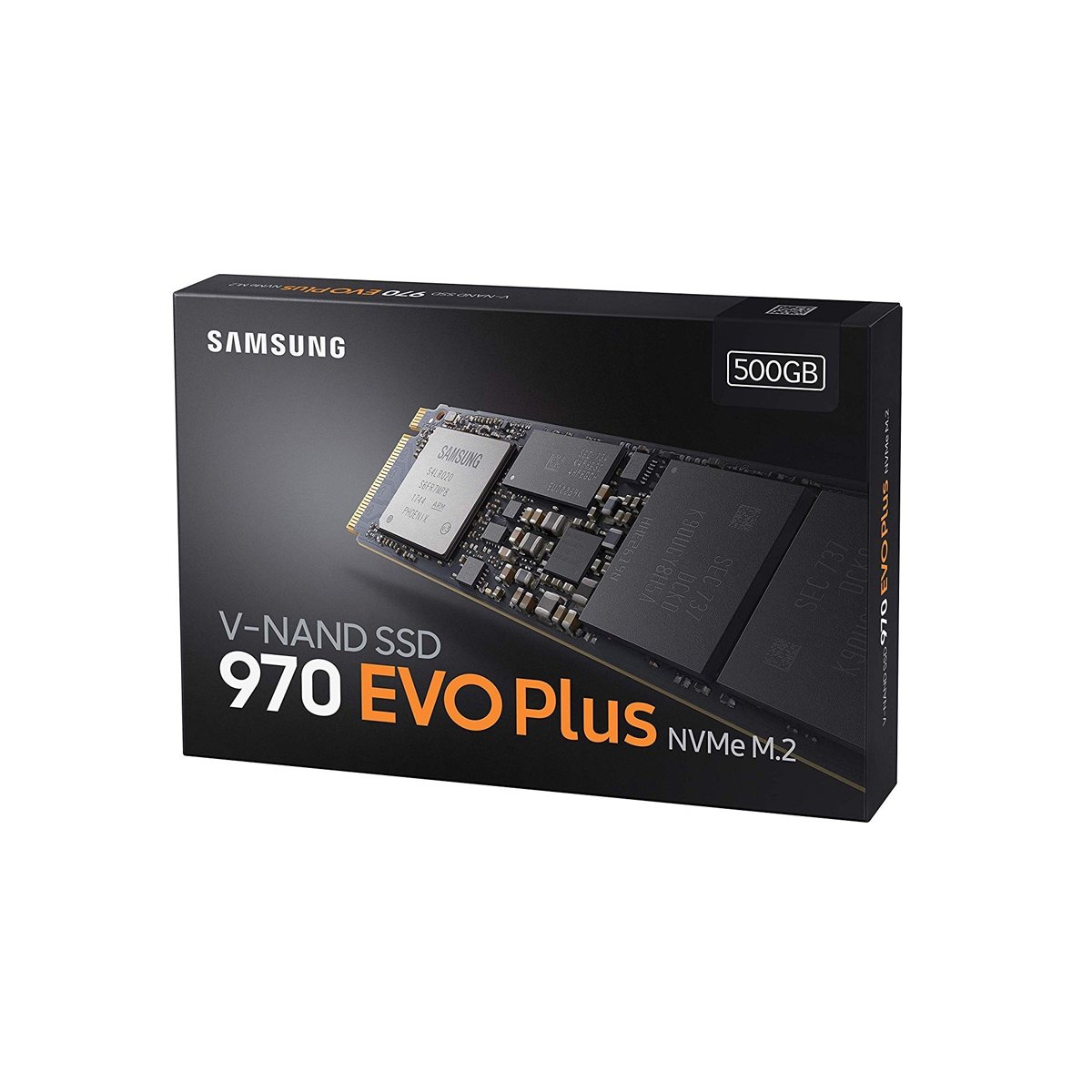

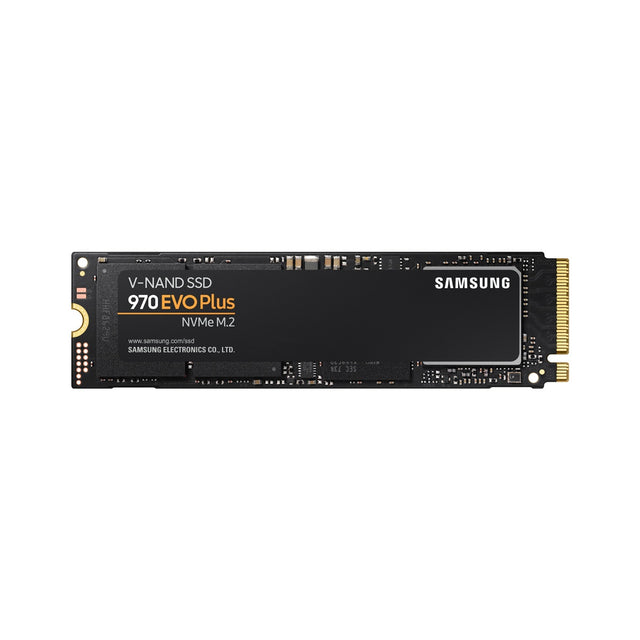

Samsung 970 EVO Plus 500GB Gen3 M.2 NVMe SSD
Warranty and Support
Warranty and Support
Warranty: 5 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Always Evolving SSD
The ultimate in performance, upgraded. Faster than the 970 EVO, the 970 EVO Plus is powered by the latest V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for unbeatable computing. Comes in capacities of up to 1TB, with reliability of up to 600 TBW.
Level up Performance
The 970 EVO Plus reaches sequential read/write speeds up to 3,500/3,300 MB/s, up to 53% faster than the 970 EVO. Powered by the latest V-NAND technology—which brings greater NAND performance and higher power efficiency—along with optimized firmware, a proven Phoenix controller, and Intelligent TurboWrite boost speed.
Design Flexibility
The next advancement in NVMe SSDs. The 970 EVO Plus fits up to 1TB onto the compact M.2 (2280) form factor, greatly expanding storage capacity and saving space for other components. Samsung's innovative technology empowers you with the capacity to do more and accomplish more.
Exceptional Endurance
The new standard in sustainable performance. Get up to 600 TBW with a 5-year limited warranty for lasting performance. The 970 EVO Plus provides exceptional endurance powered by the latest V-NAND technology and Samsung's reputation for quality.
Unparalleled Reliability
Achieve a new level of drive confidence. Samsung's advanced nickel-coated controller and heat spreader on the 970 EVO Plus enable superior heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains optimal operating temperatures to minimize performance drops.
Samsung Magician
Advanced drive management made simple. The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.
Specifications
Specifications
| General Feature | ApplicationClient PCs |
| Capacity | 500GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) |
| Form Factor | M.2 (2280) |
| Interface | PCIe Gen 3.0 x 4, NVMe 1.3 |
| Dimension (WxHxD) | 80.15 x 22.15 x 2.38 (mm) |
| Weight | Max 8.0 g Weight |
| Storage Memory | Samsung V-NAND 3-bit MLC |
| Controller | Samsung Phoenix Controller |
| Cache Memory | Samsung 512MB Low Power DDR4 SDRAM |
| Special Feature | |
| TRIM Support | Supported |
| S.M.A.R.T Support | Supported |
| GC (Garbage Collection) | Auto Garbage Collection Algorithm |
| Encryption Support | AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive) |
| WWN Support | Not supported |
| Device Sleep Mode Support | Yes |
| Performance | |
| Sequential Read | Up to 3,500 MB/s * Performance may vary based on system hardware & configuration |
| Sequential Write | Up to 3,200 MB/s * Performance may vary based on system hardware & configuration |
| Random Read (4KB, QD32) | Up to 480,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Write (4KB, QD32) | Up to 550,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Read (4KB, QD1) | Up to 19,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Write (4KB, QD1) | Up to 60,000 IOPS * Performance may vary based on system hardware & configuration |
| Environment | |
| Average Power Consumption (system level) | Average: 5.8 W * Maximum: 9 W (Burst mode) * Actual power consumption may vary depending on system hardware & configuration |
| Power consumption (Idle) | Max. 30 mW * Actual power consumption may vary depending on system hardware & configuration |
| Allowable Voltage | 3.3 V ± 5 % Allowable voltage |
| Reliability (MTBF) | 1.5 Million Hours Reliability (MTBF) |
| Operating Temperature | 0 - 70 ℃ Operating Temperature |
| Shock | 1,500 G & 0.5 ms (Half sine) |
