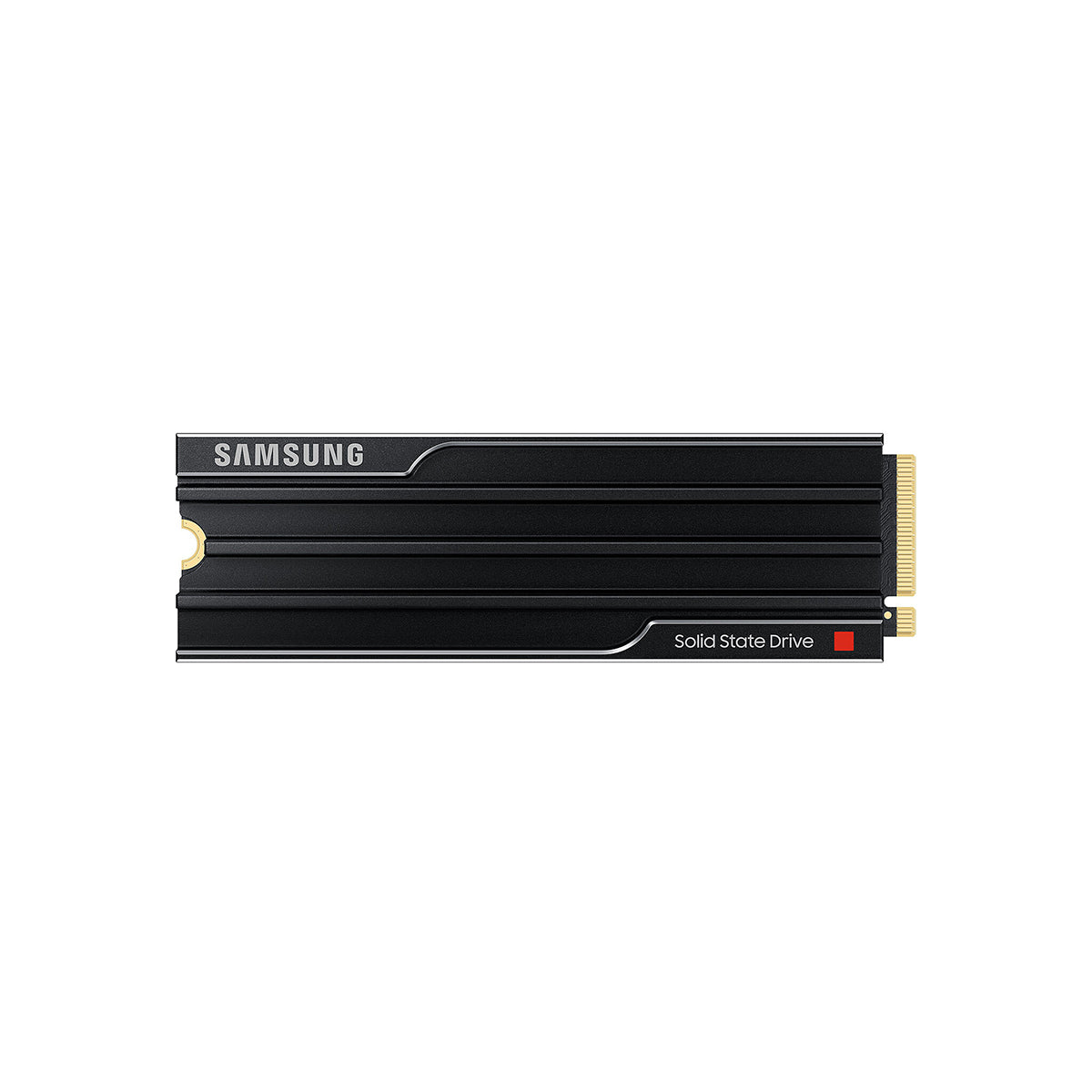

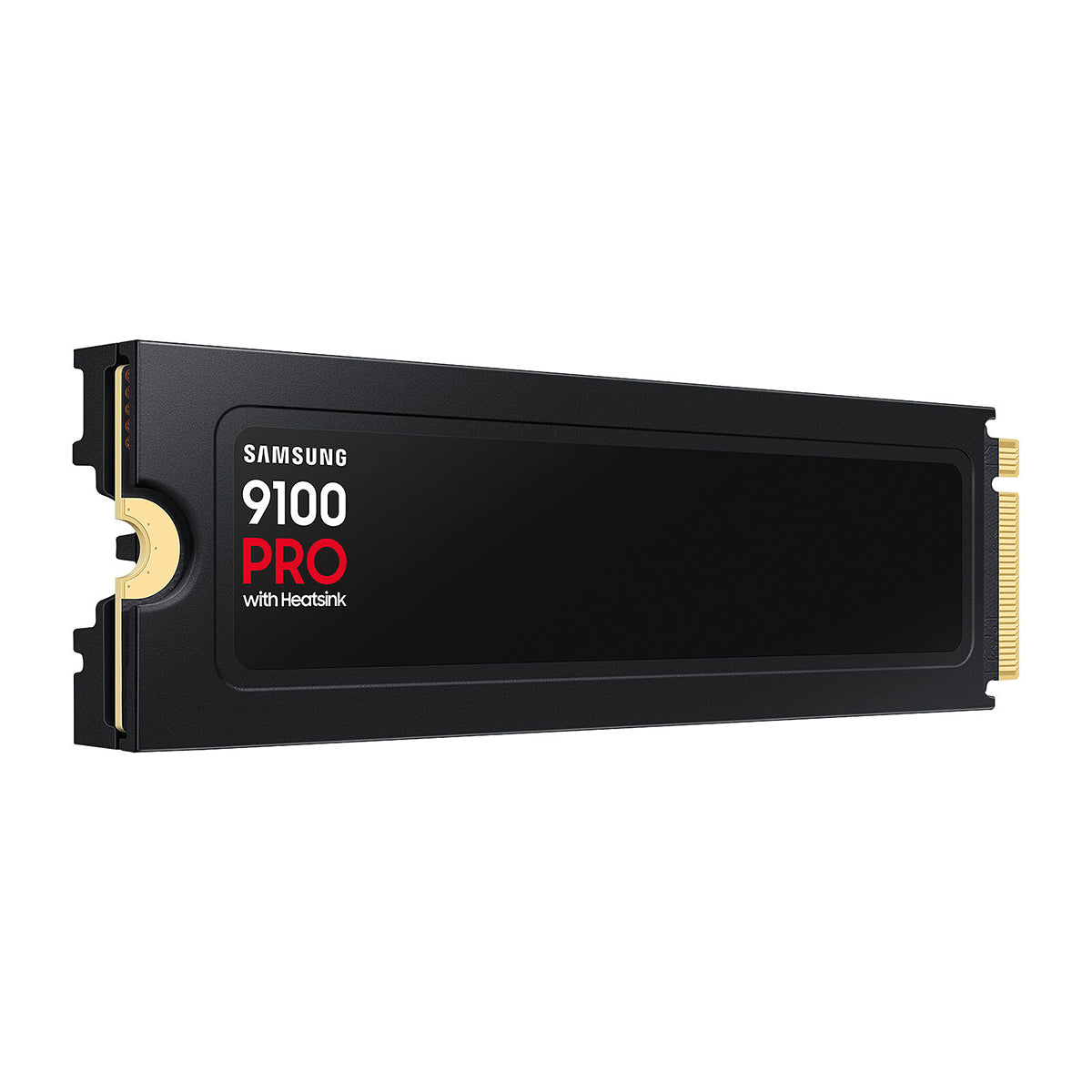

Samsung 9100 PRO 1TB Gen5 M.2 NVMe SSD With Heatsink
Warranty and Support
Warranty and Support
Warranty: 5 Years Return to Base Warranty
Returns: 14-day hassle-free exchanges and store credits, subject to terms and conditions outlined in our Returns Policy.
Delivery and Shipping
Delivery and Shipping
All deliveries are signature required.
North Island: 1 – 2 working days
South Island: 2 – 3 working days
Please allow an additional 1 – 2 working days for delivery to rural addresses.
Buy Now, Pay Later & Finance Options:
Description
Description
Breakthrough PCIe® 5.0 performance
Push PCIe® 5.0 performance to the max. 9100 PRO achieves lightning-fast sequential read/write speeds up to 14,800/13,400 MB/s, with sequential read speeds up to two times faster than 990 PRO. Leave Gen4 limits behind with random read/write speeds up to 2,200K/2,600K IOPS, only possible by Gen5.
*Sequential and random performance was measured with Intelligent Turbo Write technology activated, which only operates within a specific data transfer size. Performance may vary depending on SSD's firmware, system hardware & configuration, and other factors. For detailed information, please contact your local service center.
*To maximise the performance of the 9100 PRO, please check whether your system supports PCIe® 5.0 on Intel or AMD website.
Every task, powerfully parallel
Speed past productivity limits. Exhilarating random read/write speeds enable ultra-fast parallel processing for countless fragmented data, at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.
Create with AI in an instant
Intelligence redefines performance. Defy your limits in work and play with an on-board AI PC and AI content generation, fueled by 9100 PRO's exhilarating random read/write speeds up to 2,200K/2,600K IOPS. Swift loads, smooth gameplay, seamless performance.
*Performance may vary depending on SSD's firmware, system hardware & configuration, and other factors.
Conquer any game instantly
Boundless gaming freedom. Join forces with the 9100 PRO with Heatsink on PC, laptop, or PlayStation® 5, and experience otherworldly performance with the latest PCIe® 5.0 interfaces. Equip yourself with the ultimate winning edge to devastate opponents and reign supreme. Any arena, any device.
Extraordinary thermal efficiency
Peak performance, uninterrupted. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO. Exceptional thermal control ensures nothing disrupts your flow, so you can keep the most demanding programs running with the max possible power of PCIe® 5.0.
*990 PRO sequential read/write 1,221/1,255 MB/s per Watt, 9100 PRO sequential read/write 1,822/1,703 MB/s per Watt based on the internal test result of the 2TB capacity model.
Samsung Magician software
Make your SSD work like magic. Samsung Magician software's optimization tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.
*For detailed information, please visit Samsung Magician software website. Samsung Magician
Bringing innovations to life
For decades, Samsung's NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.

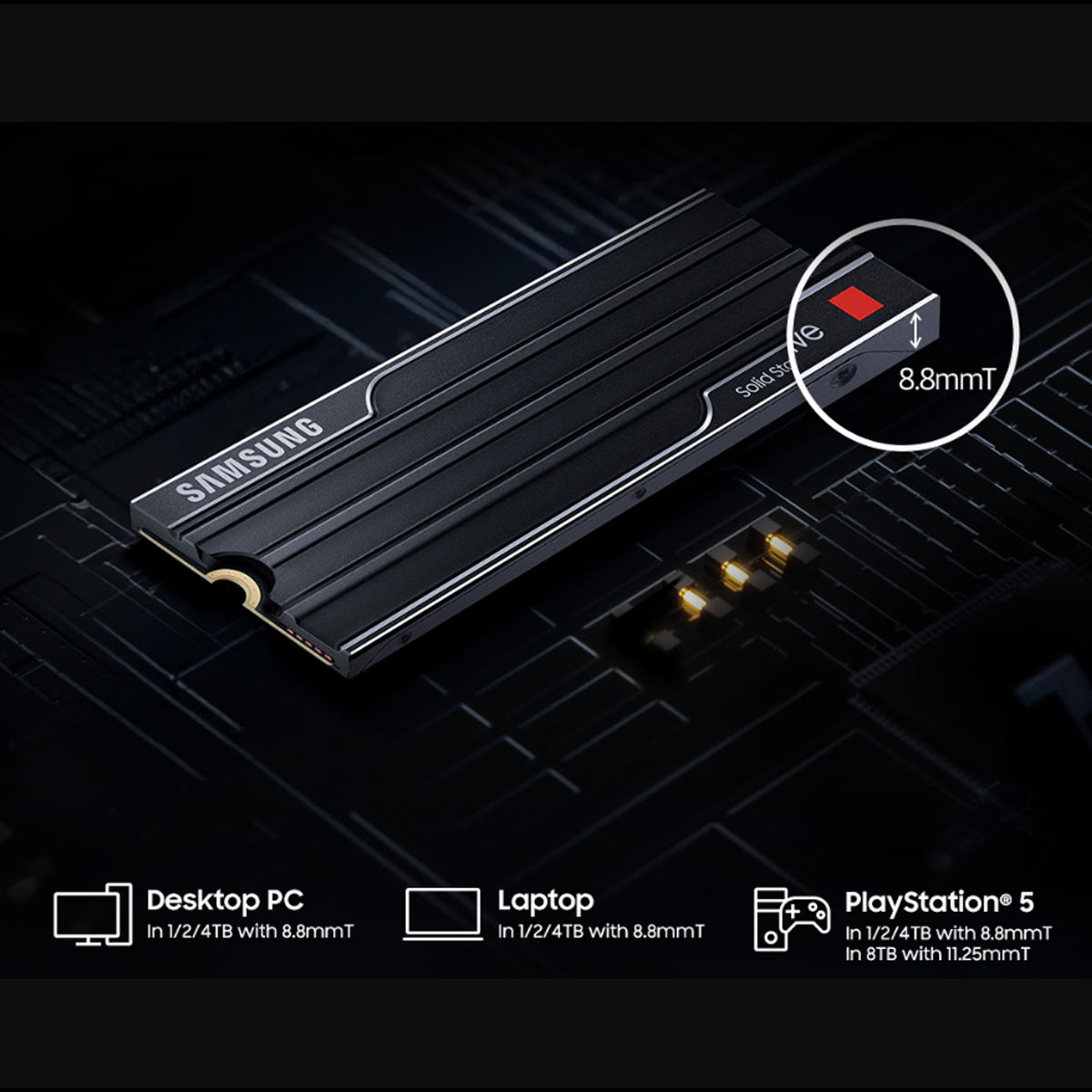

Slim build. Seamless fit.
Specifications
Specifications
| Interface | PCIe® 5.0 x4, NVMe™ 2.0 |
| Sequential Read | Up to 14,700 MB/s * Performance may vary based on system hardware & configuration |
| Sequential Write | Up to 13,300 MB/s * Performance may vary based on system hardware & configuration |
| Warranty | 5-year Limited Warranty or 600TBW Limited Warranty |
| Application | Client PCs, Game Consoles |
| Weight | Max 30.0g |
| Dimension (WxHxD) | Max 80.15 x Max 25 x Max 8.88mm (with Heatsink) |
| Capacity | 1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise) |
| Form Factor | M.2 (2280) |
| Storage Memory | Samsung V-NAND TLC |
| Controller | Samsung in-house Controller |
| Cache Memory | Samsung 1GB Low Power DDR4X SDRAM |
| TRIM Support | Supported |
| S.M.A.R.T Support | Supported |
| GC (Garbage Collection) | Auto Garbage Collection Algorithm |
| Encryption Support | AES 256-bit Encryption (Class 0) TCG/Opal IEEE1667 (Encrypted drive) |
| WWN Support | Not supported |
| Device Sleep Mode Support | Yes |
| Random Read | Up to 1,850,000 IOPS * Performance may vary based on system hardware & configuration |
| Random Write | Up to 2,600,000 IOPS * Performance may vary based on system hardware & configuration |
| Average Power Consumption (system level) | Average: Read 7.6 W / Write 7.2 W * Actual power consumption may vary depending on system hardware & configuration |
| Power Consumption (Idle) | Typical 4 mW * Actual power consumption may vary depending on system hardware & configuration |
| Power Consumption (Device Sleep) | Typical 3.3 mW * Actual power consumption may vary depending on system hardware & configuration |
| Allowable Voltage | 3.3 V ± 5 % Allowable voltage |
| Reliability (MTBF) | 1.5 Million Hours Reliability (MTBF) |
| Operating Temperature | 0 - 70 ℃ |
| Shock | 1,500 G & 0.5 ms (Half sine) |
